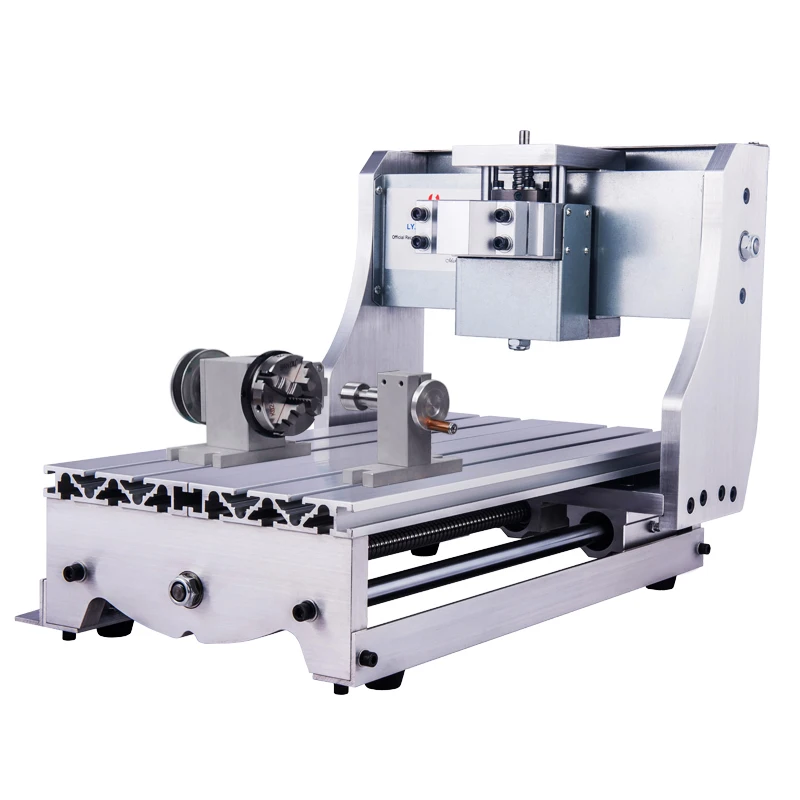

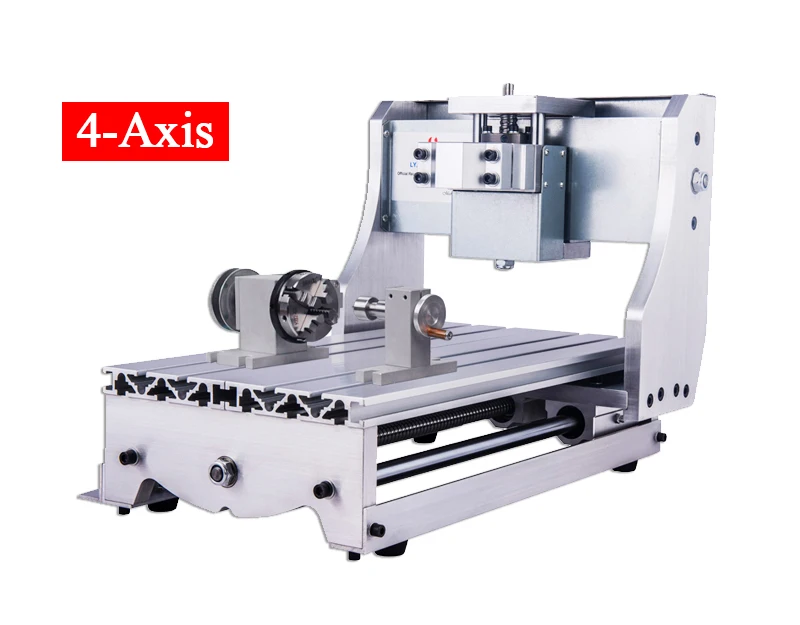

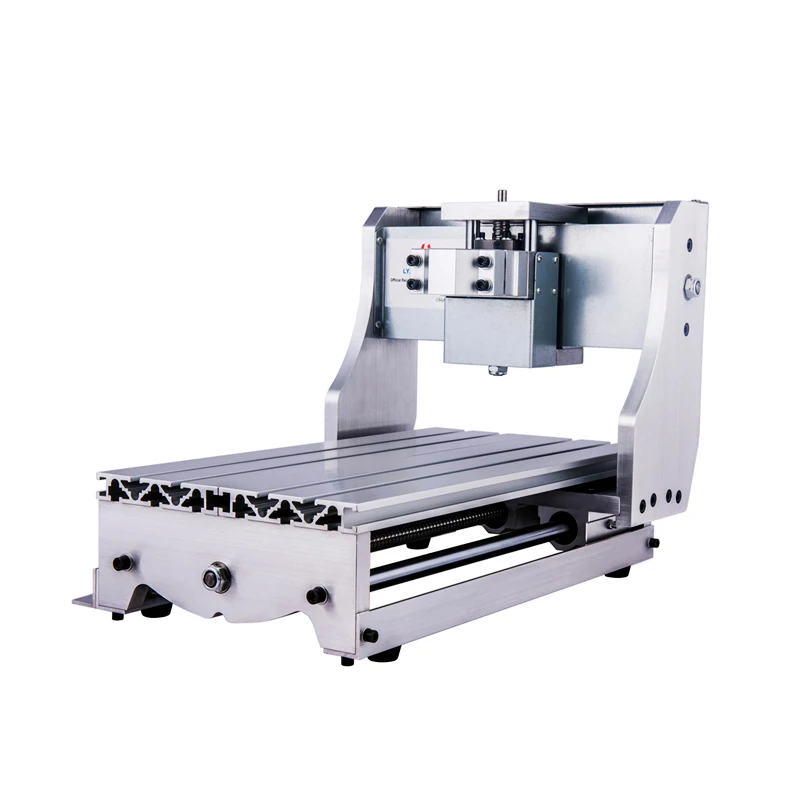

4axis 3020 CNC Router Aluminium Frame For Engraving Drilling And Milling Machine Wood Router Lathe With Rotary Axis
Introduction

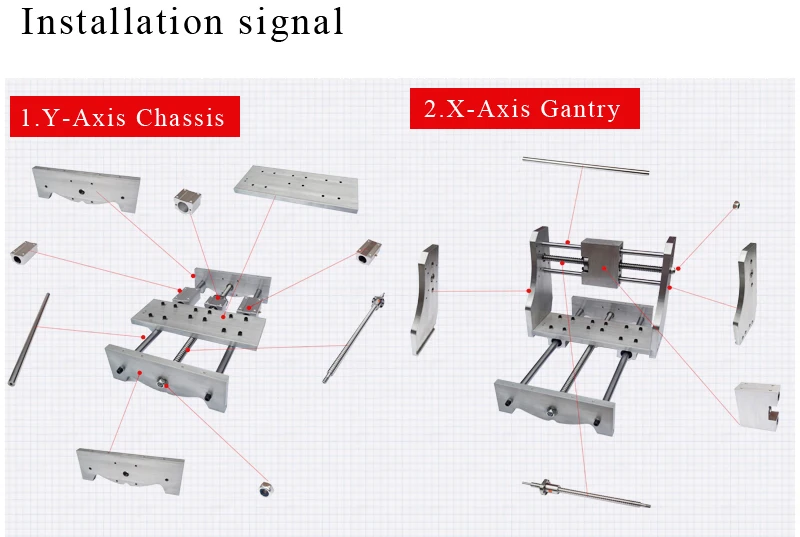

The CNC router frame 3020 need self-assembled for DIY amateur;
The cnc router 3020 is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.
Model and Technical Parameters
|
MODEL
|
CNC 3020 Frame 4axis
|
|||||
|
Attribute
|
T
|
T+Motor
|
Z
|
Z+Motor
|
||
|
Axis
|
4axis
|
4axis
|
4axis
|
4axis
|
||
|
Stepper motor base
|
Yes
|
Yes
|
Yes
|
yes
|
||
|

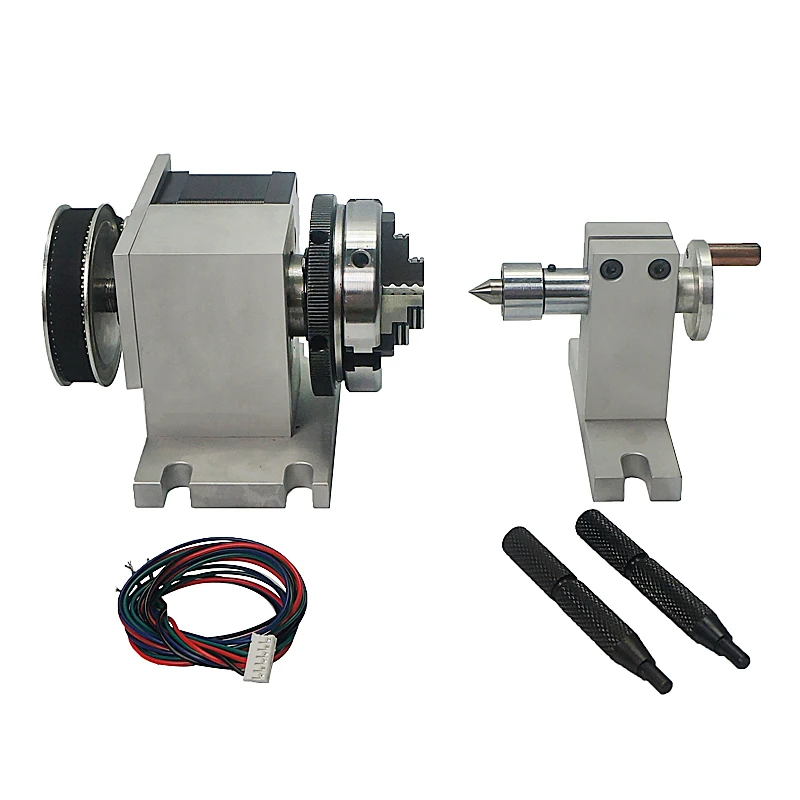

Coupling
|
No
|
Yes
|
No
|
Yes
|
||
|
Stepper Motor
|
No
|
Yes 57mm
|
No
|
Yes 57mm
|
||
|
Type of screw
|
1404
Trapezoidal Screw
|
1404
Trapezoidal Screw
|
1605
Ball screw
|
1605
Ball screw
|
||
|
Weigh
|
21
|
23
|
21
|
23
|
||
|
Machine Dimensions
|
560X450X450mm
|
|||||
|

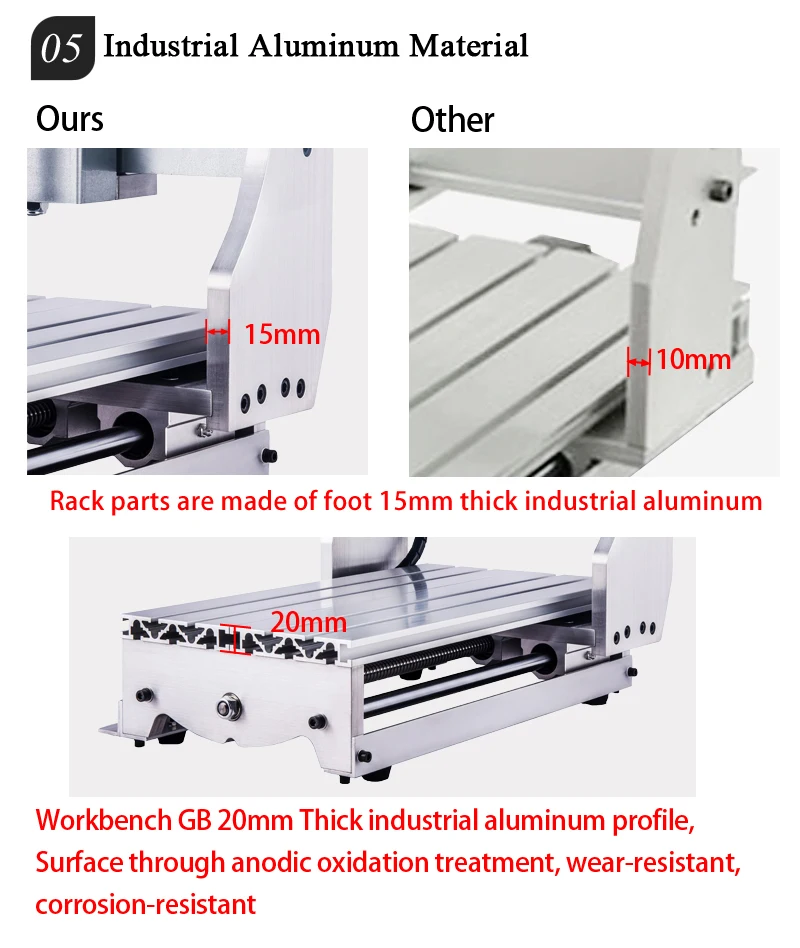

Rack material
|
6061 and 6063 Hard aluminum alloy
(The unique and dedicated mold extrusion profiles, Let counterfeiters dwarfs.) |
|||||
|
Engraving area
|
300X200mm
|
|||||
|
Z-Axis Stroke
|
60mm, Engraving depth depends on the length of the tool edge
|
|||||
|
Acceptable material thickness
|
≤60mm
|
|||||
|
Rail type
|
Chromeplate shaft + Linear Bearings, Surface hardening 61HRC
|
|||||
|
Diameter of Spindle motor
|
52mm ( 65mm optional)
|
|||||
|
Stepper motor size
|
57mm
|
|||||
|
Repeat positioning Accuracy
|
≤0.03mm
|
|||||

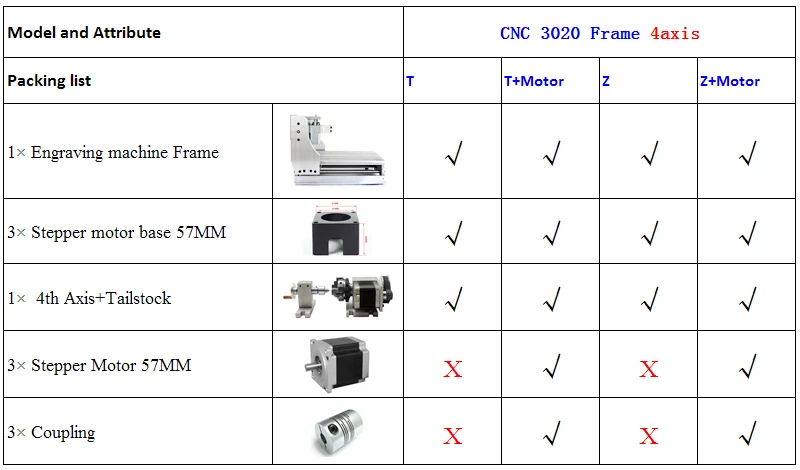

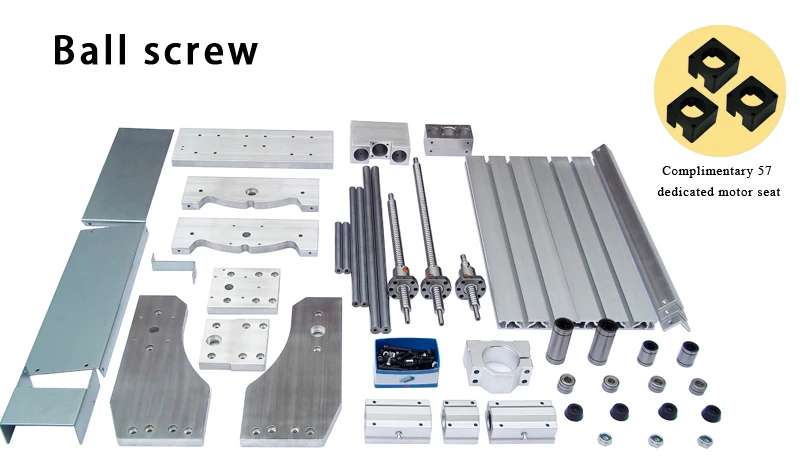

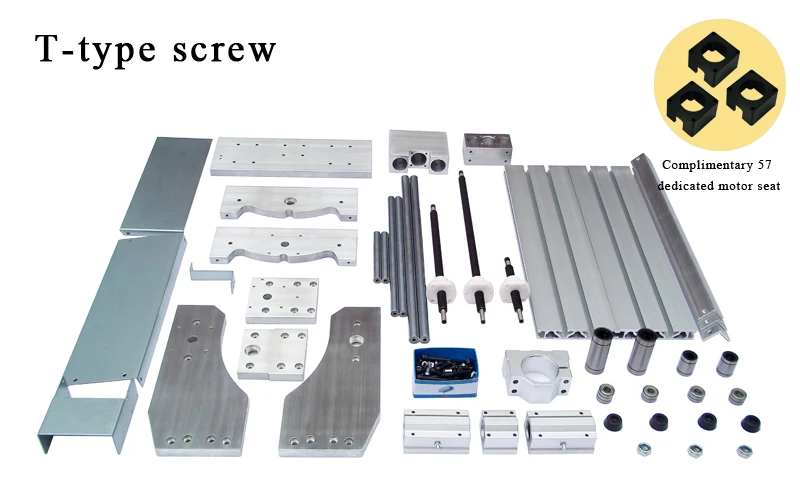

Packing List:

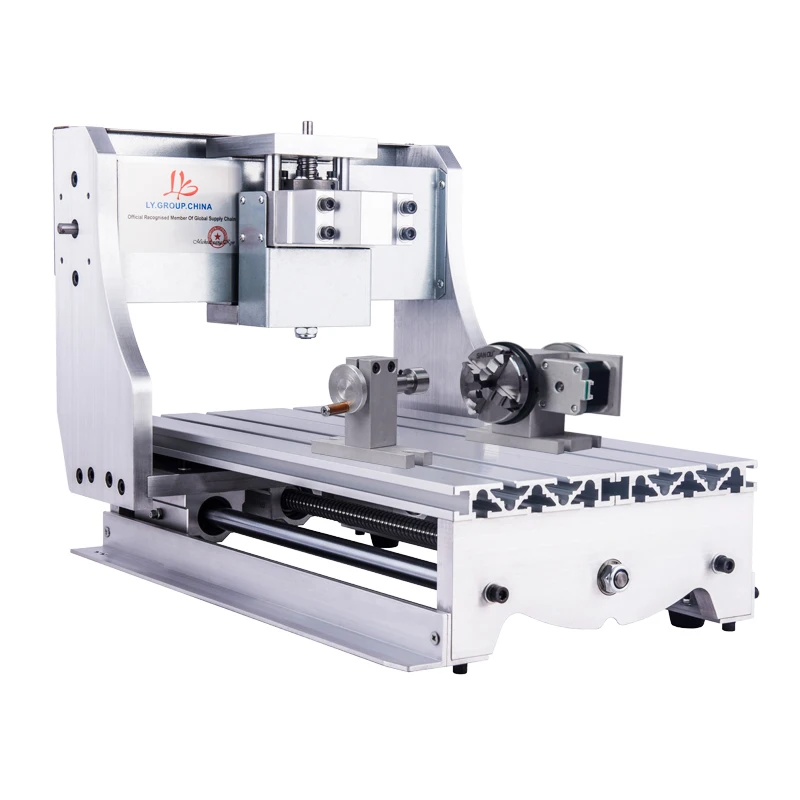

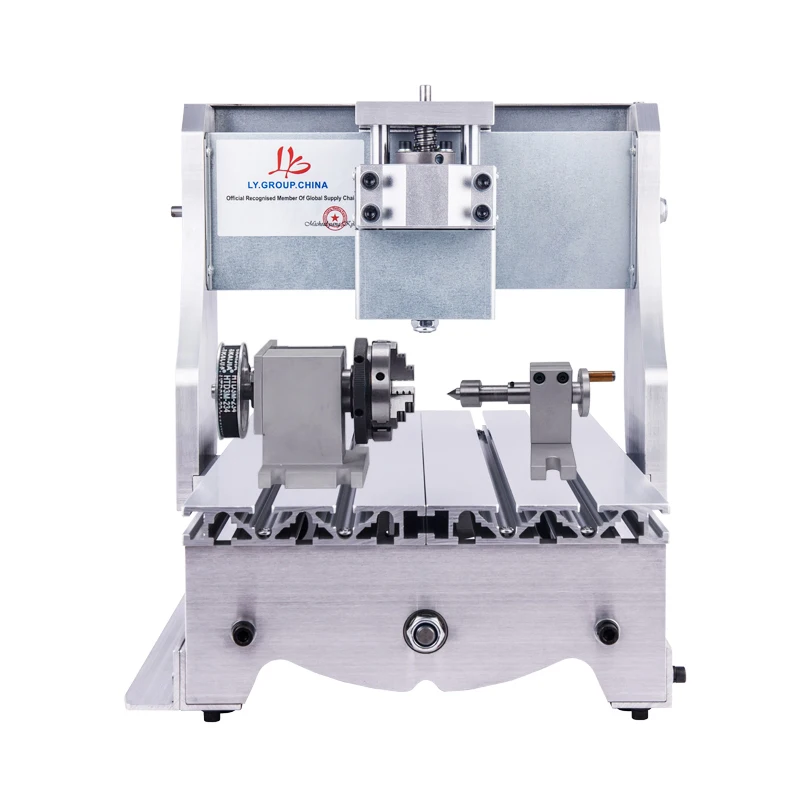

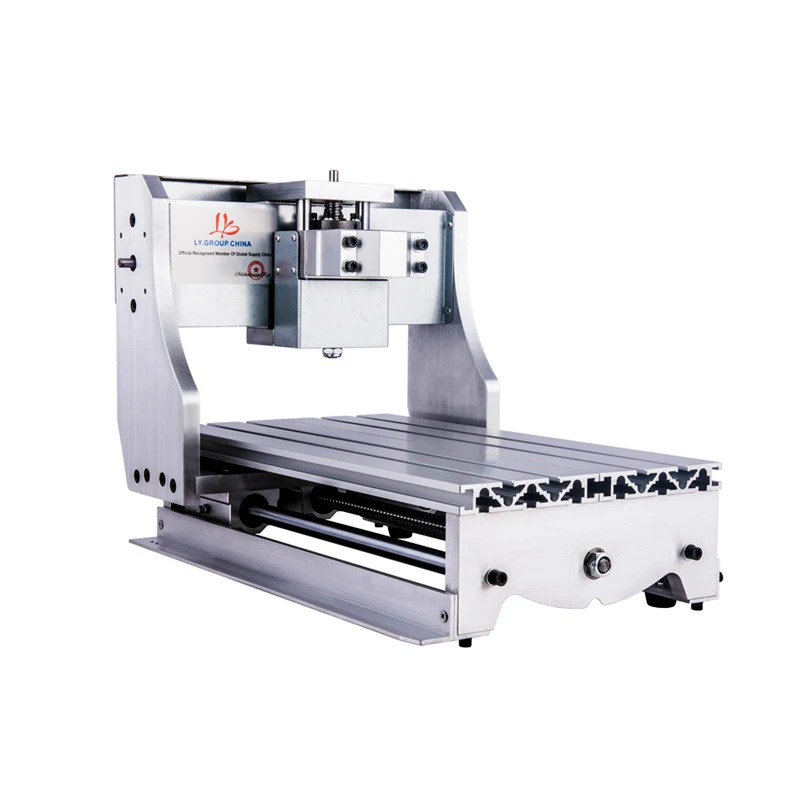

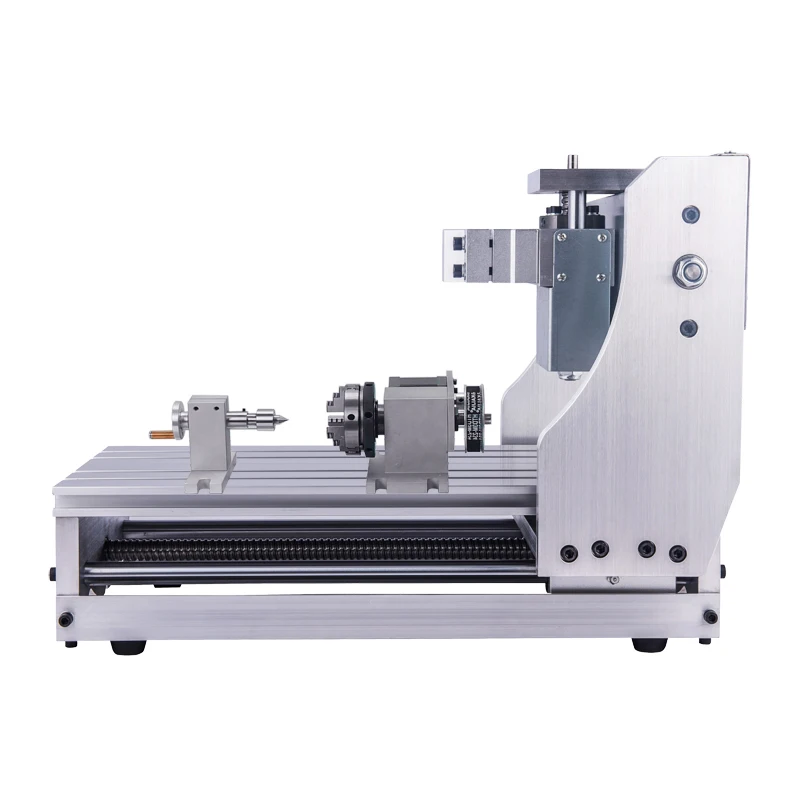

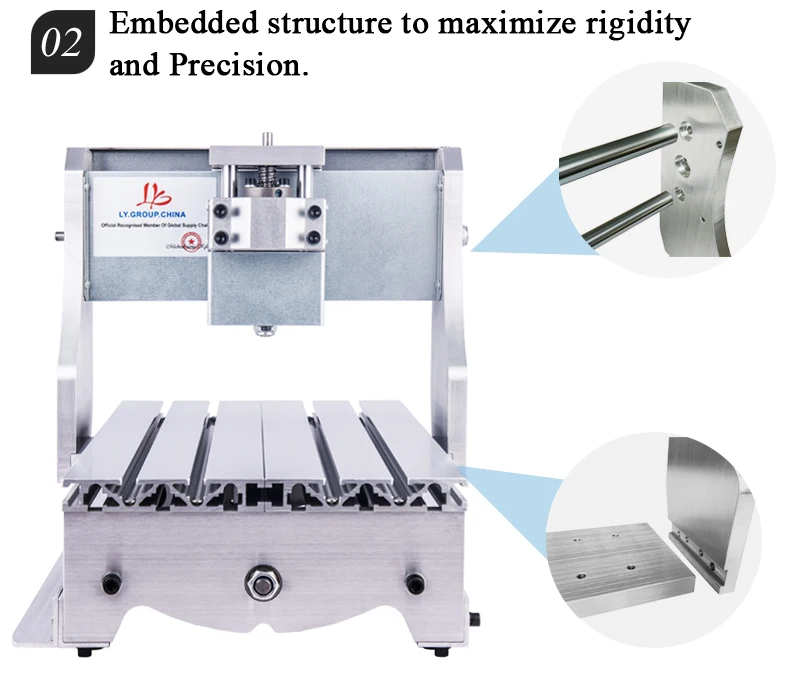

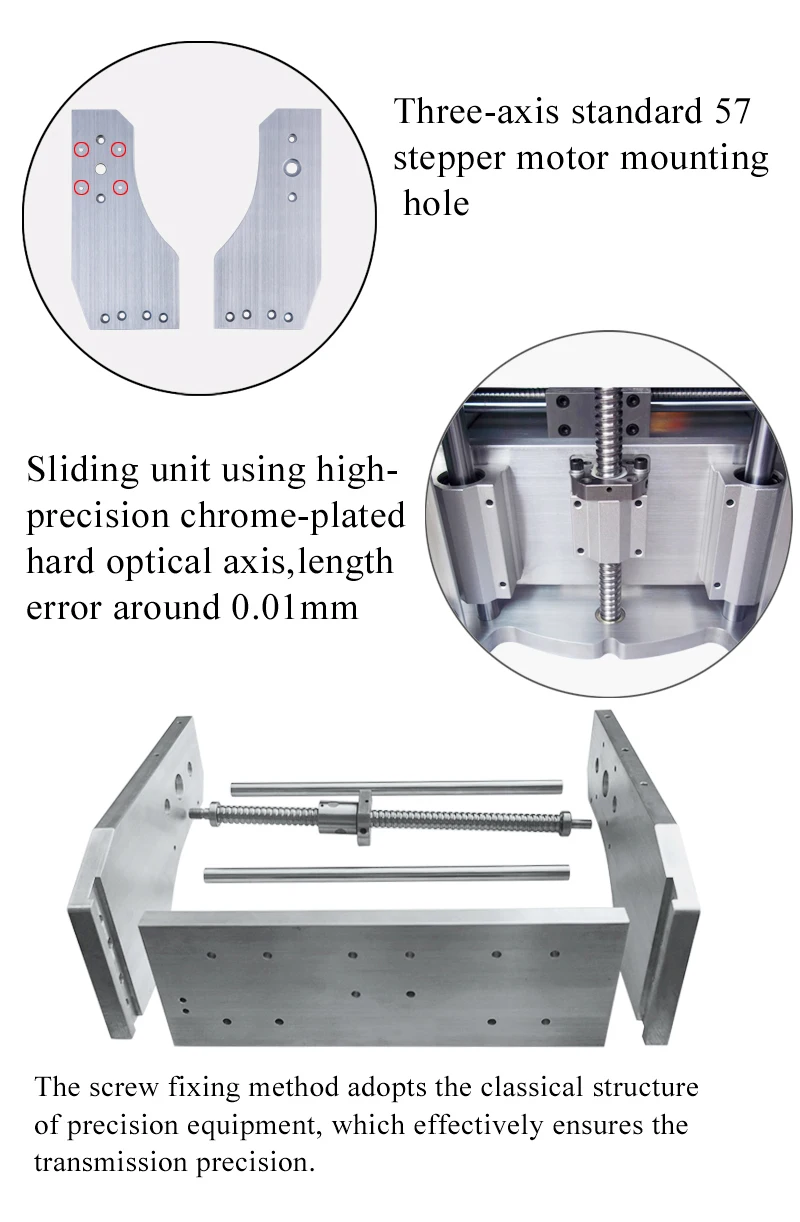

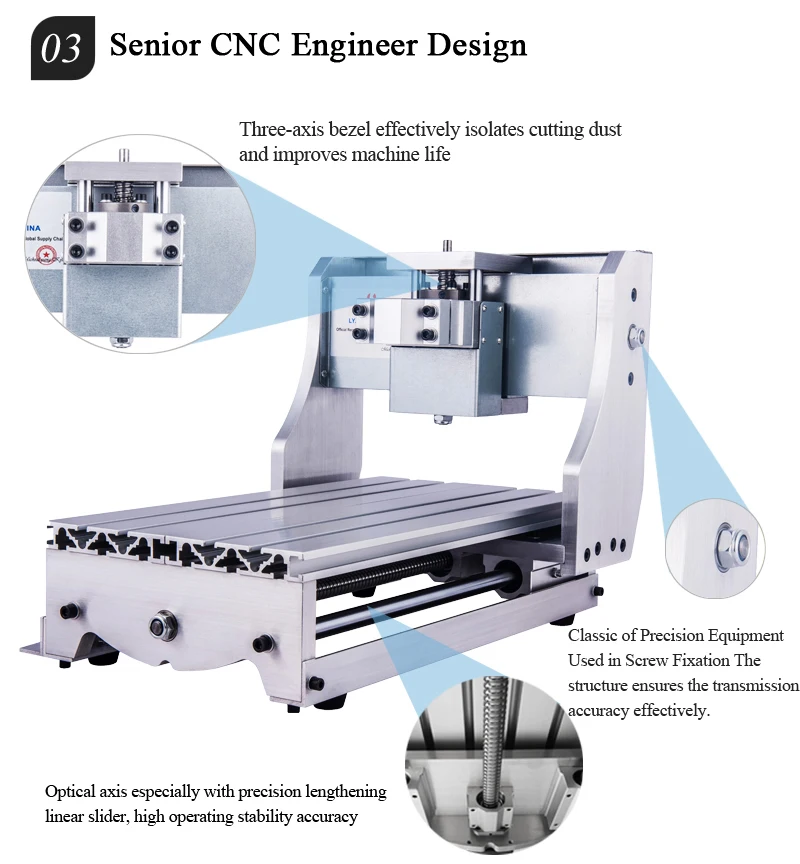

CNC Frame Details:
