40Mpa pc strand embossing machine hydraulic cylinder piston jack with 15.24 mm tool wedge

ر.س480.00

Clear
Qty:
Compare

Request quotation for: 40Mpa pc strand embossing machine hydraulic cylinder piston jack with 15.24 mm tool wedge

40Mpa pc strand embossing machine hydraulic cylinder piston jack with 15.24 mm tool wedge

_01.pngOnion Jack_02.png

♦ Type And Name Of Product



Onion Jack_04.pngOnion Jack_05.png

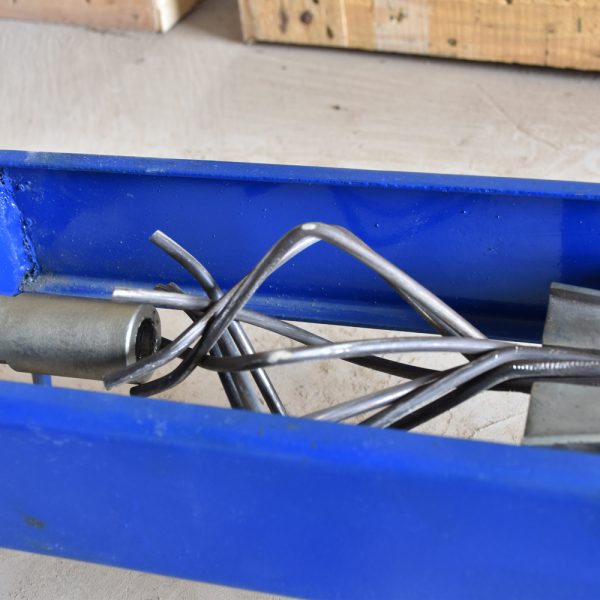

The improved YH3 embossing machine is mainly used to press the fixed end of the prestressed steel strand into a pear-shaped flower-like shape, with mesh, spiral reinforcement or stirrups, and other structural reinforcement, and form a self-anchor anchor head by holding, squeezing, and anchoring between the embossing part of the steel strand and the concrete. This saves the anchor at the fixed end. As long as the splint of the clamping steel strand is replaced, it can also be used in other specifications.



Rated Oil Pressure 50MPa Nominal Top Pressure 19.9KN
Area Of Tension Piston 0.071 x10-2m2 Oil Pump ≤50MPa
Return Piston Area 0.045 X10-2m2 Type Of Oil 46# Hydraulic Oil
Stressing Head 100 mm Weight 15 kg
Return Trip Hydraulic Pressure Dimensions 630 * 200 * 86mm
Compression Diameter Φ80 * 130





Onion Jack_07.pngOnion Jack_08.png

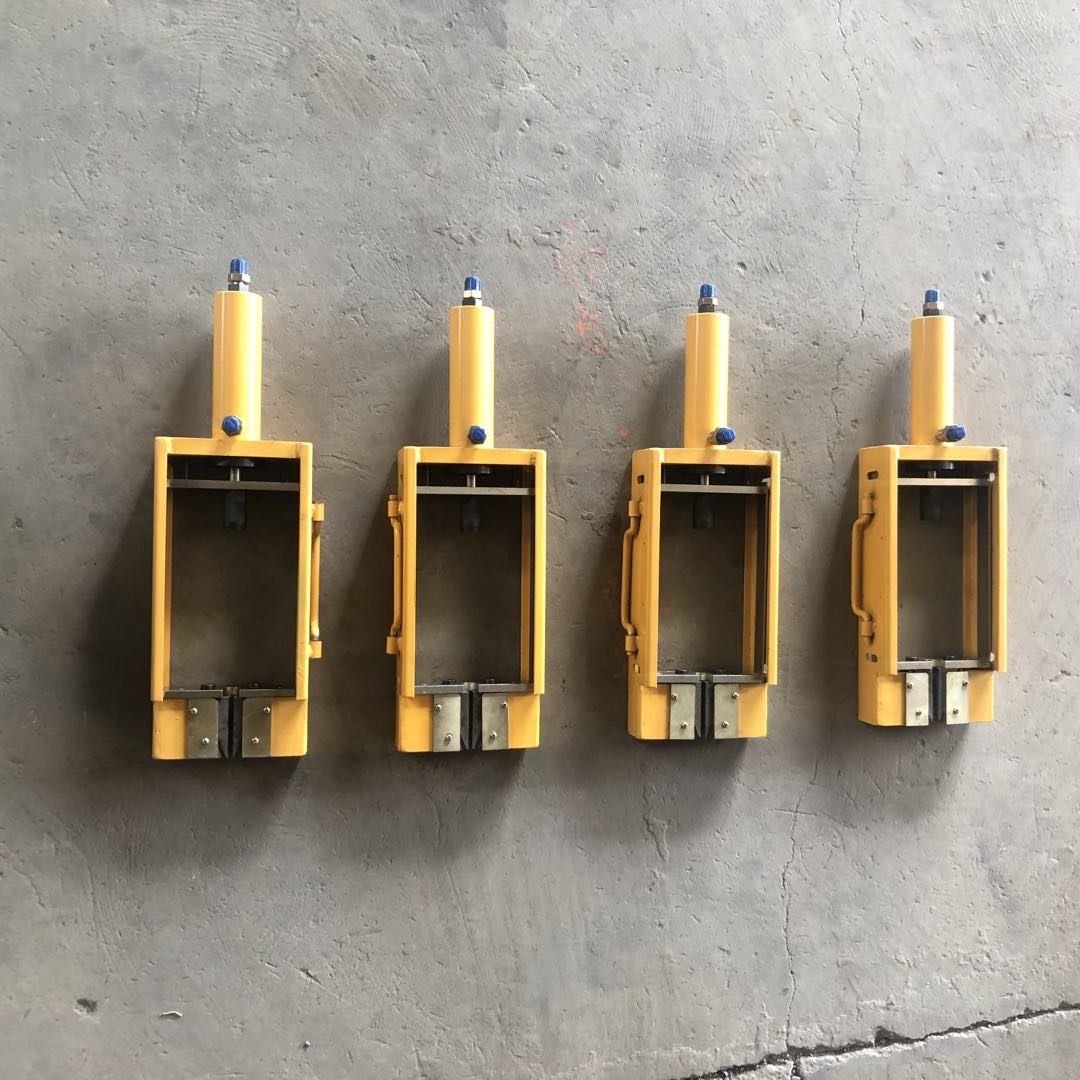

♦ Main Structure And Workshop Plan

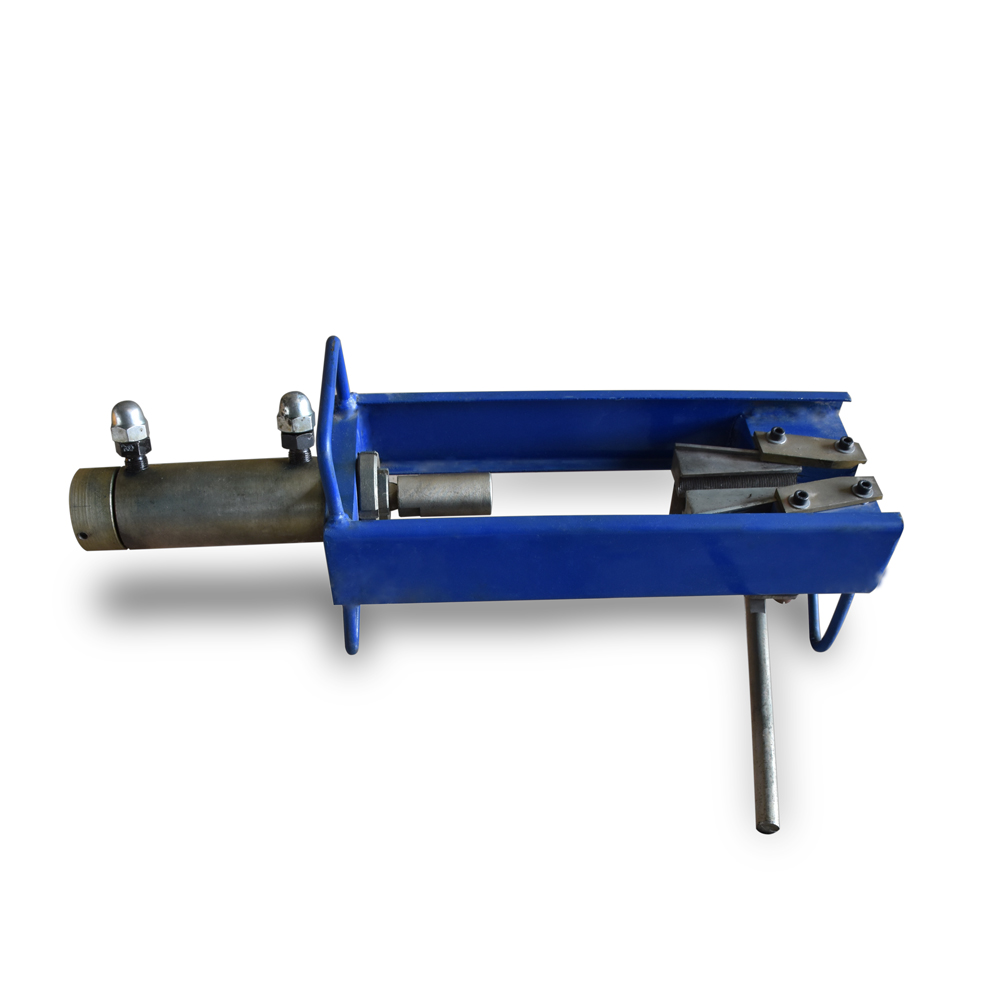

This machine is mainly composed of a hydraulic jack, head, frame, splint holding steel strand, and a set of loose clamp mechanisms. The working principle is shown in figure 2. The steel strand is inserted into the top pressure head splint by the spring elastic force. When the hydraulic cylinder enters the oil, the piston moves and the top pressure head moves with the head of the steel strand. At the same time, the steel strand splint clamps the steel strand by slope, and the splint clamps the steel strand by a slope as the piston moves. In this way, when the piston moves in place, the steel strand between the clamping part of the splint and the top pressure head will be pressed into a pear-shaped flower shape, and then the piston return journey will pull the loose clamping mechanism to drive the splint out, and the steel strand can be taken out. The embossing is finished.

Onion Jack_10.png



♦ YH3B Embosser Packing List

Serial Number Name of name Specifications Quantity Material Remarks
1 Press machine YH3B Quantity Material Remarks
2 Instruction Manual   1
3 Yx sealing ring D30 2 pieces Polyurethane Spare parts
4 Dustproof ring D18 1 piece Polyurethane Spare parts
5 O sealing ring 18X2.65G 1 piece Oil resistant rubber Spare parts
6 O sealing ring Φ30 * 3.1 2 pieces Oil resistant rubber Spare parts
7 Gasket Φ13 * φ7 * 2 3 pieces Copper Spare parts
8 High pressure hose G6III φ6*3000 2 Components Annex



Onion Jack





YDC-2020-2

Contact US

contact us.jpg40Mpa pc strand embossing machine hydraulic cylinder piston jack with 15.24 mm tool wedge

40Mpa pc strand embossing machine hydraulic cylinder piston jack with 15.24 mm tool wedge

40Mpa pc strand embossing machine hydraulic cylinder piston jack with 15.24 mm tool wedge

Model Number

YH3B
