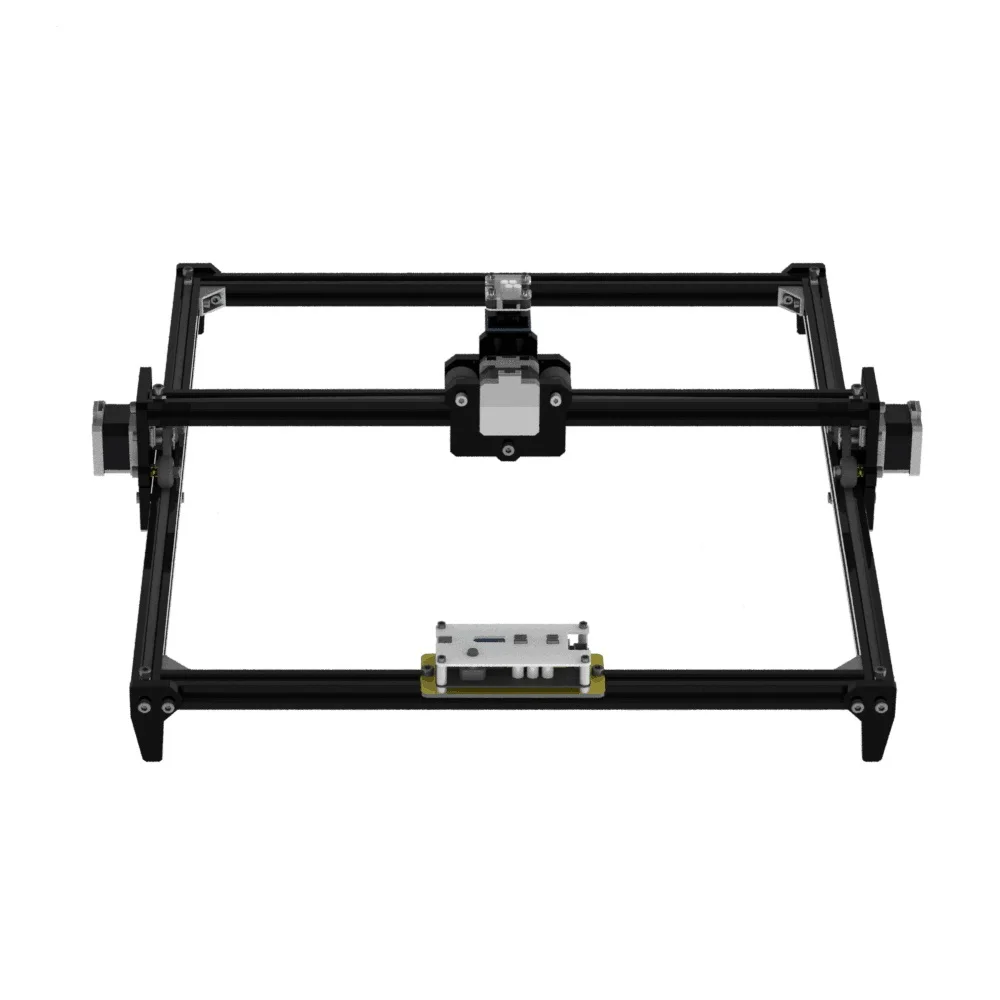

40*50cm Mini CNC Engraving Machine 2 Axis DIY without laser head Engraver Desktop Wood Router
Highlights
15W laser can engrave Stainless Steel,and can cut 3MM Cork Board!
CNA’T cut any METAL
Engraving distance:less than 3cm!
CNA’T cut any METAL
Engraving distance:less than 3cm!
–Maximum engraving area: 40*50cm
–Carving materials: bamboo, wood, paper, plastic, leather/ acrylic, etc.
–Can not engrave metal / aluminum / glass, etc.
–Power supply: AC 110 – 220V
–Adjustable laser focus
–Support Micro USB connect
–Stepper motor: 1.3A 42 stepper motor, Y-axis dual track
–Aluminum profile and acrylic acid frame is stable and pretty
–It is an unfinished DIY kit
–Carving materials: bamboo, wood, paper, plastic, leather/ acrylic, etc.
–Can not engrave metal / aluminum / glass, etc.
–Power supply: AC 110 – 220V
–Adjustable laser focus
–Support Micro USB connect
–Stepper motor: 1.3A 42 stepper motor, Y-axis dual track
–Aluminum profile and acrylic acid frame is stable and pretty
–It is an unfinished DIY kit
APPLICATION:

Specifications
Mode | 4050 |
Power Input | AC100-240V |
Sysytem Support | Win XP/7/8/10 |
Engrave Mode | Photo, Word, Scan, outline, Pixel Laser Engraving |
Supported Formats | jpg, bmp, svg, G-code |
Material | Stainless Steel and Acrylic |
Working Voltage | DC 12V |
Working Current | DC 5A |

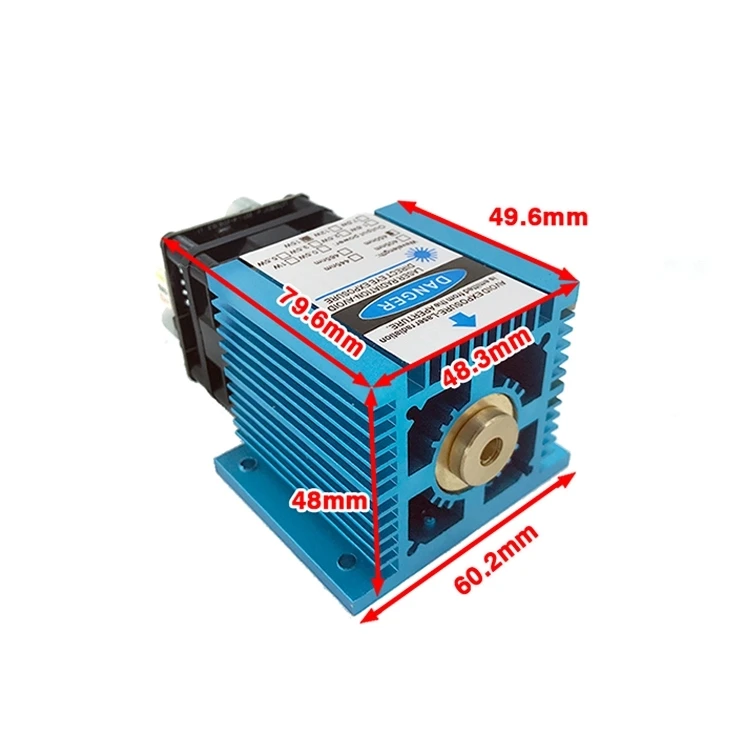

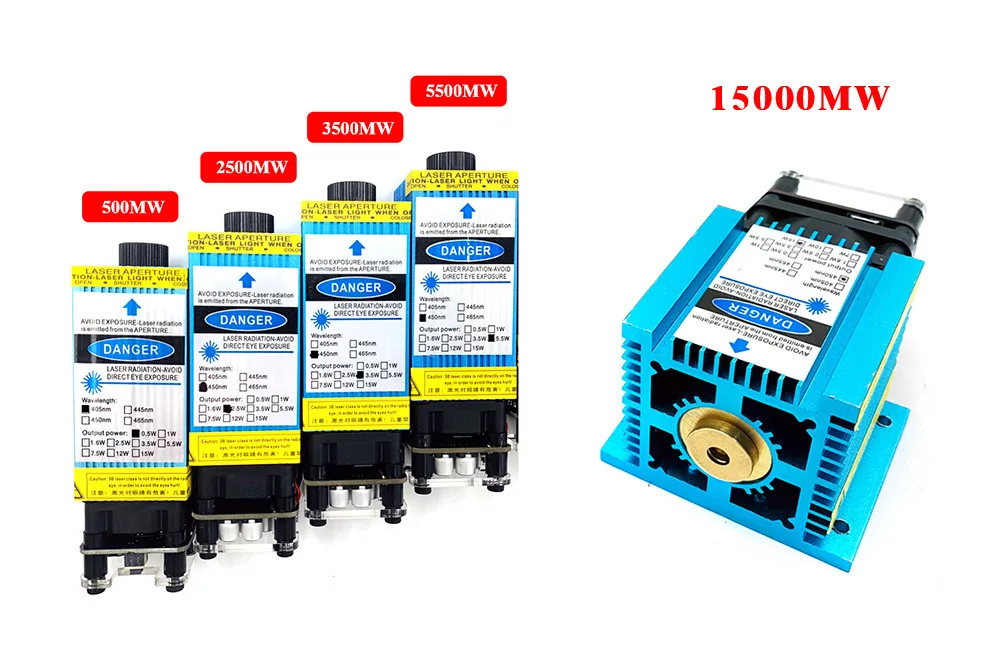

Laser Power | 2500mw/5500mw/3500mw/15000mw(can engrave matel) |

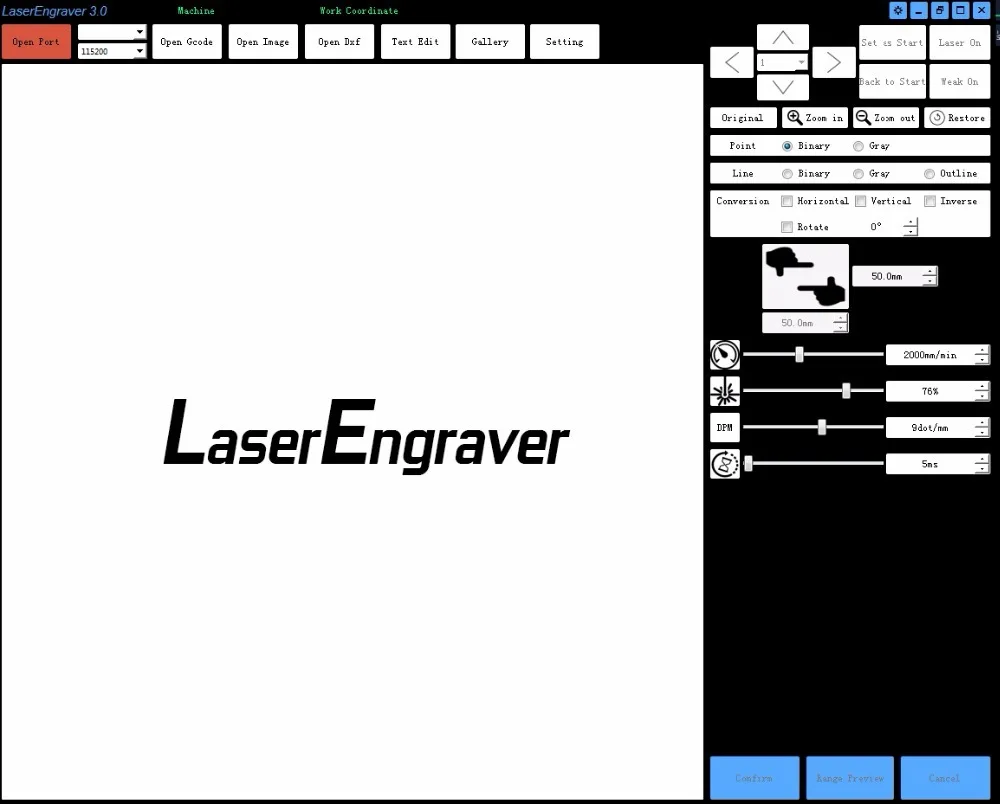

Control Software System | CNC software |
Engraving Accuracy | 0.01mm |
Engraving Area | 40*50cm |
Can Engrave | 7500MW–Metal(stainless ,steel ,iron),Wood, Plastic, PCB, Paper, Bamboo, Ox Horn, Leather,Sponge Paper, etc. |
Can not engrave | Metal(copper,aluminum,siler), Stone, Ceramics, Glass, Reflective or Transparent Material |
Function | Ideal for amateur laser engraving usage low-light positioning and freedom positioning functions. |
