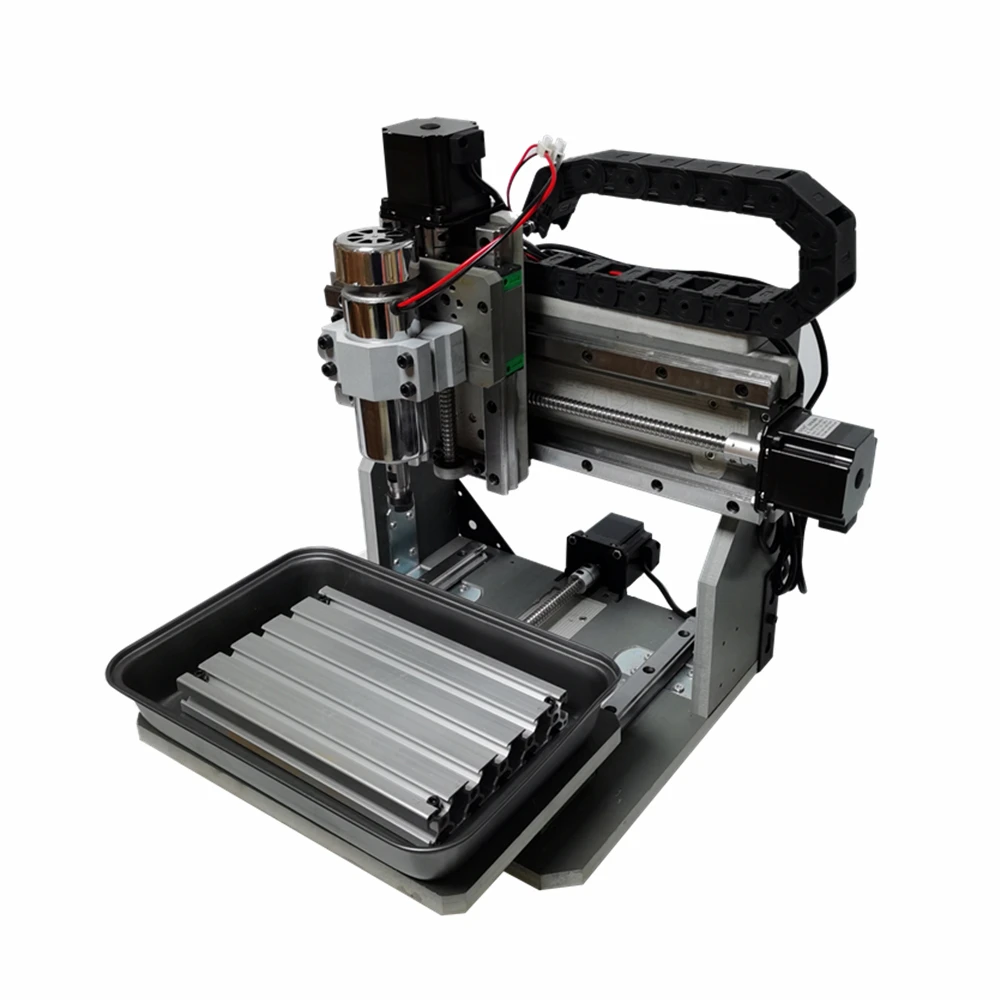

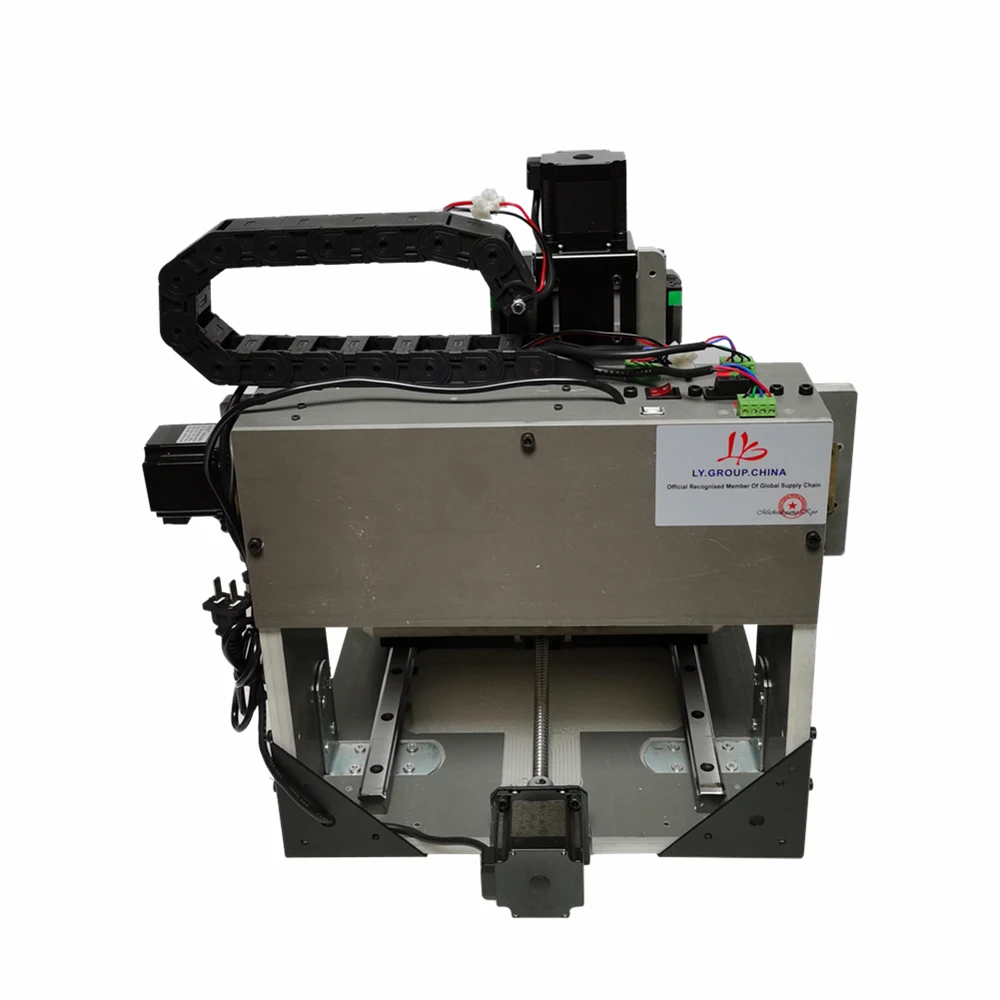

Name: 400W 3 Axis 4 Axis 5 Axis Wood Engraving Machine DIY CNC 3020F CNC Router Cutting Drilling and Milling Machine
SKU: 212182843019181
Availability: InStock

400W 3 Axis 4 Axis 5 Axis Wood Engraving Machine DIY CNC 3020F CNC Router Cutting Drilling and Milling Machine

ر.س4,380.37 – ر.س6,442.26

Introduction

This is a very good era,in the past we only can see the CNC machine equipment in factory, but now, the CNC equipment has been into our lives;

Whether you are a small or medium enterprises managers, project engineers, CNC enthusiast or artists, related students, there are something on this machine will attract you;

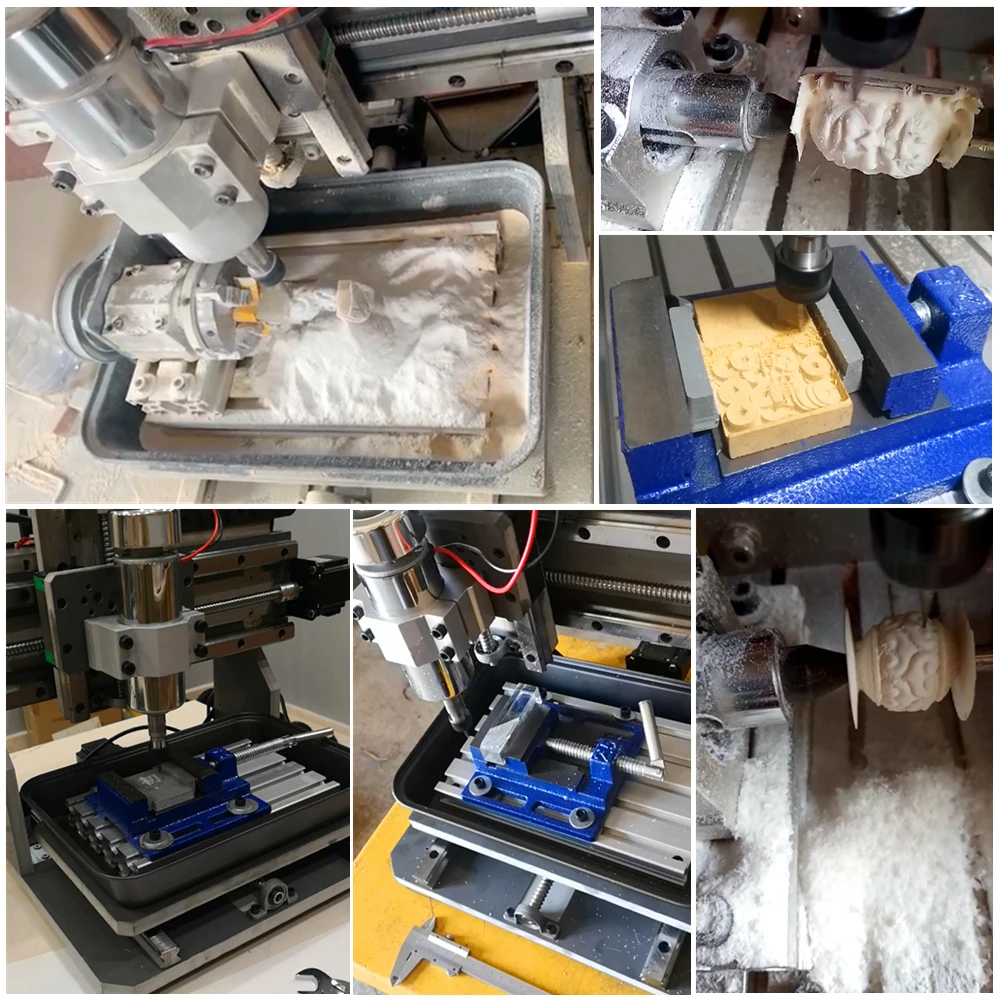

It can help you processing a lot of parts, whether you are modeling or home decoration or creative DIY.

It can help you intuitively to learn CNC knowledge. And testing learning outcomes in real time.

Warranty

More Precise Stepping Motor

Simple operation and installation

1 year machine part and 6 months electrical parts,stepping motor,spindle Free Warranty

Model and Technical Parameters

MODEL	PVC-3020F
Attribute	3axis	4axis	5axis
Axis	3axis	4axis	4axis
Interface	USB Port	USB Port	USB Port
Spindle Motor:	500W	500W	500W
Weigh	27	31	33
Max. working stroke	XYZ=300200100mm
Acceptable material thickness	≤100mm
Rack material:	15mm PVC + corner brace connection

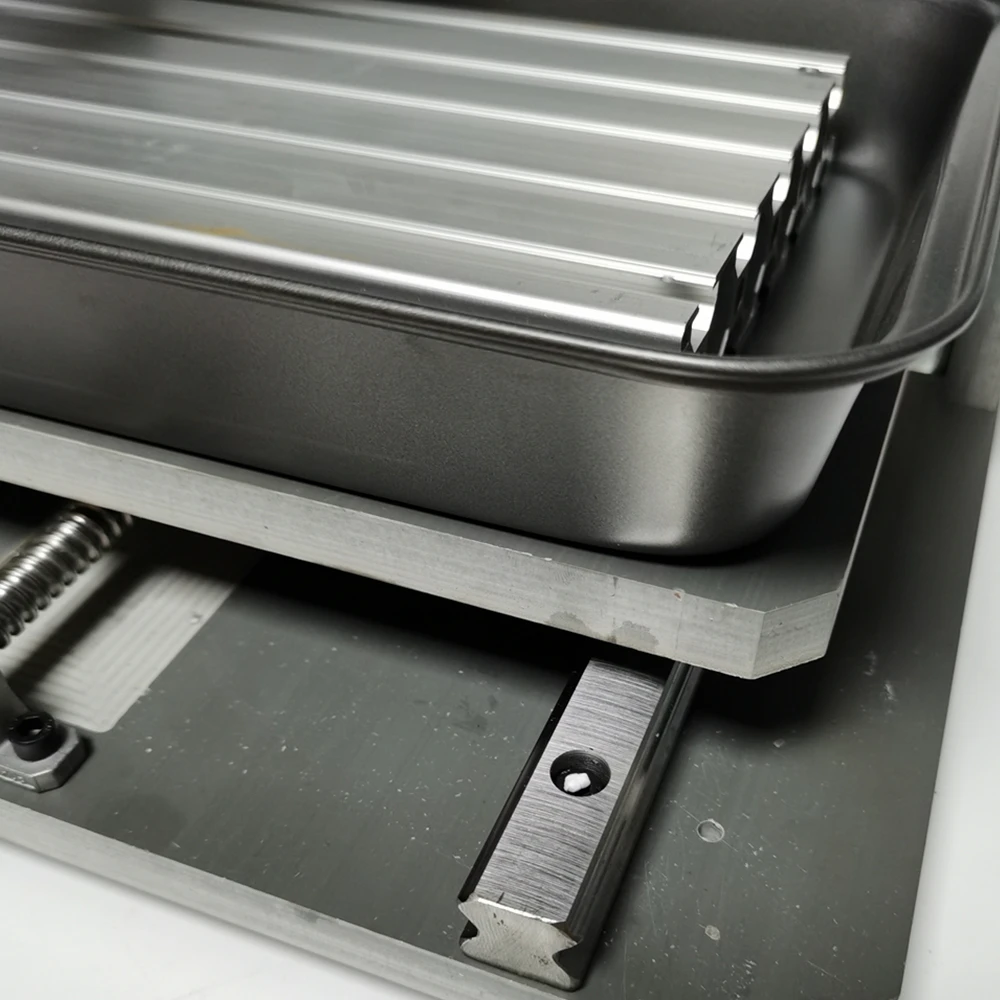

Table material:	Aluminum alloy T table + Water tank

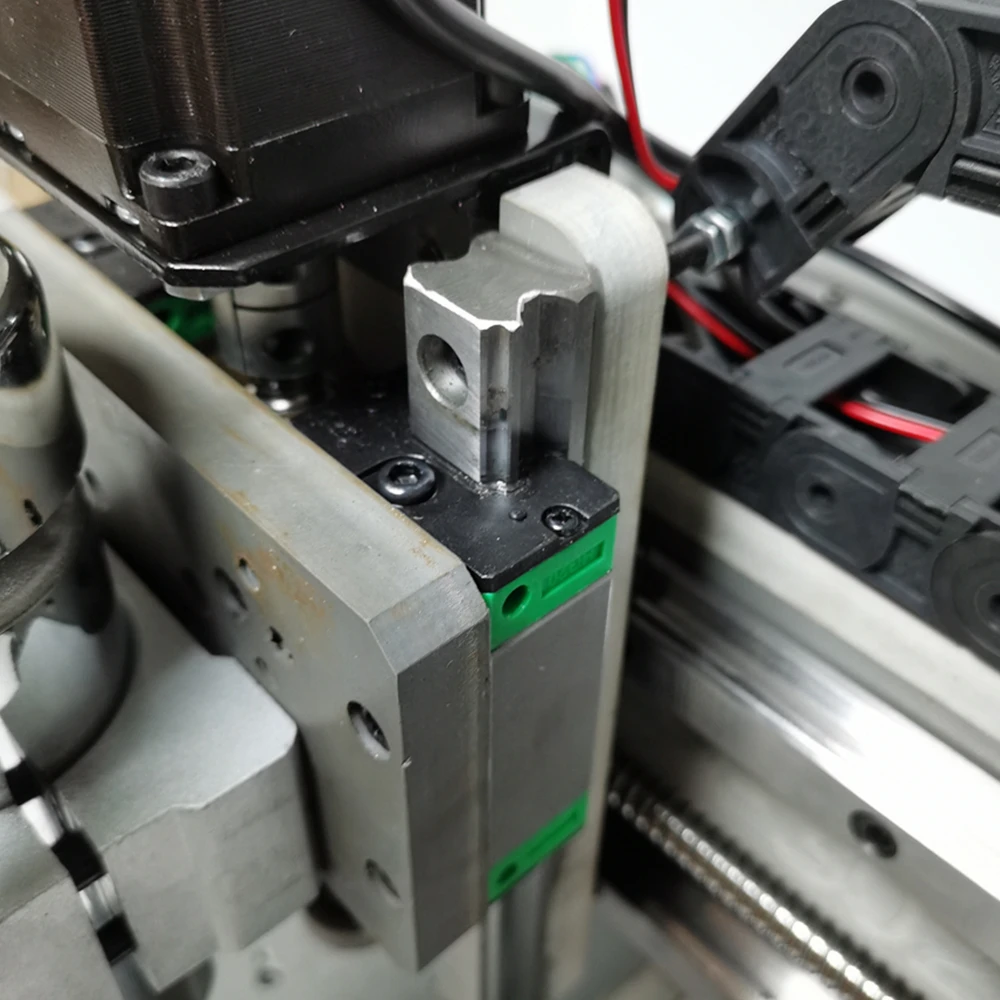

Rail type	X Y Z 1204 ball screw, Square line rail track, three-axis is 20 mm square wire track,

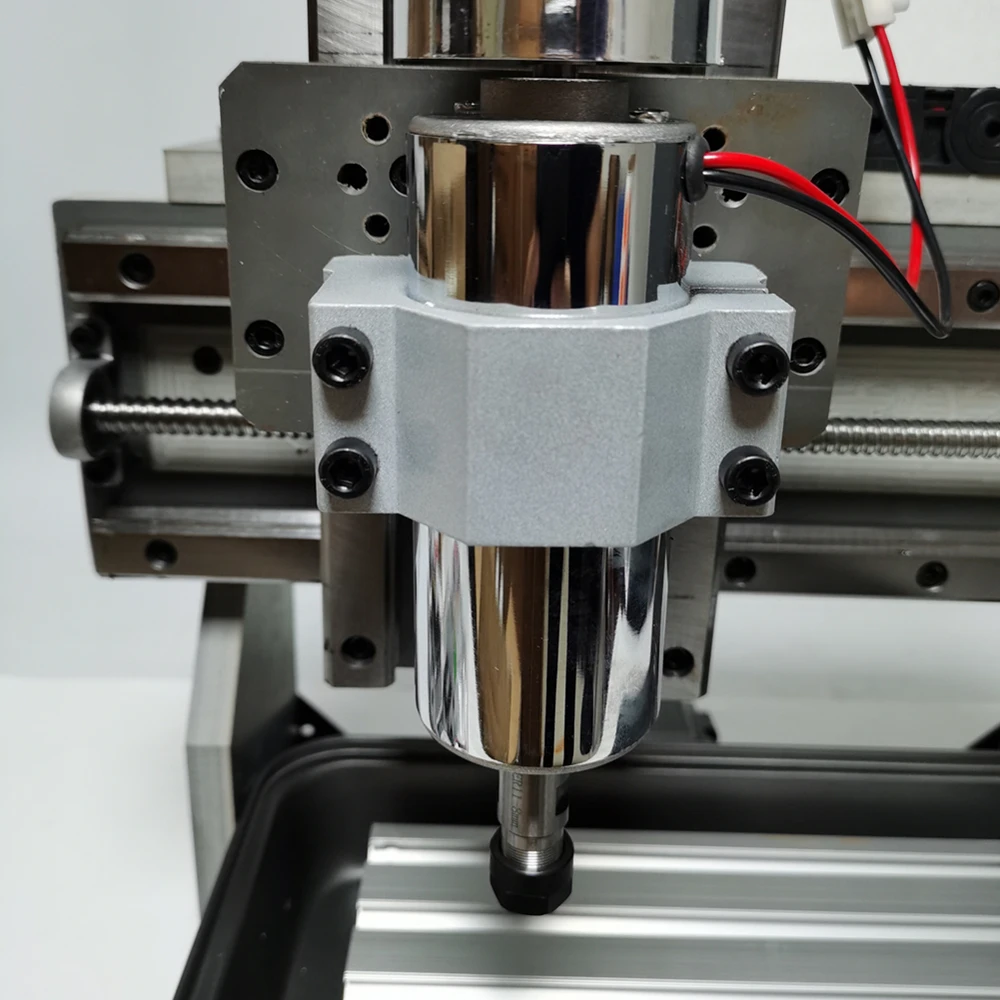

Spindle motor	500W DC spindle , 0-12000r/min
Collet type	ER11,1/8″(3.175mm) Collet
Stepper motor and drive	57HS56
Repeat positioning Accuracy	0.02mm
Communication interface	USB Port
System requirements	Win-XP / Win 7 Win 8 Win10
Software Co patability	Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam)
Command code	G code/.nc/.ncc/.tab/.txt
Machine weight	27kg

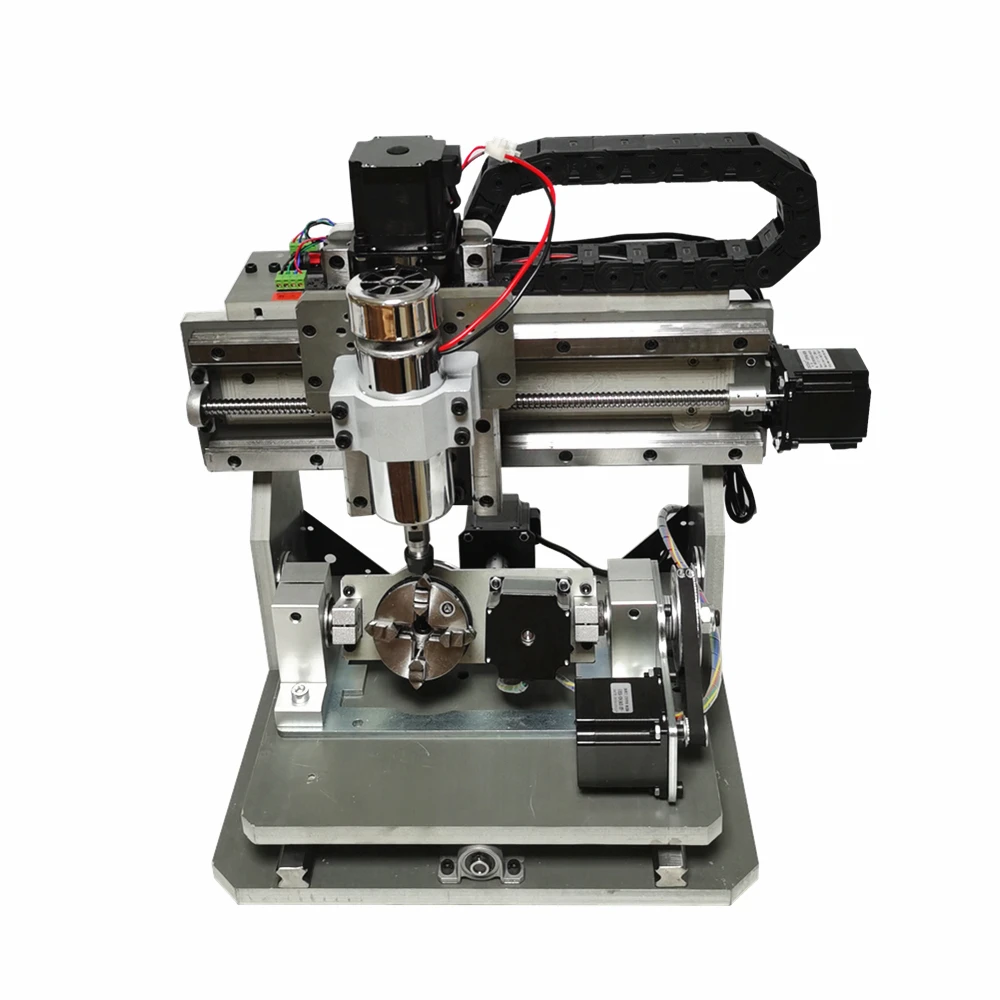

4th Axis Description:	Center height: H = 51mm Maximum turning diameter: ≤ 81mm Deceleration ratio: 4:1 Stepper motor: 57HS56
5th Axis Description:	The fourth axis gear ratio: 4: 1 (57 two phase 3A stepper motor 1.2N) The fifth axis reduction ratio: 5: 1 (57 two phase 3A stepper motor 1.2N) Four jaw chuck 60MM The clamping: Positive direction:40mm; In the opposite direction:70mm Fourth axis Center height: 55MM The fifth axis higher than the 4th axis 44 mm Bottom fixed hole distance: 150mm x 85mm
