4 Caviies Blowing Machinery Full Automatic 2l Pet Bottle Machines Bottle Blow Making Line 4000BPH
Water Bottle Blow Moulding Machine
Product Name:
factory supply pet blowing machinery price
Model No. : MT-400-4-CAVITY
Place of Origin: Taizhou, China
Trademark: KEMO
Delivery Date: 20days
Productivity: 30 Sets/Month
Packing: Wooden Case or film
Function: For Producing Pet Bottles
Payment Type: T/T or L/C
Certificates: SGS, CE, ISO9001
Export Markets: All of the World
KM Machinery, the Professional blow moulding machine supplier in China.
Summary
Kemo series Full Automatic Stretch Blow Molding Machine, from one cavity to six, produce the container max to 2L, used for the
series kinds of PET bottle, such as the edible oil bottle,medicinal bottle, drinking bottle, cosmetic jars, Wild-mouth bottle and so on.
Feature
1. High capacity, low breakage rate, the output is from 2000 to 6000 BPH, the bottle scrap rate lower than 0.1%.
2. Full automatic to load the preform with the auto feeder, save the labor effectively.
3. Computer control system, with safe and stable performance.
4. Simple and safe operation, convenient maintenance.
5. Main parts of the machine use the imported good quality brand, like the FESTO, Omron, Mitsubishi and so on.
6. Machine is driven by cylinder, greatly reducing environmental pollution.
7. Each program adopt safe self-locking device, with the function of automatic detection diagnosis fault.
8. Perfect after-sales service.
The production process ( PET Stretch Blow Technology)
1) Preform Injection Molding
2) Preform Auto Feeder
3) heating the preform(temperature adjustment)
4) Stretch Blowing
5) Take out the bottle
6) Inspection
7) Pre-blow
8) Stretch
9) Blowing
10) Molding.
Product Name:
factory supply pet blowing machinery price
Model No. : MT-400-4-CAVITY
Place of Origin: Taizhou, China
Trademark: KEMO
Delivery Date: 20days
Productivity: 30 Sets/Month
Packing: Wooden Case or film
Function: For Producing Pet Bottles
Payment Type: T/T or L/C
Certificates: SGS, CE, ISO9001
Export Markets: All of the World
KM Machinery, the Professional blow moulding machine supplier in China.
Summary
Kemo series Full Automatic Stretch Blow Molding Machine, from one cavity to six, produce the container max to 2L, used for the
series kinds of PET bottle, such as the edible oil bottle,medicinal bottle, drinking bottle, cosmetic jars, Wild-mouth bottle and so on.
Feature
1. High capacity, low breakage rate, the output is from 2000 to 6000 BPH, the bottle scrap rate lower than 0.1%.
2. Full automatic to load the preform with the auto feeder, save the labor effectively.
3. Computer control system, with safe and stable performance.
4. Simple and safe operation, convenient maintenance.
5. Main parts of the machine use the imported good quality brand, like the FESTO, Omron, Mitsubishi and so on.
6. Machine is driven by cylinder, greatly reducing environmental pollution.
7. Each program adopt safe self-locking device, with the function of automatic detection diagnosis fault.
8. Perfect after-sales service.
The production process ( PET Stretch Blow Technology)
1) Preform Injection Molding
2) Preform Auto Feeder
3) heating the preform(temperature adjustment)
4) Stretch Blowing
5) Take out the bottle
6) Inspection
7) Pre-blow
8) Stretch
9) Blowing
10) Molding.
|
ITEM
|
MT-200
|
MT-400
|
MT-600
|
|
Theoretical output
|
2000
|
4000
|
6000
|
|
Max.container volume
|
2L
|
2L
|
2L
|
|
Max.neck diameter
|
45MM
|
45MM
|
45MM
|
|
Max.container diameter
|
100MM
|
100MM
|
100MM
|
|
Max.container height
|
320MM
|
320MM
|
320MM
|
|
Number of cavity
|
2
|
4
|
6
|
|
Number of lamp
|
28
|
42
|
56
|
|
Actual power consumption
|
8KW
|
18KW
|
24KW
|
|
Operating low pressure
|
0.7-1.0Mpa
|
0.8-1.0Mpa
|
0.8-1.0Mpa
|
|
Blowing pressure
|
2.5-3.5Mpa
|
2.5-3.5Mpa
|
2.5-3.5Mpa
|
|
Operating pressure
|
0.3-0.5Mpa
|
0.3-0.5Mpa
|
0.3-0.5Mpa
|
|
Temperature
|
10 degree
|
-10~55degree
|
-10~55degree
|
|
Flow rater
|
40 L/min
|
50L/min
|
70L/min
|
|
Machine dimension
|
2.3×1.6×1.8
|
4.25×1.5×2.2
|
4.5×2.25×2.2
|
|
Machine weight
|
2200Kg
|
3500Kg
|
4000Kg
|

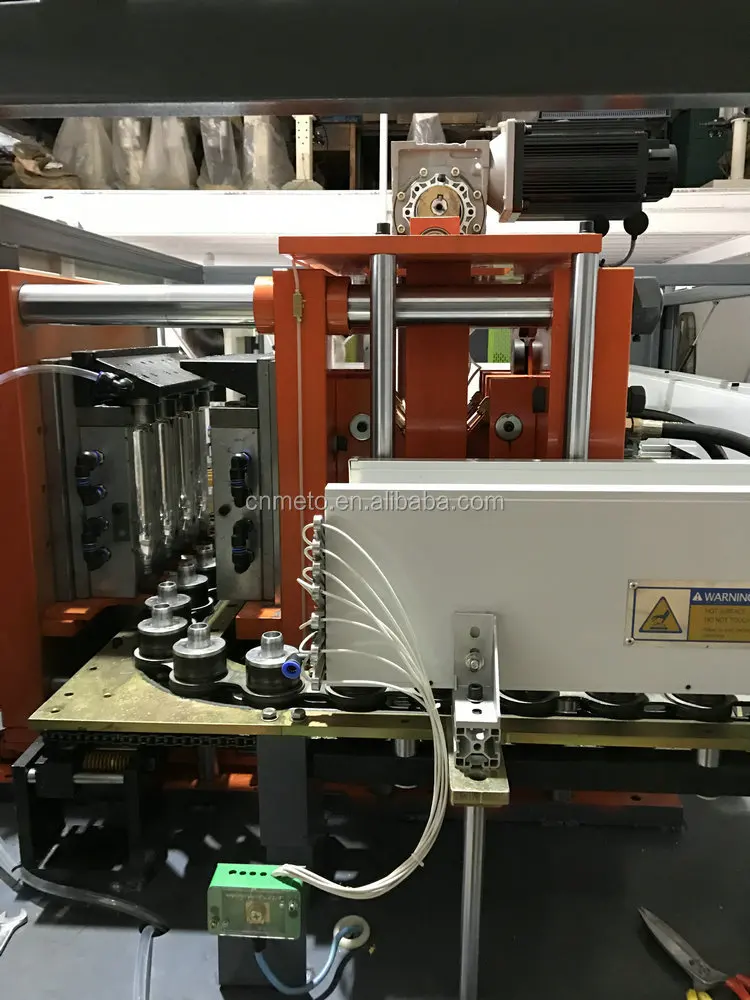

Product Display

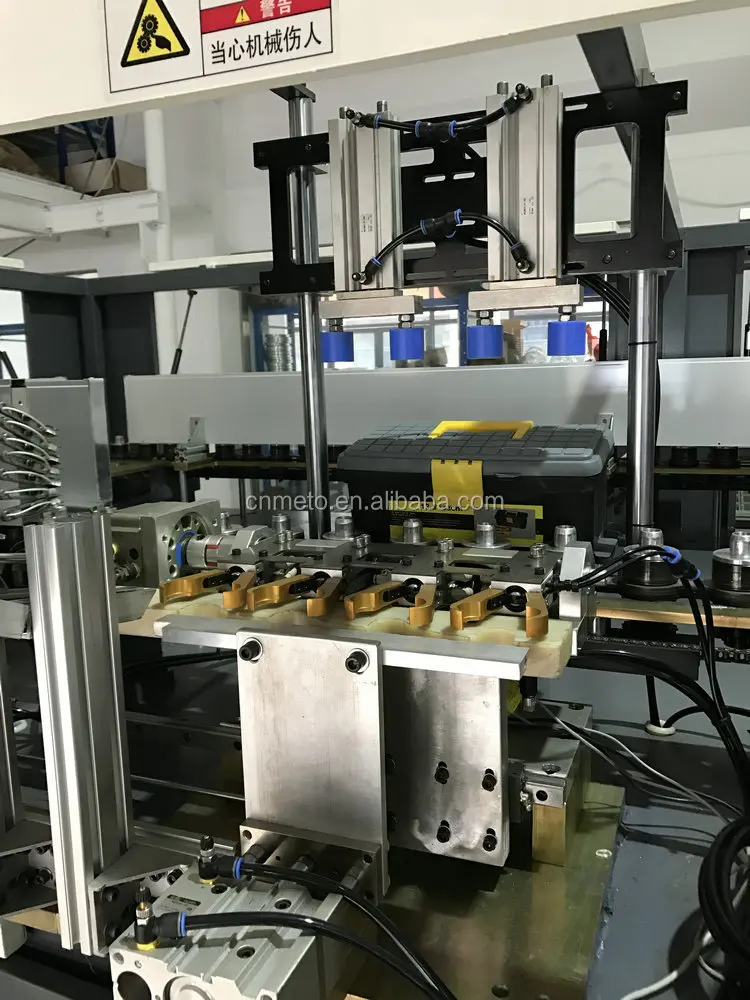

Machine Configuration
Our Certificates
