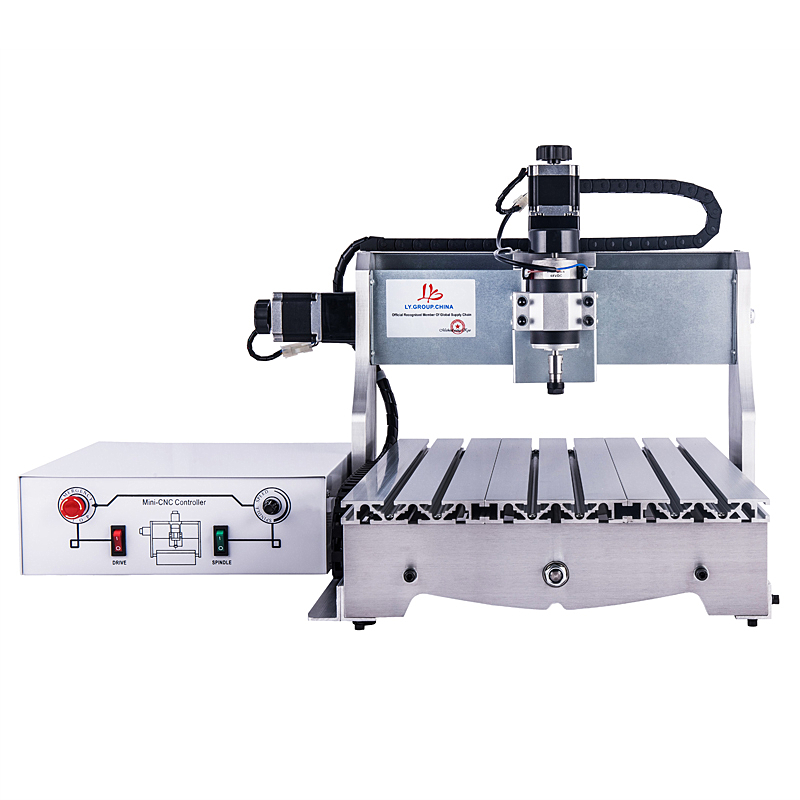

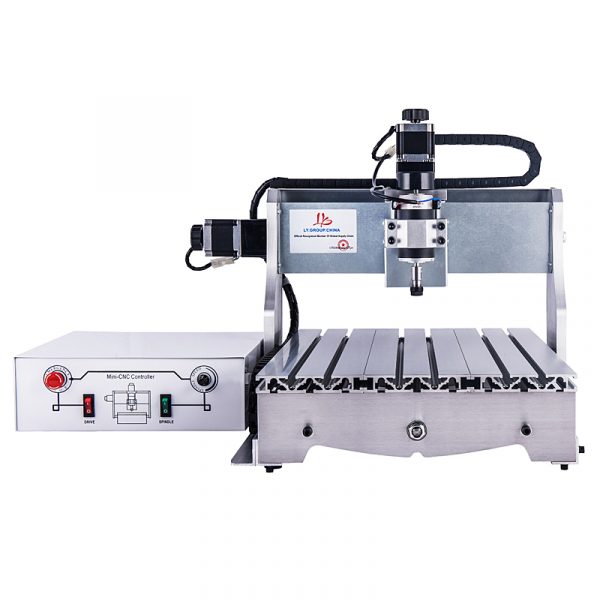

4 Axis cnc milling machine 3040 cnc router woodworking

ر.س6,859.11ر.س7,329.31

Clear
Qty:
Compare

Request quotation for: 4 Axis cnc milling machine 3040 cnc router woodworking

Product Description



cnc milling machine cnc engraving machine wood router LY 4030



Introduction

The 4030 Easily produce name badges, equipment tags, small signs, plaques and awards, gift items, pet tags,ID tags, electrical tags, military name tags, desk plates, or mark industrial parts.

Whether you are a startup business, or a model enthusiasts, or looking to add a machine to supplement the capacity of an existing operation, the 4030 is a great fit.

We look forward, 4030 will become your good helper





More Precise Stepping Motor

The engraving process is visible as controlled by computer

Simple operation and installation

1 year machine part and 6 months electrical parts,stepping motor,spindle Free Warranty

 Shipping by DHL FEDEX UPS with tracking number





Technical Parameters

Machine Dimensions:

660×570×450mm

Rack material:

6061 and 6063 Hard aluminum alloy
(The unique and dedicated mold extrusion profiles, Let counterfeiters dwarfs.)

Engraving area:

400X300mm

Z-Axis Stroke:

60mm, Engraving depth depends on the length of the tool edge)

Acceptable material thickness:

≤60mm

Rail type:

Chromeplate shaft+Linear Bearings,)(Surface hardening 61HRC)

Type of screw:

1404 Double thread Trapezoidal Screw

Spindle motor:

NEW DC300W/12000r/min(Very small noise)

Collet type:

ER11,1/8"(3.175mm) Collet

Stepper motor and drive:

NEW two-phase hybrid stepping motor , 3A/PHASE,50N.cm, 8 segments drive.

Maximum operating speed:

4000mm/min (Engraving speed : 300-3000mm/min)

Repeat positioning Accuracy:

<0.03mm

Communication interface:

Parallel port

Software Compatability:

Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM,coppercam)

Command code:

G code/.nc/.ncc/.tab/.txt

Machine weight:

35kg

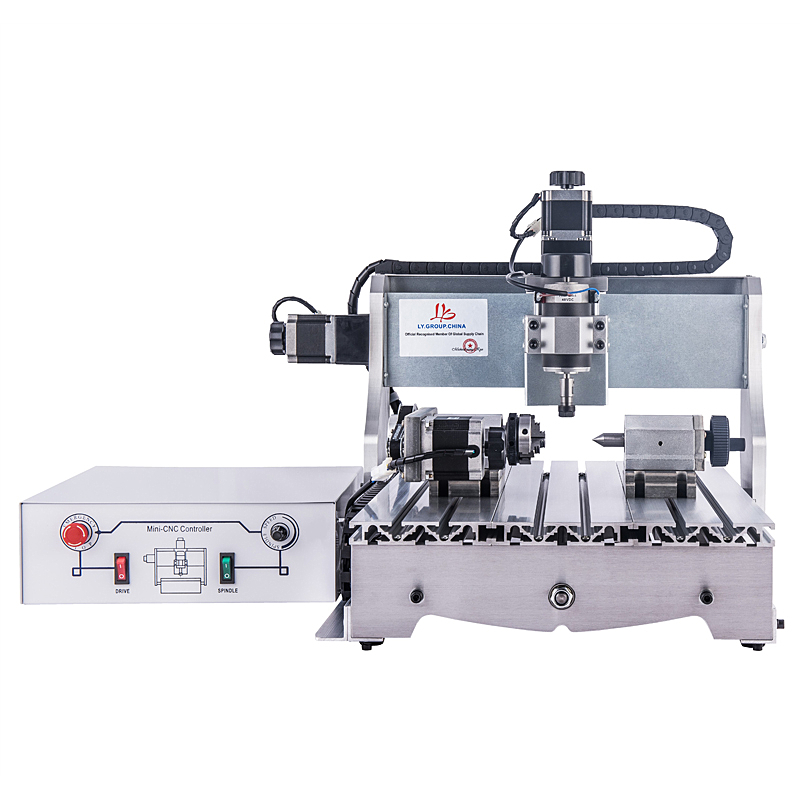

Rotation Axis (4th Axis)

Description:



Chuck Size: 50mm self-centering chuck

Center height: H = 51mm

Clamping diameter: 50mm or less

Deceleration mode: synchronous wheel / belt

Deceleration ratio: 4:1

Stepper motor:NEW 57 type / 3A

Stepper Drive: T65-axis drive

Positioning accuracy: 0.075 °

Weight: 4kg









Packing list:

1× CNC 3040 Engraving machine

1× Control box

1× Parallel port cable 25pin

1× Power cable

1× Tool box and tools

3× Axis motors

1× Rotation Axis

1× CD of manual and software MACH3 (if not get, may be lost in customs, please contact us)





Warranty

1 year full warranty directly from factory  .





Shipping

By DHL & UPS & FEDEX with tracking number, need 4~7 days;

By SEA , need 40~50 days;

We will mark the item at the very low value, so that you do not need to pay for the tax or pay a little tax.

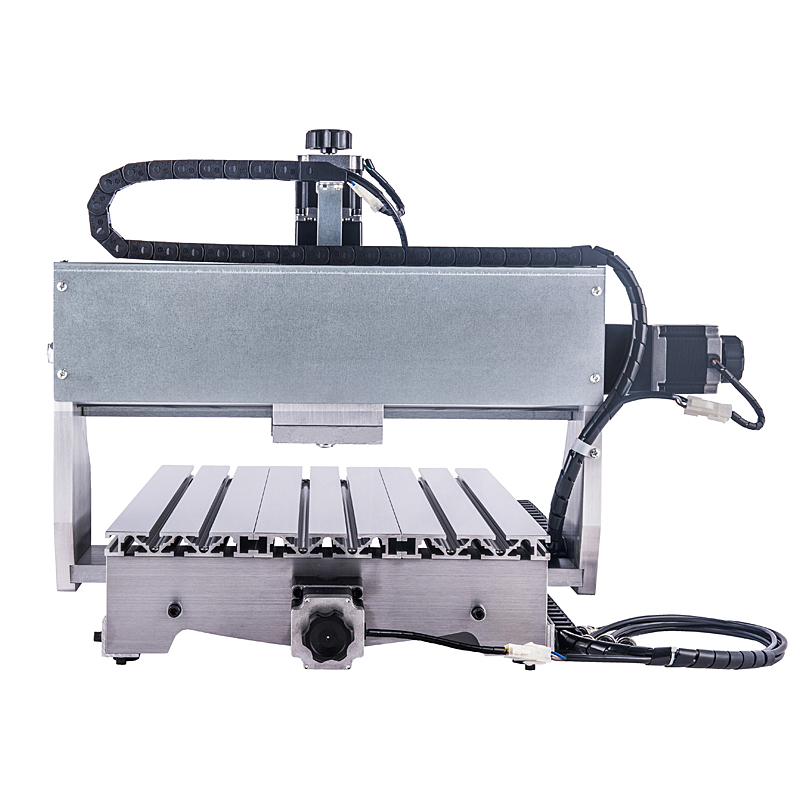

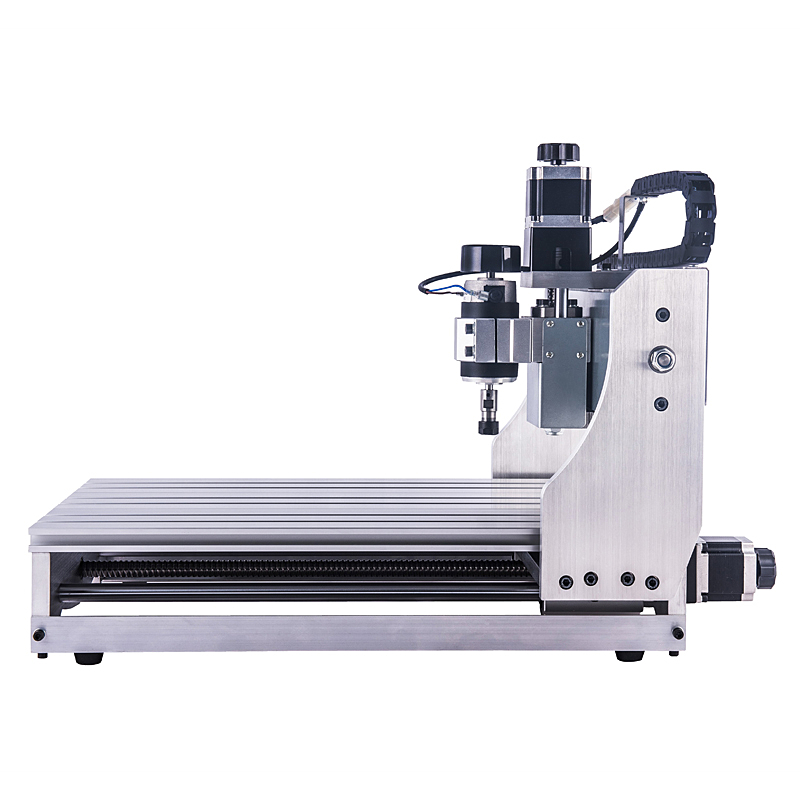

Product Pictures

CNC 4030 Engraver(2).jpgCNC 4030 Engraver(3).jpgCNC 4030 Engraver(4).jpgCNC 4030 Engraver(5).jpgCNC 4030 Engraver(6).jpgCNC 4030 Engraver(7).jpgCNC 4030 Engraver(8).jpgCNC 4030 Engraver(9).jpgCNC 4030 Engraver(10).jpgCNC 4030 Engraver(11).jpgCNC 4030 Engraver(12).jpg

Company Information

USBearth business group is located in Shenzhen, China.

Our factory owns 2 brands , Ly and Bauer , and Shuttle,ZM,KIDI,HonTon … Factory agent .

We has 10 years experiences in manufacturing and foreigh trade

Our BGA rework stations , such Ly IR6000, Ly IR6500, Ly IR9000,Ly IR-PRO-SC, Ly IR8000, Ly HR560, Ly HR560C, Ly HR500, Ly SV550C, Bauer IR-PRO-SCC ,Bauer OMEGA XD …

CNC machines like cnc 3020/4030/6040/9060 …series products ,Mobile LCD separating stationslike 946D /947B /950V/948V/948B…are hot sale in the world, especially in these countries from North and South American,European and Asian.





Packaging & Shipping

Packaging:

Packaging material: Carton/Wooden case with foam inside.



Shipping:

A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)

B. 3-5 workdays shipping from UK Warehouse to European union countries.No need to pay for customs duties and VAT.

C. 25-30 workdays shipping from China to Russian customers. No need to pay for customs duties and VAT.

D. We can arrange shipment by sea. Minium CBM requirement : 1 CBM







Our Services

1.We provide you the friendly English User manual or operating videos for free.

2.24 hours technical support by email or calling.

3.Warranty: 1 year free, 2-3 years cost price and free technical support always.

4.Free training to make sure you master the operating of our products.

5. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.

Contac us

If you have any question about our product. please contact us.


Model Number

4030T-D300 3 Axis, 4030T-D300 4 Axis
