Name: 4 Axis CNC LATHE RICHAUTO F736 H06 DSP CONTROLLER for CNC ROUTER
SKU: 212468691019181
Availability: InStock

– RichAuto-F736 –

RichAuto-F736 uses DSP as the core,High processing and operation speed which are the microcontroller,PLC systems can not match;

Embedded structure,high degree of integration,strong stability,easy installation and operation;

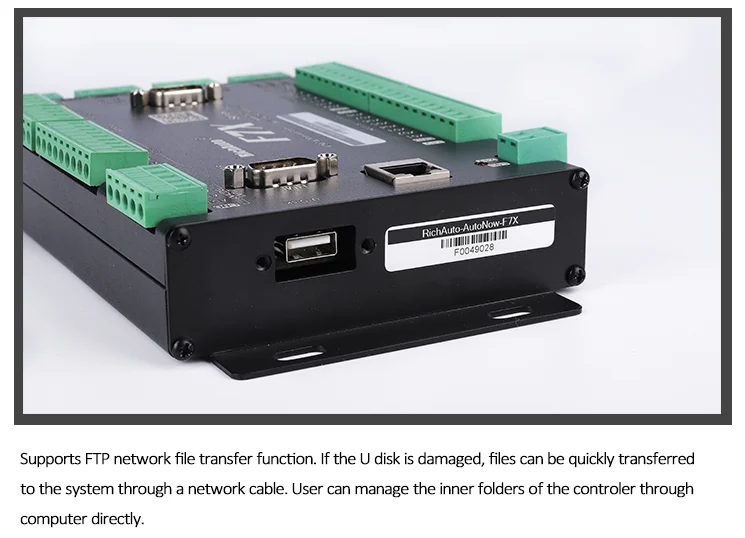

Support U disk,removable storage card reader,and FTP transport protocol;

Adapt USB Interface,high speed transfer, plug and play.Fully offline work.

Product Description

Product Parameters

C P U	DSP	INPUT ACCURACY	0.001MM
BREAK POINT	8	LANGUAGE	S/E/OTHER
POWER FAILURES	AUTO	DRIVE TYPE	STEPPER/SERVO
MOTION AXIS	1~4	DEFINABLE PORT	16I, /24I,24O
SUPPLY VOLTAGE	DC 24V	PULSE RATE	10M/S
INNER MEMORY	512MB	INTERPOLATION TYPE	LINE, ARC, SPLINE
DISPLAY	3″ MONOCHROME	COMMUNICATION	FTP/U DISK

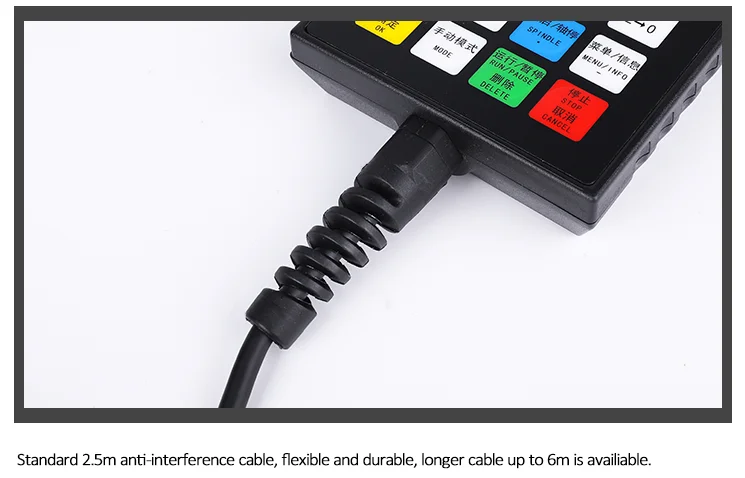

Standard layout	Handheld (with 2.5m cable) 1pc; Control board 1 pc; USB extension cable 1pc.
