3D CNC 1325 Router Cylinder Boring And Milling Machine With Rotary with rotary for furniture making made in china
Feature of wood cnc router:
1. Ball screw for Z axis.It’s stable running,precision and fast.
2. X,Y axis are gear rack,steady rate transmission,fast speed and high efficiency.
3. With Syntec control system,easy to learn operate and high precision.

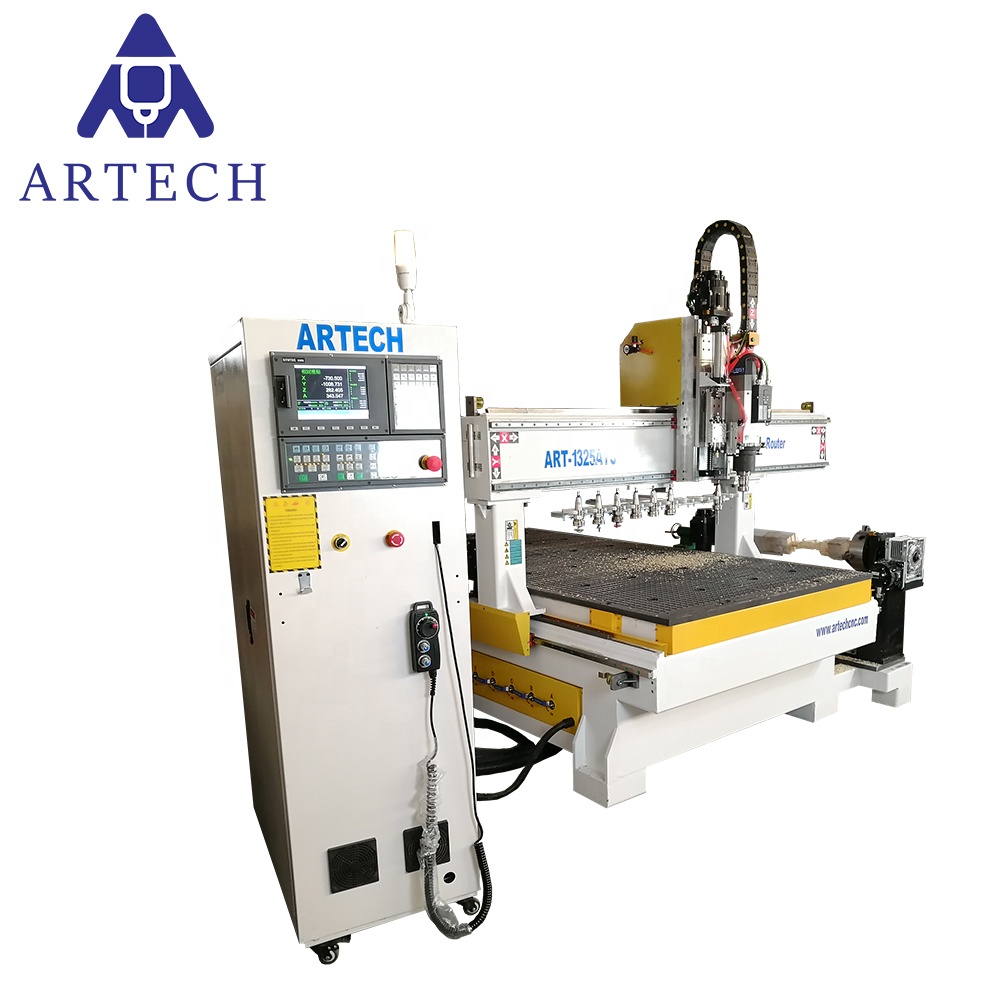

4. This atc wood cnc router designed with risk type auto tool changer.Differents tool can be installed in tool holder.Spindle working one by one,more convenient to change the tool,high efficiency and save time.
5. Heavy duty frame and gantry,very strong and stability.

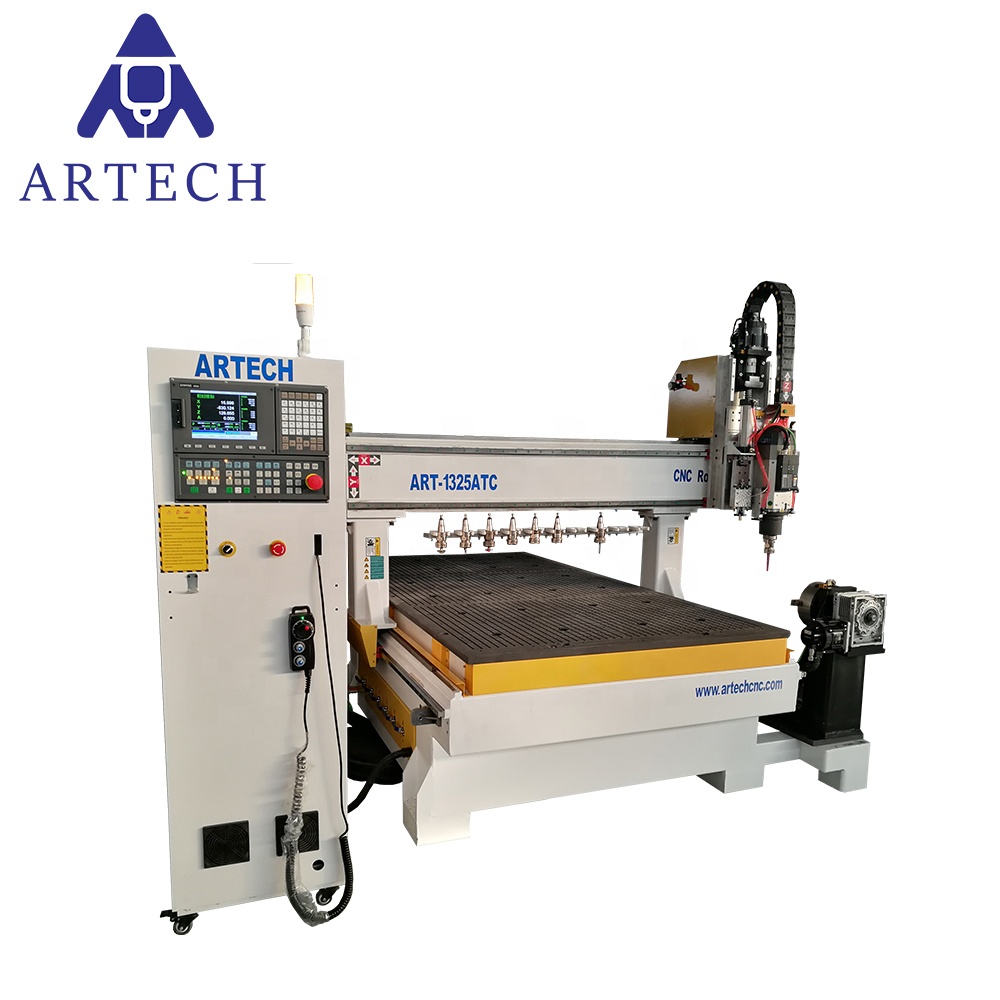

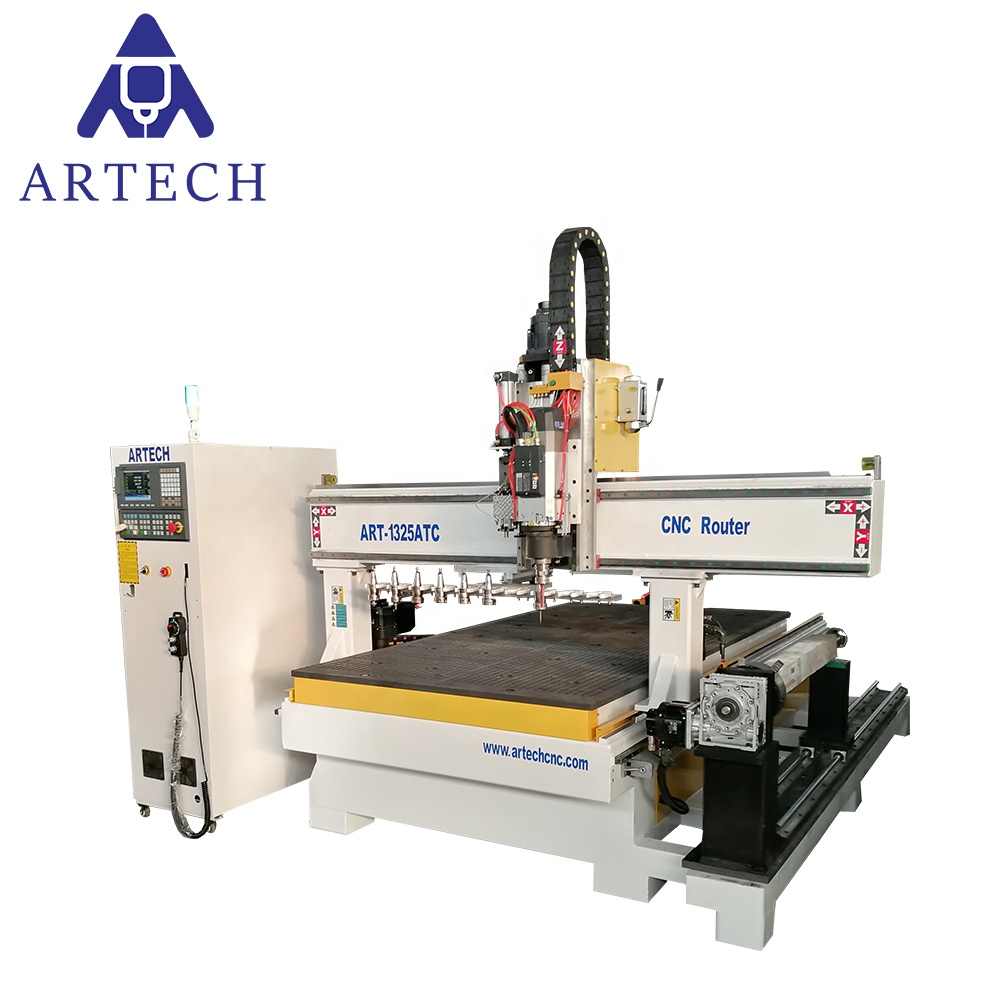

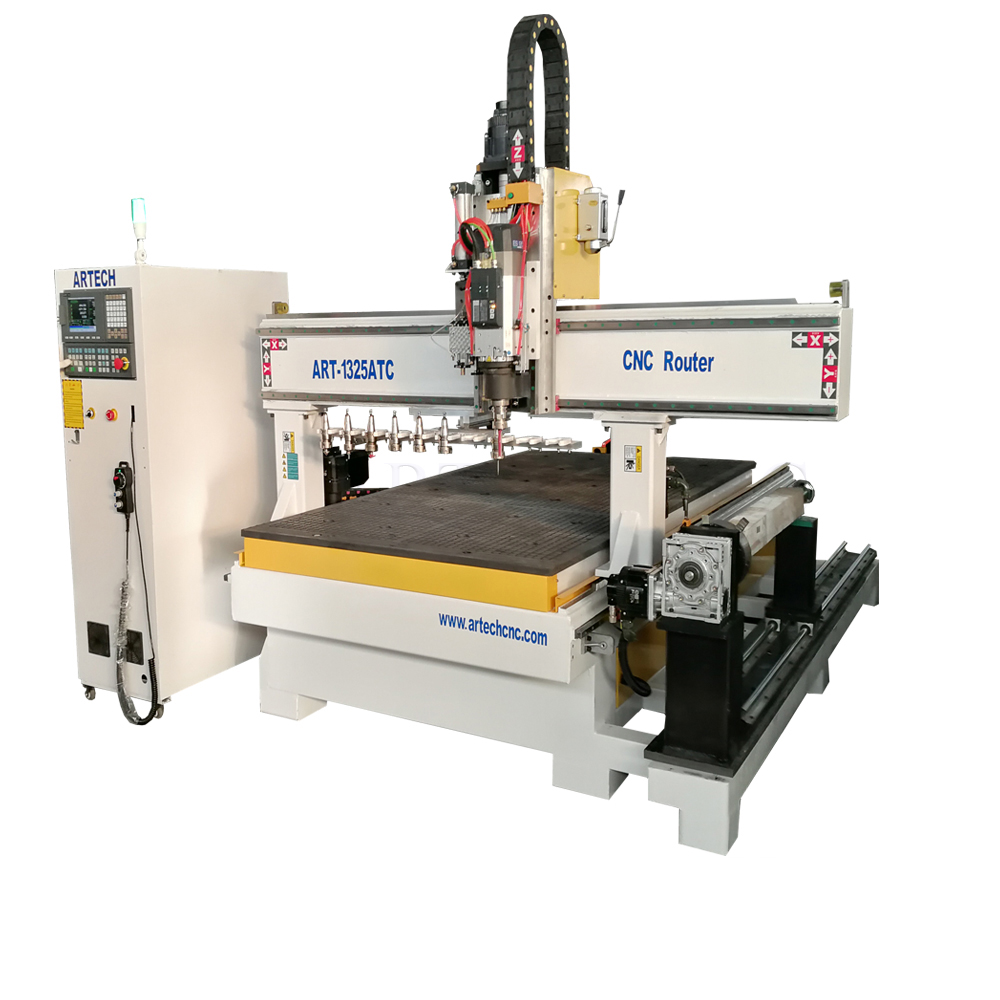

6.This cnc router is installed the rotary at side of the machine body.So that no need to remove the rotary whenever you work on flat bed or rotary.You just need to move the spindle over flat bed or rotary each by the controller.It is easier to move it and save must time.
Get more other cnc machine information
Technical Parameter of wood cnc router:
|
ITEM |
1325 CNC ROUTER |
OPTIONAL PARTS |
|
X Y Z Working area |
1300*2500*200mm |
Other size is optional |
|
Table size |
1460*3040mm |
|
|
X,Y,Z Traveling Positioning Accuracy |
±0.01/300mm |
|
|
X,Y,Z Repositioning Accuracy |
±0.01 mm |
|
|
Table Surface |
T.slot table, hold the material by clamps |
vacuum table |
|
Machine body |
Thick,strong and high quality steel tube welded |
|
|
X,Y axis driving way |
Rack and Pinion /Linear square guide rails& Blocks imported from Taiwan, HIWIN brand |
|
|
Z axis driving way |
Ball screw / Linear square guide rail and blocks imported from Taiwan, HIWIN brand |
|
|
Max. Power Consumption |
2.0kw(without spindle) |
|
|
Max. Rapid Travel Rate |
33,000mm/min |
|
|
Max. Working Speed |
25,000mm/min |
|
|
Spindle Power |
12kw Italy air cooling spindle |
Chinese water cooling spindle |
|
Spindle Speed |
0-18000 RPM |
0-24000RPM |
|
Inverter |
Fuling |
Yaskawa, Panasonic,Delta or others |
|
Working Voltage |
AC380V/50-60Hz/3PH |
AC220V/50-60Hz/Single or 3 phase |
|
Command Language |
G Code |
|
|
Control system |
Syntec |
DSP,Mach 3, NC studio or others |
|
Computer Interface |
PCI |
USB/PCI |
|
X,Y Resolution |
< 0.01mm |
|
|
Software Compatibility |
Type3/ Artcam Software) |
|
|
Dust collector |
2.2KW with 2 bags |
3KW/4KW |
|
Running Environment Temperature |
0°-45° |
|
|
Relative Humidity |
30%-75% |
|
|
Packing Size |
2030*3100*1740mm |
|
|
Net weight |
1000kg |
|
|
Gross weight |
1100kg |
|
get more other cnc machine information
Application of wood cnc router:
1. Woodworking industry:wood crafts,picture frames cutting,handicraft carving wave plates,wooden door production and processing.
2. Advertising industry:advertising materials such as PVC,acrylic,double color plate.
3. Stone working industry:such as natural marble,granite,artificial stone,tombstones,milepost,ceramic tile,glass and other materials.
4. Metal industry:carving aluminum,copper,stainless steel and so on.
Production Process:
Package and Delivery of wood cnc router:
Package Detail: 1.Outside package:Standard plywood package.
2.Inner package:Stretchy film and plastic film for humidity.
And we can package according to your requests.
Delivery Detail: For atandard machines,it will be 7-15 working days after payment;For non-standard machines and customized machines according to clients’ specific requirements,it will be 15 to 30 working days after payment.
After Sale Service of wood cnc router:
1. Engineers availbal to service machinery overseas.
2. 1 year guarantee for whole machine.
3. Technical support by phone,e-mail,whatsapp and skype.If you have any problems,we will within 12 hours to solve it.
4. You will be get free training advice towards our machine in our factory.
5. If you need any component of the machine,we will provide the best price for you.
6. Friendly English version manual and operation video CD disk.
Artech is comprehensive in the production, design, manufacturing, trade and service of CNC machine, and provide high quality and good efficient CNC machines worldwide. With a strong staff team, “Brand ArtechCNC” gained success in woodworking engraving machine, advertising engraving machine, stone engraving machine, metal engraving machine, laser engraving machine and laser cutting industry equipment. The production facilities occupies China’s forefront in development and expansion.
Q1 For offer the most suitable machine,how should i do ?
1).The exact material you want to engrave/cut? (such as wood, acrylic, cloth, fabric, leather, metal…. ? )
2). For the Spindle Power, may I know the cutting or engraving depth you want?
3). The working area you demand? (such as max dimension of material, width*length,1200*1200mm,1300*2500mm,2000*3000mm, etc…
4). Do you want to engrave on planar &flat surface or round &curved surface?
If yes,the machine shall be added optional items, such as rotary attachment. if you can provide some pictures of your products,that would be great! after your tell us these,we will send you more information about the machine and price.
Q2.If we donot know how to use the machine,can you teach us?Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if you are busy ,we will have the special engineer to your country,but you need to bear some fee, like tickets and hotel and meal.
Q3.How about your after-sales service?
we offer you 24 hours service phone,skype or MSN.
Q4.How about your guarantee period?
one year and during the time,if you have any questions ,we will solve it for free.
