Product Description
Boiler Applicable Industry
1.Washing ironing industry: dry washer , dryer and washing machine , dryer, ironing machine, electric iron, and other ancillary equipment.
2.Food machinery industry: tofu machine, steam box, sterilization pot, packing machine, coating equipment, sealing machine, such as supporting the use of equipment.
3.Biological chemical industry: fermentation tank, reaction kettle, sandwich pot, mixer, emulsifying machine supporting the use of equipment
4.Other industries: oil field, car) steam cleaning industry, (hotel, school, dormitory, batch plant) made by hua-dong works are hot water supply, (Bridges, railways) concrete curing, leisure (salon), sauna bath, heat exchange equipment.

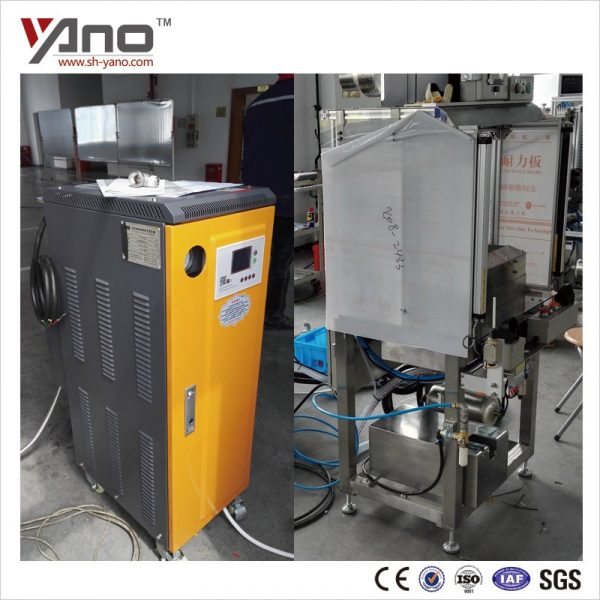

5.One of our Food making company customer buy from us the 36KW electric steam boiler.
|

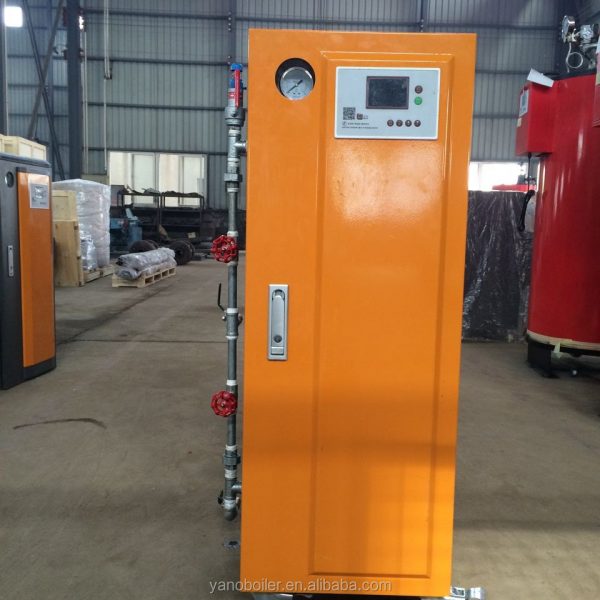

Product name
|
LDR0.07-0.8
|
Dimension(mm)
|
1035*550*1420
|
|
Rated evaporation(kg/h)
|
70
|
Steam caliber(mm)
|
DN20
|
|
Power wire(mm²)
|
25
|
Drain outlet caliber(mm)
|
DN20
|
|
Power(kw)
|
50
|
Water inlet caliber (mm)
|
DN15
|
|
Source voltage(v)
|
380
|
Steam temperature(℃）
|
175
|
|
Rated pressure (MPa)
|
0.8
|
Weight（kg）
|
190
|
Certificate
Packing & Delivery
Company Introduction
We are specialized in the design, production, sales and service of small and medium-sized boiler setters. We conduct national quality supervision and inspection with a class C boiler manufacturing license.
Our company is located in the economic boom area, northwest of China-Shanghai. Our factory covers an area of 12,000 square meters,including plant and office building covering an area of 8,600 square meters.
With years of continuous development and progress, we have got more than ten inventive patents and many kinds of national energy saving product honors.
We have passed ISO9001 international quality management system certification, and obtained the glorious title of "the 2010 World
Expo in Shanghai Outstanding Private Enterprises", showing the world the excellent image of Chinese enterprises.
Expo in Shanghai Outstanding Private Enterprises", showing the world the excellent image of Chinese enterprises.
