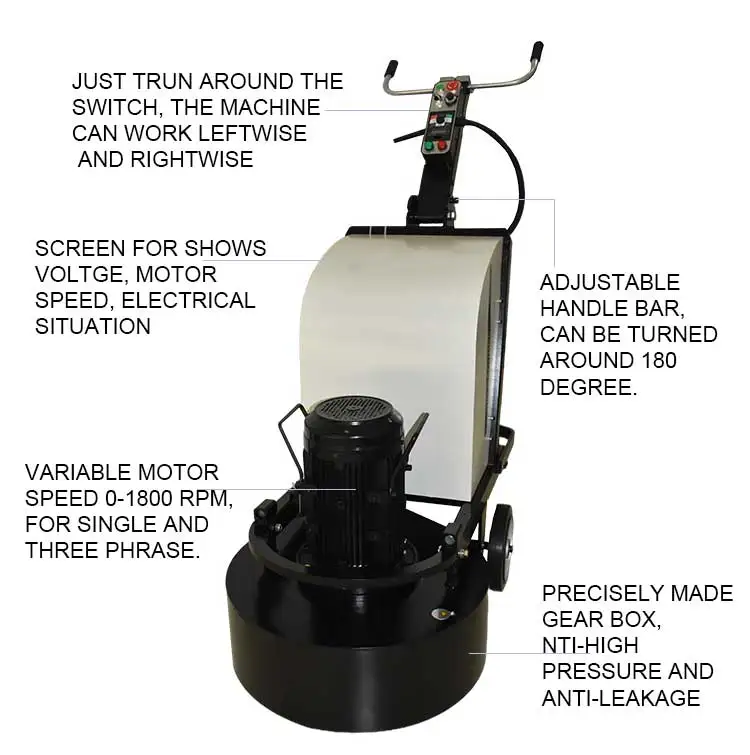

G6 concrete floor grinder

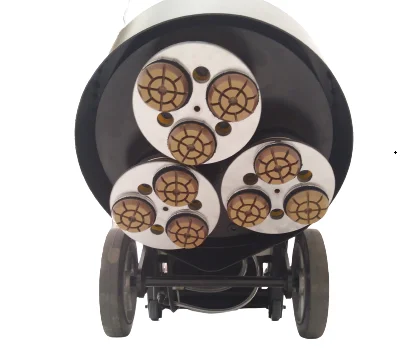

A heavy duty and professional concrete floor grinder, with the planetary design, driven by gears. The gearbox and three grinding disc rotate towards converse direction like a satellite or planetary.

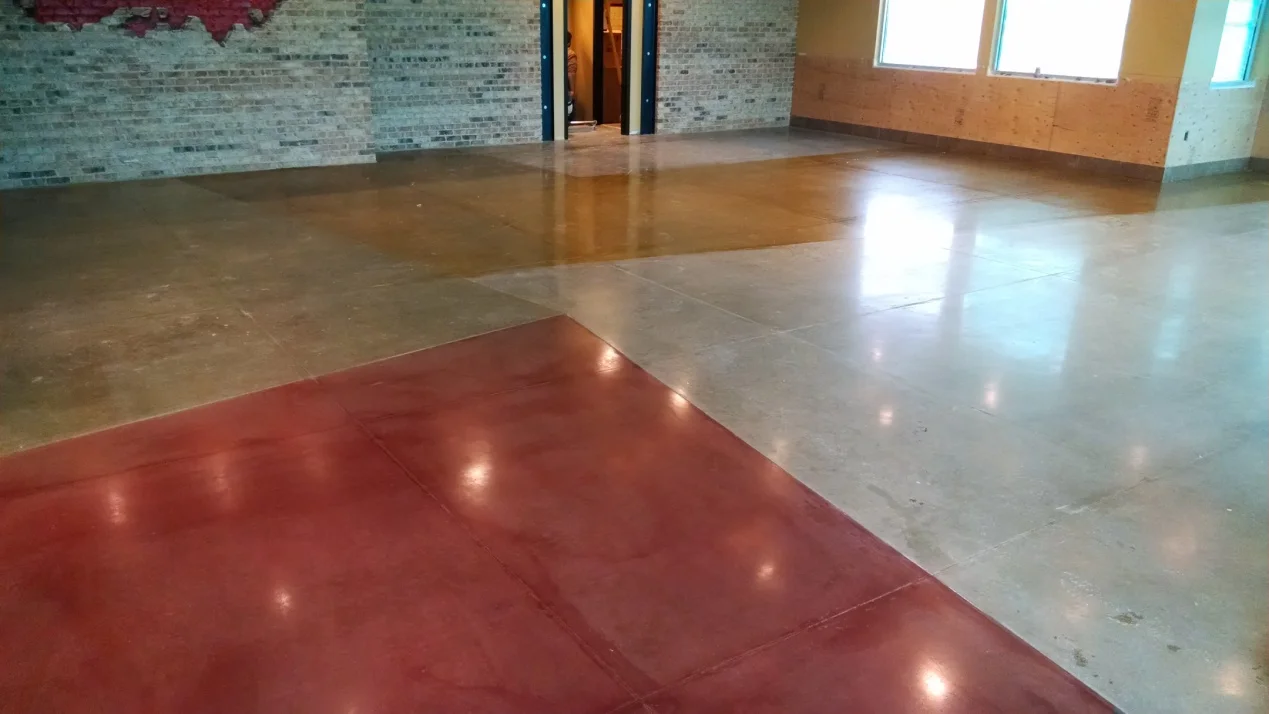

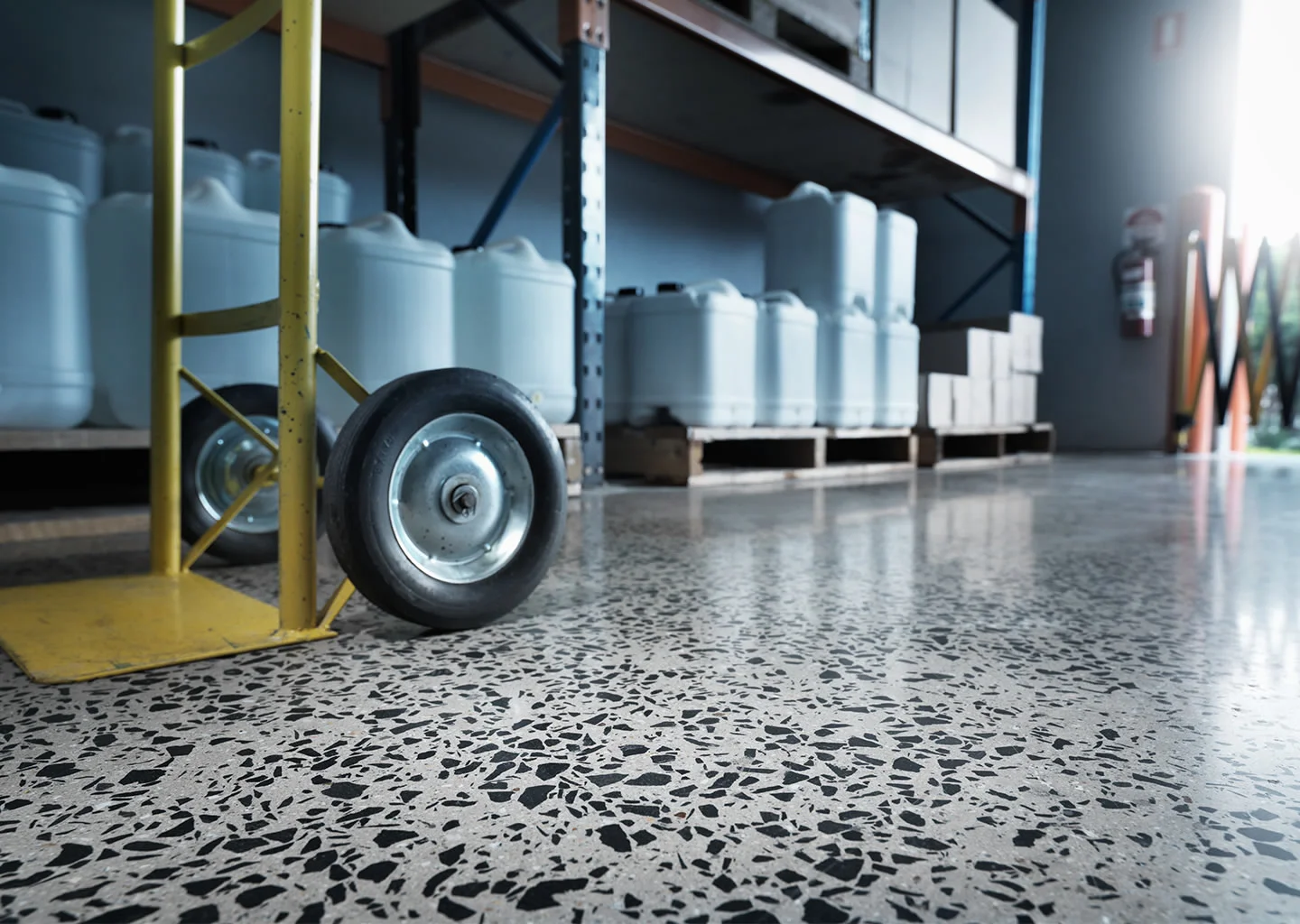

G6 is 650mm, suitable for middle to large floor projects. Multi applications on epoxy, concrete, terrazzo, stone floors.
|
Model
|
G6A
|
G6B
|
|
Motor Power
|
11hp / 7.5kw
|
11hp / 7.5kw
|
|
Voltage
|
3 Phrase * 380-440v
|
1 /3 Phrase * 200-240v
|
|
Frequency |
50/60hz
|
50/60hz
|
|
Current |
15A |
42.6A on 1P / 26A on 3P
|
|
Motor Speed
|
0-1800rpm
|
0-1800rpm
|
|
Working Width
|
650mm
|
650mm
|
|
Tool Holder diameter |
250mm
|
250mm
|
|
No.of Tools
|
9 pcs
|
9 pcs
|
|
Net weight
|
280kg
|
280kg
|
|
Water tank
|
30L
|
30L
|
|
Dimension
|
970*650*950mm
|
970*650*950mm
|
Gearbox is the soul part for concrete grinder. Therefore, its design, material, process, assembly are critically important. G6 gearbox is all made of aluminum alloy, mold and casting The gears are designed by experienced gear experts and processed by Reischauer.
One of design principle is easy to maintain
So every parts are assembled and dissembled like building block, with a few common tools, you could enter into the machine heart easily. The screws and nuts are high strength 10.8 degree, big aperture, no slip.
|
Packaging: Pallet packing
|
||
|
Size（mm）
|
970(L)*650(W)*950(H)
|
|
|
Weight
|
280kg/Unit
|
|
|
Package Details
|
The regular package is carton box, fumigated wooden box packing for optional, we will customize the pallet size according to the
models Nos, load more quantities to save space when shipped by container. |
|
