30W big power big DIY laser engraving machine for metal and plastic
Product Description

Fiber laser marking engraving machine
The high-performance small laser engraving machine can carry out pattern or text engraving on metal materials and some plastic plastics.
It is easy to learn and easy to learn. It has a compact appearance and rich functions.

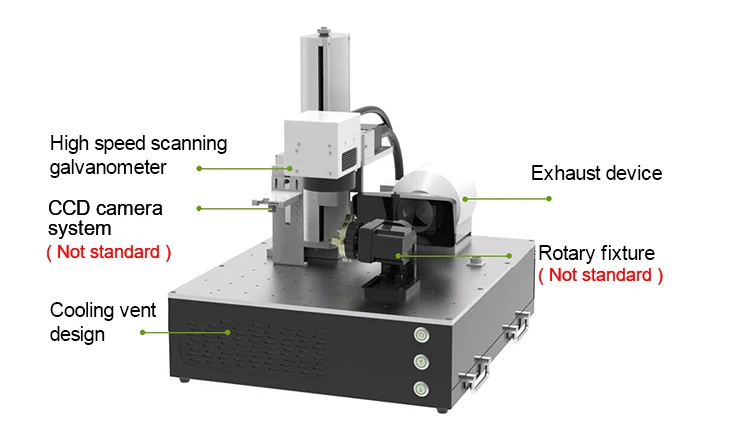

Product Features:
1. Safety and explosion-proof design, the shell adopts one-piece ABS hood
2. All-aluminum chassis, marking stability increased by 30%
3. Electric lift button + double red light positioning and focusing design,
4. Removable cover design, easy to adapt to multi-shape object engraving
5. CCD vision system, camera extraction of hand-drawn signatures for engraving
6. Install a suction device to effectively absorb the engraving dust and improve the laser engraving effect.
1. Safety and explosion-proof design, the shell adopts one-piece ABS hood
2. All-aluminum chassis, marking stability increased by 30%
3. Electric lift button + double red light positioning and focusing design,
4. Removable cover design, easy to adapt to multi-shape object engraving
5. CCD vision system, camera extraction of hand-drawn signatures for engraving
6. Install a suction device to effectively absorb the engraving dust and improve the laser engraving effect.
Model | Laser engraving machine |
Laser power | 20W/30W/50W/Mopa20W |
Engravable range | 110*110mm/175*175mm |
Engravable material | Stainless steel, iron, aluminum, copper, gold and silver and other metal materials. PP, PET, PVC, ABS, paper and other small non-metallic materials. |
Engraving speed | <7000mm/s |
Minimum engraving size | Minimum line width 0.03mm, minimum character 0.2mm |
CCD camera range | 200*100mm |
Rotary fixture range | 3-75mm |
Support for graphic formats | Vector graphics and bitmaps such as AI, DXF, BMP, PLT, DST, DSB |
Weight | 50kg |
Dimensions | 500*600*620mm |
Power requirement | AC220V±10% |
Environmental requirements | Temperature: 5~35°C, humidity: 5~85%, no condensation, no dust, or less dust |
Powerful software features
Optimized portrait engraving algorithm, photos are more vivid

Engraving text is finer and faster
Minimum engraving character up to 0.2mm
Minimum engraving character up to 0.2mm



Laser engraving effect:
