Mini laboratory spray dryer (small spray dryer) has a compact design and can be independently placed in a laboratory or placed on a specially designed stainless steel rack. It is self-contained and can be operated without other facilities. One-button start-up, large color LCD touch screen operation, fully automatic or manual monitoring can be used for two operation modes, convenient operation and monitoring of the experimental process. It is the spray dryer with the smallest volume, the lowest noise and the excellent drying effect. Domestic Tsinghua University, Peking University, Shanghai Jiaotong University, Hong Kong University of Science and Technology, Nanjing University, Wuhan University, Huazhong University of Science and Technology, Chinese Academy of Sciences, Zhejiang University, Tongji University, South China University of Technology, Jinan University, Nankai University, Southeast University, China Agricultural University, Selected by more than 1,500 colleges and universities, such as General Electric.
2.Color LCD touch screen parameter display: air inlet temperature / air outlet temperature / peristaltic pump speed / air volume / pass needle frequency.
3. Fully automatic control: One-click start-up, after setting the spraying process parameters, the temperature reaches the
predetermined temperature, the peristaltic pump starts automatically, the running animation is displayed on the touch screen, and the running process is clearly displayed; when the machine is shut down, just press the stop button, and the machine is automatically safe. Shut down.
3. Manual control: If the process parameters need to be adjusted during the experiment, it can be easily switched to the manual state, and the color touch screen is dynamically displayed (animated) throughout the experiment.
4. Nozzle cleaner (through needle) is provided. When the nozzle is blocked, it will be automatically cleared and the frequency of through needle can be adjusted automatically.
5. Shutdown protection function: Just press the stop button when shutting down, the machine will stop running immediately except the fan to ensure that the equipment will not burn out due to misoperation (forcibly turning off the fan).
6. The spraying, drying and collecting system is made of transparent high-quality borosilicate heat-resistant glass material, so that the drying process is performed in a pollution-free environment.
7.Built-in imported oil-free air compressor, the particle diameter of the powder spray is normally distributed, the fluidity is
very good, and the noise is very low, less than 60db.
8. Two-fluid spray atomization structure, the whole machine is made of high-quality stainless steel material, compact design, no auxiliary equipment is needed.
9. The design of dry temperature control uses real-time control PID constant temperature control technology to make the
temperature control in the whole temperature area accurate and the heating temperature control accuracy ± 1 ℃.
10. In order to maintain the purity of the sample, an air inlet filter is equipped.
11. The feed volume can be adjusted by the feed peristaltic pump, and the minimum sample volume can reach 50ml.
12. The dried powder has a uniform particle size after drying, and more than 95% of the dry powder is in the same particle size range.
13. For viscous materials, a nozzle cleaner (through needle) is provided. When the nozzle is blocked, it will be automatically cleared and the frequency of the through needle can be adjusted automatically.
14. Innovative tower wall purging device, higher material recovery rate.

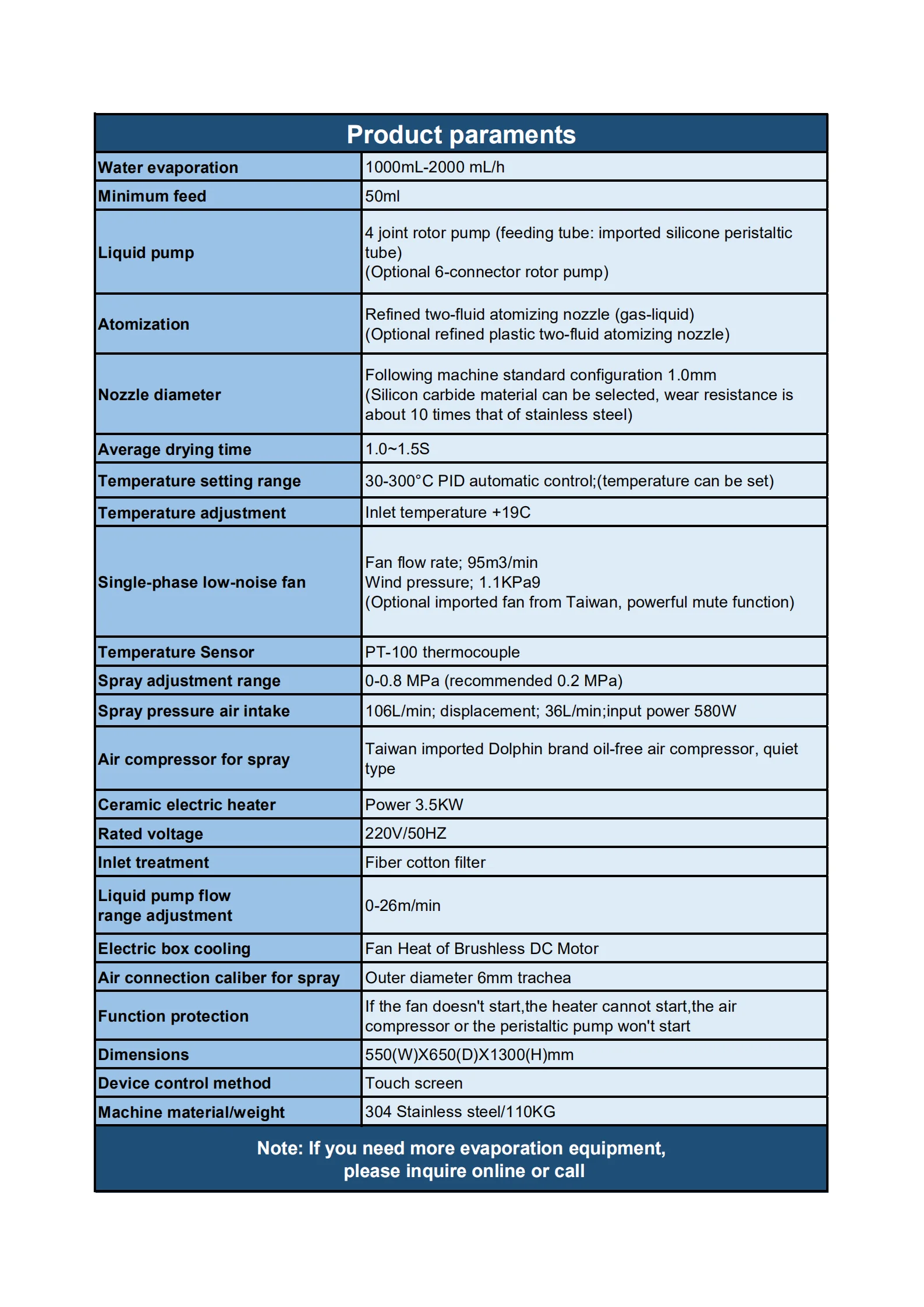

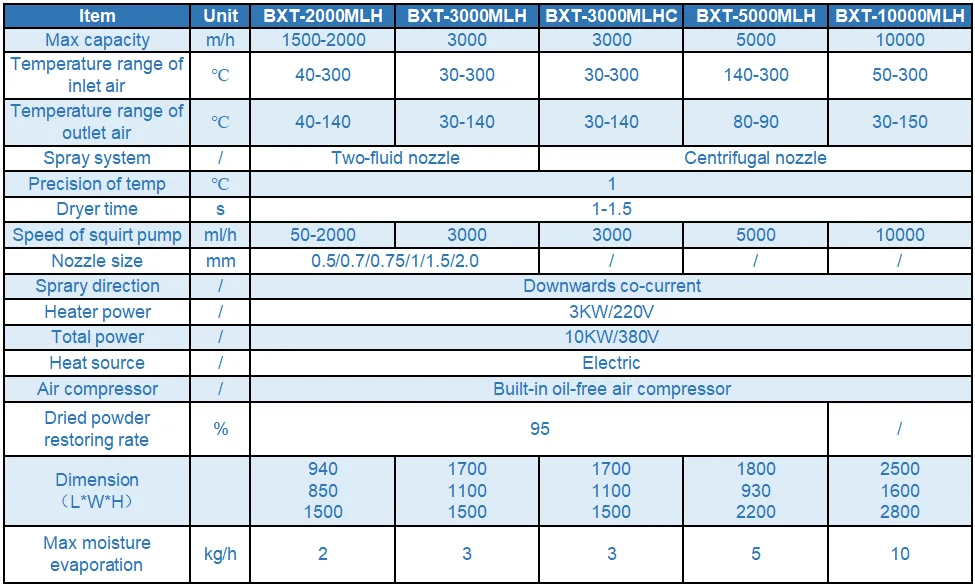

Technical Parameters：
2. The package will be shipped by DHL/Fedex/TNT/EMS/UPS/China post/EF-Express/Special line, as you have chose in the order.
Our company Vision ” Quality Creates the Success” and all products we offer meets industry standards including SAE, IEC JEDEC, ASTM and MIL-STD,ISO: 9001,UL,CE certified. We focus on each piece of work well for our customers. In past few years, we have acquired fruity achievement due to our good credit and service, and we have established long-term business relations with many foreign customers. Some of our customers have appointed to be as their Purchase Agency in China territory. Our products have been exported to all over the world such as Korea, India, Indonesia, Pakistan, Thailand, Japan, Denmark and etc. At Nearmro, you will get your desired product with the most favorable price and high quality. Welcome your inquiry.
A:Factory + trade (integration),More than 10 years focusing on test instruments field,6 years exporting experience.
Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days. Please be aware that our production lead times depend on specific items and item quantities.
Q:What about the warranty with after – sales services?
A:The testing machine is guaranteed for 12 months by Shanghai Glomro Building Industrial Co.Ltd ,One year promise including free maintenance and changing Instrument components.Besides, Full-life cycle technical support is provided.
Q:What about the product’ services and quality?
A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer’s company when you need.
