Features
1.Patent Technology: use newest “Precise Coil” technology, make it more international competitive.
2. Original Structure: use disc coreless motor to take place traditional motor makes it less volume and weight.
3. Higher Utilization: use special coreless motor technology to eliminate the use bottlenecks of lower speed wind energy.
4. Higher Reliability: special structure make it bigger ratio of power to volume, power to weight and have long life of 8 times longer than traditional motor.
5. Gearless, direct drive, low RPM generator.
6.High standard, quality components for use in harsh and extreme environments for wind turbines
7. High efficiency and Low mechanical resistance energy loss
8.Excellent heat dissipation due to the Aluminum alloy outer frame and special internal structure.
Generator specification
|
Rated power |
300w |
| Rated speed | 400rpm |
| Rated voltage | 12v/24v/48v |
| Rated Current | 1.7A |
| Efficiency | >80% |
| Resistance (Line-Line) | <1.6OΩ |
| Winding type | Y |
| Insulation Resistance | 100Mohm Min(1000V DC) |
| Leakage level | <5 ma |
| Start torque | <0.1 |
| Phase | 3 phase |
| Structure | Outer Rotor |
| Stator | Coreless |
| Rotor | Permenent Magnet Generator(Outer Rotor) |
| Gen. Diameter | 230mm |
| Gen. Length | 192mm |
| Gen. Weight | 9kg |
| Shaft. Diameter | 30mm |
| Housing Material | Aluminum(Alloy) |
| Shaft Material | Stainless Steel |
Generator power curve
Generator drawing

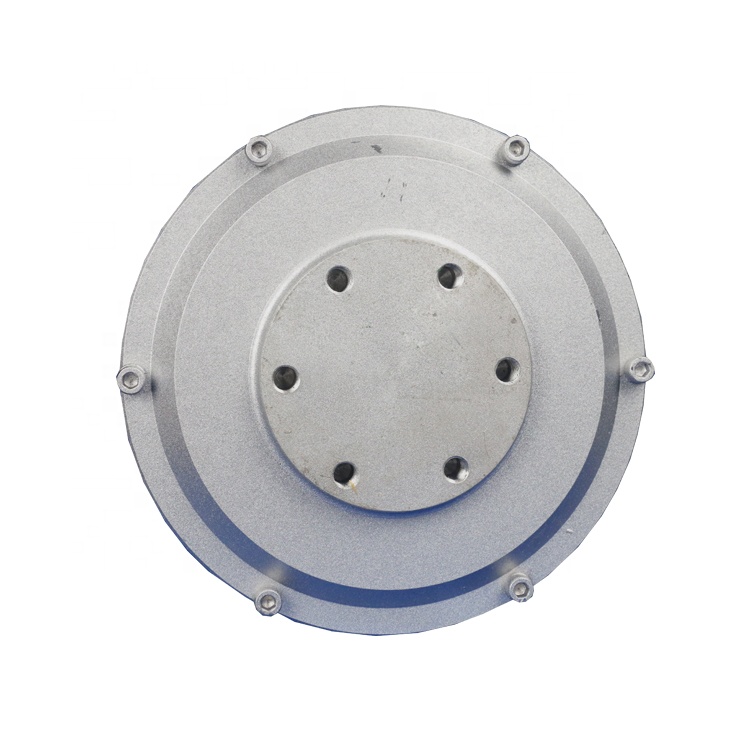

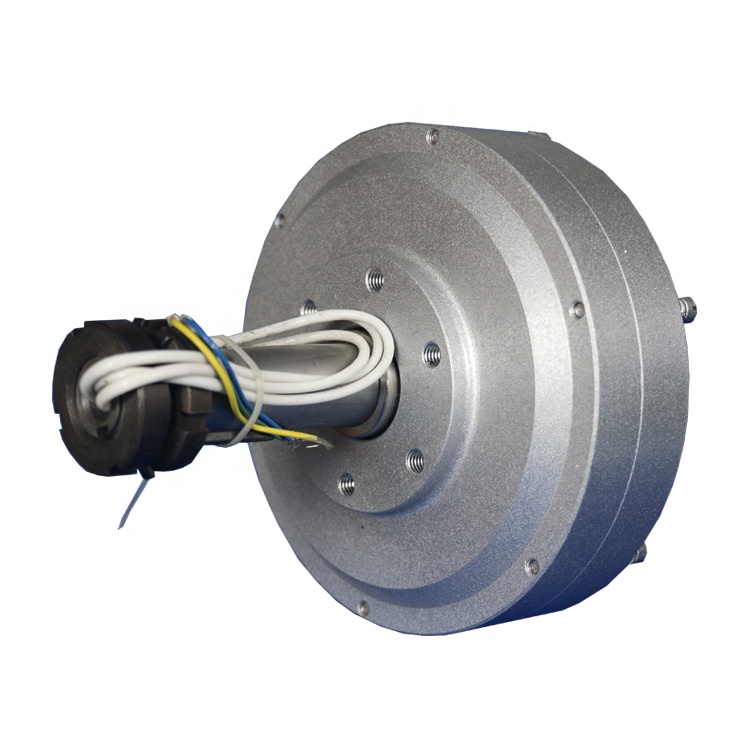

Generator details
Packing details
