Diesel Compressor for Water Well Drilling Rig
Product Specification
|

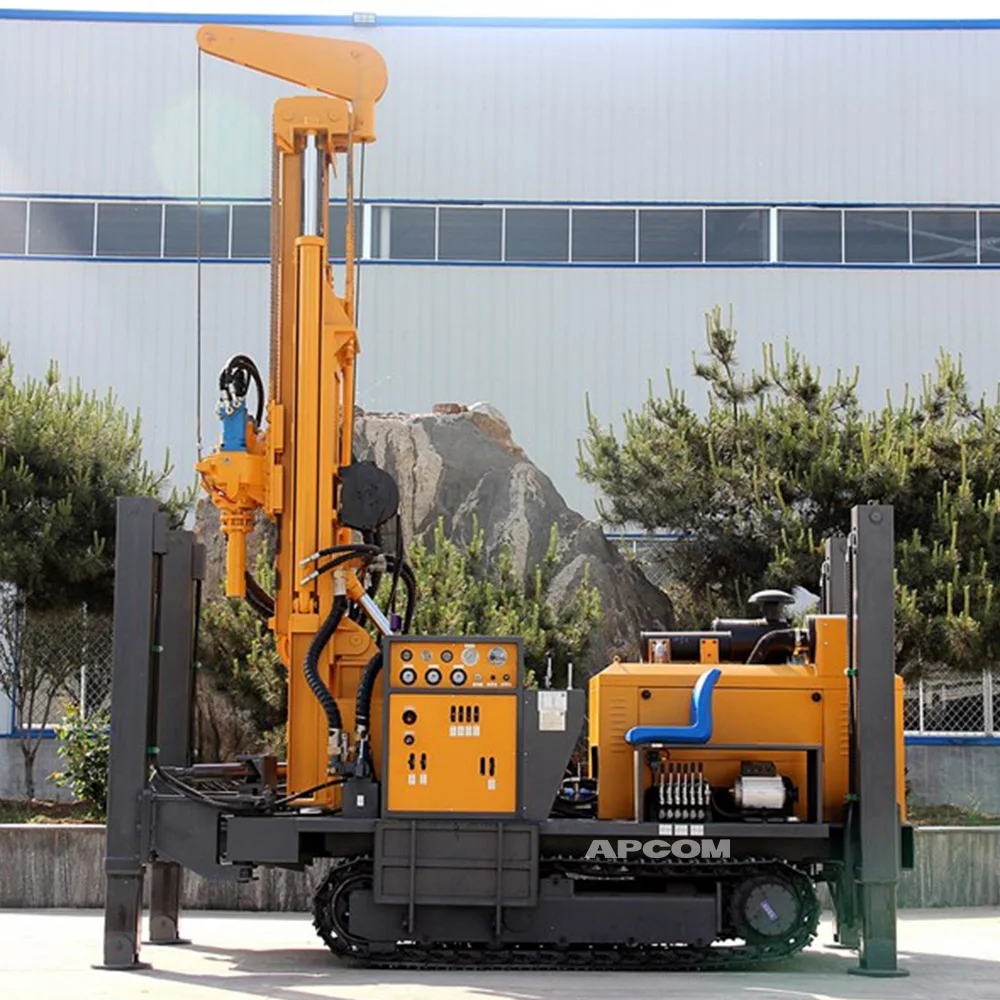

ZG300 Crawler Water Well Drilling Rig Specification
|
||||||
|
The weight (T)
|
7.2 |
Drill pipe diameter (mm)
|
Φ76 Φ89 Φ102
|
|||
|
The hole diameter (mm）
|
140-325
|
Drill pipe length (m)
|
1.5m 2.0m 3.0m
|
|||
|
Drilling depth (m)
|
300
|
Rig lifting force (T)
|
18
|
|||
|
One-time advance length (m)
|
3.3/4.8
|
Rapid rise speed (m/min)
|
22
|
|||
|
Walking speed (km/h)
|
2.5
|
Fast feeding speed (m/min)
|
40
|
|||
|
Climbing angles (Max.）
|
30
|
Width of loading (m)
|
2.7
|
|||
|
Equipped capacitor (kw)
|
85
|
Hoisting force of winch (T)
|
2
|
|||
|
Using air pressure (MPA)
|
1.7-3.0
|
Swing torque (N.m)
|
5700-7500
|
|||
|
Air consumption (m3/min)
|
17-36
|
Dimension (mm)
|
4100×2000×2500
|
|||
|
Swing speed (rpm)
|
40-70
|
Equipped with hammer
|
Medium and high wind pressure series
|
|||
|
The penetration efficiency (m/h)
|
15-35
|
High leg stroke (m)
|
1.4
|
|||
|
The engine brand
|
Yuchai engine
|
|||||
|
Item
|
ZG180
|
ZGX200
|
ZG260
|
ZG280
|
|
Drilling Depth(m)
|
180
|
200
|
260
|
280
|
|
Drilling Diameter(mm)
|
Φ140-254
|
Φ140-254
|
Φ140-305
|
Φ140-305
|
|
One-Time Advance Length(m)
|
3.3
|
3.3
|
3.3
|
6.6
|
|
Walking Speed(km/h)
|
2.5
|
2.5
|
2.5
|
2.5
|
|
Climbing Angles(°)
|
30
|
30
|
30
|
30
|
|
Engine & Power(kw)
|
60
|
65
|
70
|
75
|
|
Air Consumption(m3/min)
|
17-31
|
17-31
|
17-31
|
17-31
|
|
Drill Pipe Length(m)
|
1.5/2.0/3.0
|
1.5/2.0/3.0
|
1.5/2.0/3.0
|
1.5/2.0/3.0
|
|
Drill Pipe Diameter(mm)
|
Φ76 Φ89
|
Φ76 Φ89
|
Φ76 Φ89
|
Φ76 Φ89
|
|
Rig Lifting Force(T)
|
12
|
13
|
15
|
17
|
|
Swing speed(rpm)
|
45-70
|
45-70
|
45-70
|
40-70
|
|
Swing torque(N.m)
|
3200-4600
|
3400-4700
|
4000-5300
|
4500-6000
|
|
Dimensions(mm)
|
4000*1630*2250
|
3950*1750*2250
|
4000*1850*2300
|
5900*1850*2360
|
|
Weight(kg)
|
5200
|
5000
|
6500
|
7600
|
|

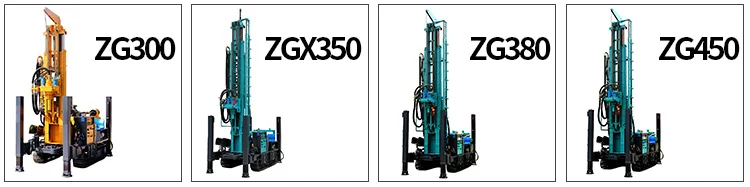

Item
|
ZG300
|
ZGX350
|
ZG380
|
ZG450
|
|
Drilling Depth(m)
|
300
|
350
|
380
|
450
|
|
Drilling Diameter(mm)
|
Φ140-325
|
Φ140-325
|
Φ140-325
|
Φ140-350
|
|
One-Time Advance Length(m)
|
3.3/4.8
|
6.6
|
6.6
|
6.6
|
|
Walking Speed(km/h)
|
2.5
|
2.5
|
2.5
|
2.5
|
|
Climbing Angles(°)
|
30
|
30
|
30
|
30
|
|
Engine & Power(kw)
|
85
|
92
|
96
|
103
|
|
Air Consumption(m3/min)
|
17-36
|
17-36
|
17-36
|
17-36
|
|
Drill Pipe Length(m)
|
1.5/2.0/3.0
|
1.5/2.0/3.0/6.0
|
1.5/2.0/3.0/6.0
|
1.5/2.0/3.0/6.0
|
|
Drill Pipe Diameter(mm)
|
Φ76 Φ89 Φ102
|
Φ89 Φ102
|
Φ89 Φ102
|
Φ89 Φ102
|
|
Rig Lifting Force(T)
|
18
|
22
|
24
|
25
|
|
Swing speed(rpm)
|
40-70
|
66-135
|
66-135
|
50-135
|
|
Swing torque(N.m)
|
5700-7500
|
6200-8500
|
6500-9000
|
7000-9500
|
|
Dimensions(mm)
|
4100*2000*2500
|
6000*2000*2550
|
5950*2100*2550
|
5900*1850*2360
|
|
Weight(kg)
|
7200
|
8600
|
9200
|
9400
|
|
Item
|
ZG500
|
ZGX580
|
ZG680
|
ZG800
|
|
Drilling Depth(m)
|
500
|
580
|
680
|
800
|
|
Drilling Diameter(mm)
|
Φ140-350
|
Φ140-350
|
Φ140-400
|
Φ140-400
|
|
One-Time Advance Length(m)
|
6.6
|
6.6
|
6.6
|
6.6
|
|
Walking Speed(km/h)
|
2.5
|
2.5
|
2.5
|
2.5
|
|
Climbing Angles(°)
|
30
|
30
|
30
|
30
|
|
Engine & Power(kw)
|
118
|
132
|
153
|
194
|
|
Air Consumption(m3/min)
|
17-42
|
17-42
|
17-42
|
17-42
|
|
Drill Pipe Length(m)
|
1.5/2.0/3.0/6.0
|
1.5/2.0/3.0/6.0
|
1.5/2.0/3.0/6.0
|
1.5/2.0/3.0/6.0
|
|
Drill Pipe Diameter(mm)
|
Φ102 Φ108 Φ114
|
Φ102 Φ108 Φ114
|
Φ102 Φ108 Φ114
|
Φ102 Φ108 Φ114 Φ117
|
|
Rig Lifting Force(T)
|
26
|
28
|
30
|
36
|
|
Swing speed(rpm)
|
40-130
|
45-140
|
45-140
|
45-140
|
|
Swing torque(N.m)
|
7500-10000
|
8500-11000
|
8850-13150
|
9000-14000
|
|
Dimensions(mm)
|
6200*2200*2650
|
6200*2200*2650
|
6300*2300*2650
|
6300*2300*2650
|
|
Weight(kg)
|
11500
|
12000
|
13000
|
13000
|

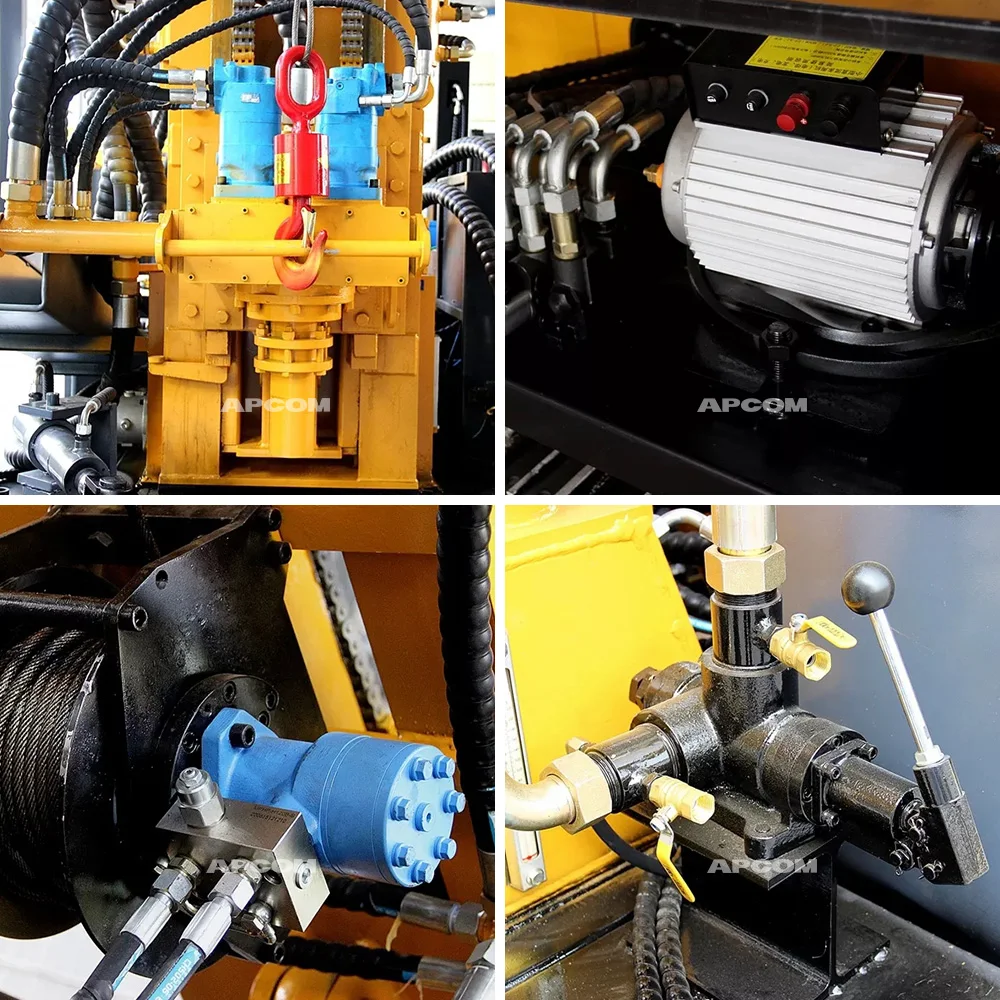

Details Images
Online 24 hours
WhatsAp: +86-137-0579-6425 WhatsAp: +86-181-6701-6615

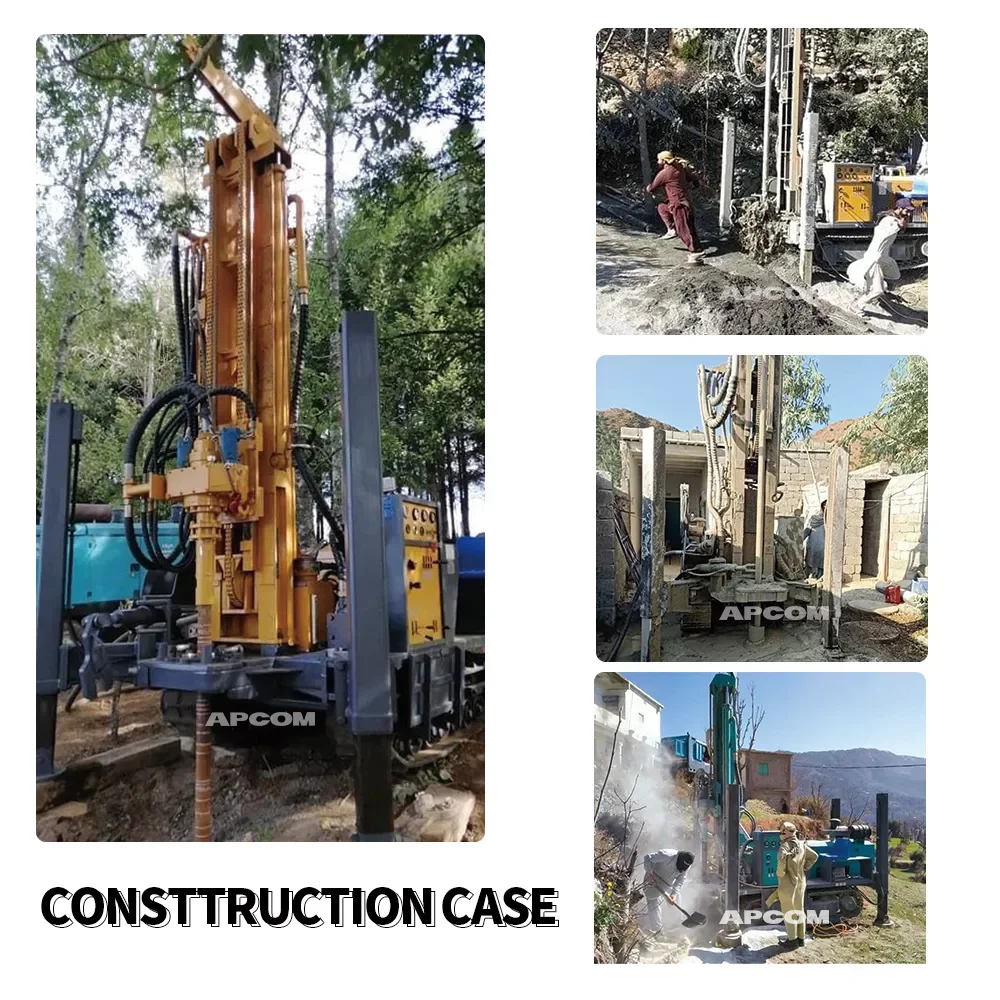

Consttruction case
Contact customer service for more construction cases
