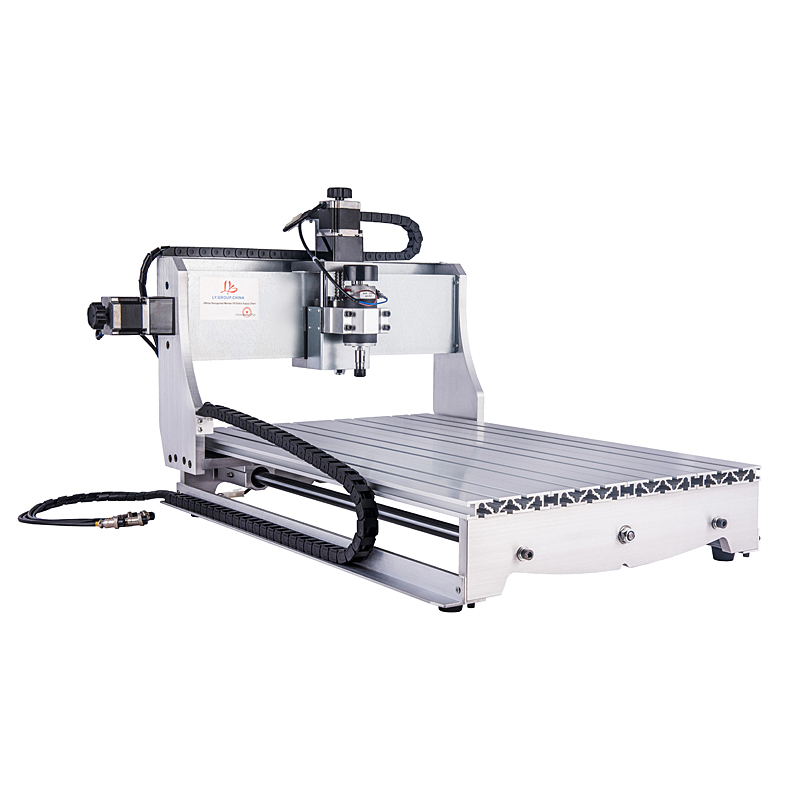

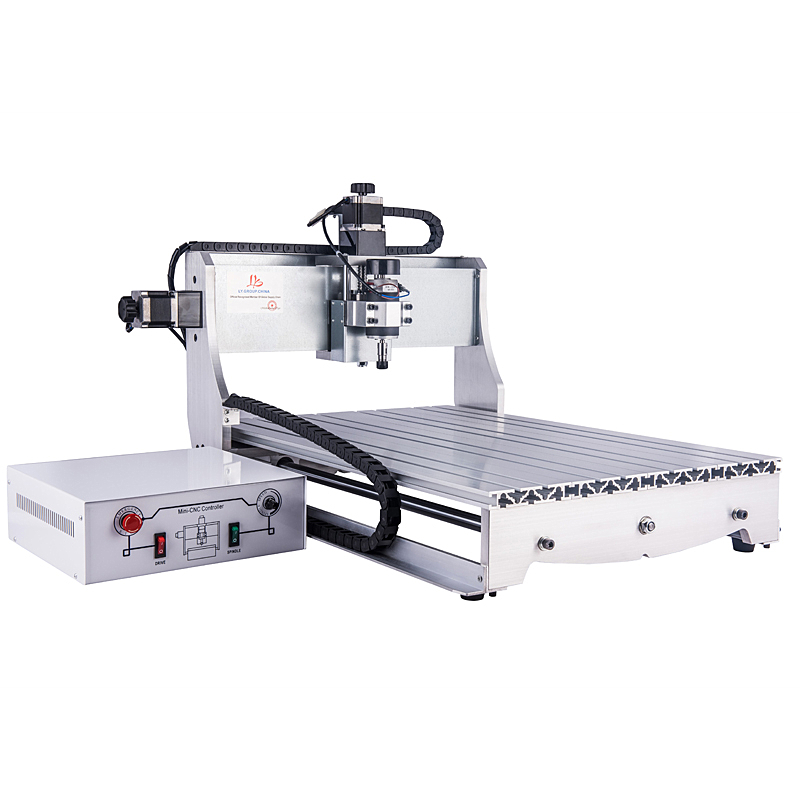

CNC 6040Z-D300 3/4axis Router Engraver/Engraving Drilling and Milling Machine
Introduction
The CNC router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.
The cnc router is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.
1 year machine part and 6 months electrical parts,stepping motor,spindle Free Warranty
Shipping by DHL FEDEX UPS with tracking number
Technical Parameters
|
MODEL |
6040Z-D300 |
|||
|
Attribute |
LPT 3axis |
LPT 4axis |
USB 3axis |
USB 4axis |
|
Axis |
3axis |
4axis |
3axis |
4axis |
|
Interface |
LPT port |
LPT port |
USB port |
USB Port |
|
Limit switch |
No |
No |
No |
No |
|
Tool auto-checking |
No |
No |
No |
No |
|
Spindle Motor: |
300W |
300W |
300W |
300W |
|
Type of screw |
1605 Ball screw |
1605 Ball screw |
1605 Ball screw |
1605 Ball screw |
|
Weigh |
46KG |
50KG |
47KG |
51KG |
|
Machine Dimensions: |
860X690X550mm |
|||
|
Rack material: |
6061 and 6063 Hard aluminum alloy |
|||
|
Engraving area: |
600X400mm |
|||
|
Z-Axis Stroke: |
80mm, Engraving depth depends on the length of the tool edge |
|||
|
Acceptable material thickness: |
≤80mm |
|||
|
Rail type: |
Chromeplate shaft + Linear Bearings, Surface hardening 61HRC |
|||
|
Spindle motor: |
300W/12000r/min (Very small noise) |
|||
|
Collet type: |
ER11,1/8"(3.175mm) Collet |
|||
|
Stepper motor and drive: |
two-phase hybrid stepping motor 3A/PHASE,150N.cm, 8 segments drive. |
|||
|
Maximum operating speed: |
4000mm/min (Engraving speed : 300-3000mm/min) |
|||
|
Repeat positioning Accuracy: |
≤0.03mm |
|||
|
Software Compatability: |
Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam) |
|||
|
Command code: |
G code/.nc/.ncc/.tab/.txt |
|||
|

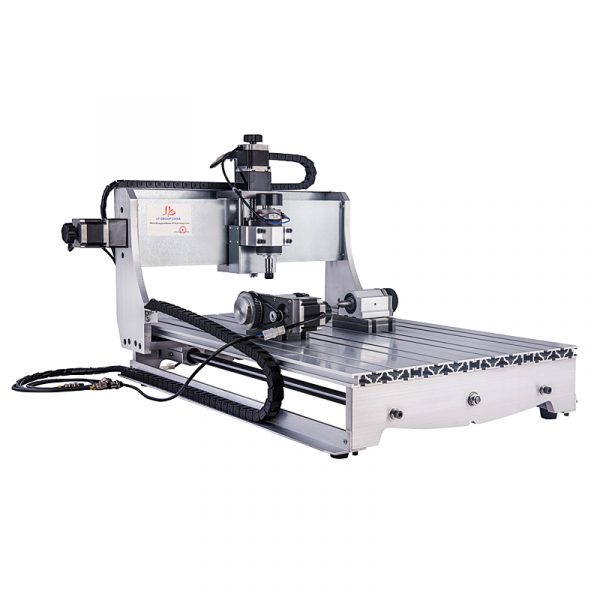

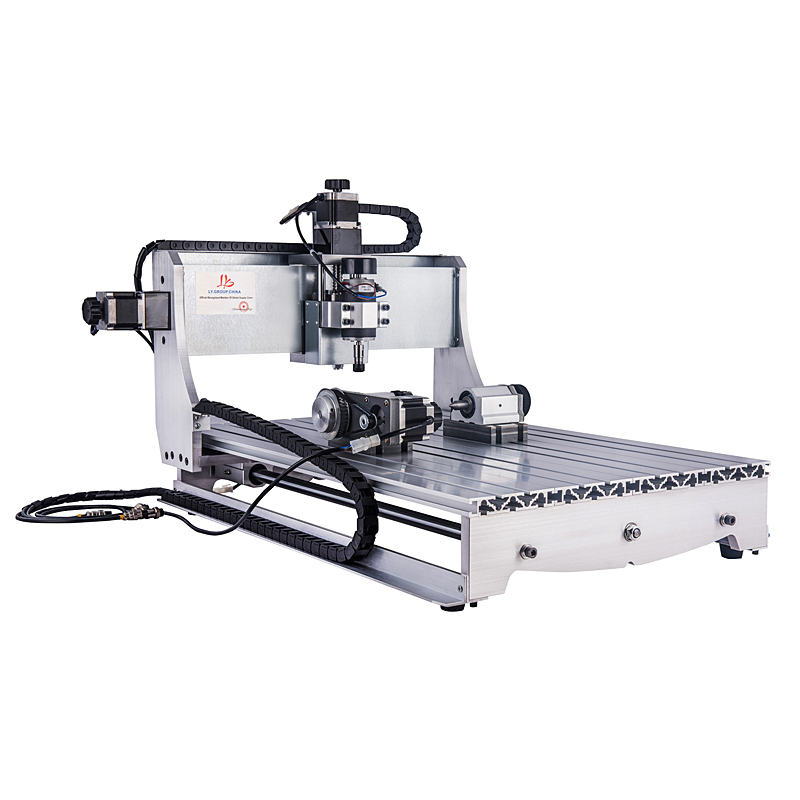

Rotation Axis (4th Axis) Description: |
Chuck Size: 50mm self-centering chuck Center height: H = 51mm Clamping diameter: 50mm or less Deceleration mode: synchronous wheel / belt Deceleration ratio: 4:1 Stepper motor:NEW 57 type / 3A Stepper Drive: T65-axis drive Positioning accuracy: 0.075 ° Weight: 4kg |
|||
Packing list:
Packaging:
Packaging material: Carton/Wooden case with foam inside.
Shipping:
A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)
B. 3-5 workdays shipping from UK Warehouse to European union countries.No need to pay for customs duties and VAT.
C. 25-30 workdays shipping from China to Russian customers. No need to pay for customs duties and VAT.
D. We can arrange shipment by sea. Minium CBM requirement : 1 CBM
1.We provide you the friendly English User manual or operating videos for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free, 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
5. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
LY CNC business group is located in Shenzhen, China.
Our factory owns 2 brands , Ly and Bauer , and Shuttle,ZM,KIDI,HonTon … Factory agent .
We has 10 years experiences in manufacturing and foreigh trade
Our BGA rework stations , such Ly IR6000, Ly IR6500, Ly IR9000,Ly IR-PRO-SC, Ly IR8000, Ly HR560, Ly HR560C, Ly HR500, Ly SV550C, Bauer IR-PRO-SCC ,Bauer OMEGA XD …
CNC machines like cnc 3020/4030/6040/9060 …series products ,Mobile LCD separating stationslike 946D /947B /950V/948V/948B…are hot sale in the world, especially in these countries from North and South American,European and Asian.
1) This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
