Private mold, ultra-thin display shell, wireless transmission, no video cable, hard disk storage for longer time recording

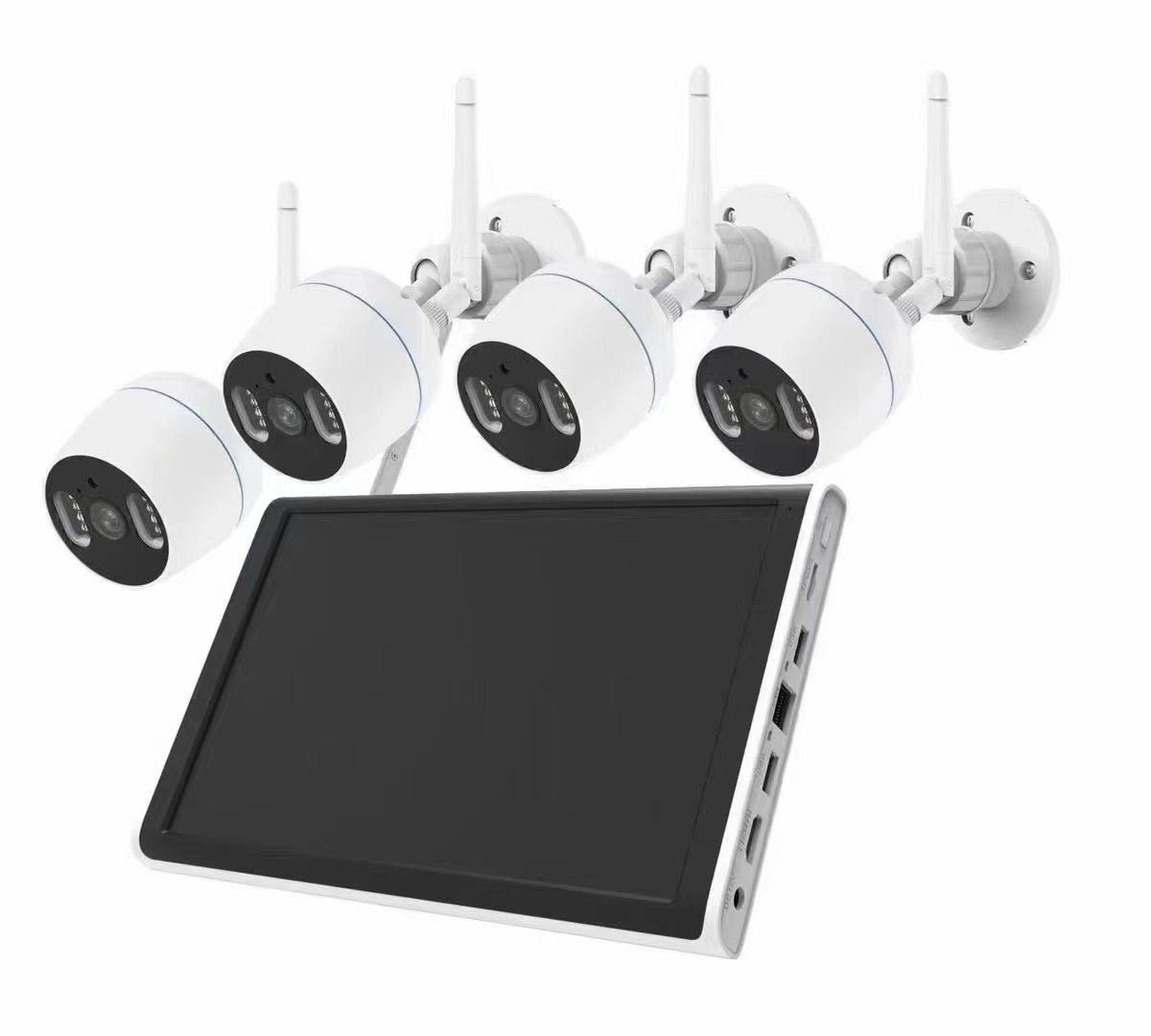

WiFi package product is able to connect 1-8 cameras at the same time, unified management and display on NVR,
video is also centralized storage and management, not easy to lose, more in line with the definition of monitoring products,
Our product with a screen is a little innovative
The machine has its own speaker amplifier, no need to access the speaker, the product itself can broadcast audio, playback audio
The product has its own note-level cooling fan, which guarantees the long-term operation of the product
Ultra long distance
Open space up to 300 meters
Small size, light weight,single screen about 700g
High aesthetic degree
Support TF card and hard disk double recording
* External interface: HDMI, VGA, USB*2, Network port;

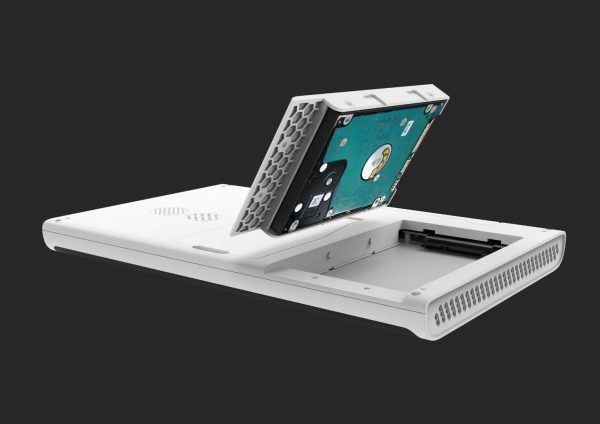

* Support access to TF card, 2.5 inch small hard disk recording/playback;
* Support remote monitoring of various mobile phones (IOS,Android);
* Power supply: VCR DC 12V 2A, Camera 12V 1A;
* Infrared lights: 8, night vision distance: 15-25 meters
* Working temperature: -10℃-+55℃;
* the camera
* NVR video recorder
* Power adapter
* the mouse
* the screw bag
* specifications
|
WiFi NVR Specification
|
||||
|
System
|
Main processor
|
XM8516D
|
||
|
screen
|
10.1 inch 1280*800
|
|||
|
Operating System
|
Embedded Linux
|
|||
|
System resources
|
Simultaneous multi-channel real-time recording, playback, network operation, USB backup
|
|||
|
Interface
|
Operator interface
|
16-bit true color graphic menu operation interface, support mouse operation
|
||
|
Preview
|
1/4
|
|||
|
Video input (IP)
|
4*3MP
|
|||
|
Access bandwidth
|
24Mbps
|
|||
|
Forwarding bandwidth
|
24Mbps
|
|||
|
Video compression
|
H.265+
|
|||
|
Display quality
|
Max 3MP
|
|||
|
Playback quality
|
3MP
|
|||
|
Decode
|
4*3MP
|
|||
|
VR
|
Unsupport
|
|||
|
Motion detection
|
Support(depend on camera)
|
|||
|
Audio
|
Audio compression
|
G.711A
|
||
|
Intercom
|
Unsupport
|
|||
|
Record & playback
|
Recording mode
|
Manual>Alarm>Dynamic Detection>Timing
|
||
|
Local payback
|
4*3MP
|
|||
|
Search mode
|
Search by Time/Calendar/Event/Channel
|
|||
|
Record storage
|
HDD、Network,SD card
|
|||
|
Backup mode
|
Network backup, USB hard disk, USB burner,
|
|||
|
External
Interface |
Video output
|
1ch HDMI HD output
|
||
|
Audio I/O
|
0/0
|
|||
|
Alarm I/O
|
0/0
|
|||
|
Network interface
|
1*RJ45 10M/100M Adaptive Ethernet port+4ch WIFI
|
|||
|
USB interface
|
2*USB2.0 ports
|
|||
|
HDD
|
1* SATA+1 SD card
|
|||
|
ESATA
|
No
|
|||
|
Serial interface
|
No
|
|||
|
Other
|
ONVIF
|
No
|
||
|
Power supply
|
5V/2A Type-C
|
|||
|
Power Consumption
|
<10W(Without HDD)
|
|||
|
WiFi Camera Specification
|
||||
|
To configure
|
Processor + sensor
|
XM530 Ai+2.0M 1/3″F37 CMOS sensor
|
||
|
Low illumination
|
Color: 0.1 Lux; B/W: 0.01 Lux
|
|||
|
Effective pixel
|
HD 1080P
|
|||
|
Lens
|
HD lens 3.6MM
|
|||
|
Infrared lamp
|
8pcs X ￠5 Lamp beads
|
|||
|
Infrared distance
|
150~200m
|
|||
|
Day&night
|
IR cut filter with auto switch
|
|||
|
General
|
setting
|
Saturation, brightness and contrast ;
are adjustable through IE browser or client software. |
||
|
Video compression
|
H.265+
|
|||
|
temperature
|
-10℃-＋60℃
|
|||
|
humidity
|
10%-90% RH
|
|||
|
Power supply
|
DC12V 1A
|
|||
|
Consumption
|
MAX 6W
|
|||
|
Waterproof grade
|
IP66
|
|||
|
Dimension
|
221*120*92;
|
|||
|
Weight
|
0.5 kg
|
|||
