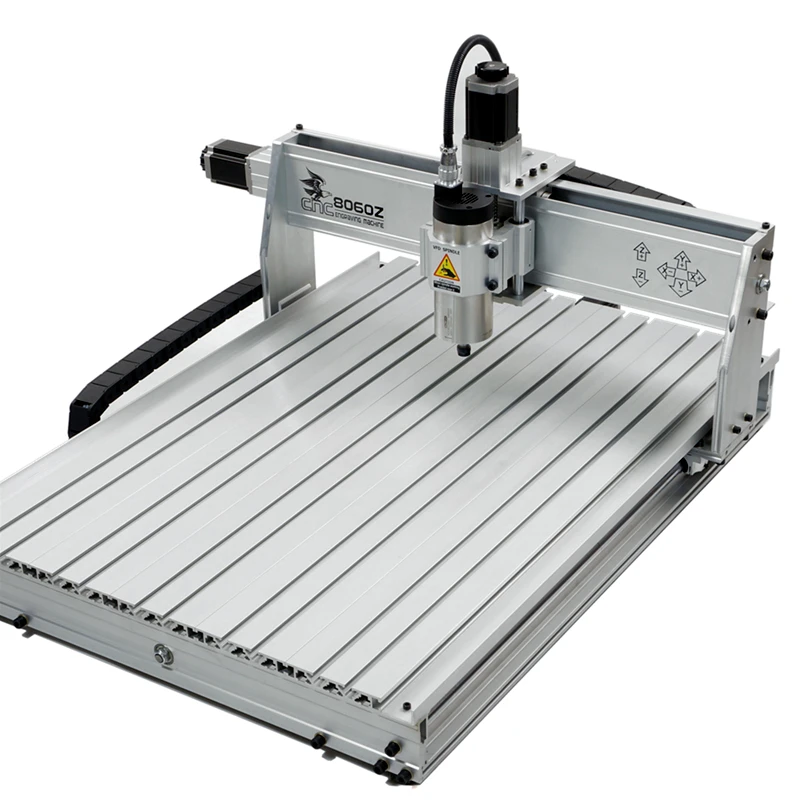

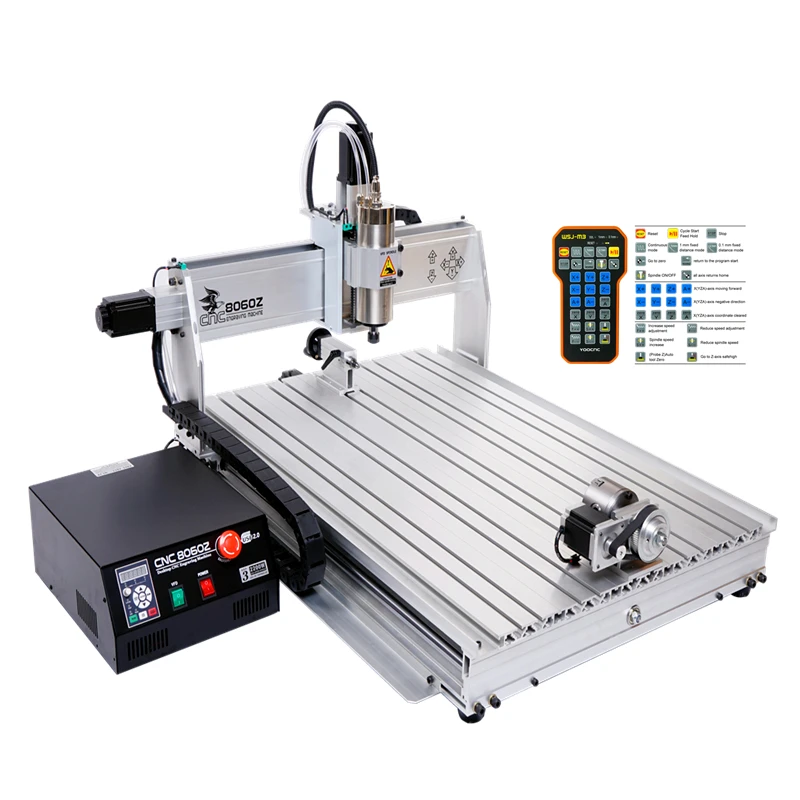

2200W CNC Metal Engraving Machine 8060Z DIY CNC Router 2.2KW VFD For PVC ABS PCB Wood Aluminum Work
The CNC router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.
The cnc router is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.

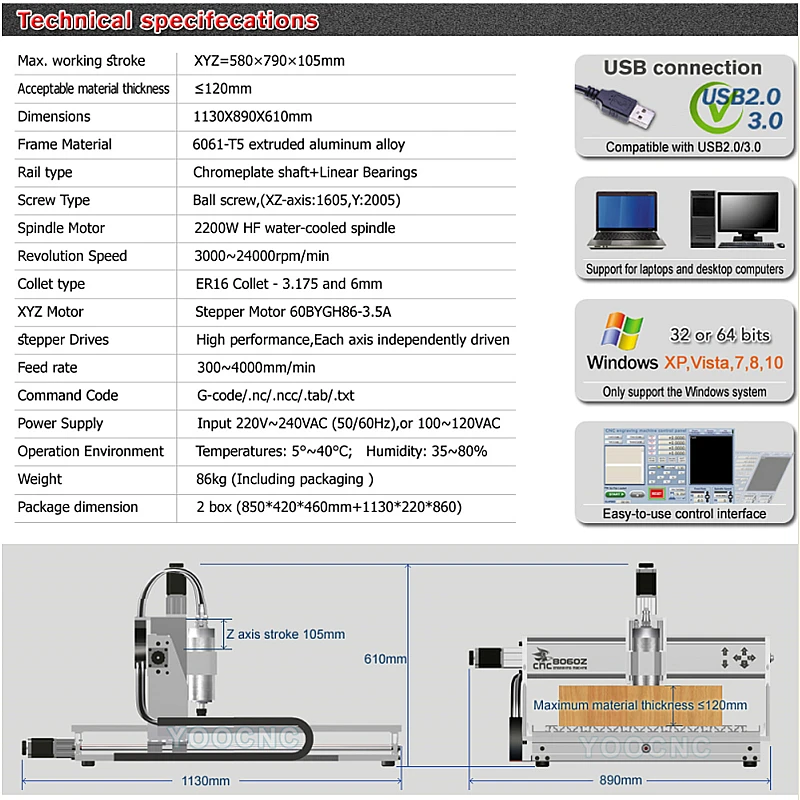

Model and Technical Parameters
|
MODEL |
8060Z-2.2KW |
|||
|
Attribute |
3axis |
3axis+H |
4axis |
4axis+H |
|
Axis |
3axis |
3axis |
4axis |
4axis |
|
Interface |
USB port |
USB port |
USB port |
USB port |
|
Limit switch |
Yes |
yes |
Yes |
Yes |
|

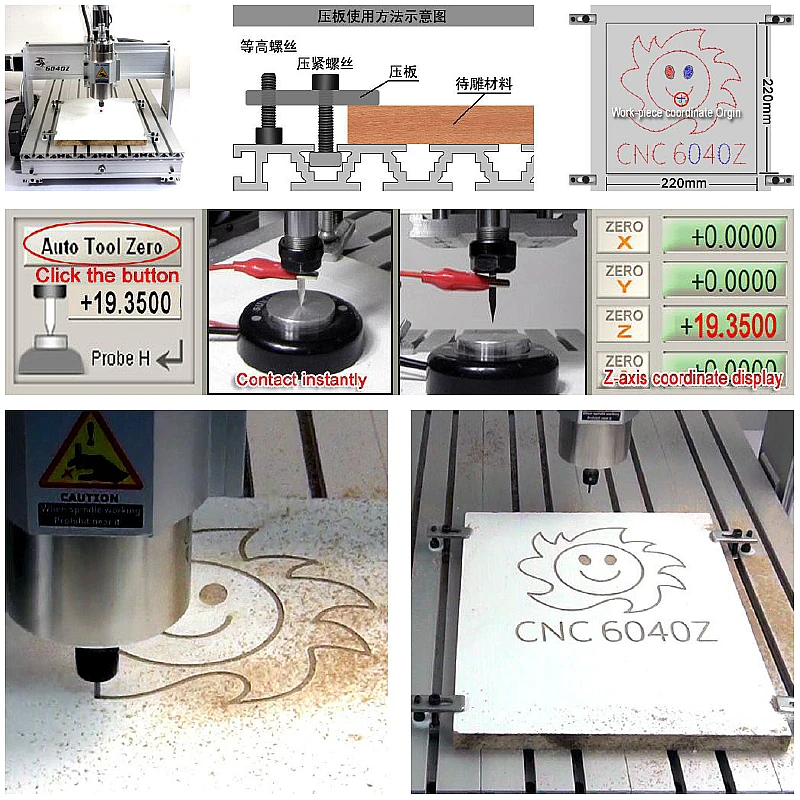

Tool auto-checking |
Yes |
Yes |
Yes |
Yes |
|
Spindle Motor: |
2200W |
2200W |
2200W |
2200W |
|
Weigh |
87 |
87 |
93 |
93 |
|
Machine Dimensions: |
1130X890X610mm |
|||
|
Rack material: |
6061-T5 extruded aluminum alloy |
|||
|

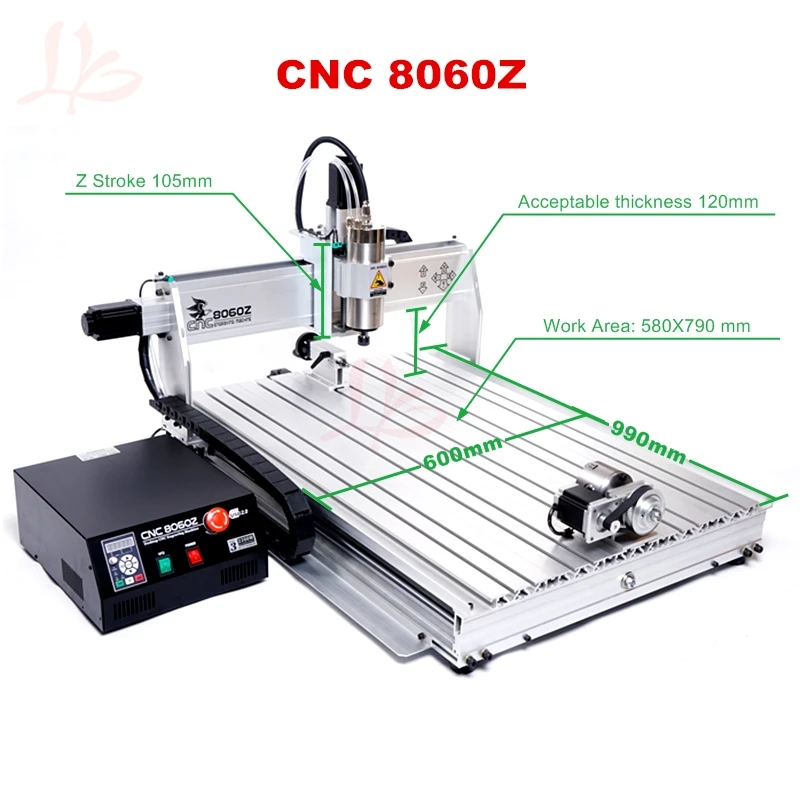

Engraving area: |
790X580mm |
|||
|
105mm, Engraving depth depends on the length of the tool edge |
||||
|
≤ 120mm |
||||
|
Rail type: |
Chromeplate shaft + Linear Bearings, Surface hardening 61HRC |
|||
|
Type of screw: |
Ball screw (XZ axis 1605, Y axis 2005) |
|||
|
Spindle motor: |
HF water cooling spindle , 2200W , 0-24000r/min |
|||
|
Collet type: |
ER16,1/8″(3.175mm and 6mm) Collet |
|||
|
Stepper motor and drive: |
60BYGH86-3.5A, Each axis independently driven |
|||
|
Maximum operating speed: |
4000mm/min (Engraving speed: 300-3000mm/min) |
|||
|
Repeat positioning Accuracy: |
0.03mm |
|||
|

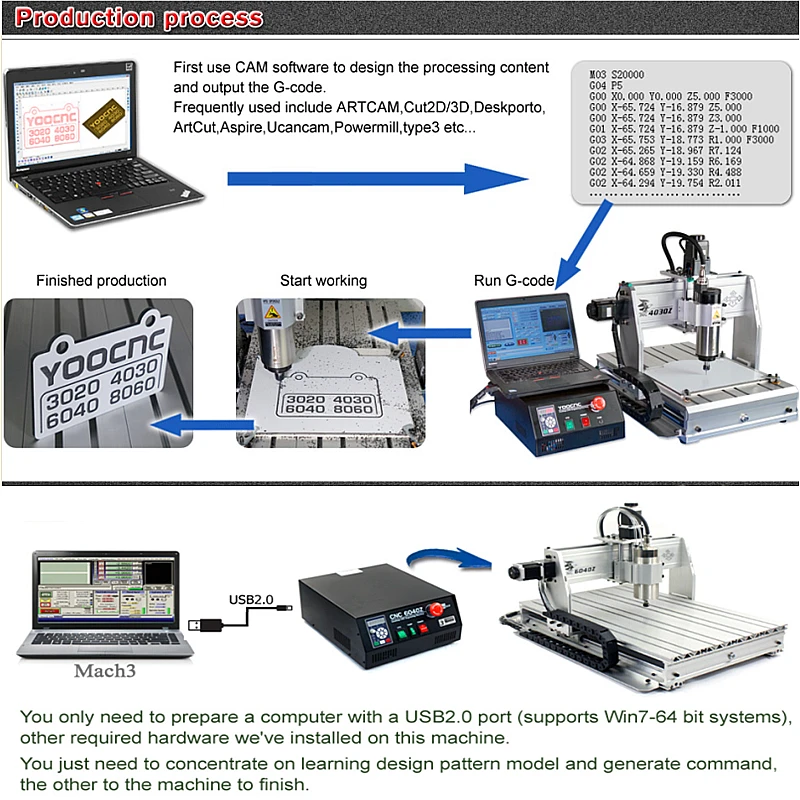

Software Compatability: |
Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam) |
|||
|
Command code: |
G code/.nc/.ncc/.tab/.txt |
|||
|

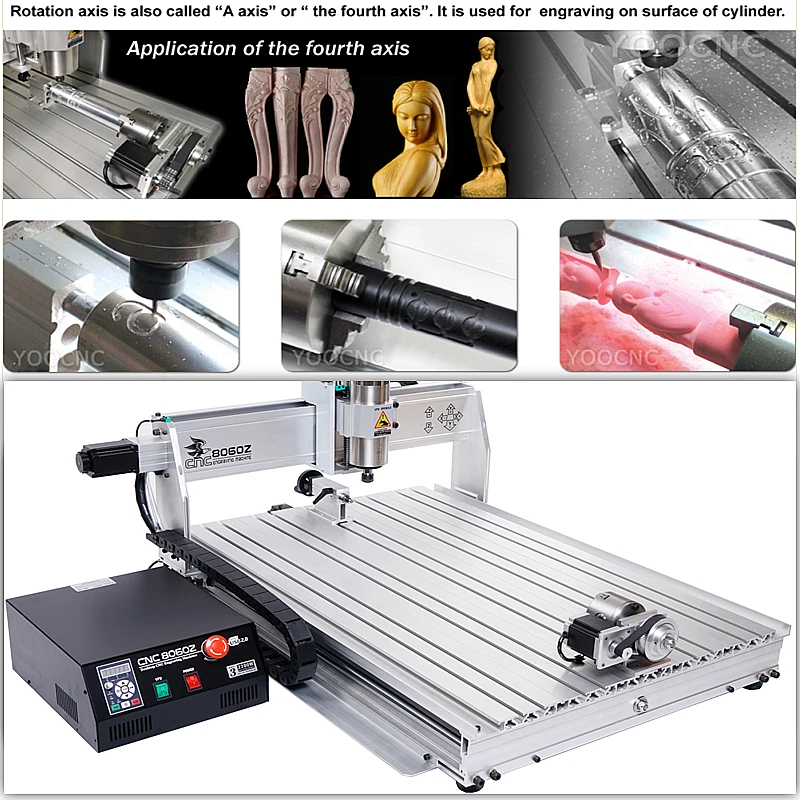

Rotation Axis (4th Axis) Description: |
Center height: H = 60mm Maximum turning diameter: ≤ 110mm Deceleration ratio: 4:1 Stepper motor: NEMA23BHH76-3A Weight: 5.5KG |
|||
