2022 New 20w 30w 50w 80w 100w Gold and Silver Jewelry Fiber Laser Marking Engraving Machine

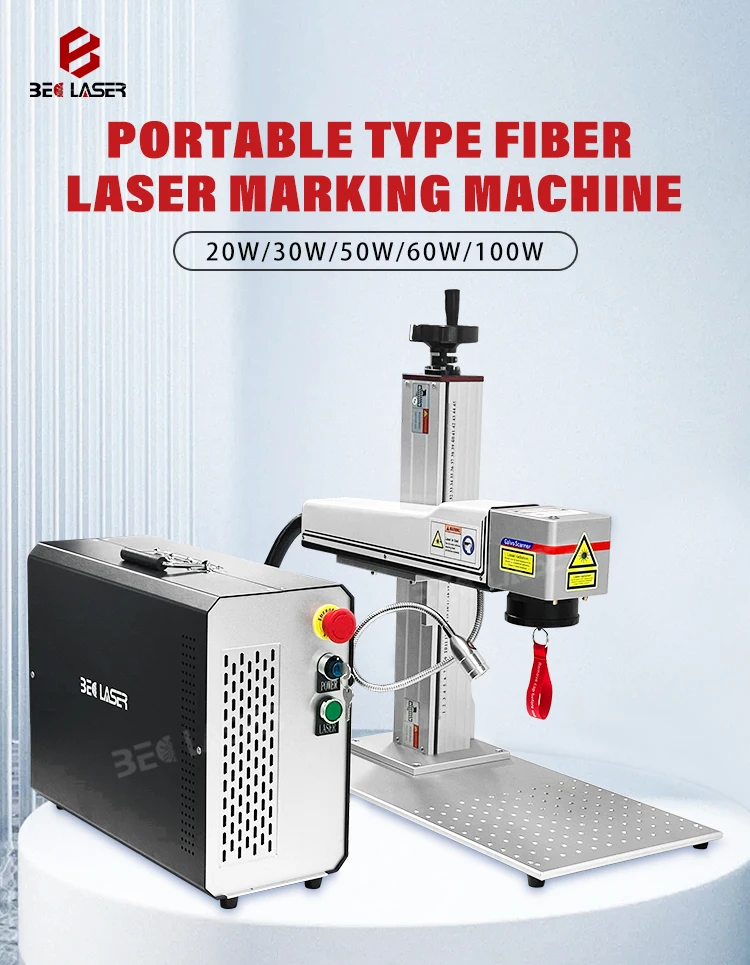

* Portable mini ring laser jewelry engraving for gold raycus 50W fiber lazer marking machine price
PRODUCT INTRODUCTION:
Portable mini ring laser jewelry engraving for gold raycus 50W fiber lazer marking machine is computer-controlled, environmentally friendly and offer the benefits of non-contact abrasion-resistant permanent engravings onto almost any type of material including precious metals.
* Compact: The high-tech product, which is combined of laser device, computer, auto controller and precision machinery.
* High Precision: Re-position precision is 0.002mm.
* High Speed: Scanning system makes the scanning speed up to 7m/s.
* Easily Operating: Afford the specific coding software based on Windows, you can input and output by computer according to edit in the both of the specific coding software and the graphic software such as Auto CAD, CorelDRAW and Photoshop.
* High Reliability: MTBF>100,000 hours.
* Energy Saving: The efficiency of optic-electrical converting is up to 30%.
* Low Running Cost: No wearing part. Free maintaining.

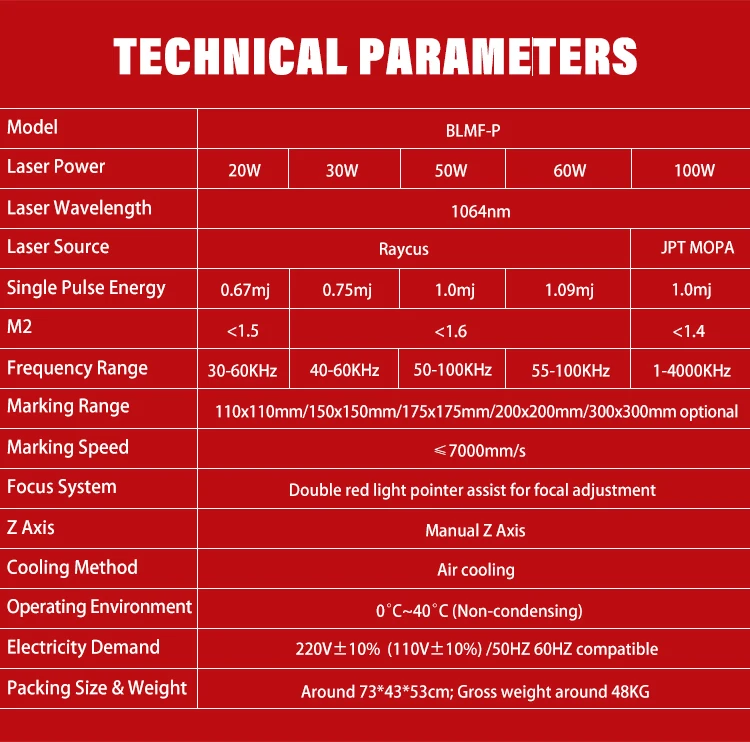

TECHNICAL PARAMETERS:
| Product Name | Portable mini ring laser jewelry engraving for gold raycus 50W fiber lazer marking machine |
| Model | BLMF-P |
| Laser Power | 20W, 30W, 50W, 60W, 70W, 100W optional |
| Laser Source Brand | Raycus / JPT optional |
| Marking Area | 110mm*110mm / 150mm*150mm / 175mm*175mm / 200*200mm |
| Marking Depth | 0.1~ 1.5mm ( Depending on the material. ) |
| Marking Speed | 10000 mm/s |
| Minimum Line Width | 0.01mm |
| Minimum Character | 0.15mm |
| Laser Lifetime | 100000 hours |
| Beam Quality | M2<1.5 |
| System Operation Enviornment | Windows XP / W7–32/64bits / W10–32/64bits |
| Cooling Method | Air cooling |
| Electricity Demand | 220V / 50HZ / single phase or 110V / 60HZ / single phase |

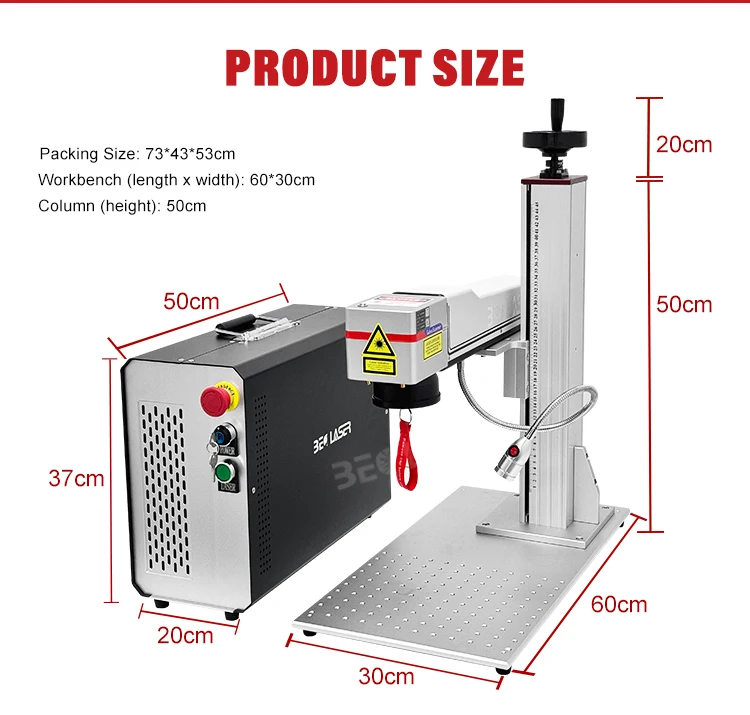

| Equipment Size | 85*65*55 cm |
| Gross Weight | 68KG |

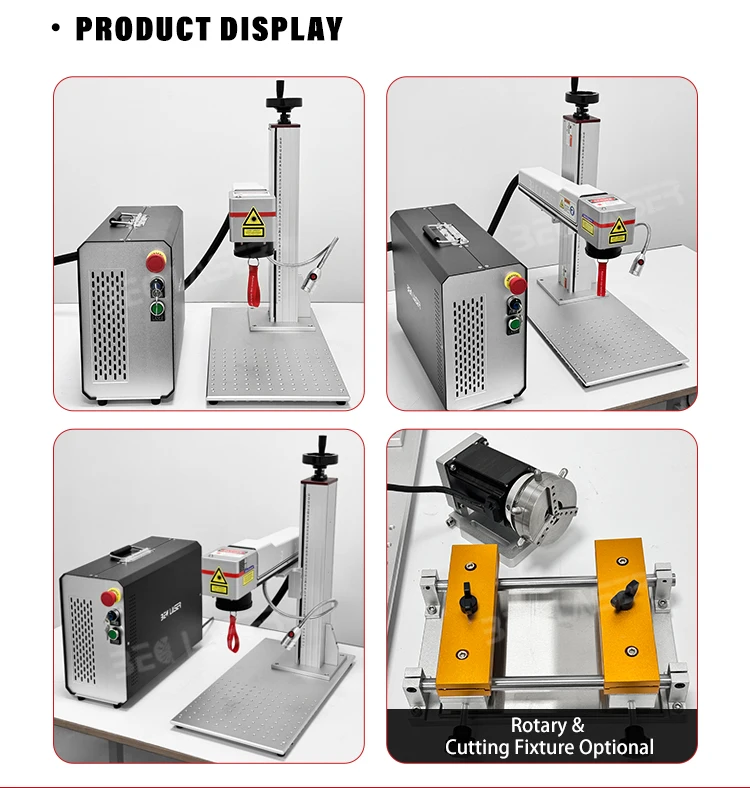

| Optional Parts | Laptop, rotary fixture, 2D/3D platform, fume exhaustor, etc. |
* Portable mini ring laser jewelry engraving for gold raycus 50W fiber lazer marking machine price
APPLICATIONS:
Portable mini ring laser jewelry engraving for gold raycus 50W fiber lazer marking machine is a fast and clean technology that is rapidly replacing older laser technologies. Direct laser marking and laser engraving has now become a common process in the jewelry industry.
It offers a non-contact, abrasion-resistant, permanent laser mark onto almost any type of material including gold, platinum, silver, brass, stainless steel, carbide, copper, titanium, aluminum as well as a wide variety of alloys and plastics.
| Marking Material |
Both metal and some non-metal. Metal: carbon steel/ mild steel, stainless steel, aluminum, copper, magnesium, zinc; rare metal and alloy steel ( gold, silver, titanium, etc. ) specail surface treatment ( aluminum anodized, plating surface, surface oxygen breaking of alumimum and magnesium alloy) Non-metal: plastics such as ABS, PVC, HDPE , PP, PC, PE, rubber, resin , etc. |
| Applied Industries | 3C, food, medicines, gifts, trademark signs, the phone keypad, plastic translucent keys, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware, tool accessories, knives, watches, jewelry, cars accessories, luggage buckle, cooking utensils, stainless steel products and other industries. |
| Marking Content | Identification text, serial numbers, corporate logos, 2-D data matrix, bar coding, graphic and digital images, or any individual process data can be produced with laser engraving. |
| * Professional Team | We are a professional industrial laser equipment supplier who is committed to integrating R & D, production and testing. Our team have over 15 years experience in laser equipment production field. All the machine has Two-Year warranty. |
| * Free Technical Training | If you do not know how to use this machine, as long as you come to China, we will provide you the free training until you have a good command of using the machine. If you are busy, our engineers can go to your country. You only need to pay some fees, such as air tickets, hotels and meals. |
* Other services:
* 24 h on-line service;
* We have ourself factory;
* Free sample test & Free parts;

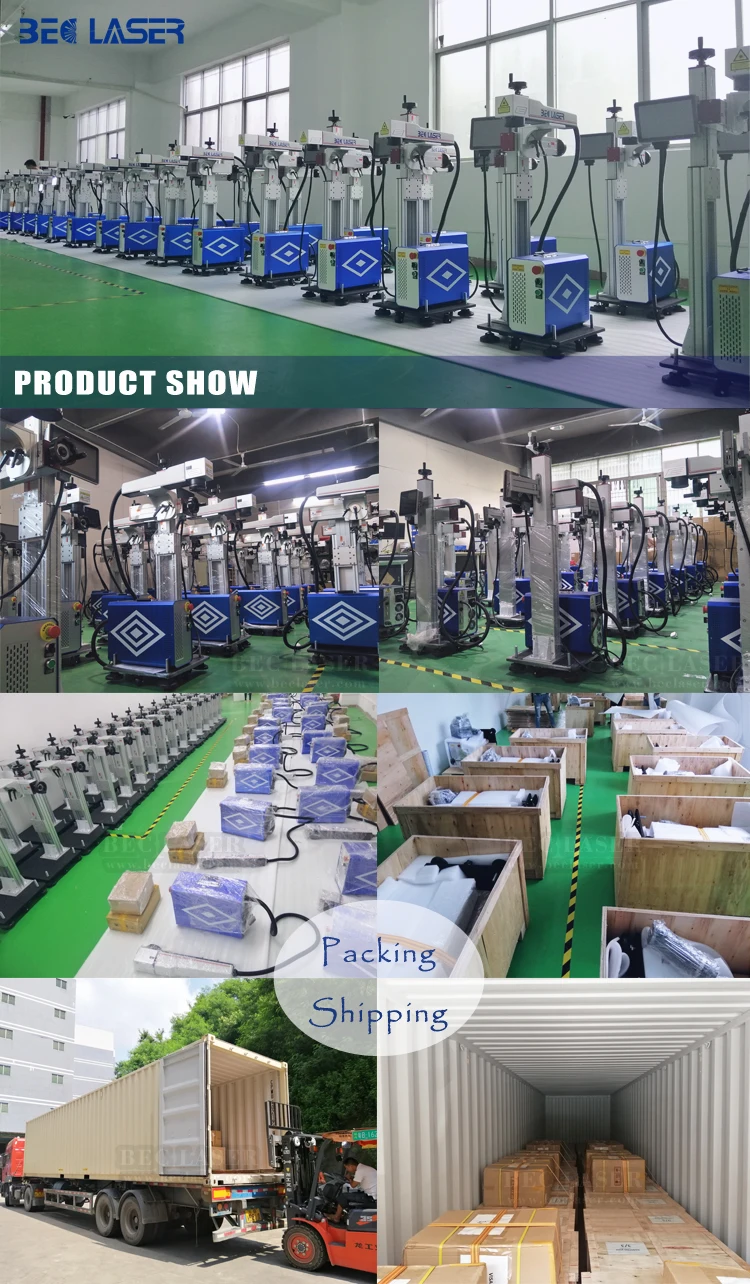

* Good package & Quick delivery time;
* Two years warranty and with lifetime service;
* Engineers available to service machinery overseas;
* Training how to install and use the machine and software.
