Product Description
EA printer is developed based on TIJ2.5 tech, with high resolution and good stability. It can control 1-2 print heads,
support to print text, batch number, manufacture date& expiry date, counter, image, variable barcode and database.
With a 7inch touch screen as controller, can edit directly, easy to use.
* Maximum support 2 print heads, can combine or separate freely according to print requires
* High system integration, small in size, less component, easy install and maintenance
* Metal shell, industrial design, which makes printer more stable
* Non-contact RFID lock system, which makes it more stable to read the cartridge.
* It supports to print database with text and barcode.
EA Composition：
1.7 inch Hand Touch Screen
2.1 or 2 printer head
3.Photocell
4.Encoder（If to purchase extra if needed ）
Size Information
|
Model
|
EA Series
|
||
|
Printing System
|
HP TIJ 2.5
|
||
|
Print Height
|
EA-1
|
12.7mm （1 printhead is 12.7mm）
|
|
|
EA-11
|
2*12.7mm
|
||
|
EA-2
|
25.4mm
|
||
|
Max Printing Speed
|
40m/min
|
||
|
Interface
|
USB、Network port
|
||
|
Display
|
7 Inch
|
||
|
Print Data Type
|
Text、Barcode、QRcode、Variable Date、logo
|
||
|
Code Type
|
EAN8、 EAN13、 EAN128 、CODE25、 CODE39、 CODE128、 CODE128A、CODE128B、CODE128C、Codebar2width 、UPC12 、PIATS 、 PDF417 、PIATSDRUG 、 QRCODE
、 DATAMATRIX
|
||
|
Other
|
Analog speed printinganalog electric eye printing
|
||
|
Power
|
110-220VAC 50/60Hz
|
||
|
Max Power
|
120W
|
||
|
Operating Temperature
|
Temperature 5℃～35℃ Humidity 10%～90%
|
||
|
Packing Dimension
|
450*350 *150 mm（L*W*H）
|
||
|
Packing Weight
|
4Kg/1HEAD 5Kg/2HEAD
|
||
Details Images

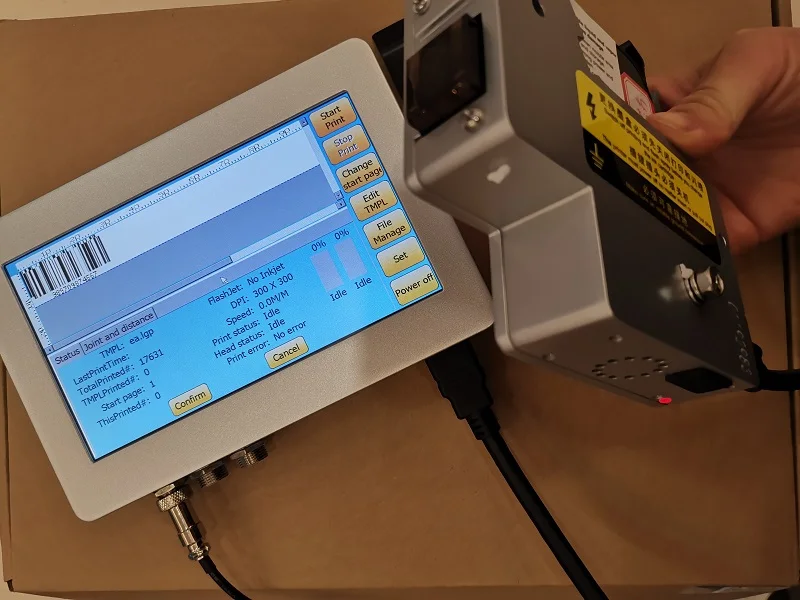

1、7 inch Hand Touch Screen 2、1 or 2 printer head （12.7mm ,and 25.4mm optiona） 3、Photocell 4、Encoder（If to purchase extra if needed）
More features below:
1. Operation interface with touch screen make it easier to operate.
2. High system integration, small size, less component and easy to install and maintain.
3. Full metal shell, industrial design and stronger.
4. Take HP original driving board to make print effect higher quality
2. High system integration, small size, less component and easy to install and maintain.
3. Full metal shell, industrial design and stronger.
4. Take HP original driving board to make print effect higher quality
Encoder port: The function of encoder is to detect speed of print object, and make print
speed as same as object speed. Whenuser install and adjust encoder incorrectly, print
imagemay distort.
Sensor port: When sensor detects a print object, it will send a trigger signal to printer,
and printer will control print head to print according to signal received.
Alarm port:The current print state and error state are reflected by alarm.
Print head ports (P1-P2): Connect 1#-2# print head by connection cables
imagemay distort.
Sensor port: When sensor detects a print object, it will send a trigger signal to printer,
and printer will control print head to print according to signal received.
Alarm port:The current print state and error state are reflected by alarm.
Print head ports (P1-P2): Connect 1#-2# print head by connection cables
Industry Application
EA series packaging coding system, mainly used for printing on packaging, 1D code, 2D code,
production date, serial number, product batch number, etc.
The specific industry applications are as follows:
1.Food industry (paper packaging, film packaging, various biscuits and boxed food packaging, etc.);
2.Building materials industry (various density board, blockboard, solid wood board, asbestos board, wooden floor, etc.);
3.Other industries (bottled paper labels, paper labels on bottles, paper labels on medicine bottles, boutique boxes, etc.)
