Christmas Sale YONGLI 280w 300w 320w 300 Watt Co2 Laser Metal Tube for 1390 Laser Engraving Cutting Machine 25,000 Working Life with 18 Months Warranty
Products Description
PERFECT HIGH POWER CO2 LASER TUBE WITH BEST COST EFFECTIVE
YONGLI 300W 320W DLT-300P DLT-40Z Beam Combined Co2 Laser Tube using our core patterned technology combined two laser tubes’ beams into One High-Quality Laser Beam. With parallel tube design and laser beam combiner technology enables more stable laser performance than the folding type laser tube
YongLi DLT series high power Co2 laser tube is a perfect replacement or upgrade for the same power or length CO2 laser tube with high-cost effective value Originally manufactured laser tube with 12 months warranty guaranteed high-quality low maintenance cost. Estimate working lifespan over 25,000 hours.
YongLi 300W CO2 LASER TUBE Widely used in industry like sheet metal cutting Stainless steel and Carbon steel Also other deep cuttings on wood and acrylic
YongLi DLT series high power Co2 laser tube is a perfect replacement or upgrade for the same power or length CO2 laser tube with high-cost effective value Originally manufactured laser tube with 12 months warranty guaranteed high-quality low maintenance cost. Estimate working lifespan over 25,000 hours.
YongLi 300W CO2 LASER TUBE Widely used in industry like sheet metal cutting Stainless steel and Carbon steel Also other deep cuttings on wood and acrylic
High Power 300w Co2 Laser Tube For Co2 Laser Metal Cutting Engraving Machine!
YongLi Top Branded High power beam combined DLT-300P DLT-40Z 300w CO2 laser tubes are highly regarded in the laser industry, offering exceptional reliability and beam diameter.
This 300W Beam Combined model YongLi co2 laser tube is universal and it can work with virtually any CO2 laser engraving/cutting machine it fits in, but is an ideal candidate for replacing a CO2 tube of similar power/length.
This high-output tube can handle up to 36mA at 26,000 volts. We recommend supplying this YongLi laser tube with our HSP-200(100/220V) power supply unit to ensure ample power supply.
With this laser installed and a proper chiller, you can cut through 40mm acrylic or 3mm Stainless steel!
Technical Parameters
|
Model
|
DLT-300P
|
DLT-40Z
|
|
Rated Power
|
290w
|
300w
|
|
Peak Power
|
320w
|
320w
|
|
Triggering Voltage
|
38kV
|
40kV
|
|
Working Voltage
|
24kV
|
26kV
|
|
Max Operating Current
|
40mA
|
40mA
|
|
Recommend Operating Current
|
36mA
|
36mA
|
|
Beam quality (M2)
|
≤1.1
|
≤1.1
|
|
Divergence (mrad)
|
≤3
|
≤3
|
|
Stability (%)
|
≤±5%
|
≤±5%
|
|
Weight(Kg)
|
16
|
26
|
|
Laser Tube Dimension
|
1850*270*146
|
1850*270*146
|
|
Recommend Installation Dimension
|
2000*400*200
|
2000*400*200
|
|
Warranty
|
12 months
|
18 months
|
Cutting Material Reference Suggestion Parameter
|
Thickness
|
98% Power Output
|
80% Power Output
|
|||||
|
DLT-40Z
|
DLT-300P
|
DLT-300P
|
DLT-300P
|
||||
|
Arcylic |
2mm
|
190mm/s
|
115mm/s
|
160mm/s
|
110mm/s
|
||
|
3mm
|
100mm/s
|
80mm/s
|
85mm/s
|
75mm/s
|
|||
|
5.5mm
|
45mm/s
|
34mm/s
|
40mm/s
|
30mm/s
|
|||
|
10mm
|
20mm/s
|
15mm/s
|
15mm/s
|
13mm/s
|
|||
|
15mm
|
6mm/s
|
5mm/s
|
4mm/s
|
3mm/s
|
|||
|
Carbon Steel |
1.2mm
|
65mm/s
|
55mm/s
|
|
|
||
|
1.5mm
|
45mm/s
|
40mm/s
|
|
|
|||
|
2mm
|
30mm/s
|
25mm/s
|
|
|
|||
|
3mm
|
16mm/s
|
14mm/s
|
|
|
|||
|
Stainless Steel
|
1mm
|
55mm/s
|
45mm/s
|
|
|
||
Product Details
High Power 300w 320w co2 laser tube
Stable laser power output, excellent beam profiles at every level
Excellent sealed technology, &long service life exceeding 25000 hours
Diffuse cooling design
Fully sealed tubes free of maintenance
Easy integration-separated laser tube or fully cased system
Special sealed dust-proof glasses
Optional alignment beam
Normal operation without overload the laser tube, its lifespan is longer than those low quality laser tubes. Best alternative for the folding type high power Co2 laser tubes.
Excellent sealed technology, &long service life exceeding 25000 hours
Diffuse cooling design
Fully sealed tubes free of maintenance
Easy integration-separated laser tube or fully cased system
Special sealed dust-proof glasses
Optional alignment beam
Normal operation without overload the laser tube, its lifespan is longer than those low quality laser tubes. Best alternative for the folding type high power Co2 laser tubes.
Perfect Co2 Laser Tube For Mixed Cutting Engraving Metal, SS, Acrylic, Wood, Plastic
YongLi DLT Series Beam Combination co2 laser tube with numbers of patent, it includes integrated design combined device, and dedicated power supply. It features with high output power and stable spot mode.
Rated Power: 300W
Max.Power:320W.
Max. cutting size: 1300 *900mm.
Cooling system:Water chiller CW6000
Engraving Speed:0-60,000mm/min
Cutting Speed:0-30,000mm/min
Rated Power: 300W
Max.Power:320W.
Max. cutting size: 1300 *900mm.
Cooling system:Water chiller CW6000
Engraving Speed:0-60,000mm/min
Cutting Speed:0-30,000mm/min
New Designed Observing Window
Allows the operator to check the laser tube working status, and avoid inner tube cracks caused by air bubbles in the water jacket tube..
This CO2 laser tube adopts inner discharge tube coated with nano gold catalyst,make the power more stable, and service life longer, better choice for the people who has heavy workload and long working hours
Economical with cost-effective metal and nonmetal laser cutting machine.
Lower investment cost, lower operating cost and lower maintance cost.Stability and precision during high speed work
Safety Upgrade
The high voltage end further upgrades by adding on 50kv high voltage protection pat, significantly decreased the risks of high voltage sparks triggered by moist operation environment.
Economical with cost-effective metal and nonmetal laser cutting machine.
Unlike the folding type laser tubes or multi-inner tube type laser tubes, our YongLi Beam Combined DLT Series Co2 Laser tube only need ONE cooling water systems(CW6000)
Ensure there is enough power to cut thin metal and thicker nonmetal materials
NEWEST TECHNOLOGY OF HIGH POWER CO2 LASER TUBE FOR MIXED CUTTING ENGRAVING
DLT Series co2 laser tube using YongLi patented technology, it includes an integrated beam combiner. Concentrate the laser energy to improve the beam quality.
Stable beam spot mode, achieved 1+1≤1 beam spot.
Single unit can be synchronous controlled and continually adjusted from 50-320 watts.
Stable beam spot mode, achieved 1+1≤1 beam spot.
Single unit can be synchronous controlled and continually adjusted from 50-320 watts.
Full metal shell structure, full range of protection. With Kovar sealing technology and inner tube nano- gold catalyst process, YongLi Beam Combined DLT-40Z and DLT-300P’s working lifetime could reach over 25,000 Hrs.
SAFETY FIRST–Visual working window, Open cover protection, Water protection function ,dust-proof blower to ensure the DLT series 300W CO2 LASER TUBE always working safely. With power-off protection function while temperature or water flow of the machine exceeds the regular working range

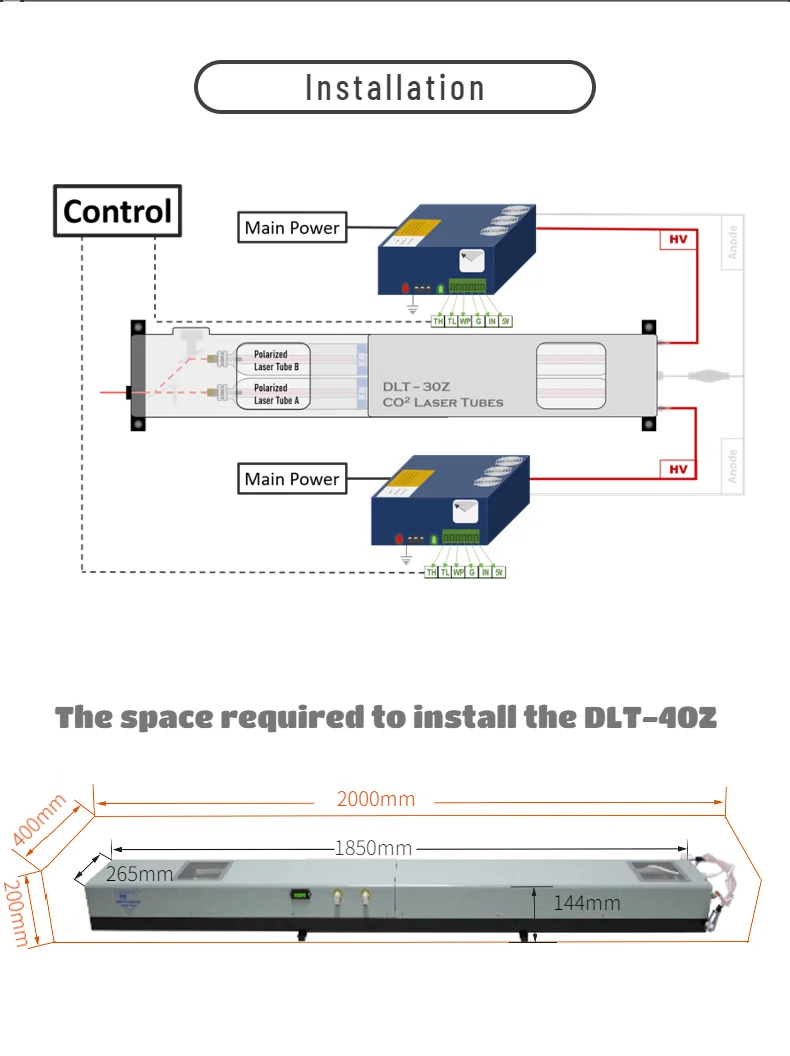

Installation Instructions
Application
300W CO2 LASER TUBE APPLICATIONS
YongLi 300W co2 laser tube, beam combined co2 metal laser tubes widely used in Metal /Non Metal Laser Cutting Machines used in electrical power, sheet metal processing, spaceflight, electronics, subway parts, automobile manufacturing,electrical equipment, elevator equipment, advertising, lighting hardware, display equipment, metal products and other industries.Mainly cut 1-2mm
stainless steel and 1.5-2.5mm carbon steel.Professional engraving/cutting such as stainless steel,carbon steel,wood,organic glass,plastic, cloth.
stainless steel and 1.5-2.5mm carbon steel.Professional engraving/cutting such as stainless steel,carbon steel,wood,organic glass,plastic, cloth.
Widely used in the industry of Advertising, craft gift, shoes, toys, garments, models, construction, package, paper, and computerized embroidery & lipping.
