2018 Most Popular Design 7200 Table QR Code Reader 2D Omnidirectional Barcode Scanner
Features

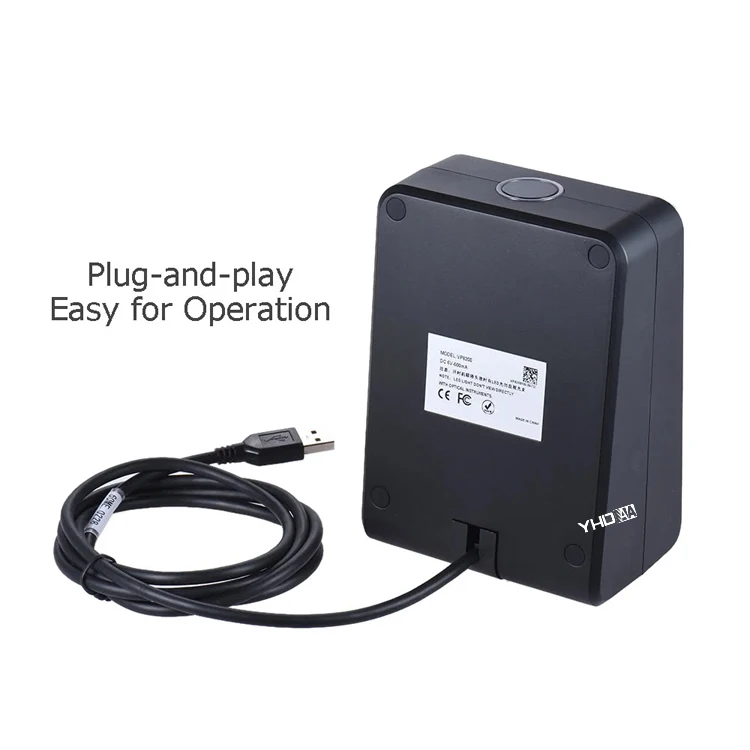

* USB interface, plug-and-play.
* Mobile phone APP barcode scanning.
* A key quickly switch work mode.
* Multiple language barcode message transfer.

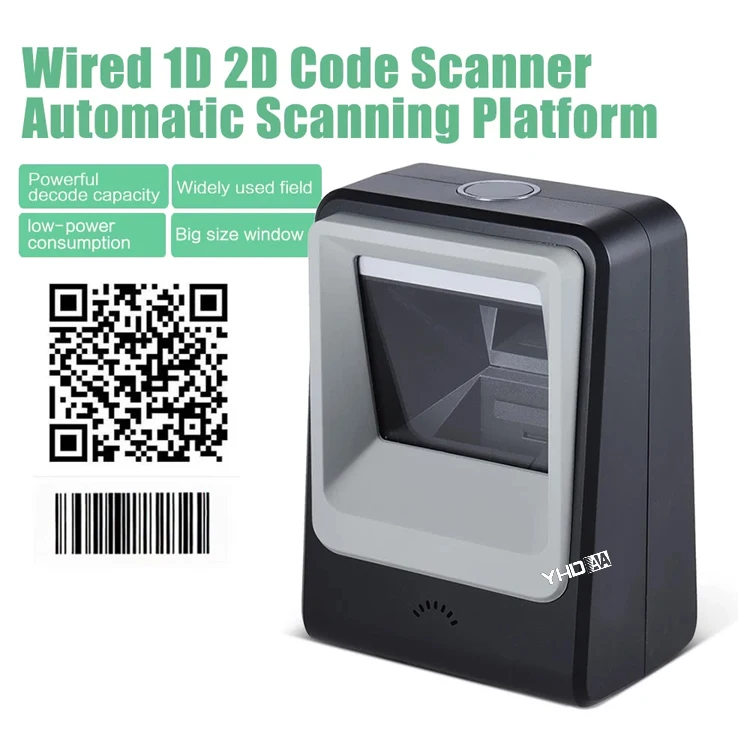

* Big size window scanner with powerful decode capacity to capture 1D, 2D code fast and accurately.
* Wired scanning platform free your hand and improve the working efficiency.

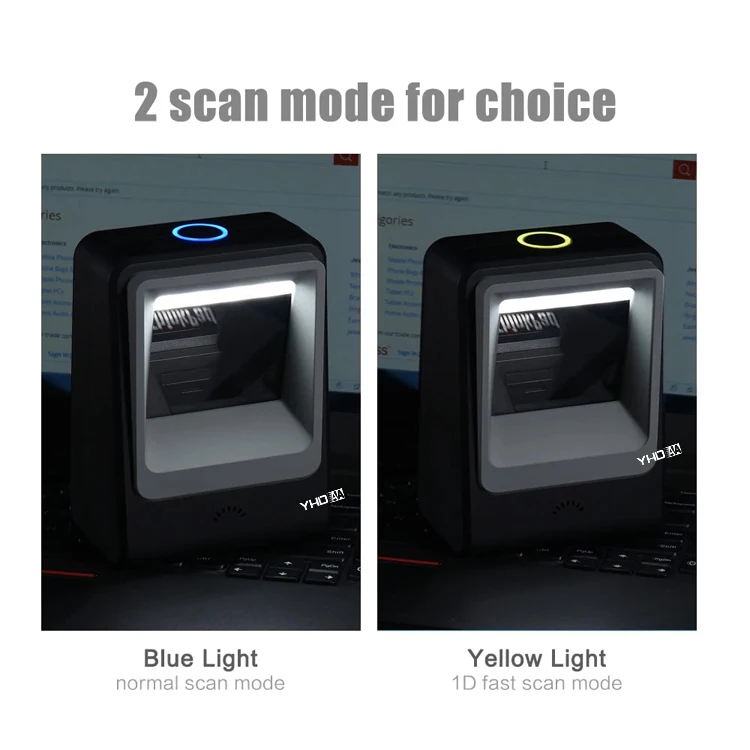

* Normal scanning mode and 1D fast scanning mode changed by the top button.
* Automatic working when the barcode close to, or it enter into power saving mode with no light.
* Perfect for retail, supermarket, medical, mobile payment, the pharmacy ect.
Product Specification: YHD-7200 2D Omni–directional Barcode Scanner |
|
Scanner parameters: |
|
Interface |
RS232;USB |
Voltage |
DC+5V±5% OR+3.3V±5% |
Power on |
60mA |
Standby currency |
40mA |
Working currency |
300mA |
Scan Speed |
300scan/sec |
Scan Accuracy |
5mil |
Light Source |
Visible red light 630nm + 10nm |
Motion Tolerance |
Up to 10 in./25cm per second |
Resolution |
640(Horizontal) x 480(Vertical pixels), 256 gray levels. |
Scan Angle |
Roll/Pitch/Yaw:360°, ±65°, ±60° |
Field of Scan |
Field of View:45° (H) x 35° (V) |
Working Temperature |
-20°C to 60°C (-4°F to 144°F) |
Storage Temperature |
-30°C to 70°C (-22°F to 158°F) |
Relative Humidity |
5% to 95% (non condensing ) |
Decoding Capability |
1D:UPC/EAN and with supplemental, Code 39, Code 39 Full ASCII, Tri-optic Code 39, RSS variants, UCC/EAN 128, Code 128, Code 128 Full ASCII, Code 93, Codabar (NW1), Interleaved 2 of 5, Discrete 2 of 5, MSI, Codell, IATA, Bookland EAN, Code 32, Postal: PRC, U.K., Japan, Australian, Dutch and U.S. Postnet and Planet. 2D:PDF417 MicroPDF417 Data Matrix Maxicode QR Code MicroQR,Aztec,Hanxin ect. |
Fall test |
1.5m fall to concrete |
Item Weight |
329g |
Dimension |
105mm x 146mm x 70mm |
Certificate |
CE,FCC,RoHS,IP54 |
Warranty |
2 Years |
