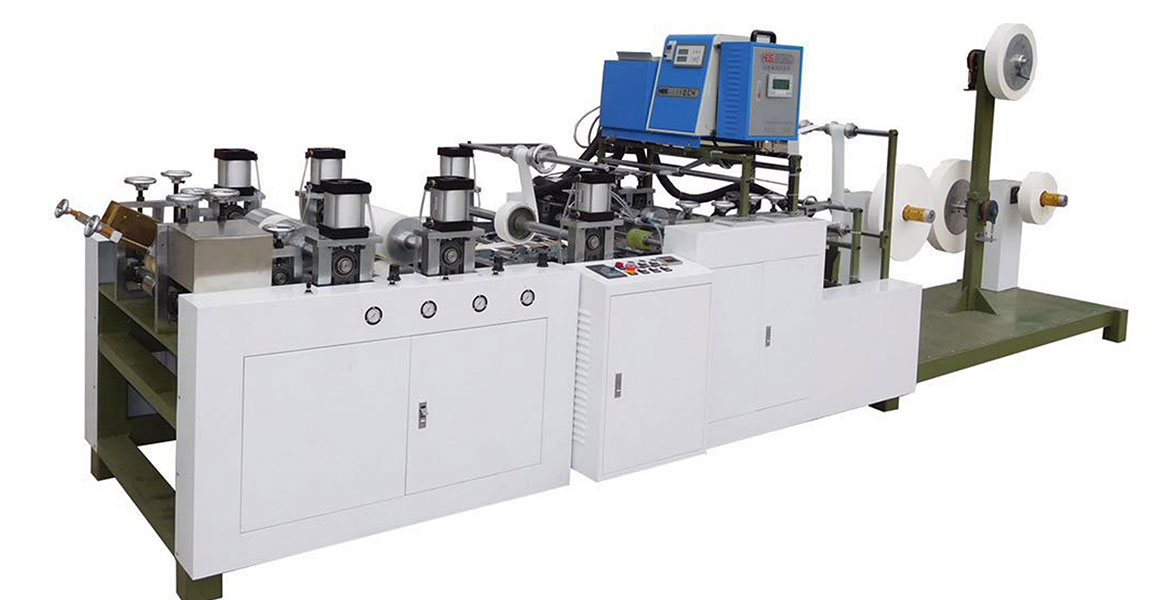

LFP-G Flat rope hand winding machine
Introduction

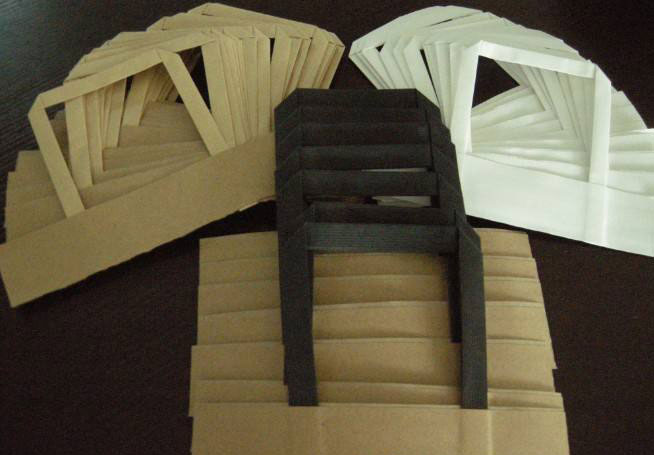

machine was developed specifically for the new generation of paper Handle Machine. This machine is sandwiched between two layers of kraft paper rope middle, after gluing, lamination, and then automatically cut into a single handle. Paper bag machine is the ideal complementary product lines.
Features
1.use Hot-melt glue not falling.
2.easy to operate, fast.
Technical Parameter:
| Type | LFP-G-1 | LFP-G-2 |
| Handle Spacing (W) | 95 mm | 92/107mm |
| Paper Board Length(L) | 152 mm | 190 mm |
| Paper Board Width(h) | 40 mm | |
| Paper Rope Width(D) | 12 mm | |
| Rope Height(H) | 100 mm | |
| Max.Speed | 100 pcs/min | |
| Paper Thickness | 80-120 gsm | |
| Max.Roll diameter | 700 mm | |
| Reel inner diameter | 76 mm | |
| Total Power | 10 Kw | |
| Weight of Machine | 2800 kg | |
| Overall Dimension(LxWxH) | 5000×1500×1500 mm | |
HIGH SPEED
STABLE RUN
NEW DESIGN
EXPORTED ALL THE COUNTRIES
