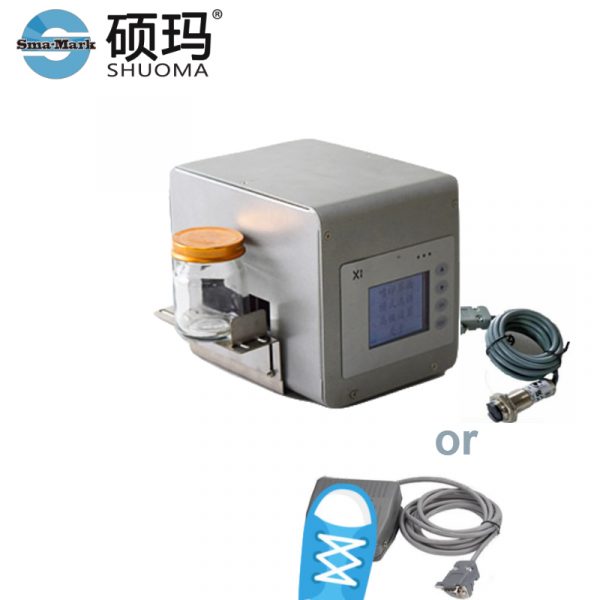

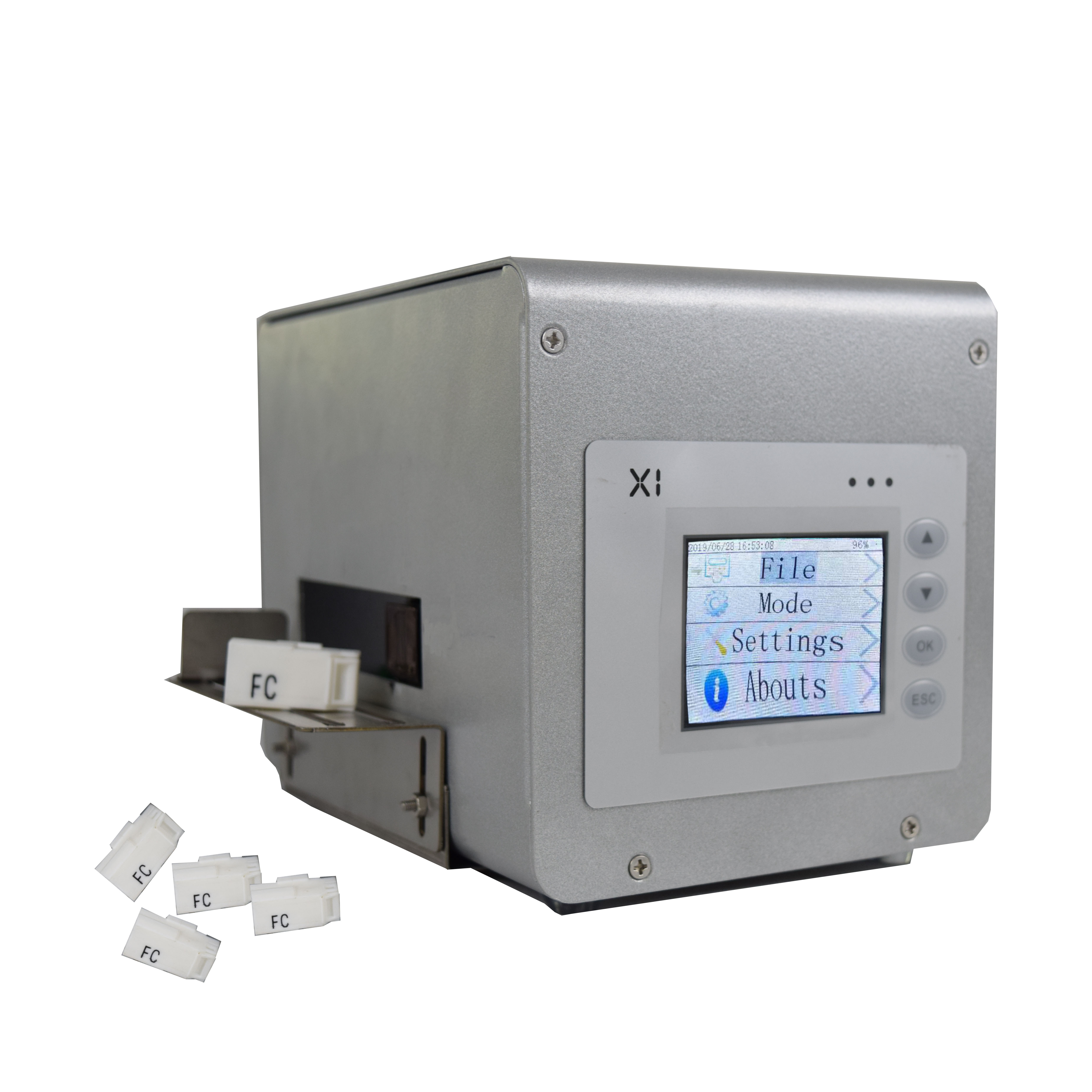

2019 New Design High Definition Tij Portable Batch Code Printing Machine

SPECIFICATIONS OF SOMRT X1

Brand Name

Somrt (OEM)

Model

X1

Language

Simplified Chinese, Traditional Chinese, English, Korean (other languages can be customized)

Input Method

Pinyin, Five-stroke, Handwriting(Other Country Input Method can be installed)

Dimension

130 (L)*180(W)*140 (H) units

Screen size

2.8 inch

Data Editing

Bluetooth  ,USB,U-disk

Gross weight

2.5kg

Effective print width

60mm

Effective printing height

12.7mm

Speed of printing

120pieces/min

Resolution

300-600 DPI

Minimum characters

0.8mm (English numerals, Chinese 2 mm or more)

Sprinkler expansion

+3mm

The number of files stored

1.Ordinary documents: 100+

2.Number of segments: 1-15

3.Variable database: (not yet available)

Free standard accessories

Black cartridge,U-disk,USB data line,charger,Sensor/Foot Switch,power adapter,  installation tool

Basic function

Text, graphics, production date, valid date, two-dimensional code, bar code, serial number

Font

default song style, dot matrix, and dot matrix font generation function, self-adjustable point radius, pitch, slope, etc.

Automatic Spray Printing

Production Date, Valid Date, Sequence Number, Count, Batch Number

Variable data

barcode, two-dimensional code, text, pattern (not yet available)

Variable data production

TXT, Excel, word, graphics converted into data and imported into equipment by U disk printing (not yet)

Ink color

Black, White, Red, Blue ,green and Yellow

Ink capacity

45ml
