400m Deep Wheels Diesel Engine Rotary Hydraulic Mine Water Well Drill Rig Price
Product Description
Description of Cheap 100m Borehole Drilling Borehole Water Well Drilling Rig Machine for sale
water well drilling rig is mainly used for water well and geological general investigation, exploration, kinds of hole in concrete structure,road and tall building foundation exploration,river levees,subgrade grouting hole drilling and direct grouting, civil wells and earth temperature central air conditioner,etc.
Product Features
Features of Portable Small Rock and Soil Water Well Drilling Rig Machine for sale
1.Hydraulic cylinder,high efficiency.
2.Wheel walking mechanism,very convenient for transport and adjusting the drilling rig level.
3.Pressure gauge display the condition of the bottom of the drill hole.
4.Diesel engine with electric starter,convenient and reduce the labor itensity.
5.Equipped with BW 250 mud pump.
2.Wheel walking mechanism,very convenient for transport and adjusting the drilling rig level.
3.Pressure gauge display the condition of the bottom of the drill hole.
4.Diesel engine with electric starter,convenient and reduce the labor itensity.
5.Equipped with BW 250 mud pump.
Product Paramenters
Parameters of Small Portable Diesel Hydraulic DTH Drilling Rig for Drill Water Well Price
|
The Whole Machine Parameters
|
||
|
Model
|
YGY-3
|
|
|
Drill hole depth
|
600m
|
|
|
Maximum opening diameter
|
325mm
|
|
|
Final hole diameter
|
75mm
|
|
|
Drill pipe diameter
|
Φ50,60mm
|
|
|
Borehole inclination
|
90°- 65°
|
|
|
Power(diesel engine)
|
38/2400kw/r/min
|
|
|
Motor
|
42KW
|
|
|
Vertical Shaft
|
||
|
Vertical spindle speed
|
30-1050r/min
|
|
|
Vertical stroke
|
600mm
|
|
|
Hoist
|
||
|
Single line lifting capacity
|
30KN
|
|
|
Single rope lifting speed
|
0.5-1.9m/s
|
|
|
Drum diameter
|
Φ305mm
|
|
|
Diameter of wire rope
|
Φ12.5mm
|
|
|
Wire rope capacity
|
65m
|
|
|
Mud pump
|
||
|
Model
|
BW250
|
|
|
Flow
|
250L/min
|
|
|
Maximum pressure
|
17Mpa
|
|
|
Reciprocating frequency
|
93times/min
|
|
|
Water inlet diameter
|
Φ75mm
|
|
|
Water to exit diameter
|
Φ50mm
|
|

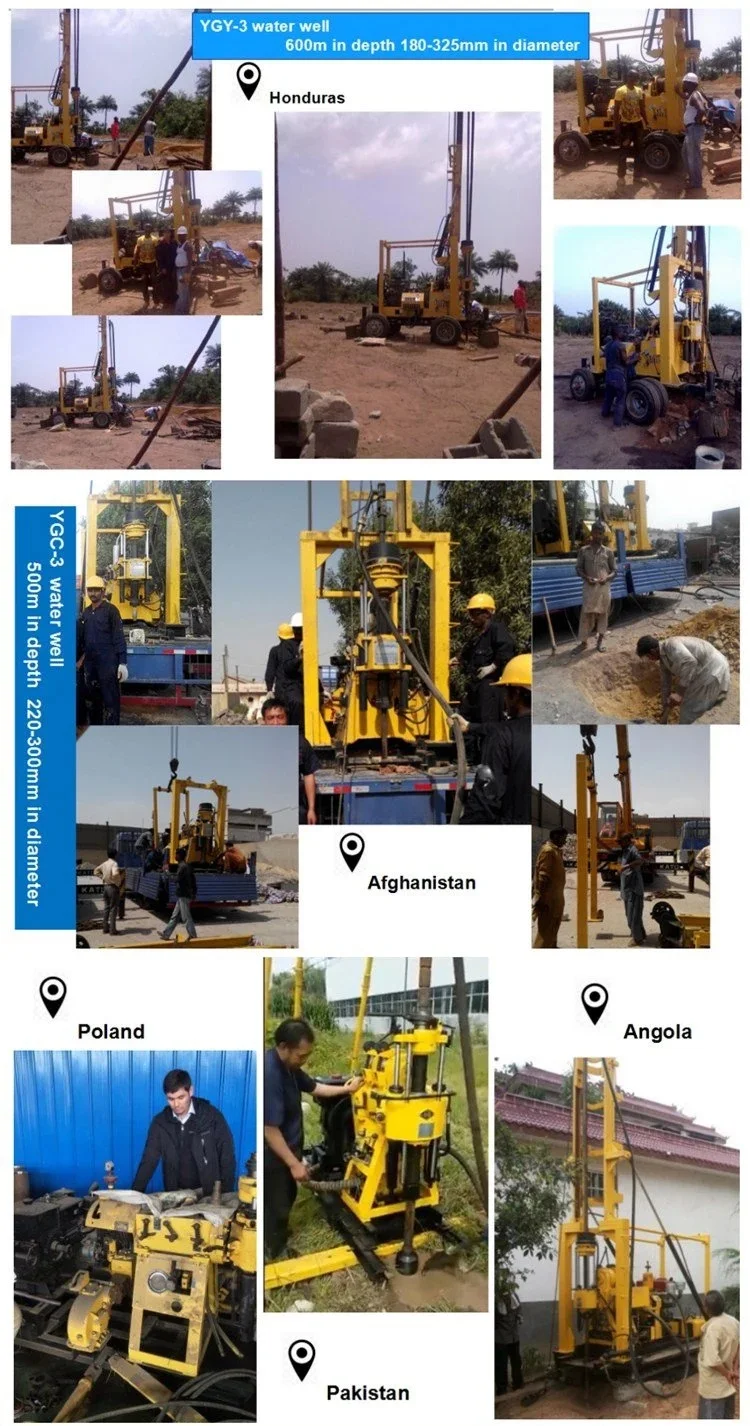

Working Pics
Working Pics of 150m Pneumatic Small Oilfield Water Well Drilling Rigs for sale
Purchase Assurance
High quality raw material suppliers provide us stable and excellent performance machines; skilled and responsible engineers, technicians and workers keep our production line proceed well-organized; we’ll test running every machine before delivery, to make sure it works well in clients’ construction sites; all machines have one–year warranty and lifelong maintenance, our sales manager provide elaborate machine-related consulting service and technical assistance during pre and after-sales, to make sure clients are proficient in operating our machines.
