Name: 200M/300M/400M/500M Deep Hydraulic Diesel Water Well Drill Rig Well Drilling Machine
SKU: 211901066019181
Availability: InStock

200M/300M/400M/500M Deep Hydraulic Diesel Water Well Drill Rig Well Drilling Machine

ر.س91,649.32

Kindly let us know your project demands, like drilling depth, depth or more information. We will provide the complete solution for you. Click here to quickly communicate with us!!

WhatsApp：+8617739786040

E-mail：info@hanfagroup.com

phone：0086-371-55019599

The price of water well drilling rig upgrade remains unchanged Drilling depth increase

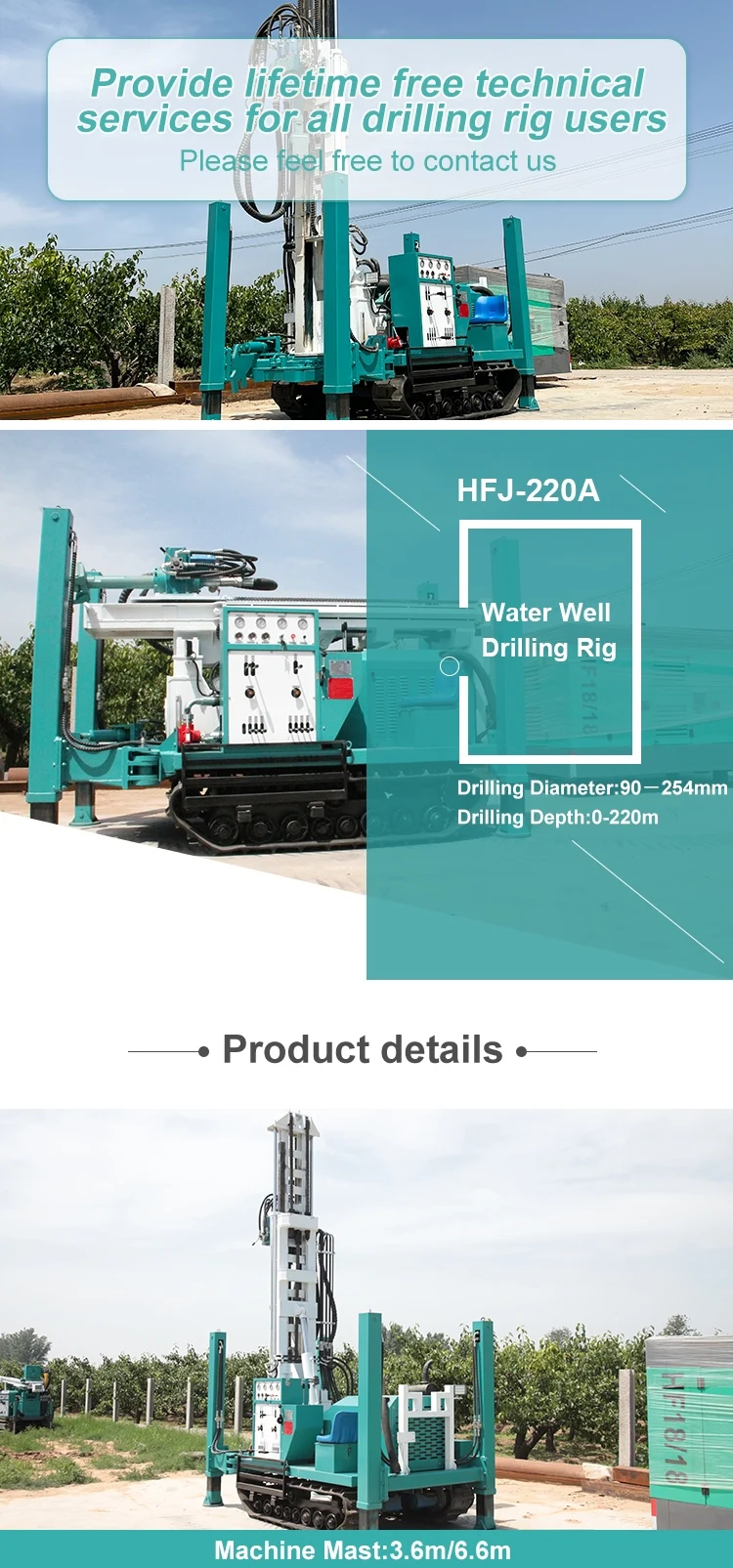

Model（NEW）	HFJ220A	HFJ260A	HFJ360A	HFJ460A	HFJ560A
Max. Drilling depth	220m	260m	360m	460m	560m
Drilling diameter	90-254mm	90-315mm	105-325mm	105-350mm	105-350mm
Working air pressure	1.05-2.46Mpa	1.7-3.0Mpa	1.05-3.45Mpa	1.05-3.45Mpa	1.05-4.5Mpa
Air consumption	16-30m³/min	17-35m3/min	16-55m3/min	16-55m3/min	16-60m3/min
Drilling rod length	3m	3m	3m/4.5m/6m	3m/4.5m/6m	3m/4.5m/6m
Drilling rod diameter	76/89mm	76/89mm	89/102mm	89/102mm	89/102/114mm
Axle pressure	4T	4T	4T	10T	12T
Lifting force	12T	14T	20T	24T	28T
Lifting speed	2.5m/min	2.5m/min	3.0m/min	3.0m/min	3.0m/min
Pulling speed	0.5-5m/min	0.5-5m/min	0.5-5m/min	0.5-5m/min	0.5-5m/min
Fast lifting speed	18m/min	18m/min	30m/min	25m/min	25m/min
Fast pulling speed	35m/min	35m/min	50m/min	40m/min	40m/min
Max. rotation torque	4200-5600Nm	4500-6500Nm	6500-8500Nm	7500-9500Nm	8500-11000Nm
Rotation speed	48-70r/min	50-70r/min	60-100r/min	45-120r/min	75-150r/min
Mud pump flow	20L/min(optional)	20L/min(optional)	20L/min(optional)	20L/min(optional)	20L/min(optional)
High hydraulic leg stroke	1.5m	1.5m	1.5m	1.5m	1.5m
Walking speed	2.5Km/h	2Km/h	3.5Km/h	3.5Km/h	3.5Km/h
Climbing capacity	30°	30°	30°	30°	30°
Weight	4.7t	5.4t	8.5T	10.5t	11.5T
Dimension	360017002150mm	390017002150mm	480020002450mm	570020002550mm	580022502550mm
Power	55kw	77.4kw	93KW	94KW(6 cylinder)	153kw
