Name: 1D 2D Green Pass QR Bacode Red QR Code Scanner Module for Self-service Machine
SKU: 211433390019181
Availability: InStock

1D 2D Green Pass QR Bacode Red QR Code Scanner Module for Self-service Machine

ر.س126.52

1D 2D Green Pass QR Bacode Red QR Code Scanner Module For Self-service Machine

Product Description

high performance1260

FEATURES & BENEFITS

1. 300,000 pixels resolution

2. Decoding min barcode density:5mil

3. Motion tolerance 10-13cm/s

4. Support 1D/2D barcode on paper and screen

5. Decode long PDF 417(750bytes),large QR(2000btyes)

6. TTL232 and USB by 12pin FFC

7. Small size, fast and convenient installation

Product Parameters

Item	Para. Name	Para. Value
Reading performance	Image Sensor	CMOS
	Resolution	300,000 pixels,640*480pixels,30fps
	Decoding capacity	Support paper and screen barcodes
		2D: QR, Micro QR,PDF417,Micro PDF417, Data Matrix, Aztec
		1D: EAN,UPC,Code 39,Code 93,Code 128,UCC/EAN 128, Codabar Interleaved 2 of 5, ITF-6,ITF-14,ISBN,ISSN, MSI-Plessey GS1 Databar,Code 11,Industrial 25, Standard 25,Plessey Matrix 2 of 5 etc. all normal 1D
	Precision	5mil
	Light Source	Visible Green Diode, White LED for illumination
	View Angle	34°(H) x28°(V)
	Scan Angle	Rotation360°,tilt±55°,skew±55°
	Min Contrast	25%
	Trigger Mode	Manual, Continuous, Auto sensing, Host etc.
	Typical DOF	EAN13 (13mil) 50-200mm Code 39(5mil)40-90mm QR code(20mil)25-240mm PDF417(6.67mil)30-130mm Performance may be impacted by bar code quality and environmental conditions
Mechanical and electrical	Interface	TTL232,USB(HID-KBW,virtual serial port)by 12pin FFC flat cable
	Working Voltage	DC 3.3V
	Current	160mA(working) 25mA(USB standby) 2mA(TTL standby)

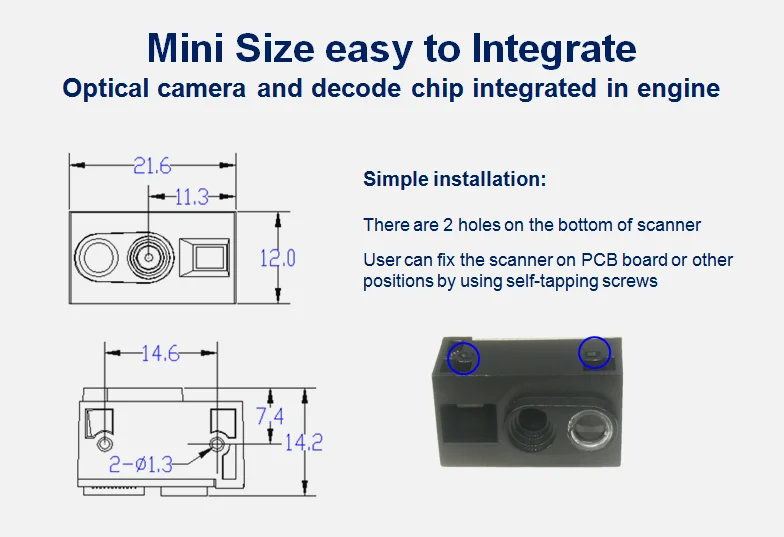

	Dimensions	21.6(W)×14.2(D)×12(H)mm
	Weight	5g
	Indication	LED(fill light),can trigger external buzzer and LED indicator
Environment Request	Working Tem	-20~50℃
	Storage Tem	-40~70℃
	Humidity	5%-95%(Non-condensing)
	Light brightness	0-100000LUX
