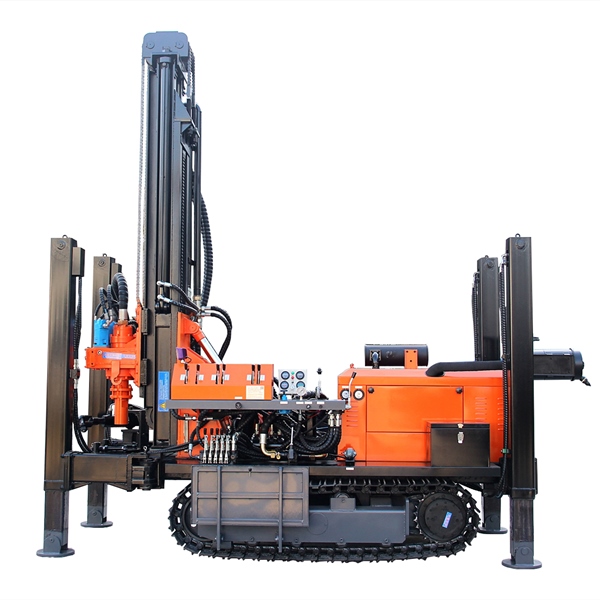

High Speed Water Well Drilling Machine
YG made deep water well drilling rig used newest model & advanced hydro technology, with high torque hydraulic motor rotation and large cylinder hydraulic cylinder advancement. our water well drilling machine are mainly used for well drilling in resource exploration hydrology wells, civil usage water well, agriculture irrigation project, and can also be used for coal-mine gas exploitation, coalbed methane, shallow layer of shale gas.
Made from high quality materials, with fashion and compact design, that keeps our drilling rigs more efficiency and with low failure rate, more economic and durable, rigs have received the real market validation as the majority of our customer’s positive feedback.
Model |
YG-130 |
YG-200 |
YG-300 |
YG-400 |
Weight(Ton) |
3 |
5.5 |
9 |
10 |
Drilling Diameter(mm) |
100~219 |
140~305 |
140~325 |
140~350 |
Drilling Depth(mm) |
130 |
200 |
300 |
400 |
Walking Speed(Km/h) |
0.8 |
2.5 |
2.5 |
2.5 |
Climbing Angles |
30 |
30 |
30 |
30 |
Power(Kw) |
32 |
65 |
84 |
95 |
Pressure(Mpa) |
1.45~2.5 |
1.7~3.0 |
1.7~3.3 |
1.7~3.5 |
Air Consumption(m³/Min) |
15~29 |
17~30 |
17~35 |
17~35 |
Drilling Pipe Length(M) |
1/1.5 |
1.5/2.0/3.0 |
1.5/2.0/3.0 |
1.5/2.0/3.0 |
Rig Lifting Force(T) |
5 |
18 |
28 |
24 |
Dimension |
4000*1450 *2050 |
3800*1700 *2350 |
5500*1950 *2780 |
5200*2000 *2780 |
Features:
1.Hydraulic oil pump; parallel transmission design (patent) oil pump single body, power supply adequate distribution reasonable, hydraulic system unique design, simple maintenance cost small.
2.Used with air compressor, can drill 180M, 200M, 300M, 400M, 500M ,600M, 800M, etc.
3.Usually drilling diameter is 6‘’, 8”, 10”, 12”, 14”,etc. According to your needs, we can configure the suitable drill pipe, drill bit and the right model.
4. Power head device; gearbox casting, double motor power supply, torque, durability, maintenance costs are small.
5. Drilling rig chassis; Professional excavator chassis, durable, heavy load bearing, wide chain board, little damage to hard road surface.
Working Site:
Henan Yugong Machinery Co., Ltd. is a large machinery manufacturing enterprise which focuses on research and development, production and sales of mining, tunnel construction, sandblasting equipment, road and bridge construction equipments and so on.
We believes that good quality can give us survival, thus we only provide you top products. All the products with high quality meet international standards and are highly estimated by all clients at home and abroad.
All the staff in our company are professionally trained, so we can recommend you the most appropriate equipment. Every machine will be strictly examined before delivery. Any question about the machine will be replied within 24 hours. Welcome you to be our new client!
2.Exporting to all over the world,win high reputation among customers.
4.Near the Qingdao port convenient for exporting.
5.Customer service staff 24 hours online,offer free technical support.
1. Packaging:
1)Wrapped by protective film;
2)Packed by standard import & export wooden cases or carton boxes.
2. Shipping:
By logistics; by automobile; by train; by shipping; by air etc.
