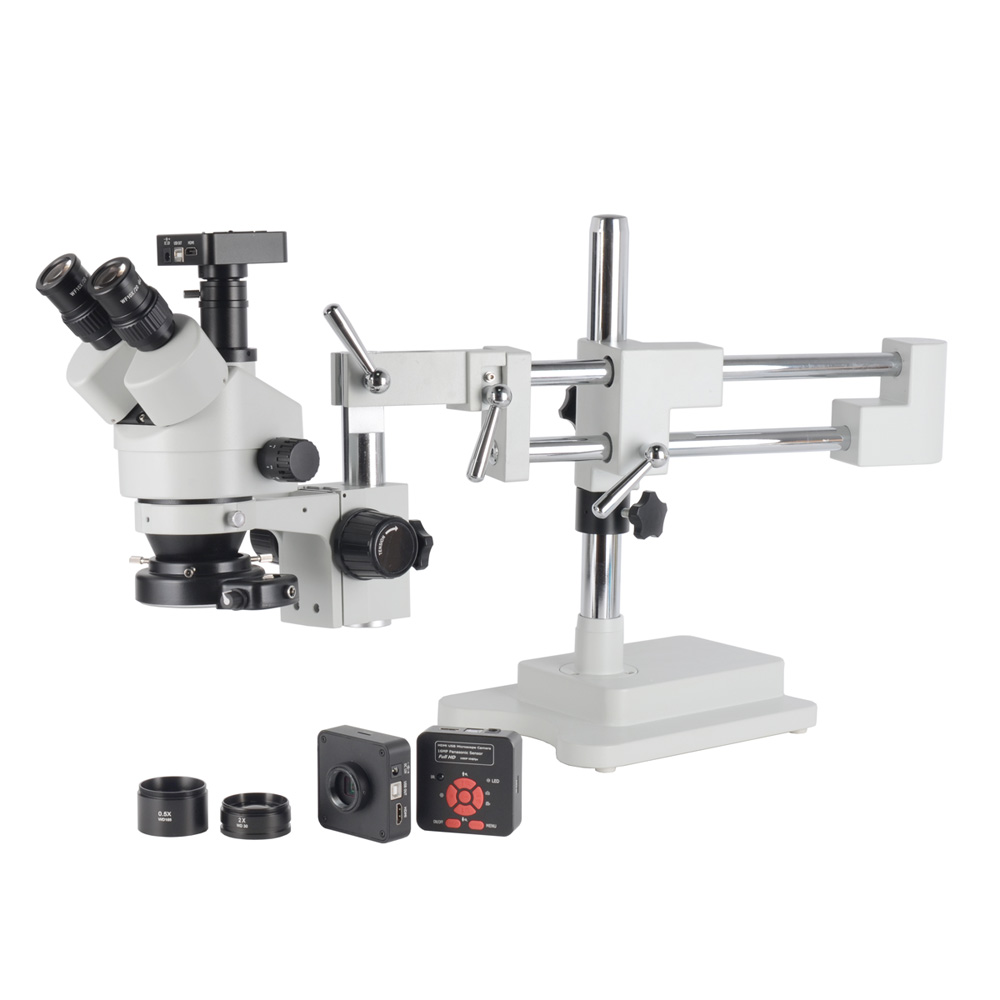

16MP 2K 0.35X-90X Trinocular Stereo Microscope with HDMI-Compatible USB Microscope Camera for Mobile Repair Soldering

ر.س2,989.76

Clear
Qty:
Compare

Request quotation for: 16MP 2K 0.35X-90X Trinocular Stereo Microscope with HDMI-Compatible USB Microscope Camera for Mobile Repair Soldering

Product Description

 SZM7045 Series Stereo Zoom Microscope can provide crystal clear sharp images with high resolution and good depth within a broad field of view. Once brought in focus, images remains clear and sharp throughout the whole zoom range. It is widely used in electronic industry, educational demonstration and agricultural research for micro-object observation, inspection and measurem

Eyepiece

Standard

Auxiliary Lens 0.5X

Auxiliary Lens 1.5X

Auxiliary Lens 2X

W.D. 100mm

W.D. 165mm

W.D. 45mm

W.D. 30mm

Mag.

F.O.V

Mag.

F.O.V

Mag.

F.O.V

Mag.

F.O.V

10X/20mm

7.0X

28.6mm

3.5X

57.1mm

10.5X

19mm

14.0X

14.3mm

45.0X

4.4mm

22.5X

8.9mm

67.5X

3mm

90.0X

2.2mm

15X/15mm

10.5X

21.1mm

5.25X

42.8mm

15.75X

14.3mm

21.0X

10.7mm

67.5X

3.3mm

33.75X

6.7mm

101.25X

2.2mm

135.0X

1.7mm

20X/10mm

14.0X

14.3mm

7.0X

28.6mm

21.0X

9.5mm

28.0X

7.1mm

90.0X

2.2mm

45.0X

4.4mm

135.0X

1.5mm

180.0X

1.1mm

25X/9mm

17.5X

12.9mm

8.85X

25.4mm

26.2X

8.6mm

35.0X

6.4mm

112.5X

2.0mm

56.3X

4.0mm

168.8X

1.3mm

225.0X

1.0mm

30X/8mm

21.0X

11.4mm

10.5X

22.9mm

31.5X

7.6mm

42.0X

5.7mm

135.0X

1.8mm

67.5X

3.6mm

202.5X

1.2mm

270.0X

0.9mm

Magnification

  7X-45X, 3.5X-270X with optional eyepieces and objectives

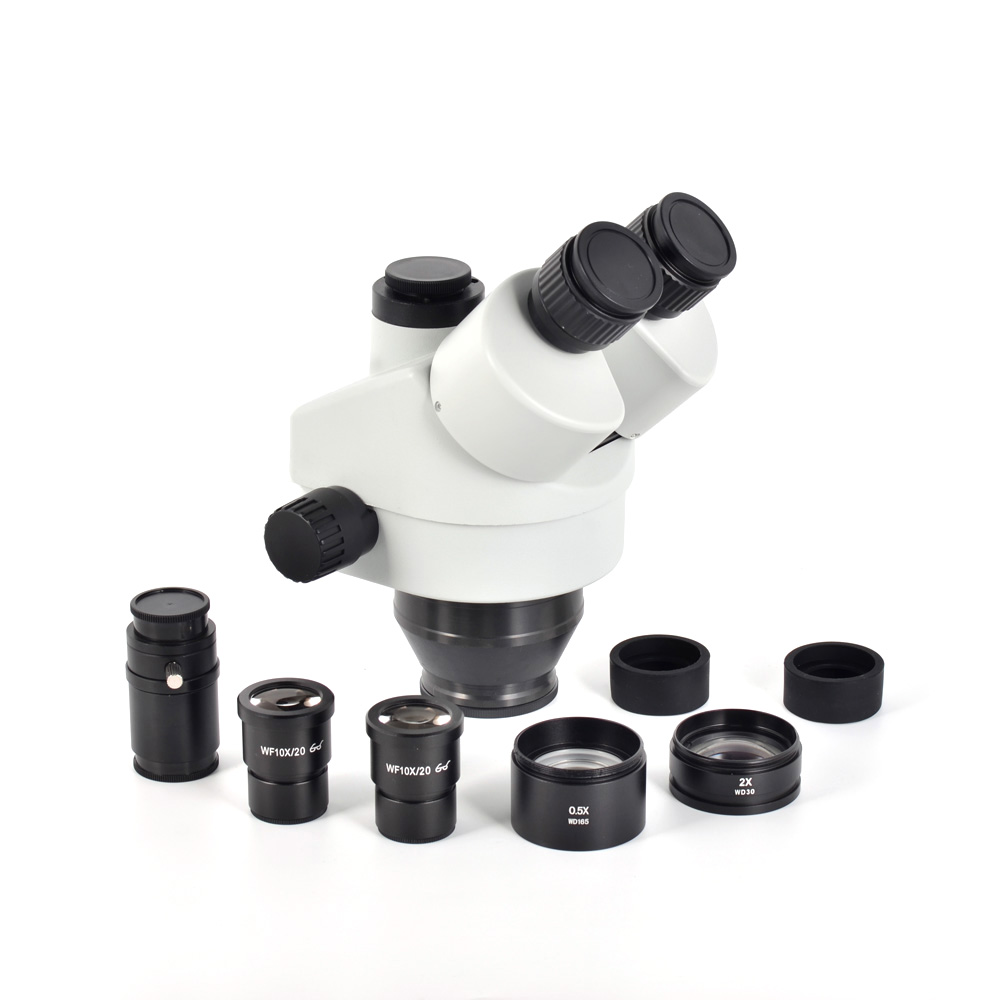

Eyepiece

  WF10X/20mm high-eyepoint, wide-field; Convenient for observers wearing glasses

Optional Eyepiece

  WF10X/20mm, WF15X/15mm, WF20X/10mm, WF25X/9mm, WF30X/8mm

Main Body

  Trinocular head, 45 degree inclined, 360 degree rotatable, can be locked in any position desired

  Interpupillary Distance adjustment:54-76mm; Diopter adjustment:±5 diopters

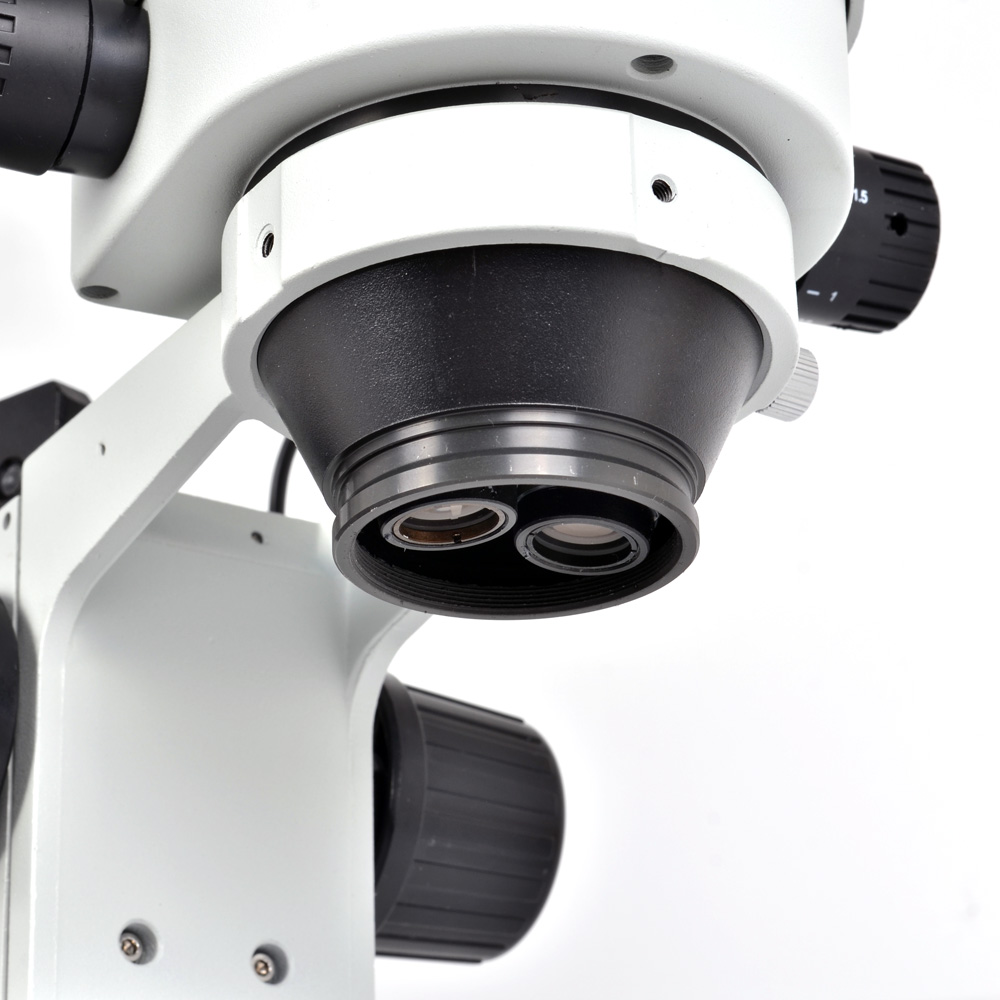

Objective

  0.7X-4.5X stereo zoom; Zoom Ratio:6.4:1

Aux Lens

0.5X and 2X

Focusing Mount

  A3 focusing mount with vertical working distance 50mm

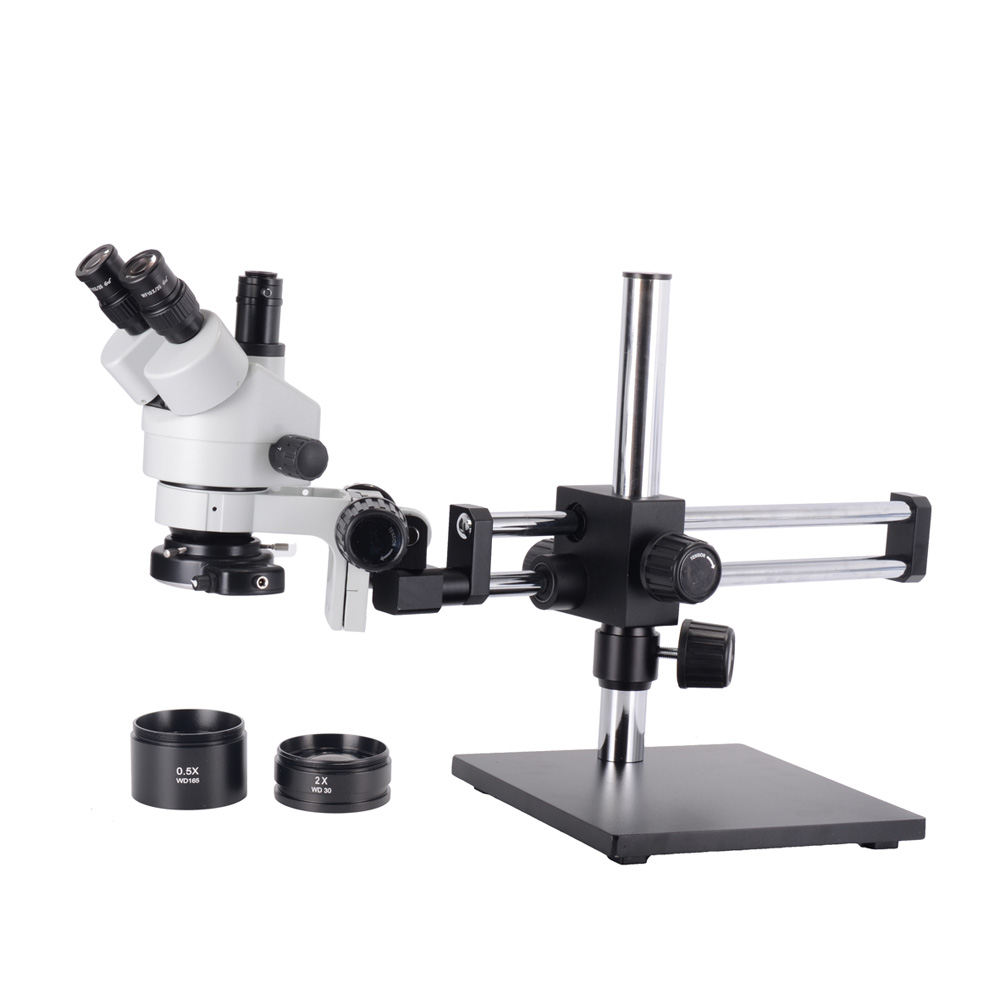

Stand



STL5 Boom Stand

Expand the scope of operation and observe the object in any direction

Vertical Post:380mm

Diameter:dia. 37mm

Horizontal moving:420mm

Base Size:260x280x15mm

With A3 Focusing Mount

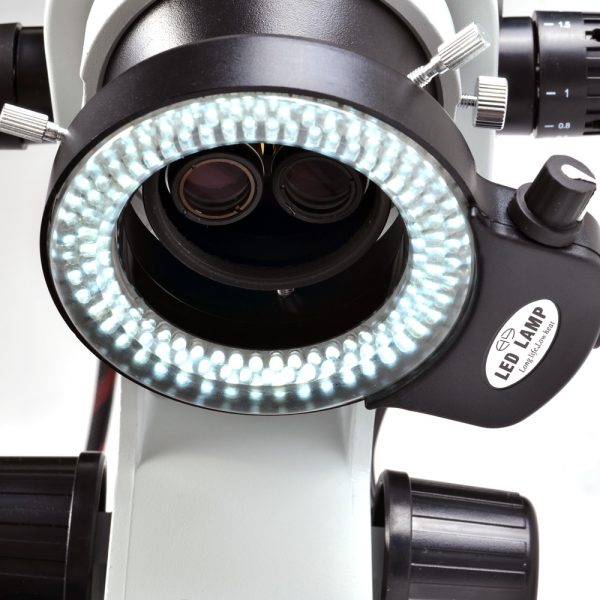

Illumination

 adjustable 144 LED Ring light





Features:
Model: Camera with HDMI-Compatible USB2.0 two output
Image format: jpg
Image resolution: 4608*3456 (for TF card) 1920*1080 @ 60FPS(for TF card)
Video format: MP4(for TF card)
Video recorder: 1920*1080 @ 60FPS (for TF Card)

HDMI-Compatible Video resolution: 1920*1080 @ 60FPS
USB Video resolution: 1920*1080 1280*720 640*480 320*240 @ 30FPS
White Balance: Auto/Manual
Light: Auto/Manual
Exposure: Auto/Manual, value adjustable
Color: Color
Morror: Left/right,Up/Down
Freeze: Support
OSD: English/Chinese/French/Spanish/Japanese/German
Line: different color,5 horizontal line , 5 vertical line,any positions

Specification:
Image sensor:16 megapixel Panasonic CMOS sensor 1/2.33 inch
Effective pixel:16 megapixel
Pixel size:1.335μm × 1.335μm
Frame rate:60fps
Definition:FULL HD
Housing:metal
Lens:C/CS
Video format: MOV
Digital Zoom:Support
Brightness control:Auto/manual
Color:R/G/B adjustable
Film and record:Support
Cross cursor:Support multi-color, size adjustable
Transverse and vertical line:
Support multi-color, 5 pcs of transverse lines/vertical lines, moveable
Different color,5 horizontal line , 5 vertical line,any positions
TF card interface:Max 64G
HDMI-Compatible interface:Standard HDMI-Compatible output (Type A)
USB interface:Standard usb2.0 interface (Type B)
Input Voltage: DC 12V
