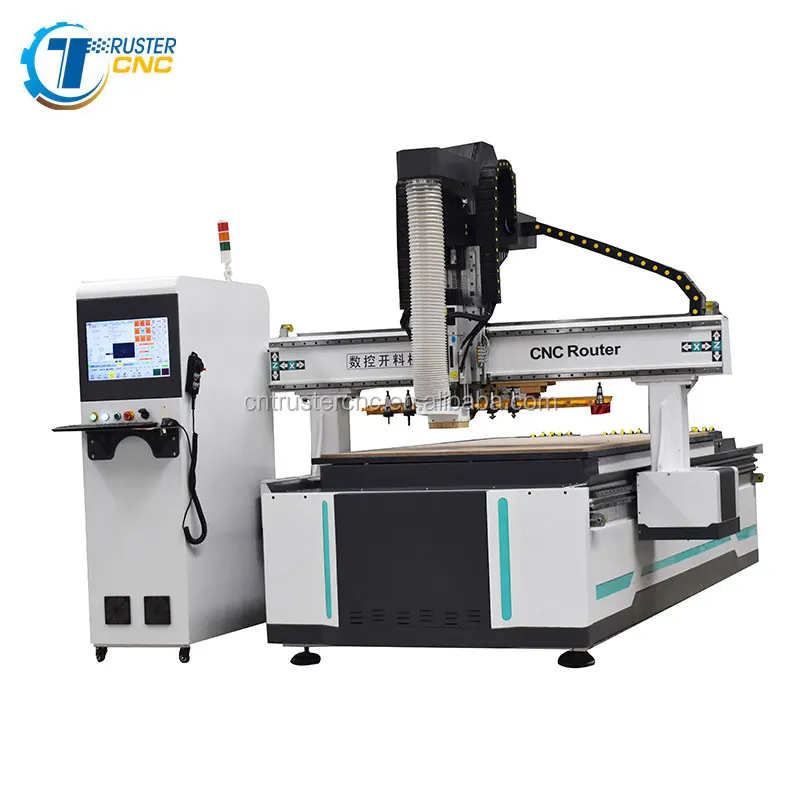

Product Description
Machine Feature:
1.Welded pipe steel lathe bed, strong and never out of shape
2.The machine’s main parts are all from world famous suppliers, such as Syntec control system, Sampo reducer, HSD spindle, Delta inverter and Becker vacuum pump, all components are from global leaders.
3.With this machine, you can make different surface carving, arc-surface milling, bend surface machining.
4..Double motors and drivers of Y axis which can ensure steady movement

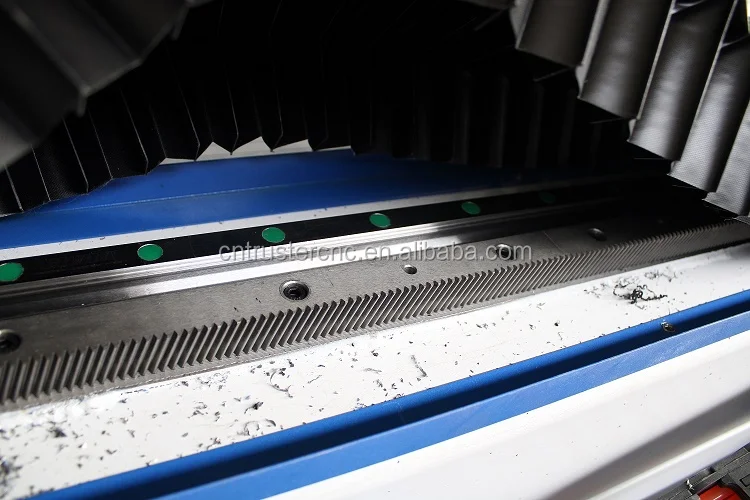

5.Rack gear transmission ensures fast speed and high accuracy
6.Imported square rail ensures high accuracy and heavy workload
6.Imported square rail ensures high accuracy and heavy workload
7.It can work on foam, MDF, Acrylic, wood, and the soft metal etc.
|
X,Y,Z, AWorking Area
|
1300*2500mm/1500*3000mm
|
|
X,Y,Z Traveling Positioning Accuracy
|
±0.03/300mm
|
|
X,Y,Z Repositioning Accuracy
|
±0.03mm
|
|
Table Surface
|
Vacuum table
|
|
Max. Rapid Travel Rate
|
80000mm/min
|
|
Max. Working Speed
|
40000mm/min
|
|
Spindle Power
|
9.0Kw ATC HSD cooling spindle
|
|
Spindle Speed
|
0-18000RPM
|
|
Drive Motors
|
Servo Motors
|
|
Operating System
|
Syntec/Shanlong Control System
|
|
Inverter Syste
|
11KW FULING
|
|
Command Language
|
G Code
|

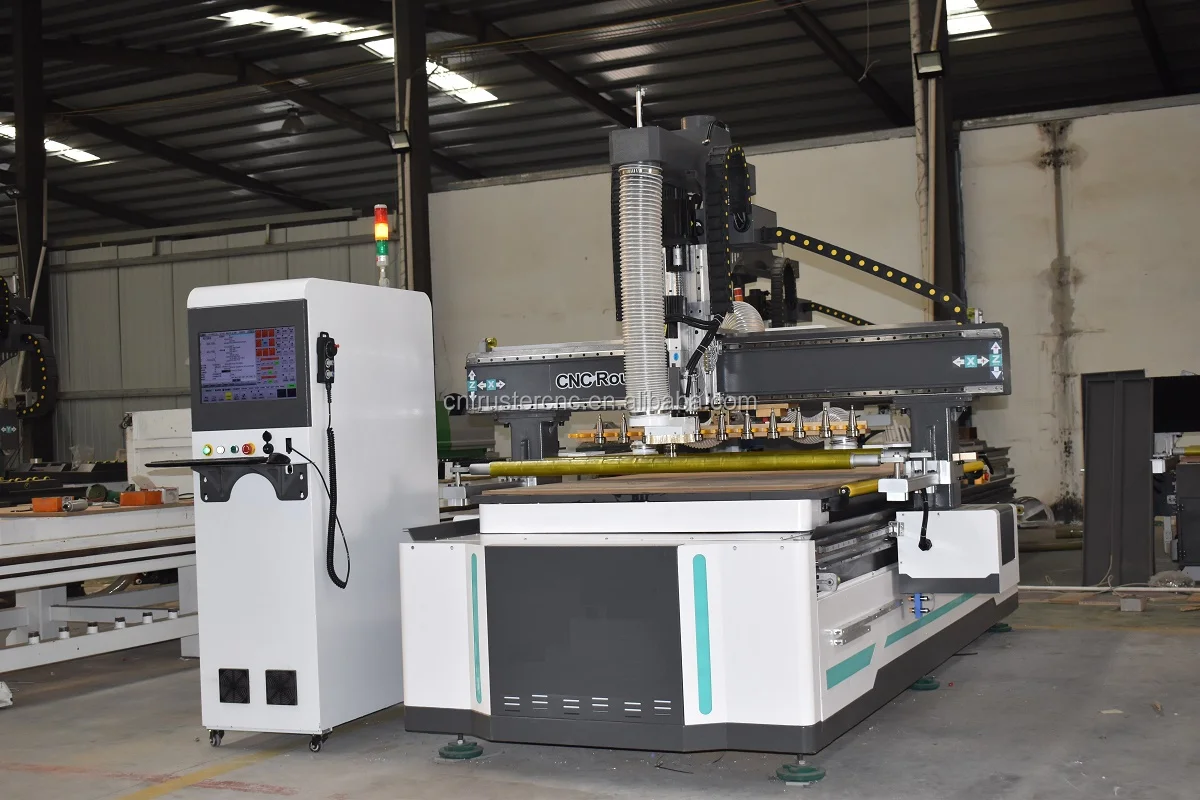

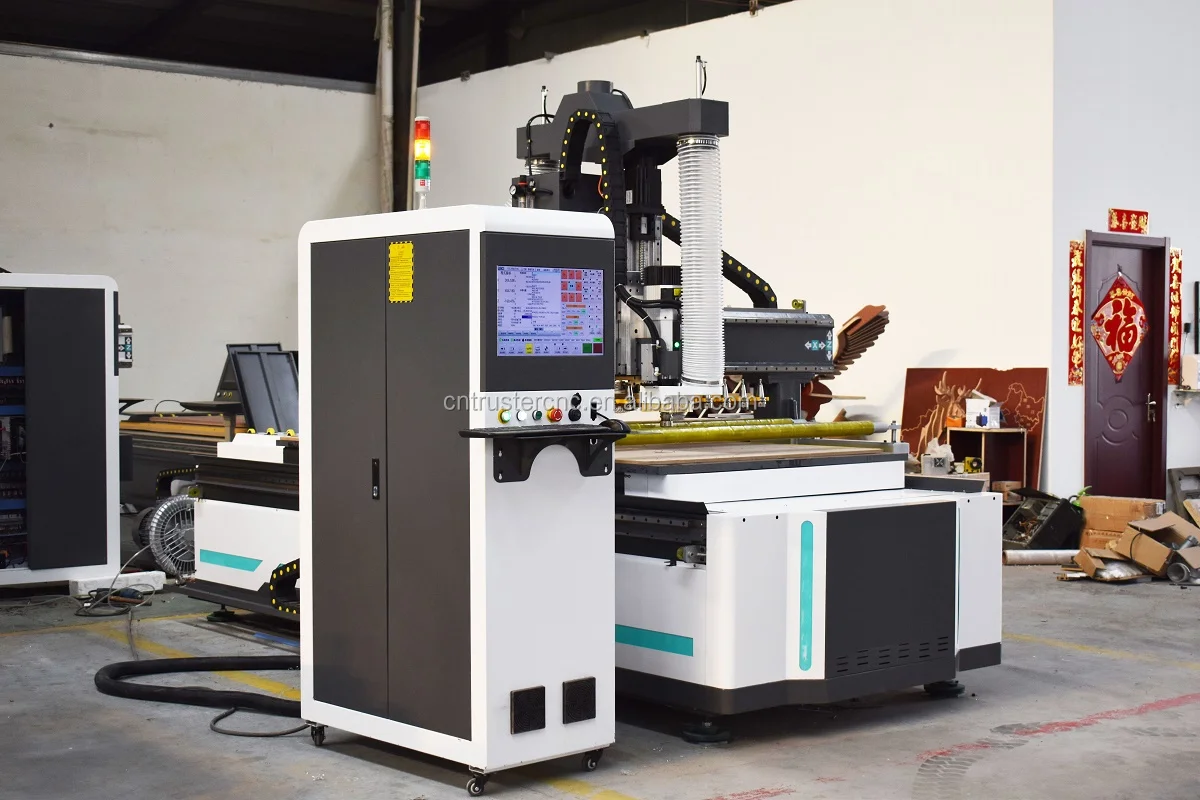

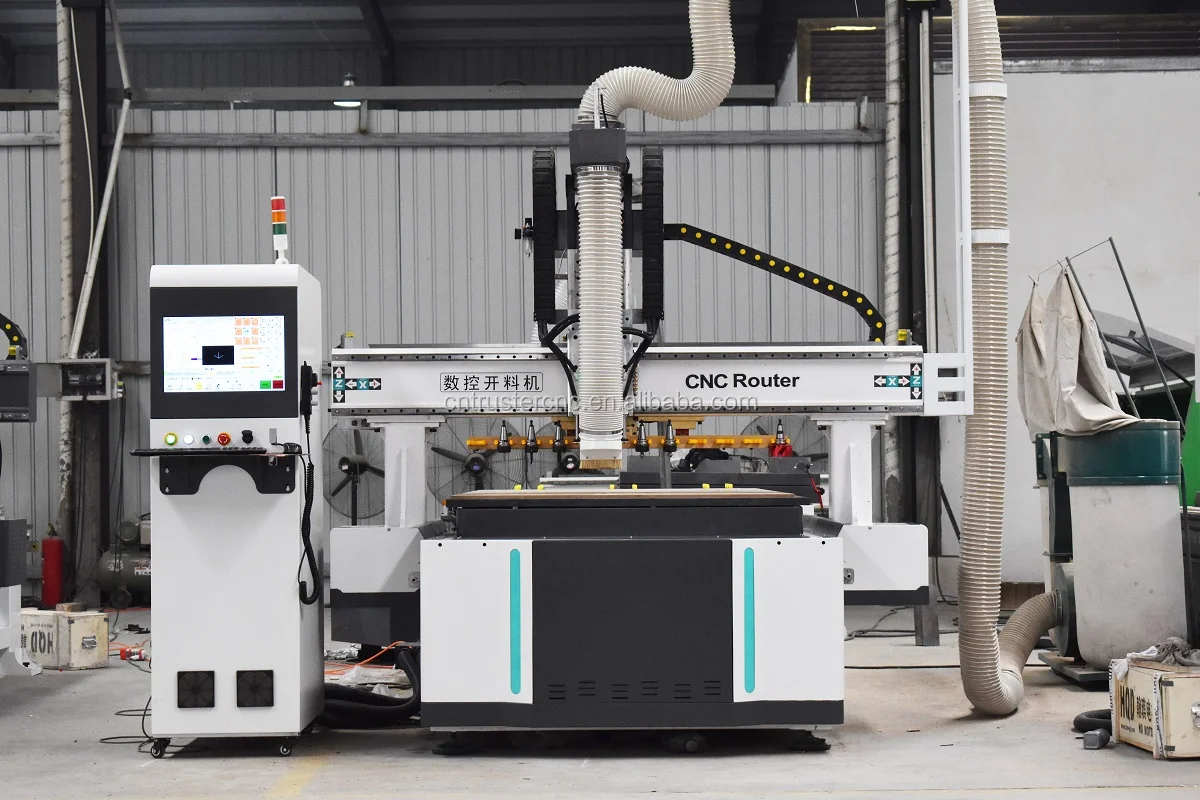

Machine Details
Detailed Images
-

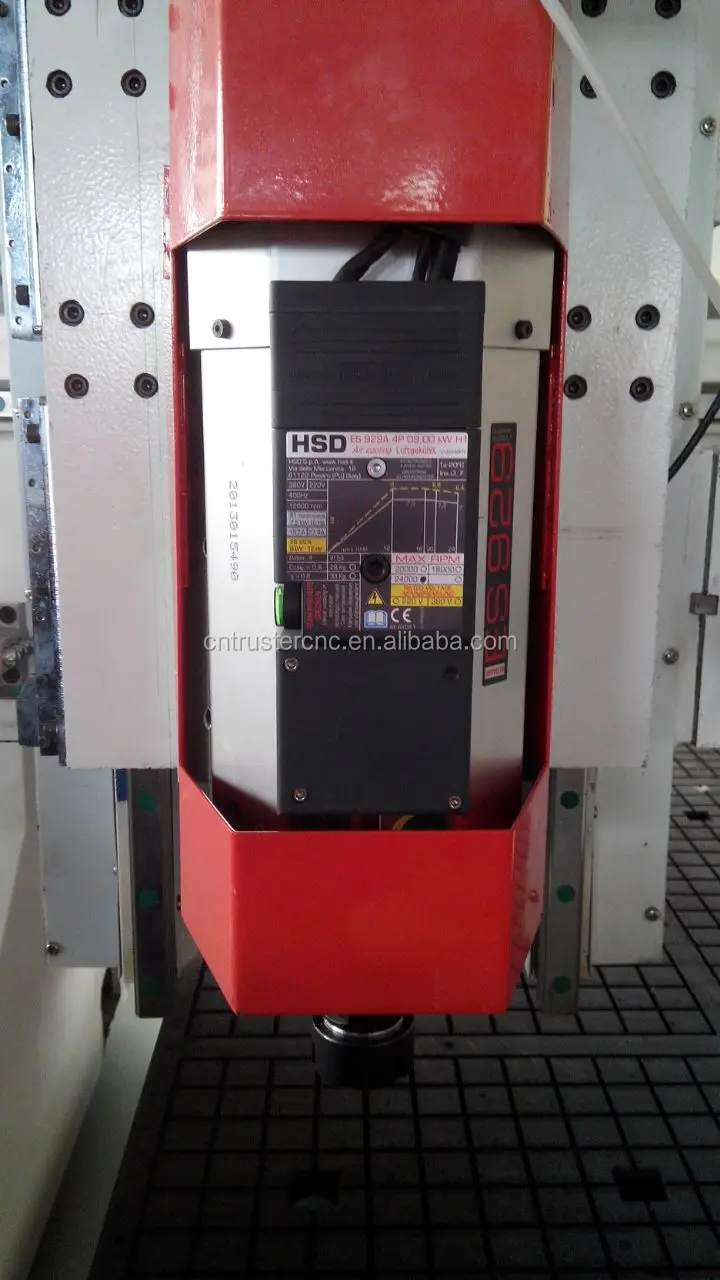

9KW HSD air cooling spindle

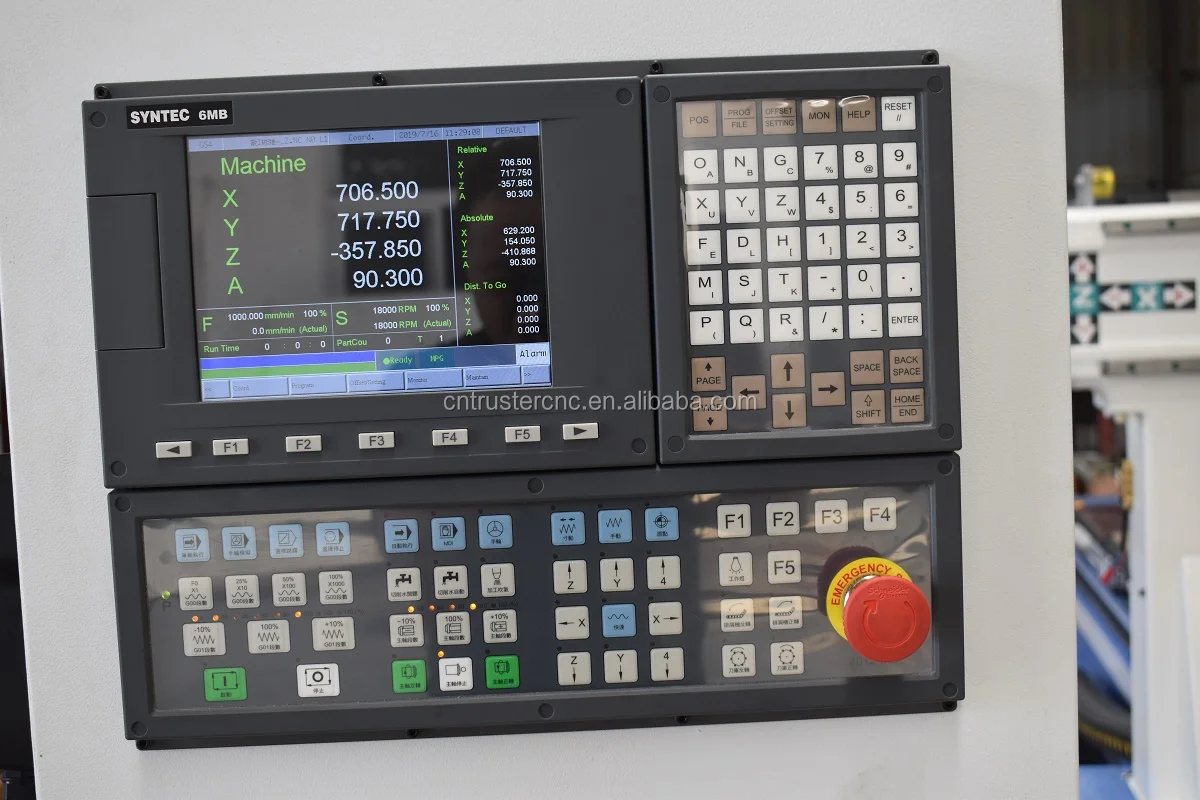

Syntec6MB control system

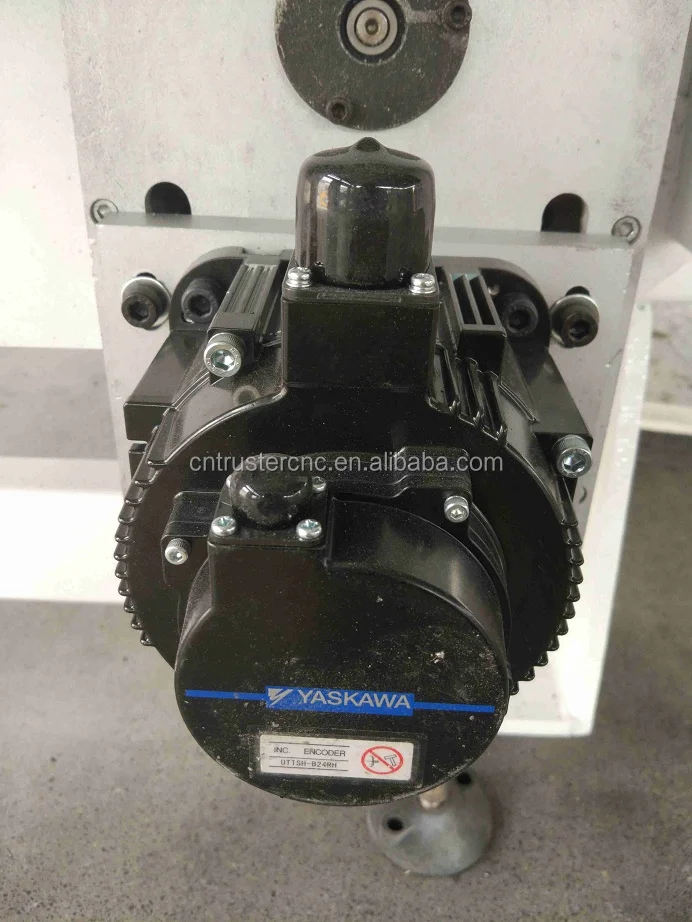

YASKAWA servo motor

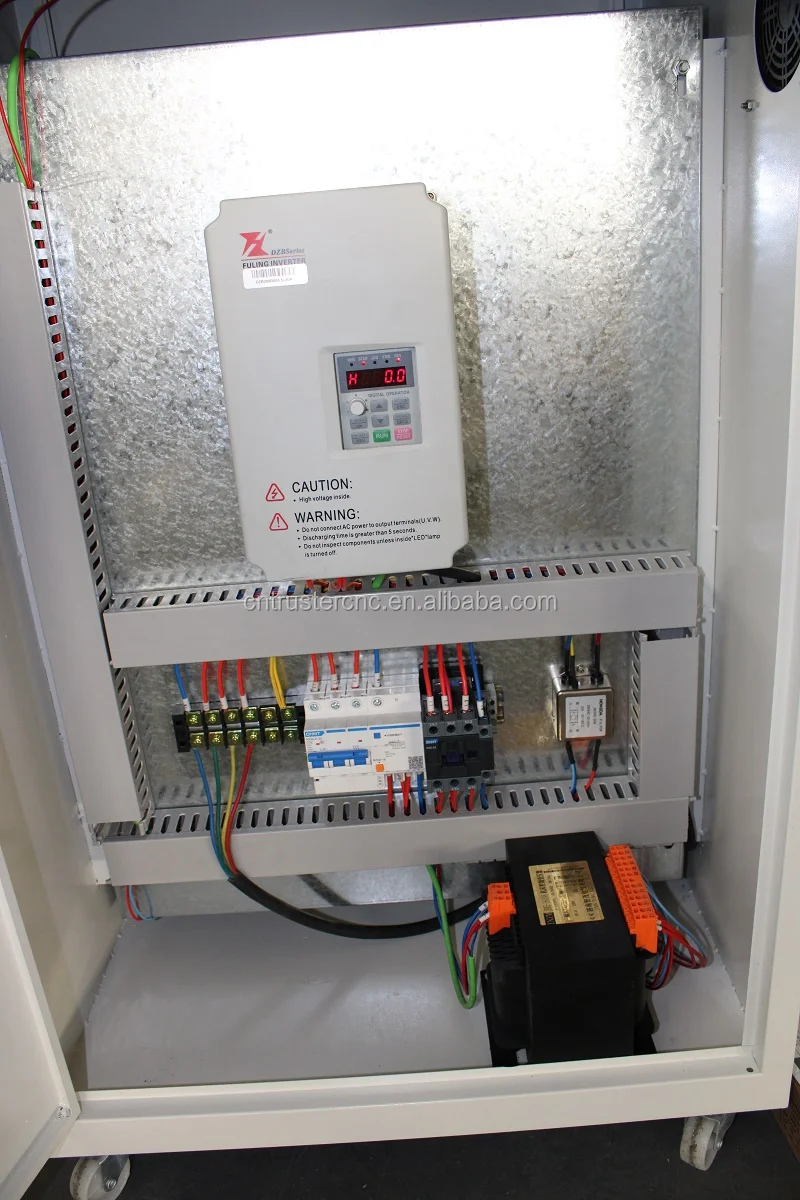

11KW FULING inverter

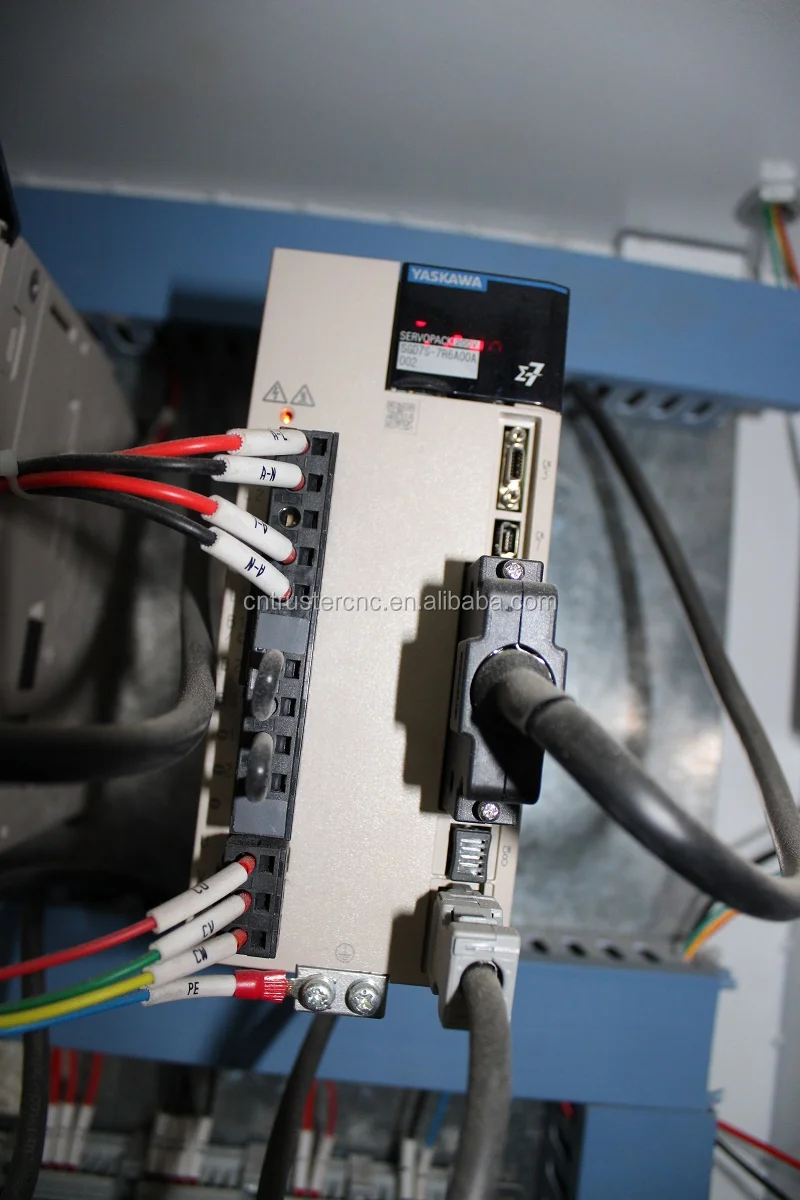

YASKAWA servo driver
HIWIN guide rail

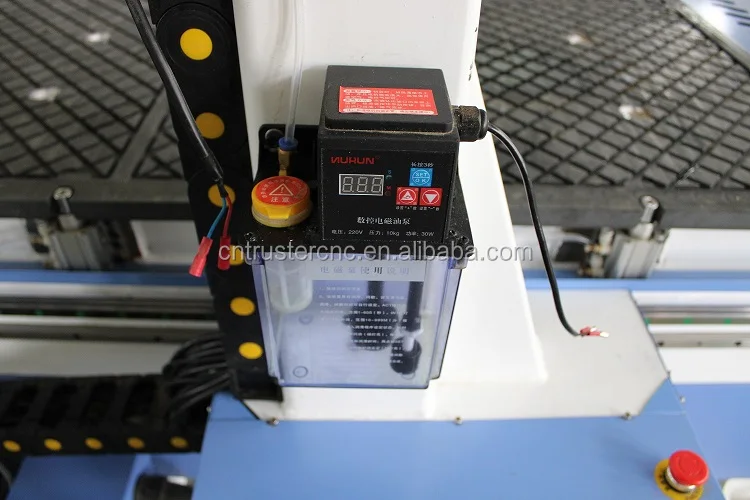

Automatic lubrication system

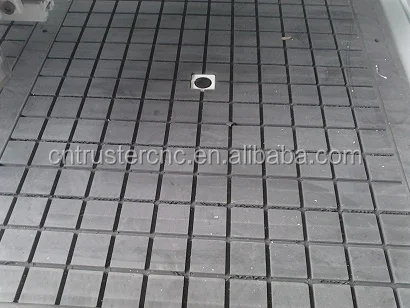

Vacuum table

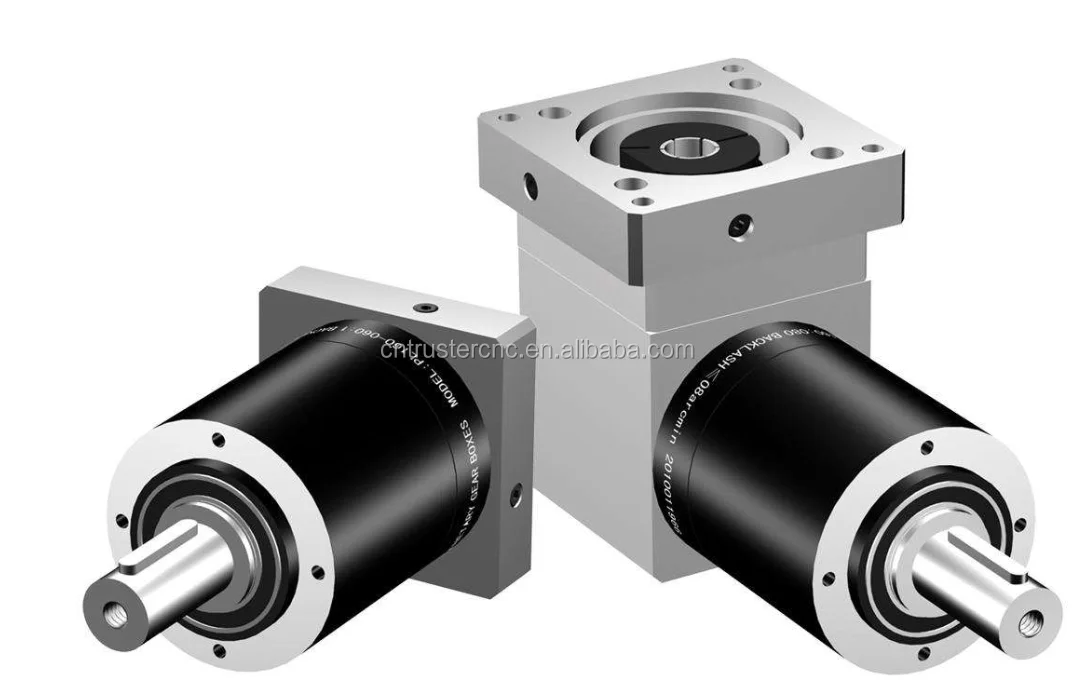

Shimpo reductor
Sample show
Applicable Industries:
Furniture Industry,Decoration Industry,Musical Instrument Industry,Mould Industry,Craft Industry,Advertising Industry
Applicable Materials:
Very popular in: Furniture industry: wooden doors, windows, folding screens, tables, chairs, and many other materials such as plastic board, PVC sheet, dual color board, aluminum, etc.
Furniture Industry,Decoration Industry,Musical Instrument Industry,Mould Industry,Craft Industry,Advertising Industry
Applicable Materials:
Very popular in: Furniture industry: wooden doors, windows, folding screens, tables, chairs, and many other materials such as plastic board, PVC sheet, dual color board, aluminum, etc.
