Product pictures
Main Configuration details
Techical Parameter
|
Model
|

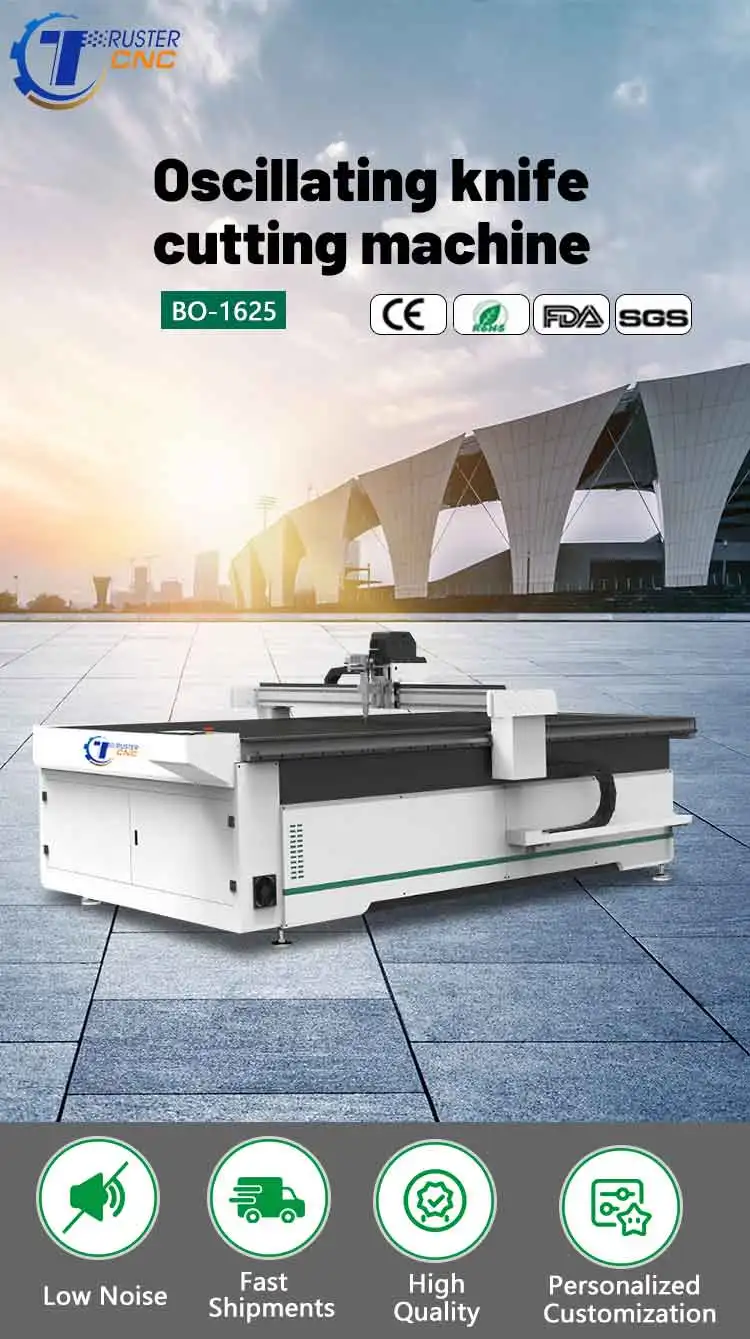

TO-1625 Fixed Oscillating knife cutting machine
|
|
work size
|
1600*2500mm
|
|
optional size
|
600*900mm/1300*1300mm/1600*1500mm/1600*3500mm/3000*4000mm etc (Support Customize size)
|
|
max cutting speed
|
0-1500mm/s
|
|
cutting depth
|
≤50mm（ according to material)multi laser :0-30mm after pressed, foam＜100mm
|
|
air pressure supply
|
6-8MPA
|
|
repeatability positioning accuracy
|
±0.1mm
|
|
working power supply
|
AC380V/3ph 50HZ/60HZ
|
|
Vacuum power
|
9KW
|
|
TOTAL power
|
≤11KW ,Standby state 0.45KW
|
|
Machine Color
|
Standard While grey or While black(Optional)
|
|
Operating temperature
|
0℃-40℃
|
|
Drawing software
|
AUTOCAD,CORELDRAW,PGM,BOKE,GERBER, ETC
|
|
machine support format
|
AL,PLT,DXF,DST,DSB,EPS,DAT,NC,V-CUT
|
|
Work Environment
|
Temperature: – 10 ℃ to 40 ℃, humidity: 20% -80% RH
|
|
Application Material
|
Foam,sponge, cotton, leather, PVC, sound-absorbing cotton, photo paper, KT board, car stickers, rubber,cloth, carton, and other composite flexible materials
|
Application
