1325 CNC Plasma Manual Sheet Metal Cutting Machine
Features of CNC Plasma Cutting Machine
♦ Working area: 1300*2500mm
♦ Heavy duty thicken machine body
♦ 100A plasma power
♦ Stepper motor and Leadshine Driver
♦ Start Controller system from Beijing
♦ Automatic Arc Pressure adjustable
♦ HIWIN Linear Guide Rail
♦ Helical Rack and Pinion
♦ Fast Cam software
♦ Plywood package
♦ warranty : 1.5 years

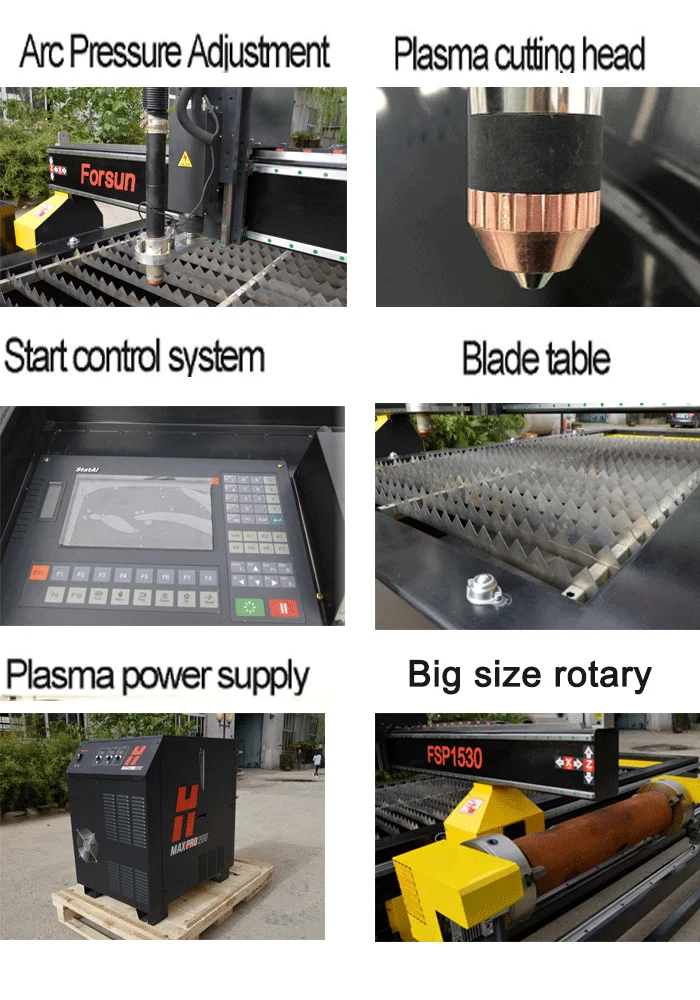

Advantages of CNC Plasma Cutting Machine
| 1. Plasma power |
Huayuan 100A power Famous brand made in china, low price, Cutting thickness 0.3-22mm |
| 2. Controller system |
Beijing Start control system, configured 7-inch high-resolution true color LCD display. can be dynamically cut graphics running track. |
| 3. Motor |
450B stepper motors With high quality & stronger power, ensure machine work very well. |
| 4. Driver |
Leadshine 860H Drivers It can run with smaller noise, lower heating, smoother movement and have better performances at higher speed.Save human strength and save time. |
| 5. Automatic Arc Pressure adjustable |
Beijing Start Adjust the torch height during cutting. Perforated height self-positioning |
| 6. software | Fast Cam nesting software for machine. Using it, and finally export G code, then can be recognized by machine |
|
Name |
Specification |
|
Working Area(X*Y) |
1300×2500mm |
|
Machine Structure |
Welded |
|
X Y Guide Rail |
Taiwan HIWIN Square Rail |
|
X Y Transmission |
Imported Rack gears |
|
Drive Mode |
Stepper Motor (Optional Servo ) |
|
Control System |
START |
|
Max thickness |
0.3-22mm |
|
Plasma Generator |
100A Huanyuan plasma power |
|
Cutting Speed |
0-8000mm/min |
|
Working Voltage |
3-Phase 380V/2-phrase 220V |
|
G.W. |
1200KGS |
Benefits of CNC Plasma Cutting Machine
♦ Application Materials: Stainless steel, mild steel, brass, copper, aluminum alloy, sheet metal, spring steel, gold, silver, etc
♦ Application Industry: Sheet metal, kitchenware, components, decorations industry
