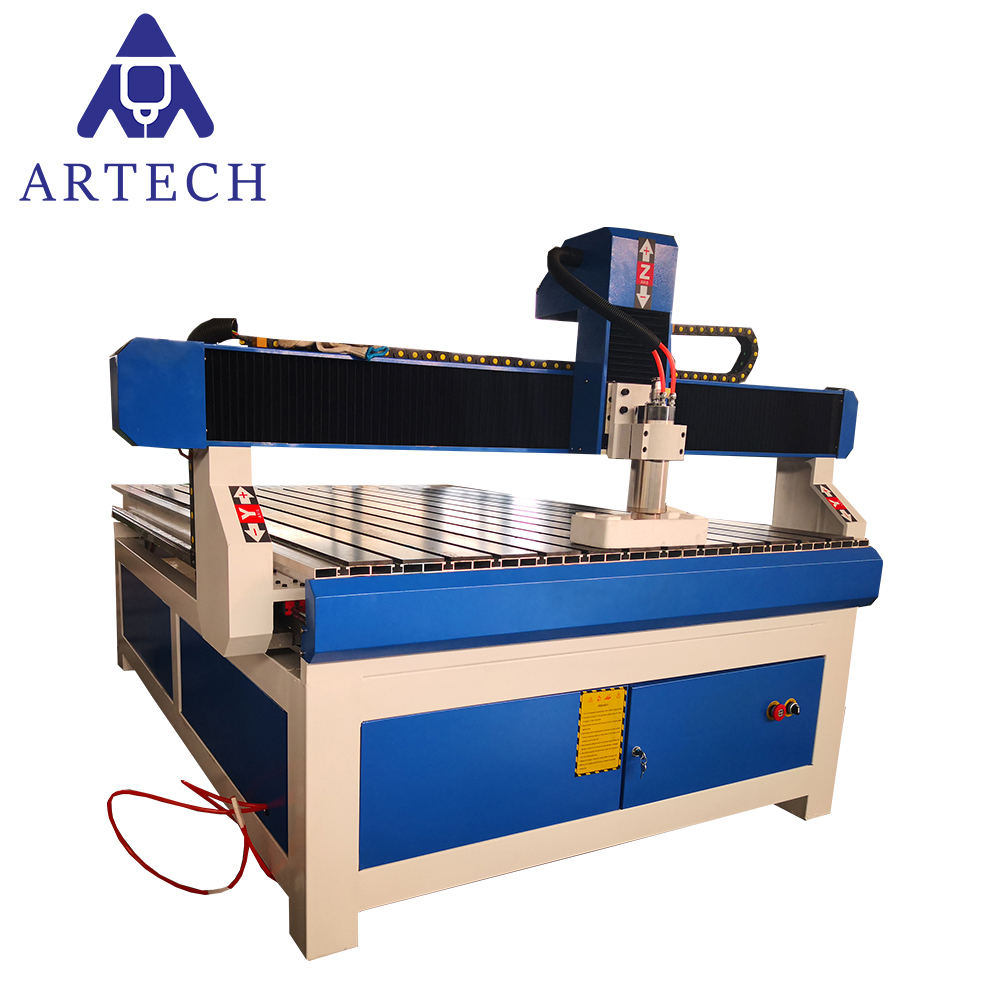

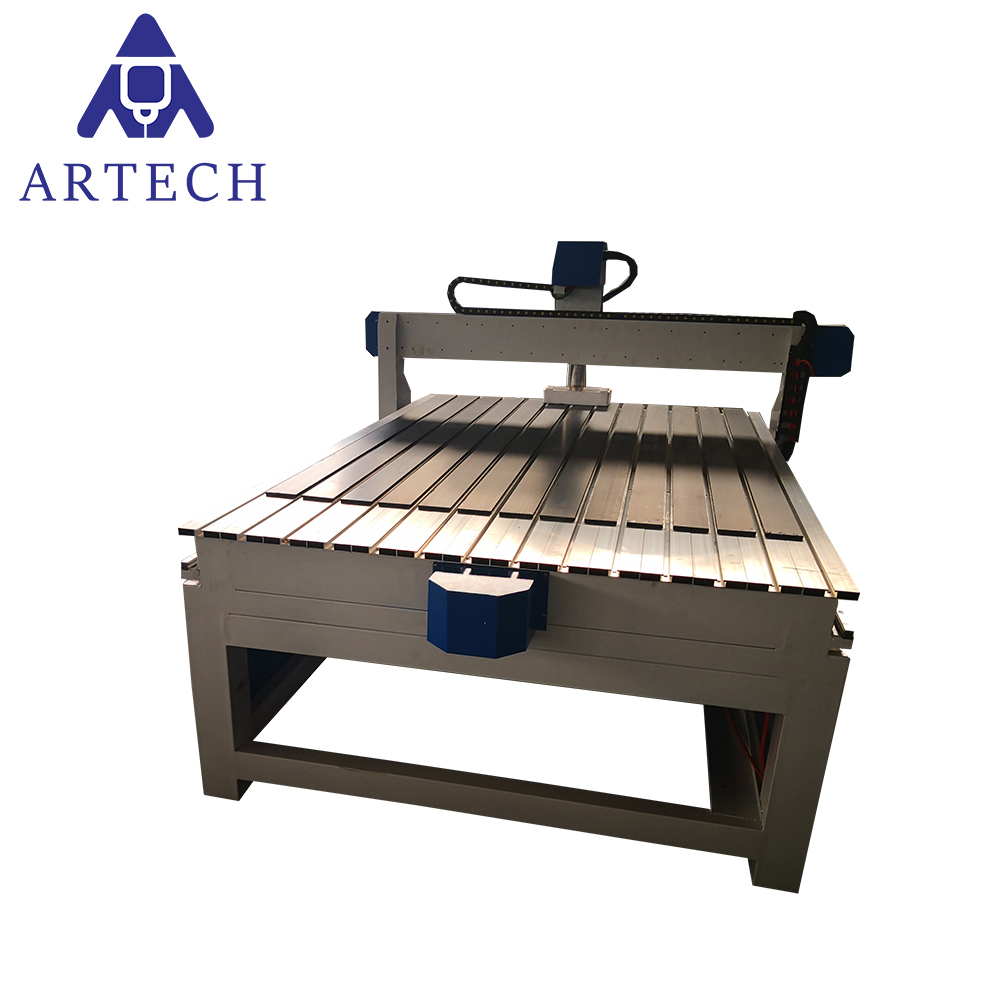

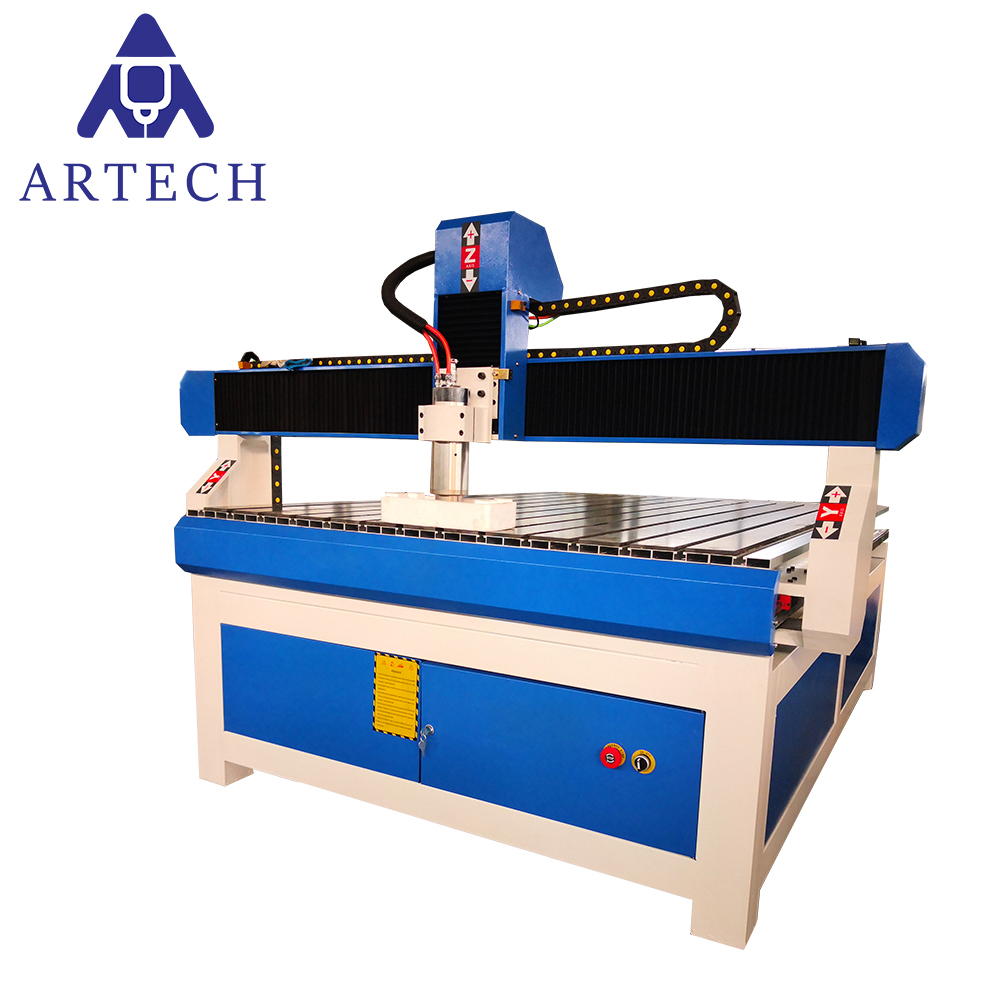

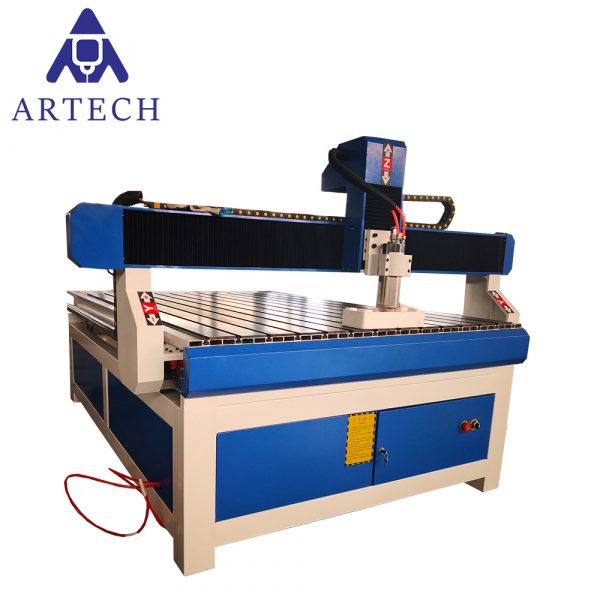

1218 Cnc Wood Router Machine Cutting Kitchen Cabinet Furniture Making Machine Price
Low cost industrial CNC router machine is used for industrial manufacturing of 2D/3D carving and cutting in woodworking, furniture making, arts, crafts, decorations, door making, cabinet making, aluminum, glass, plastic, foam, acrylic. Now the cheap industrial CNC machine for sale at affordable price.
1.Ball screw for Z axis.It’s stable running,precision and fast.
2.X,Y axis are gear rack,steady rate transmission,fast speed and high efficiency.
3.With NC studio control system,easy to learn design software,just install it onto your computer and start creating patterns.
4.With vacuum table,you can do varity of high precision works.
5.Heavy duty frames and gantry,it’s very strong and stability
6.Strong welded tubular steel frame that keeps lathe bed of CNC router in shape.
7.Y axis of the CNC router is equipped with double motors to keep stable moving.
8.Speedy and accurate rack rail travel method.
9.Top brand square linear rail with high accuracy and heavy burthen.
10.Advanced vacuum with double cavities.
11.Humanized design of lathe bed vacuum that is easy to operate.
12.Intelligent protecting system that can protect the CNC router machine from damages resulted from false operation.
Description | Parameter |
X Y Z axis working area | 1200x1800x200mm |
Spindle | 3.5kw water cooling spindle |
X Y Z traveling positioning accuracy | +-0.01/2000mm |
Table Surface | T.slot table |
Vacuum pump | air cooling 5.5kw pump (option) |
X Y Z rail and transmission | Taiwan TBI ball screw and gear rack |
Max.rapid travel rate | 50000mm/min |
Max.working speed | 30000mm/min |
Driver motors | stepper motor and drivers or servo motor and drivers |
Working voltage | 220V/380V/50HZ |
Command language | G code |
Control system | NC studio or DSP/Syntec/Mach3(option) |
Software compatibility | Option:Artcam,Ucancam,Type3 |
Running environment | Temperature:0~45ºC Relative humidity:30%~75% |
Oil system | Manual oil lubrication system |
Frame structure | New type thicker and bigger heavy duty square tube |
1.Woodworking industry:wood crafts,picture frames cutting,handicraft carving wave plates,wooden door production and processing.
2.Advertising industry:advertising materials such as PVC,acrylic,double color plate.
3.Stone working industry:such as natural marble,granite,artificial stone,tombstones,milepost,ceramic tile,glass and other materials.
4.Metal industry:carving aluminum,copper,stainless steel and so on.
Package Detail:1.Outside:Standard plywood package.
2.Inner package:Stretchy film and plastic film for humidity.
And we can package according to you requests
Delivery Detail:For standard machines,it will be 7-15 working days after payment;For non-standard machines and customized machines according to clients’ specific requirements,it will be 15-30 working days after payment.
1.Engineers available to service machinery overseas.
2.1 year guarantee for whole machine.
3.Technical support by phone,e-mail,whatsapp and skype.If you have any problems,we will within 12 hours to solve it.
4.You will be get free training advice towards our machine in our factory.
5.If you need and component of the machine,we will provide the best price for you.
6.Friendly English version manual and operation video CD disk.
ARTECH CNC EQUIPMENT CO.,LTD is comprehensive in the production,design,manufacturing,trade and service of CNC machine,and provide high quality and good efficient CNC machines worldwide.With a strong staff team,gained success in woodworking engraving machine,advertising engraving machine,stone engraving machine,metal engraving machine,laser engraving and laser cutting industry equipment.The production facilities occupies China’s forefront in development and expansion.
Q1 For offer the most suitable machine,how should i do?
1).The exact material you want to engrave/cut? (such as wood, acrylic, cloth, fabric, leather, metal…. ? )
2). For the Spindle Power, may I know the cutting or engraving depth you want?
3). The working area you demand? (such as max dimension of material, width*length,1200*1200mm,1300*2500mm,2000*3000mm, etc…
4). Do you want to engrave on planar &flat surface or round &curved surface?
If yes,the machine shall be added optional items, such as rotary attachment. if you can provide some pictures of your products,that would be great! after your tell us these,we will send you more information about the machine and price.
Q2.If we donot know how to use the machine,can you teach us?Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if you are busy ,we will have the special engineer to your country,but you need to bear some fee, like tickets and hotel and meal.
Q3.How about your after-sales service?
we offer you 24 hours service phone,skype or MSN.
Q4.How about your guarantee period? one year and during the time,if you have any questions ,we will solve it for free.
