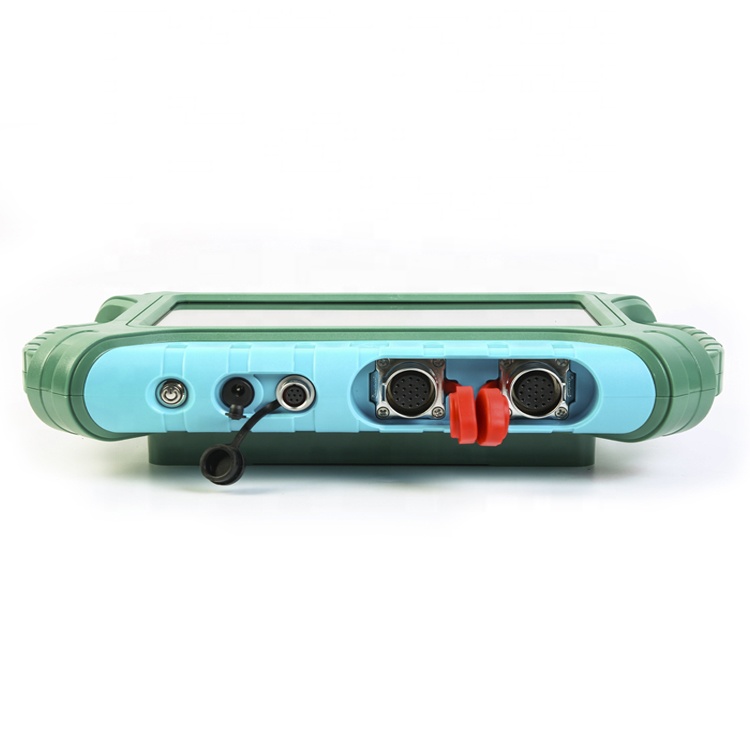

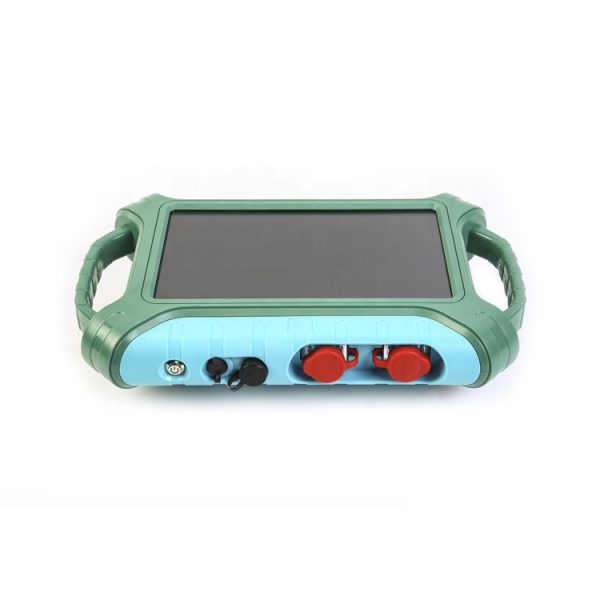

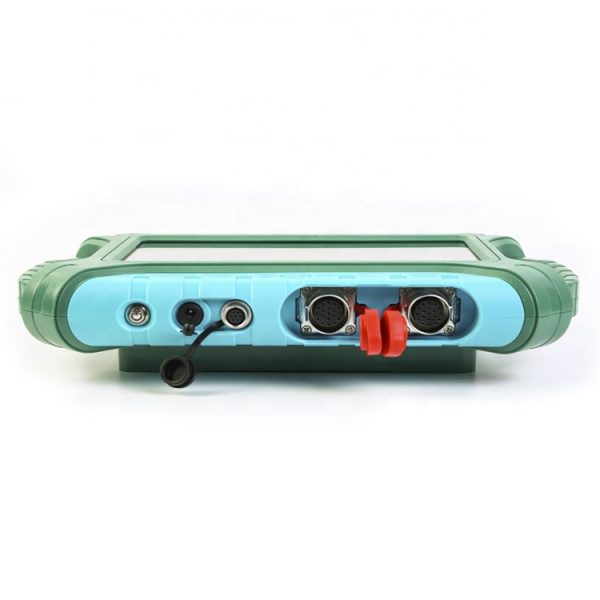

1200M underground water detector 16 channels 3D Touch screen ADMT 1200SX 16D water survey equipment
ADMT-1200SX-16D of 3D Touch screen water detector combines the advantages of a variety of electric exploration methods such as frequency sounding method to introduce a light, effcient, intelligent and convenient electric water detector with a detection depth of 1200 meters
Our water detectors have different measurement methods, cable measurement and wireless probe measurement. The pull-wire measurement method can be adapted to the large area of the site for measurement. It is necessary to insert 16 electrode plates into the ground for measurement to detect the height difference of the underground resistivity to reflect the change of the water level.
- Exact distinction bewteen the types of targets mapping ADMT-1200SX-16D underground water finder detector.
- Mechanical design that is modern and perfect, it will give you simply of carry the device without any need for multiple persons to use it.
- Depth from 0 to 1200 meters protable mapping ADMT-1200SX-16D underground water finder detector.
- The device works on primary battery with ability of the 12-volt being able to work for 48 hours, the battery can change to 6 servings AA batteries charger.
- Screen clarify the power level of the batteries.
- Most advances technology circuit and chip design portable mapping ADMT-1200SX -16D underground water finder detector.
- Two years warrantly of protable mapping ADMT-1200SX-16D underground water finder detector.
- The result images is 2D/3D to convenience viewing.
product some feature:
2.1 Accurate and efficient:
Using 1-16, 1-32 channels to input measurement at the same time, to solve the defects of MT electrical field source changes, the accuracy rate is greatly improved, and the accuracy rate is 30-60% higher than that of the general single channel.
2.2 Smart and convenient:
Standard 7/10 inch touch screen for real-time drawing, and intercommunication with mobile phone or tablet computer, PC computer for data processing and drawing.
2.3 Depth adjustable:Optional depth within the maximum depth range of different models.
2.4 Channel optional:1,1~16,1~32 Any channel selection.
2.5 Flexible input:
It can input 1, 1-16, 1-32 channels of MN electrodes, and the MN spacing is flexibly variable from 1-5 meters. Electromagnetic sensor input can also be used to solve the measurement of special formations.
Similar products at different depth :
parameter | ADMT-300SX-16D | ADMT-1200SX-16D |
Maximum depth (m) | 0-300m | 0-1200m |
Optional depth(m) | 100m/200m/300m | 100m/200m/300m/400m/500m/600m/800m/1200m |
Connection method | Serial port, Wifi, Bluetooth 4.0, USB (optional 4G communication) | |
Display screen | 10-inch IPS wide-angle 178° visible touch screen | |
operating system | Android 6.0.1 | |
CPU | ARM Cortex-A7(AD24 bit 1Msps) | |
The main function | Optional depth, real-time 2D/3D drawing, removable battery | |
Measurement mode | MN/TT | |
Measuring range | ±5V | |
Frequency range (HZ) | 1-8K | |
Frequency selective filtering | Preset frequency selection and intelligent frequency selection, analog + data filtering 1-16 times superposition optional | |
Resolution | 0.1mV±5% | |
Sampling time (seconds) | 40-280 | |
Battery power consumption | 600mA/H | |
mainframe weight | 2.6kg |
