NRB-22 Electric Rebar Bender
| Voltage/ Wattage | N.W. (kgs) |
G.W. (kgs) |
Max Bending Capacity | Min Bending Capacity | Bending Angle (degree) |
Bending Speed | Package | Machine Size & Outer Packing Size(cm) |
Certificate |
| 220V (110V) 950W/1000W |
16 | 16.5 | 22mm | 4mm | 0-130 | 5 sec | every piece is carefully packed in Corrugated Outer Carton and Metal Container | 60*17*20
67*25*24.5 |
CE RoHS |
It can preset angle locks for repeating the same angle bend. The two slide-type angle selectors(point 1/ point 2) can be set to accurately bend any angle from 0-180 degrees. Two standard foot pedal control switch for hands-free bending.
CE Approved Electric Rebar Bender and Cutter Introduction
1. Available model: RC-16, RC-20, RC-22, RC-25, RC-16B, NRC-20, RB-16, RB-25, RBC-25, RB-32, RBC-32
2. Packing: one set/metal box/cardboard carton
3. Certificate: CE, RoHS

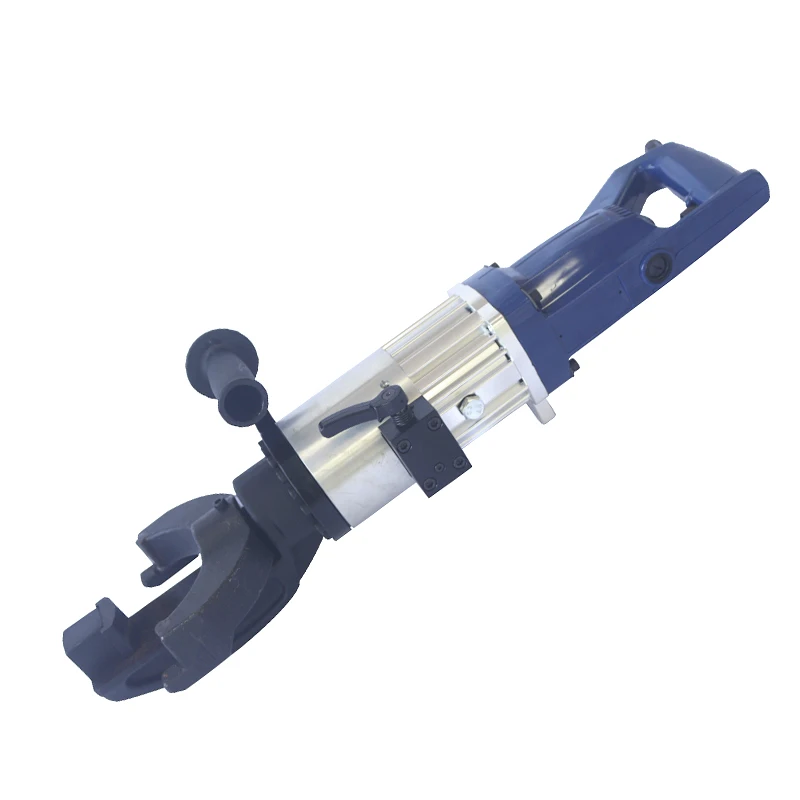

4. Detail description for ce approved portable rebar cutter: Rebar cutter (RC),portable electric hydraulic rebar cutter is a kind of light, small, portable and quiet rebar cutter, it’s easy to operate and safe for users as cutting without sparks, sediment and smell. It’s widely used for cutting construction rears, deformed bars, round steel bars, steel rods and threaded rods etc.
|
Specification for Rebar Cutters |
|||||||||
|
Model |
Voltage/ Power |
N. Weight |
G. Weight |
Max Rebar |
Min Rebar |
Cutting Force |
Cutting Speed |
Certificate |
|
|
RC-16 |
230V/850W |
8KGS |
13KGS |
16MM |
4MM |
13TONS |
2.5~3.0 S |
CE ROHS |
|
|
RC-20 |
230V/950W |
13KGS |
18.3KGS |
20MM |
4MM |
15TONS |
3.0~3.5 S |
CE ROHS |
|
|
RC-22 |
230V/1000W |
15KGS |
21.5KGS |
22MM |
4MM |
18TONS |
3.5~4.5 S |
CE ROHS |
|
|
RC-25 |
230V/1600W |
24.5KGS |
32KGS |
25MM |
4MM |
30TONS |
5 S |
CE ROHS |
|
|
RC-16B |
18V/11.5W |
6.5KGS |
14KGS |
16MM |
4MM |
13TONS |
4.0~5.0 S |
CE ROHS |
|
|
NRC-20 |
230V/950W |
11.5KGS |
17KGS |
20MM |
4MM |
15TONS |
3.0~3.5 S |
CE ROHS |
|
|

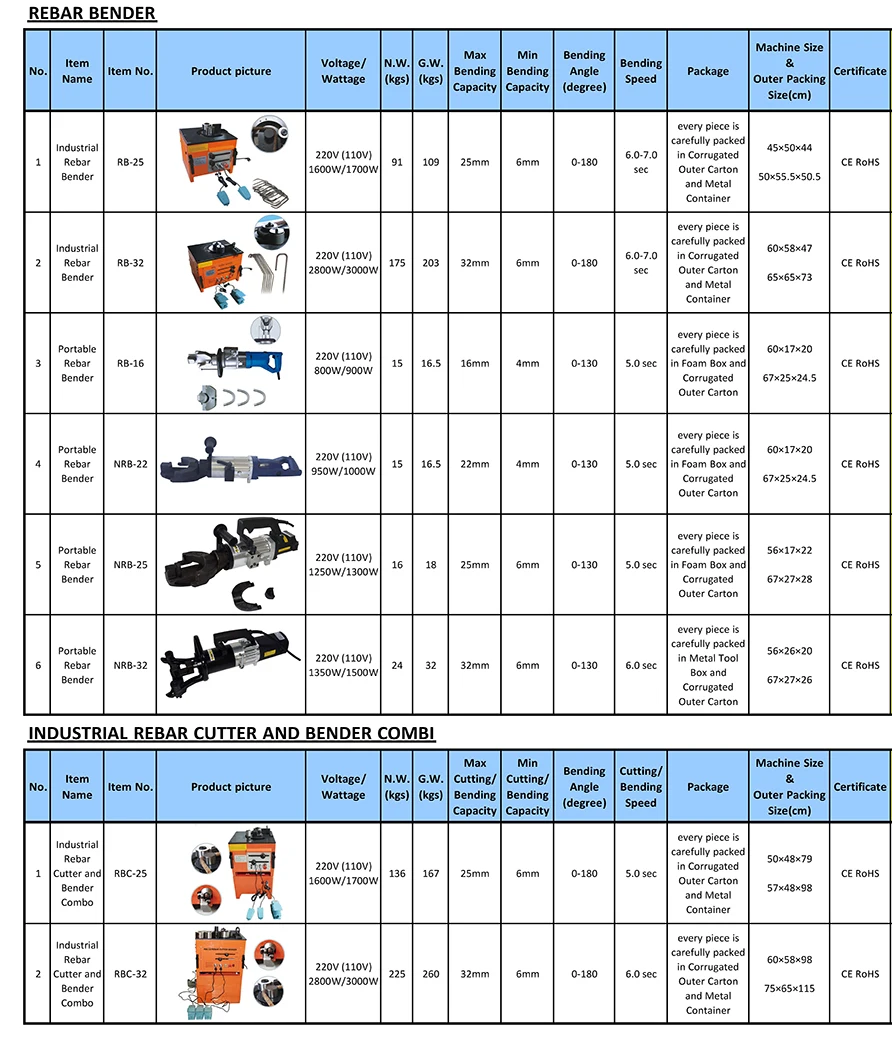

Specification for Rebar Benders |
||||||||
|
Model |
Voltage/ Power |
N. Weight |
G. Weight |
Max Rebar |
Min Rebar |
Bending |
Bending |
Certificate |
|
RB-16 |
220V/800W |
15KGS |
16.5KGS |
16MM |
4MM |
5 s |
0-130° |
CE |
|
RB-25 |
230V/1600W |
91KGS |
109KGS |
25MM |
6MM |
5.0~7.0 s |
0-180° |
CE RoHS |
|
RBC-25 |
230V/1600W |
136KGS |
167KGS |
25MM |
6MM |
5.0~7.0 s |
0-180° |
CE RoHS |
|
RB-32 |
220V/3000W |
175KGS |
203KGS |
32MM |
6MM |
6.0~7.0 s |
0-180° |
|
