Products Description

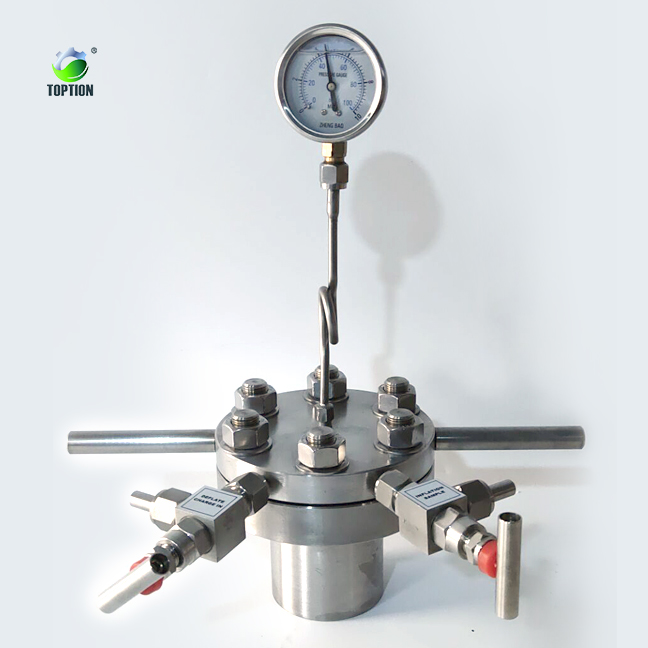

TOPTION this laboratory small high pressure reactor is a typical innovation of the magnetic transmission device applied to the reaction equipment.It is composed of agitator, reaction vessel and transmission system, safety device, cooling device, heating furnace and other parts.
|
Model
|
THR50
|
THR100
|
THR250
|
THR500
|
||||
|
Material capacity(L)
|
50ml
|
100ml
|
250ml
|
500ml
|
||||
|
The working interface
|
LCD Display
|
LCD Display
|
LCD Display
|
LCD Display
|
||||
|
The maximum operating temperature
|
250℃
|
250℃
|
250℃
|
250℃
|
||||
|
The maximum operating temperature with PTFE Liner
|
180℃
|
180℃
|
180℃
|
180℃
|
||||
|
Heating mode
|
Module heating
|
Module heating
|
Module heating
|
Module heating
|
||||
|
The heating power
|
1.2KW
|
1.2KW
|
1.5KW
|
2.0KW
|
||||
|
Stirring speed
|
0-1200rpm
|
0-1200rpm
|
0-1300rpm
|
0-1300rpm
|
||||
|
Stirring method
|
The internal magnetic stirring
|
The internal magnetic stirring
|
The internal magnetic stirring
|
The internal magnetic stirring
|
||||
|
The stirring power
|
40W
|
40W
|
40W
|
80W
|
||||
|
The maximum working pressure
|
10Mpa
|
10Mpa
|
10Mpa
|
10Mpa
|
||||
|
Materials of construction
|
SS304 (standard); (SS316L Alloy TA2, ALLOY C-276, Nickel ALlloy, Zirconium materials are optional)
|
|||||||
|
PTFE liner
|
Optional
|
|||||||
|
Note:
1. Max volume 2000ml could be customized. 2.Suitable for the material which temp ＜250℃ and is nonmagnetic. 3.Temperature timing set, temp. set when working, this function is optional. |
||||||||
Application
Certificate
Feedback
Our packaging
Exhibition

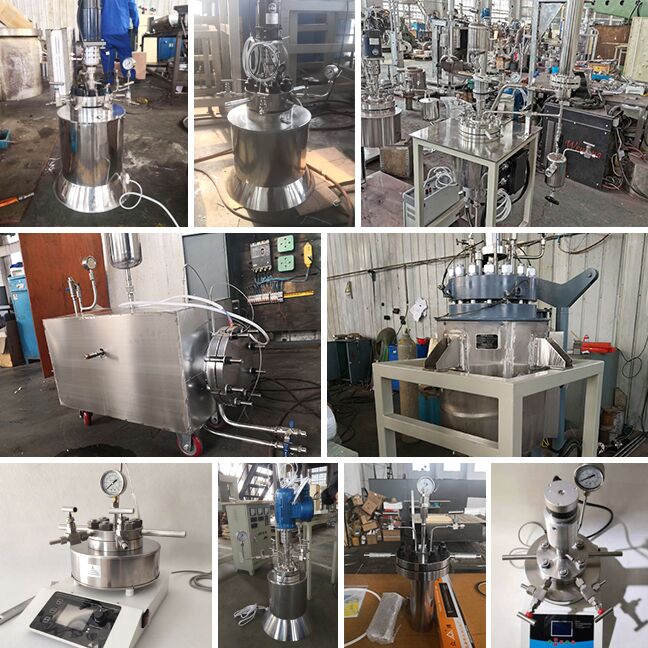

Our factory
