100 500 1000 kg 2 ton mixing station micro hanging pull tension Force pressure weighing S-Beam weight sensor S-type load cell

ر.س333.68ر.س543.94

Clear
Qty:
Compare

Request quotation for: 100 500 1000 kg 2 ton mixing station micro hanging pull tension Force pressure weighing S-Beam weight sensor S-type load cell

Selling products

TSCTSB 50KG 2000KG weighing replacement Toledo sensor s-type tension pressure sensor

Product Description

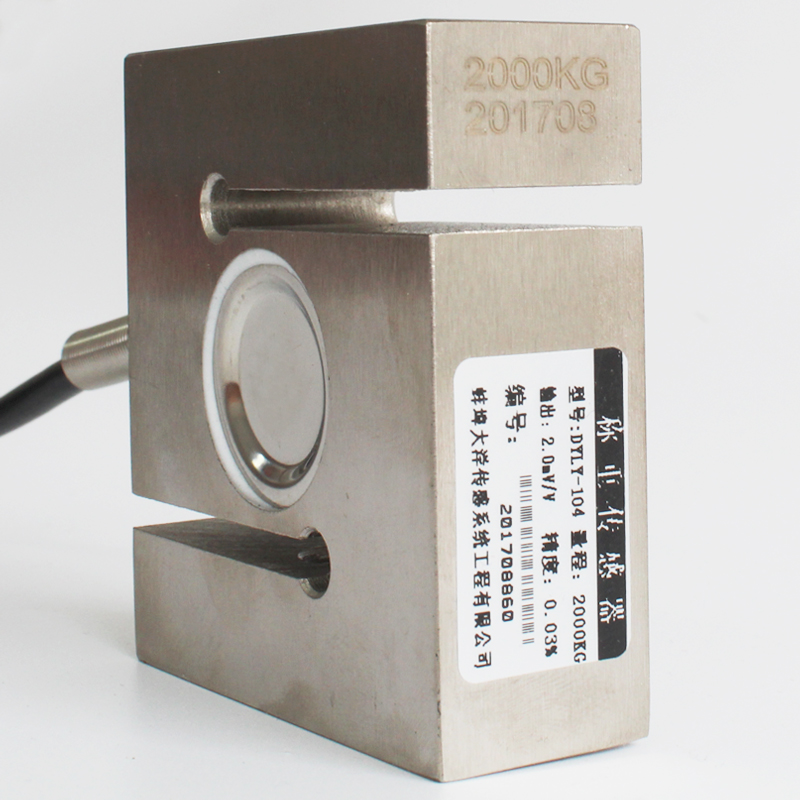

What is strength of DSLY-104 Load cell?

1. Made of alloy steel

2. With glue sealing and nickel plated surface,waterproof and anticorrosion, could work for various application

3. Suitable for crane scale, vibratory feeding equipment and other electronic weighing devices



What is Specifications of DSTSC-200 Load cell?

Specification:

Range (KG): 50,100,200,300, 500, 1000, 2000, 5000,10000

Accuracy: C2/ C3

Temp. effect on span (%F.S/10): ±0.017 & ±0.011

Comprehensive error (%F.S): ±0.03 & ±0.02

Temp. effect on zero (%F.S/10): ±0.023 & ±0.015

Rated output (mVV): 2.0±0.004

Compensated temp. range (): -10~+40

Creep (%F.S/30min): ±0.024 & ±0.016

Operation temp. range (): -20~+55

Zero balance (%F.S): ±1.0

Excitation voltage (V): 912(DC)

Input resistance (Ω): 350±5

Safe overload (%F.S): 150

Output resistance (Ω): 350±3

Ultimate overload (%F.S): 200

Insulation resistance (MΩ): ≥5000 (100VDC)

Ingress protection: IP66

-1_01.jpg-1_02.jpg-1_03.jpg-1_04.jpg-1_05.jpg-1_06.jpg-1_07.jpg-1_08.jpg-1_09.jpg-1_10.jpg-1_11.jpg-1_12.jpg-1_13.jpg-1_14.jpg-1_15.jpg-1_16.jpg-1_17.jpg-1_18.jpg-1_19.jpg-1_20.jpg-1_21.jpg-1_22.jpg-1_23.jpg-1_24.jpg-1_25.jpg-1_26.jpg-1_27.jpg-1_28.jpg-1_29.jpg

FAQ



1.What’s your MOQ?
Normally our MOQ is 1 pcs,but sometimes maybe we have other order on hand,if based on ODM,MOQ can be negotiated.



2.What information do I need to provide before placing an order?
The size, capacity and usage are necessary. Besides, we may need some other parameters.



3.How long is your warranty period?
Our warranty period is 12 months.



4.Can you design and customize products for me?
Definitely, we are extremely good at customizing various load cells. If you have any needs, please tell us. However, the customized products would postpone shipping time.



5.How long can I expect to receive my goods after I place order?
Our production time are always 5-15 days after pre-production sample confirmation.



6.Can I get some samples before place order and how long for a sample?
Yes,but customer need pay for the samples and freight,the lead time for samples is about 7 days upongot the payment;



7.How is your shipping?
1)shipping by express(sample order)or by sea(bulk order)
2)worldwide shipping service available
3)please contact before order as shipping cost varies time to time

8.Are you a trading company?
We are manufacturer,our factory has passed CE,ISO9001:2008,NTEP,OIML,we have good quality control.



9.Will you have some discount?
1)To clients who bring repeat orders and large orders
2)Please contact us for Better Quote.



10.I am the buyer purchasing a large number of load cells every year, can I visit your company and discuss in person?

Any other questions,please do not hesitate to contact us anytime!
