Product Description
|
Payload
|
10 kg
|
||
|
Reach
|
1500 mm
|
||
|
Structure
|
Articulated
|
||
|
Number of axes
|
6
|
||
|
Repeatability
|
±0.05 mm
|
||
|
Max. motion range
|
Axis 1
|
±165°
|
|
|
Axis 2
|
+135°/-75°
|
||
|
Axis 3
|
+78°/-76.5°
|
||
|
Axis 4
|
±360°
|
||
|
Axis 5
|
±115°
|
||
|
Axis 6
|
±450°
|
||
|
Max. speed
|
Axis 1
|
148°/sec
|
|
|
Axis 2
|
148°/sec
|
||
|
Axis 3
|
150°/sec
|
||
|
Axis 4
|
222°/sec
|
||
|
Axis 5
|
222°/sec
|
||
|
Axis 6
|
360°/sec
|
||
|
Body Weight
|
≈120 kg
|
||
|
Mounting type
|
Ground, bracket, ceiling
|
||
|
Ambient temperature
|
-20 ℃~80 °C
|
||

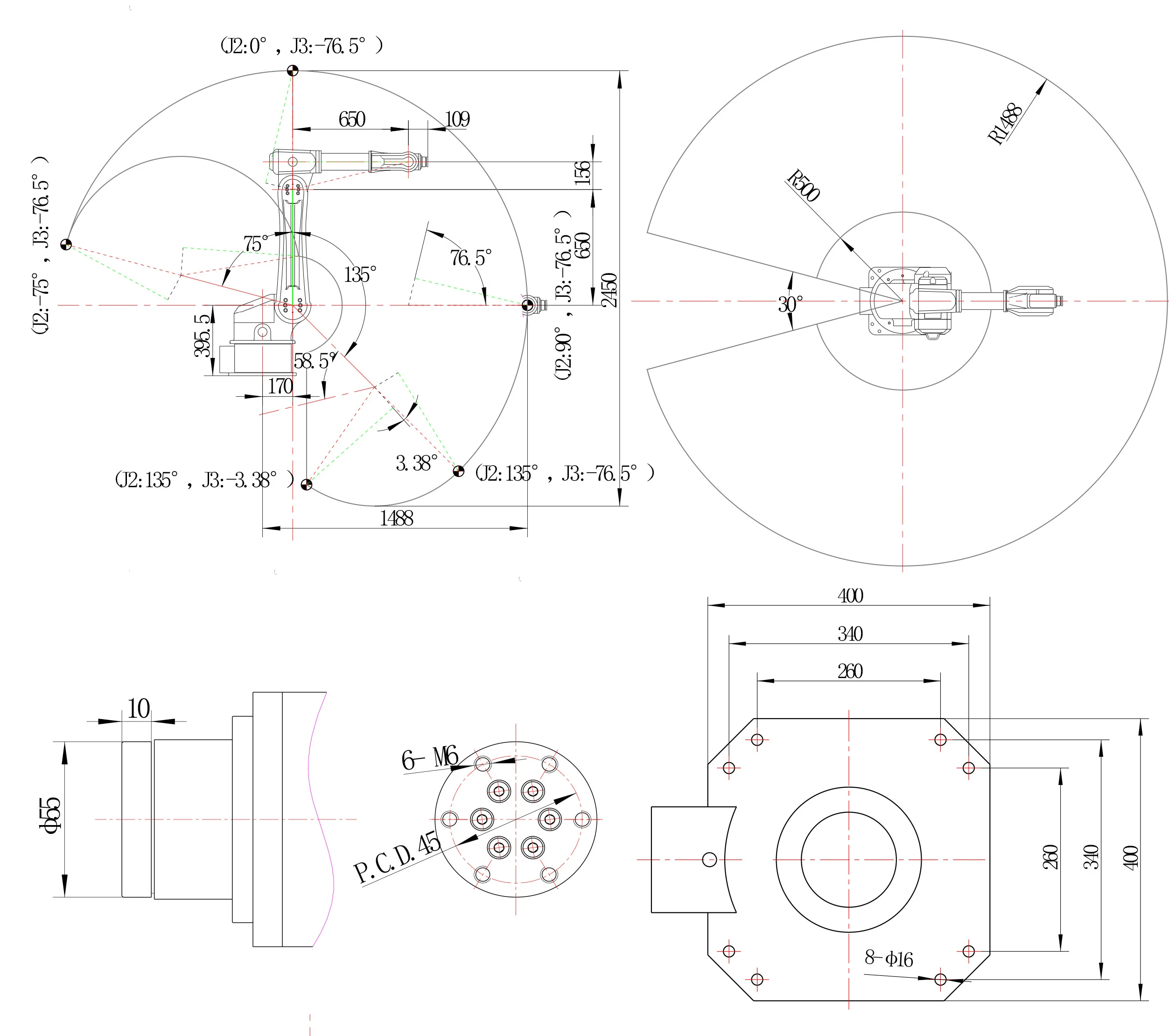

Workspace
Main Applications
Materials handling, parts transfer, electric welding, machine management, palletizing, packaging, testing, deburring, grinding,
gluing, assembly &painting
gluing, assembly &painting
Applicable Cases

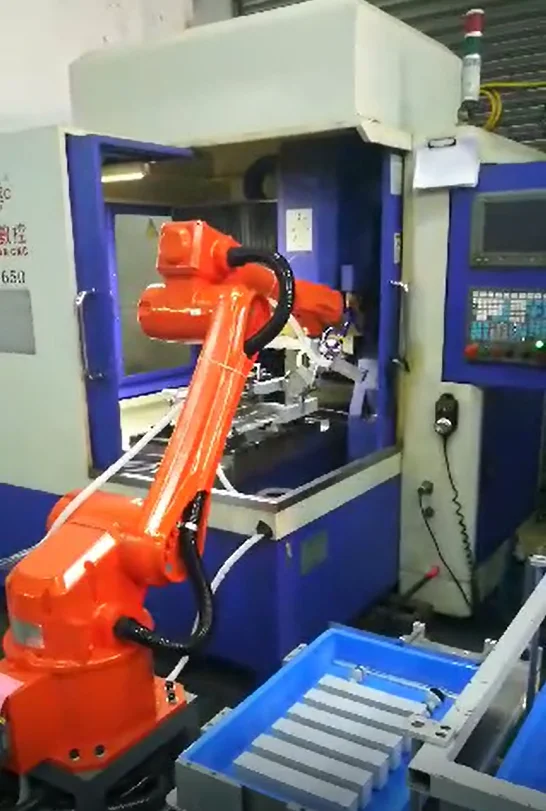

CNC lathe loading &unloading The figure shows a NC lathe automatic loading &unloading solution provided for a customer. Combined with the production line, one robot can manage two face-to-face NC machines, thereby significantly reducing labor cost and time cost and enhancing productivity of the customer.
Detailed Images
Harmonic reducer
Control the servo motor by three methods: position, speed and torque
Servo Motor
High-precision control, good high-speed performance and strong anti-overload capability
Servo Motor Driver
Control the servo motor by three methods: position, speed and torque
Controller board
Including various interfaces such as IO module, safety module, A / V analog module

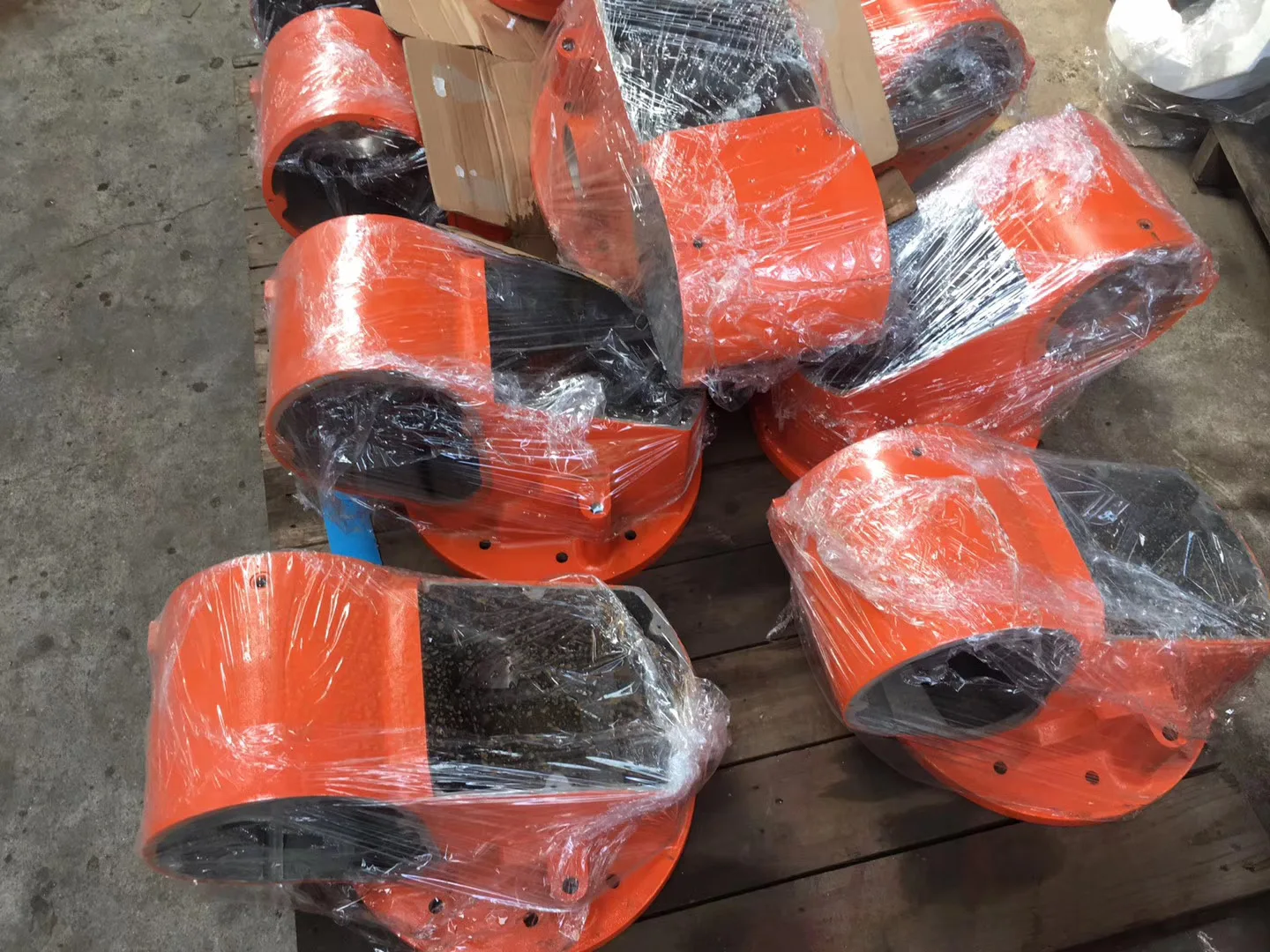

Aluminum Alloy Shell
Independent design, exquisite appearance, CNC machining and casting
Features of Robot Control System
●Structural optimization algorithm suitable for the body control of various types of structure.
●Modular setting of functions
suitable for diverse applications.
●8-axis control realizes the control of external axes (traveling axes and positioner).
●Suitable for multiple increments; absolute servo.
●Suitable for multiple increments; absolute servo.
●Open structure for synchronization of international technology and extension
of functions.
of functions.
●Software PLC functions facilitate logic control.
●Process functions make programming easy. ●Improved computer bus
connection ensures reliability and practicability.
connection ensures reliability and practicability.
●Safety module ensures safe production of the robots.
●Support change in Chinese, English, Russian, Vietnamese and Korean.
