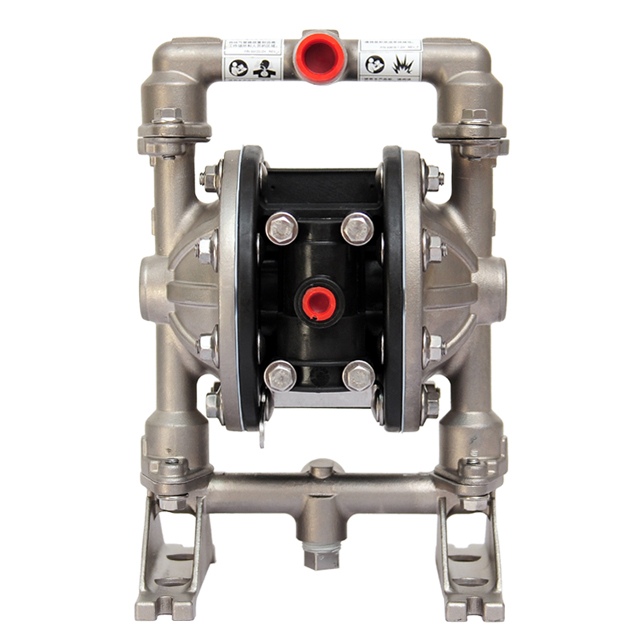

1/2 inch stainless steel with PTFE membrane pneumatic diaphragm pump

ر.س2,468.74

Compare

Request quotation for: 1/2 inch stainless steel with PTFE membrane pneumatic diaphragm pump

MASS_APP4_1187_BEGIN

MASS_APP4_1187_END

MASS_APP4_1188_BEGIN

Product Description

description

Item	Double Diaphragm Pump	Valve type	Ball
Pump operation type	Air operated	Max.flow GPM	49 LPM
Max.flow lpm	49LPM	Max. operating pressure	120 psi
Max.temp-pumps	150 degree	Ball material	santoprene/Teflon/Nitrile
Manifold &Fluid cap material	SS304/SS316	Check seat material	santoprene/Teflon/Nitrile
Centre body material	Aluminum	Max. Dia. Solids	3/8
Inlet/Outlet size	1/2”BSPT	Self-priming dry	5m
Air inlet size	1/4″ BSPT	Self-priming wet	7m
Diaphragm material-pumps	santoprene/teflon/Nitrile	warranty	1year

[MAIN PARAMETER]~Material: Aluminum; Diaphragm Material: Nitrile;

Type: Double diaphragm;

Operation Type: Air-operated;

Inlet/Outlet Port Size/Standard:1/2 inch (15 mm);

Air Inlet Size: 1/4 inch
[Quality Performance ~Maximum Head:275.59FT/84M,

Max Pressure: 120PSI.

Max Temp : 150 ℉.

Top quality glyd ring, a double-acting seal that delivers better performance.

[UNIQUE DESIGN]~Features an externally serviceable air distribution system and all-bolted construction. Modular air valve is stall-free, this low pulsation air valve provides smooth and rapid changeover for increased efficiency and minimizes down time.

[EXCELLENT CONSTRUCTION]~Rugged construction – resists corrosion for reliable performance and long life. Bolted construction is designed for leak-free fluid handling.
[VERSATILE USE]~The diaphragm pump with convenient operating are widely used in various industries, such as petroleum, metallurgy, mining, coating material, printing, paper making, water treatment, automotive etc.
