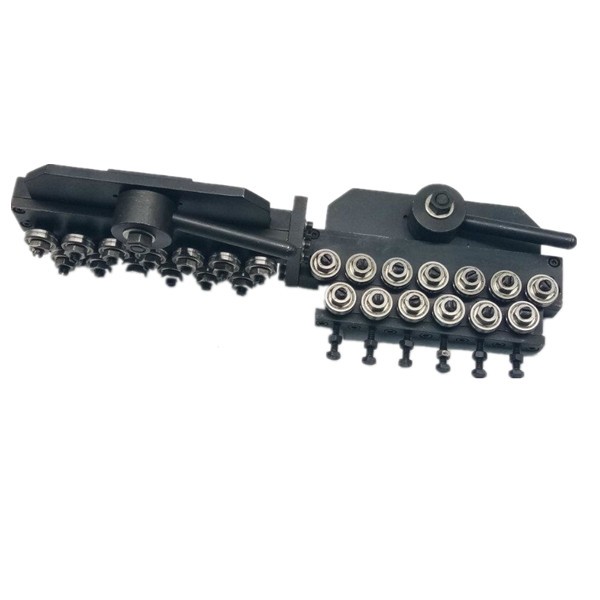

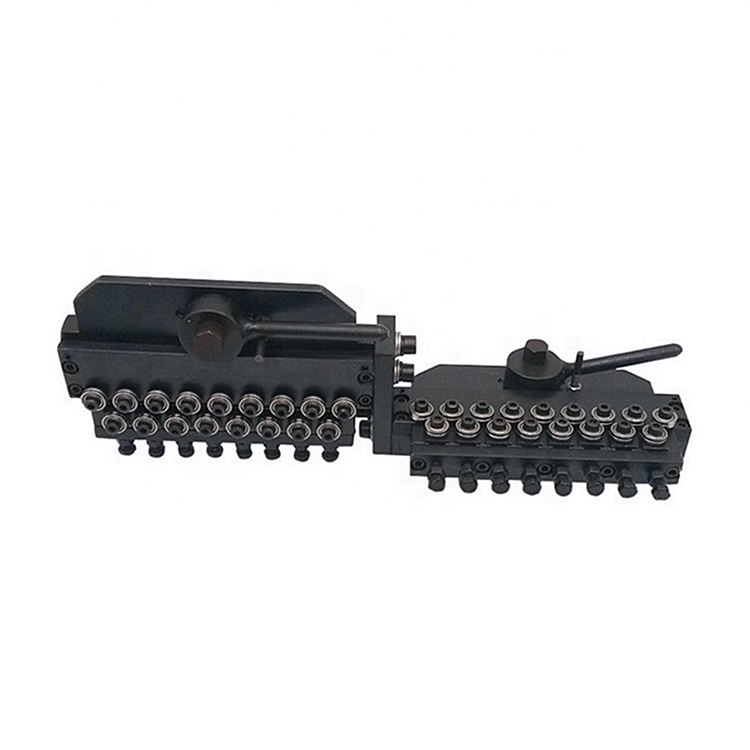

JZQ0.3-0.5/34.A.V wire straightener
34—— The number of straightening rollers is 34
12—— The diameter of the straightening roller
A——- A Type:The straightener is the integral open and close function .B Type:Single straightening wheel moves independently.
V——- The groove type of straightening roller; V,R,U,and customization
Straightening wire specification:Φ0.3mm—-Φ0.5mm
JZQ0.5-0.8/26 .A.V wire straightener
JZQ—wire straightener
Straightening wire specification：Φ0.5mm—-Φ0.8mm
26—— The number of straightening rollers is 26
16—— The diameter of the straightening roller
V——- The groove type of straightening roller; V,R,U,and customization
A——- A Type:The straightener is the integral open and close function .B Type:Single
straightening wheel moves independently.
Straightener size：length 330mm×width 90mm×height 90mm
Total weight of straightener：The machine is 6 kg, including package about 7 kg
Applicable to solid wire of 0.5 -0.8mm
JZQ0.8-2.0/18 .A.V wire straightener
JZQ— wire straightener
Straightening wire specification:Φ0.8mm—-Φ2.0mm
18—– The number of straightening rollers
23—— The diameter of the straightening roller
V——- The groove type of straightening roller; V,R,U,and customization
A——- A Type:The straightener is the integral open and close function .B Type:Single straightening wheel moves independently.
JZQ4.0-7.0/22 .A.V wire straightener
JZQ— wire straightener
Straightening wire specification:Φ4.0mm—-Φ7.0mm solid wire, 4.0-12.0mm hollow pipe
14—– The number of straightening rollers
42—— The diameter of the straightening roller
V——- The groove type of straightening roller; V,R,U,and customization
A——- A Type:The straightener is the integral open and close function .B Type:Single straightening wheel moves independently.
Automatic feed straightening machine
1.roller number:18 rollers
2. operating mode:The handle controls the overall opening and closing, and a row of wheels is individually adjustable
3.roller diameter:diameter 70mm
4. mode of traction:adopt three sets traction wheel active wheel, passive wheel
5. motor power:1.5KW
6. Straightening range:applicable to 5-15mm solid wire,Such as steel wire, iron wire, carbon steel, welding wire, round steel, copper bar and other materials
JZQ4.0-20.0/10.A.V wire straightener
JZQ— wire straightener
Straightening wire specification:Φ4.0mm—-Φ20.0mm
14—– The number of straightening rollers
50—— The diameter of the straightening roller
V——-The groove type of straightening roller; V,R,U,and customization
A——-A Type:The straightener is the integral open and close function .B Type:Single straightening wheel moves independently.
I am Yentl from China, my company is Shanghai Qipang industrial co., LTD .
We are producting and selling :rolling ring drives/traverse unit, linear drives,linear drives nut,wire straightening machine ,automatic wire straightening and cutting machine ,take up and put paying off machine ,wire and cable coiling winding machine ,automatic coiling and packaging machine, automatic yarn winding machine for ribbons ,accessories for rolling ring drives
Q1: Are you a factory or trading company?
We are a factory . We can promise you a short lead time and best price if you purchase our machine. We also have our own trading department.
Q2: How does the factory ensure products quality?
With Nearly 16 years experience in manufacturing winding machine, we have our own technology develop department and testing department.
Quality is the first priority. We have strict purchasing system to ensure the quality of spare parts. We have experienced workers to assemble and test machine.
Q3:How about your after-sale service?
We have a professional technology supporting team for your timely services. You can get the help you need in time by telephone, webcam, online chat (Google talk, Facebook, Skype). Please contact us once the machine has any problem. Best service will be offered.
Q4: What are your payment terms?
100%TT or prepaid 50% , balance 50% before shipping.
Q5: How can I get my order? How can I know you sent the goods?
We will send the goods by UPS, DHL, FedEx or sea shipment. After we sent the goods, we will give you the tracking number or other relative files for checking.
Q6 : Will you send the installed machine or machine parts?
We will install the machine and test the machine before delivery. And the machine can be used directly after receiving the machine.
