Products Description

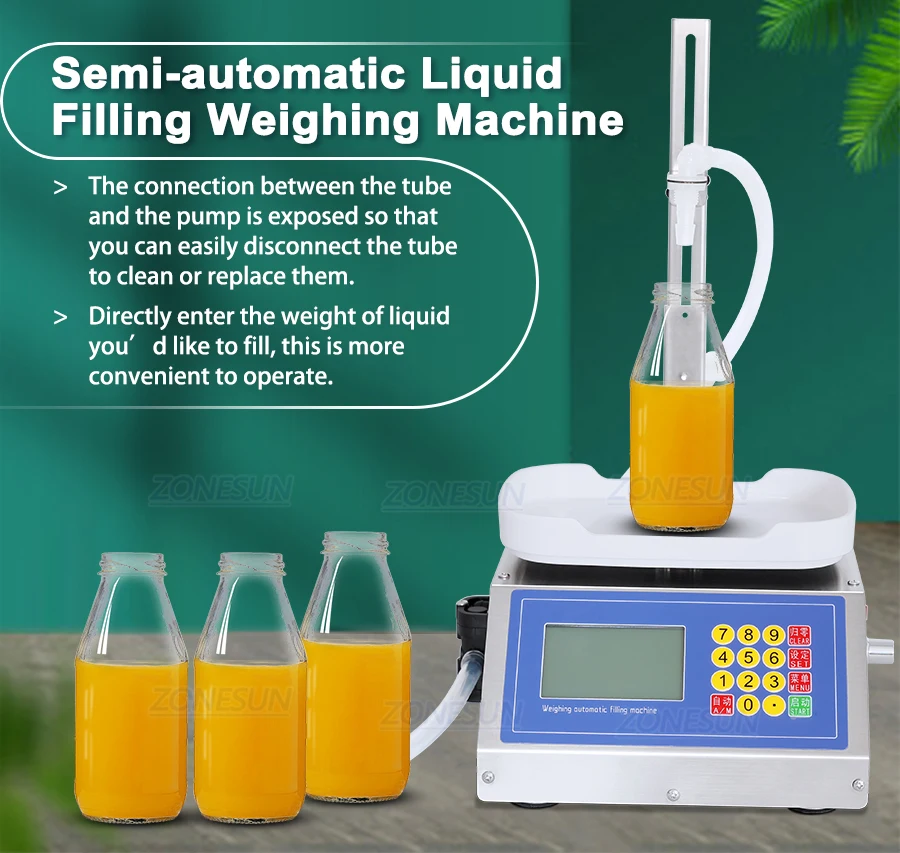

This semi automatic filling machine is equipped with diaphragm pump which is suitable for filling low viscosity liquid like water,milk,juice,perfume etc.It is with weighing function,the electronic scale detects the weight in real time and send the signal back to the system. The pump will stop to work immediately after reaching the set amount.This kinds of machine can fill liquid more accurately.
|

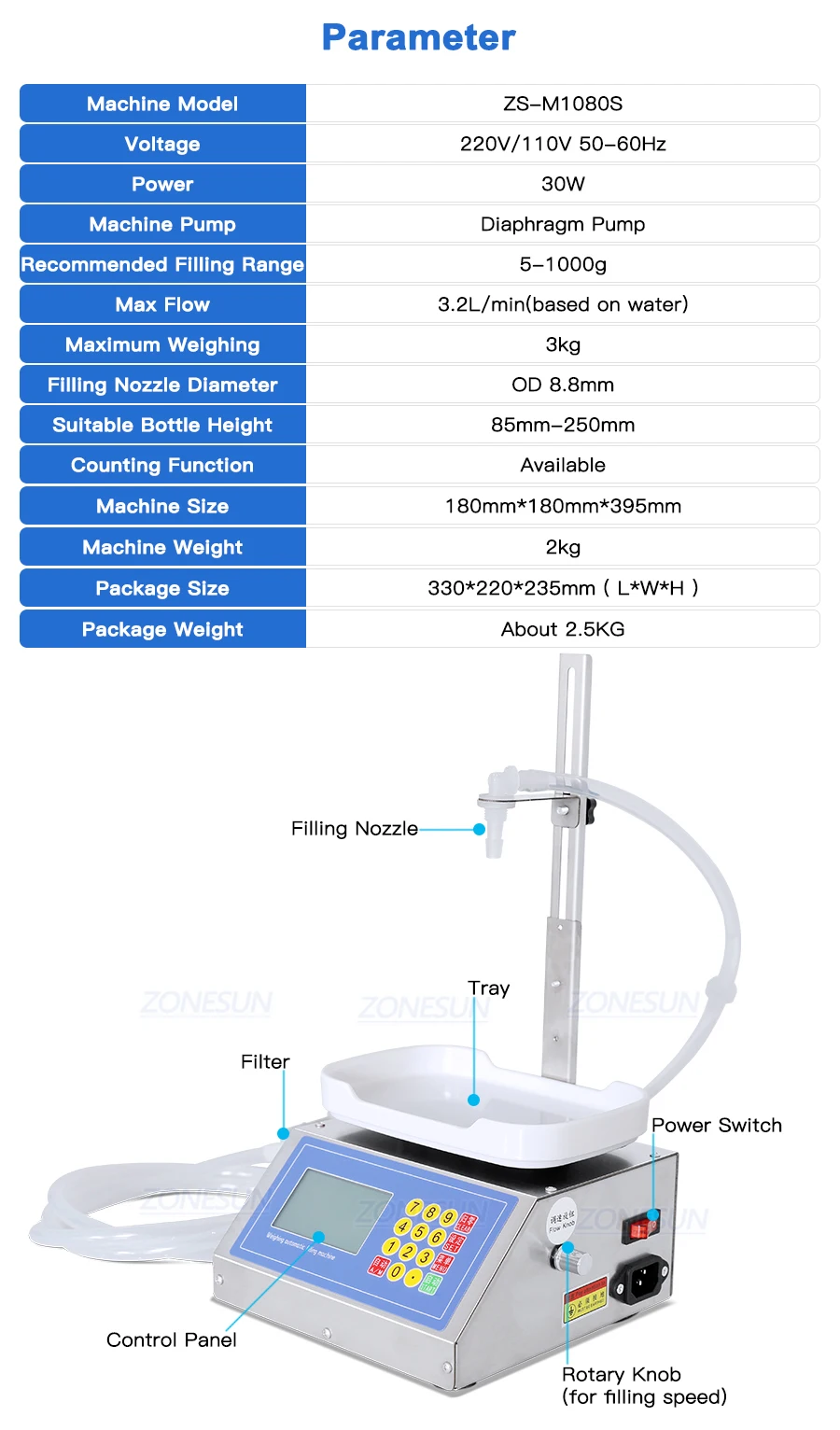

Machine Model
|
ZS-M1080S
|
|
|
|
|
Voltage
|
220V/110V 50-60Hz
|
|
|
|
|
Power
|
30W
|
|
|
|
|
Machine Pump
|
Diaphragm Pump
|
|
|
|
|
Recommended Filling Range
|
5-1000g
|
|
|
|
|
Max Flow
|
3.2L/min(based on water)
|
|
|
|
|
Maximum Weighing
|
3kg
|
|
|
|
|
Filling Nozzle Diameter
|
OD 8.8mm
|
|
|
|
|
Suitable Bottle Height
|
85mm-250mm
|
|
|
|
|
Counting Function
|
Available
|
|
|
|
|
Machine Size
|
About 180*180*395mm
|
|
|
|
|
Machine Weight
|
About 2kg
|
|
|
|
|
Package Size
|
About 330*220*235mm
|
|
|
|
|
Package Weight
|
About 2.5kg
|
|
|
|
