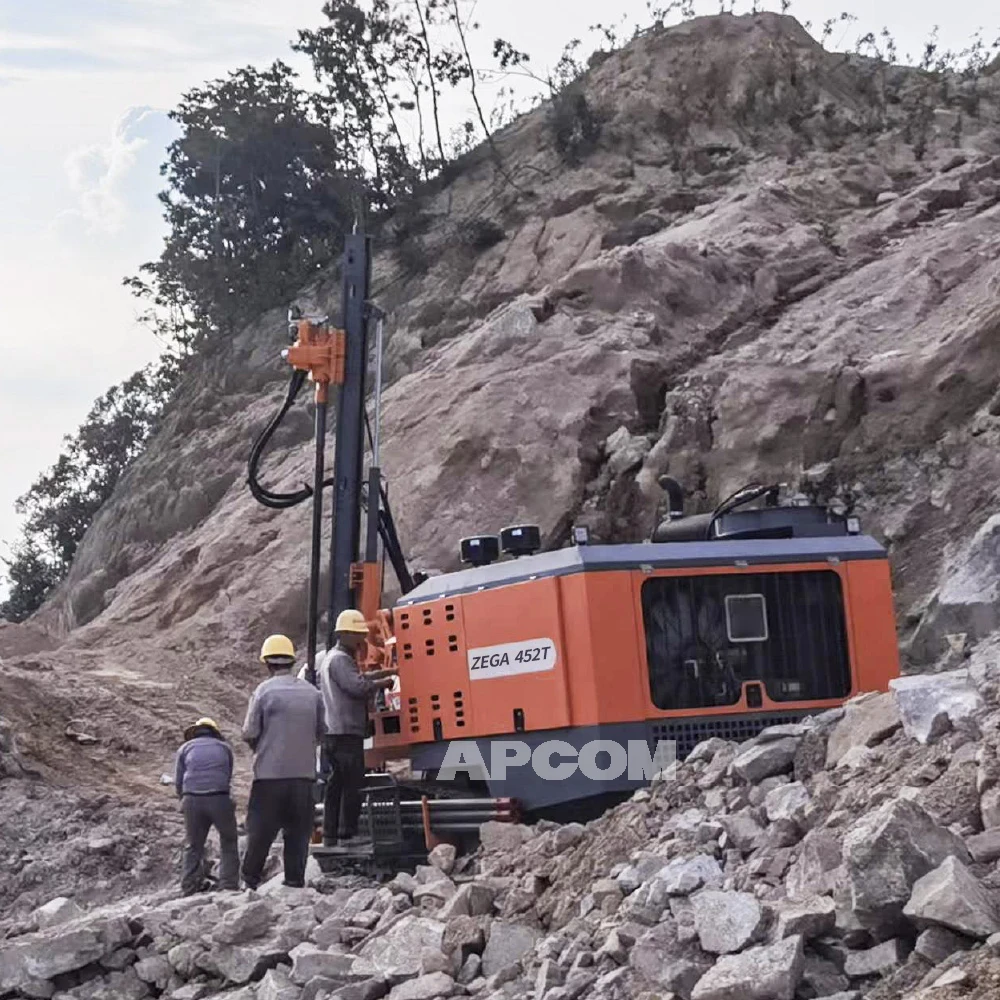

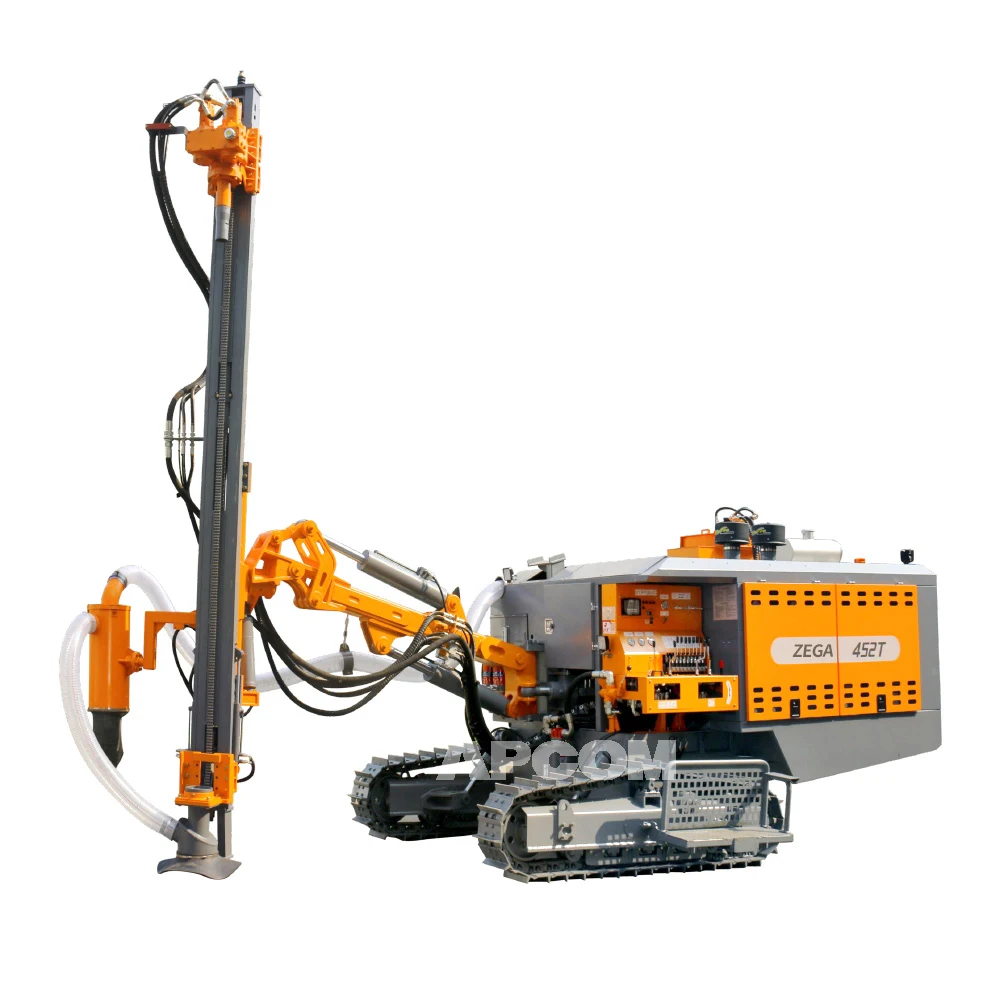

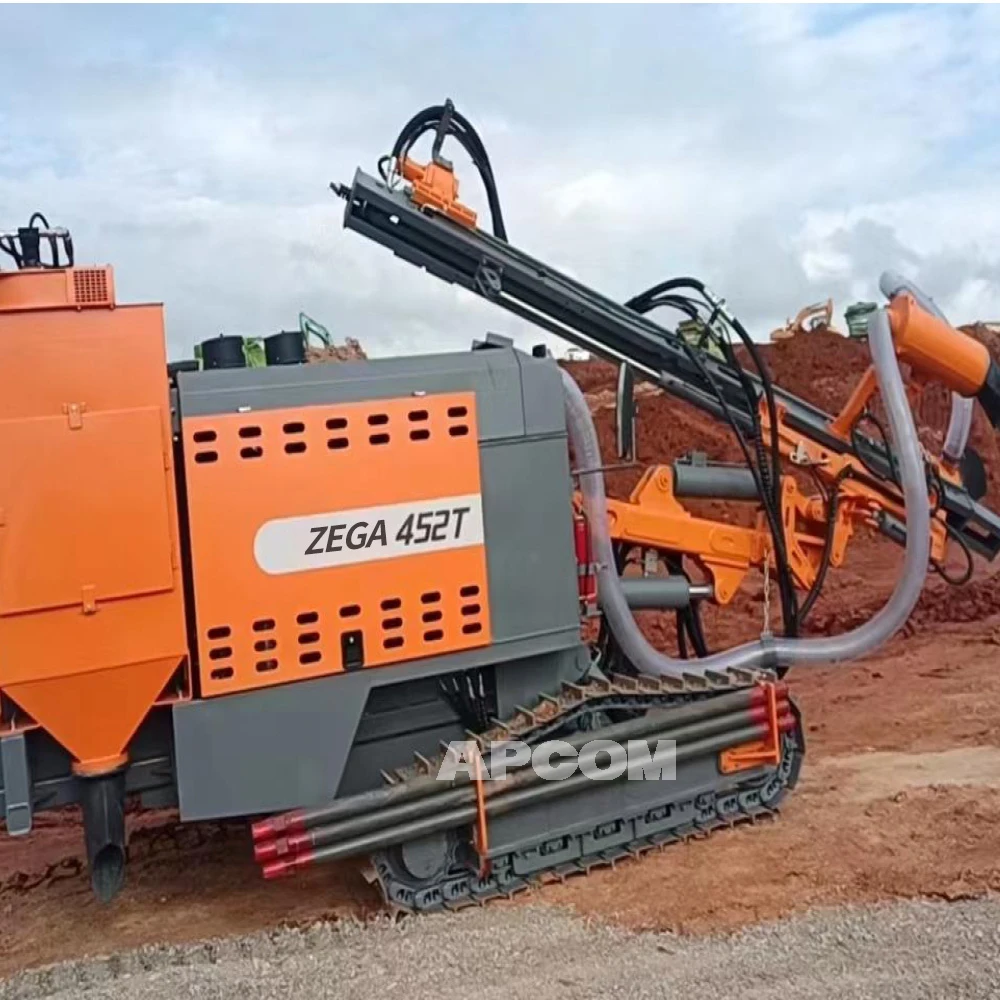

Separated DTH Surface Drill Rig ZEGA-452T
|
Mode
|
ZEGA 421TA
|
ZEGA 421H
|
ZEGA 452T
|
ZEGA 452H
|
ZEGA 453T
|
ZEGA 454T
|
|||
|
Engine (kw)
|
Yuchai / 162
|
Yuchai / 191
|
Weichai / 220
|
Cummins/ 264
|
|||||
|
Rotation torque (N.m)
|
1,500
|
2,200
|
2,800
|
4,000
|
|||||
|
Drilling hole diameter (mm)
|
Φ90-127
|
Φ90-138
|
Φ115-152
|
||||||
|
DTH hammer
|
3.5″
|
4″
|
5″
|
||||||
|
Drilling rod (mm)
|
Φ76*3,000
|
Φ76*4,000
|
Φ89*5,000
|
||||||
|
tank volume (L)
|
250
|
250
|
300
|
480
|
480
|
||||
|
Weight (kg)
|
7,150
|
8,630
|
8,860
|
10,000
|
13,640
|
15,000
|
|||
|
Dimensions (mm)
|
7,480*2,300*2,750
|
9,000*2,360*3,000
|
11,200*2,360 *3,100
|
||||||
