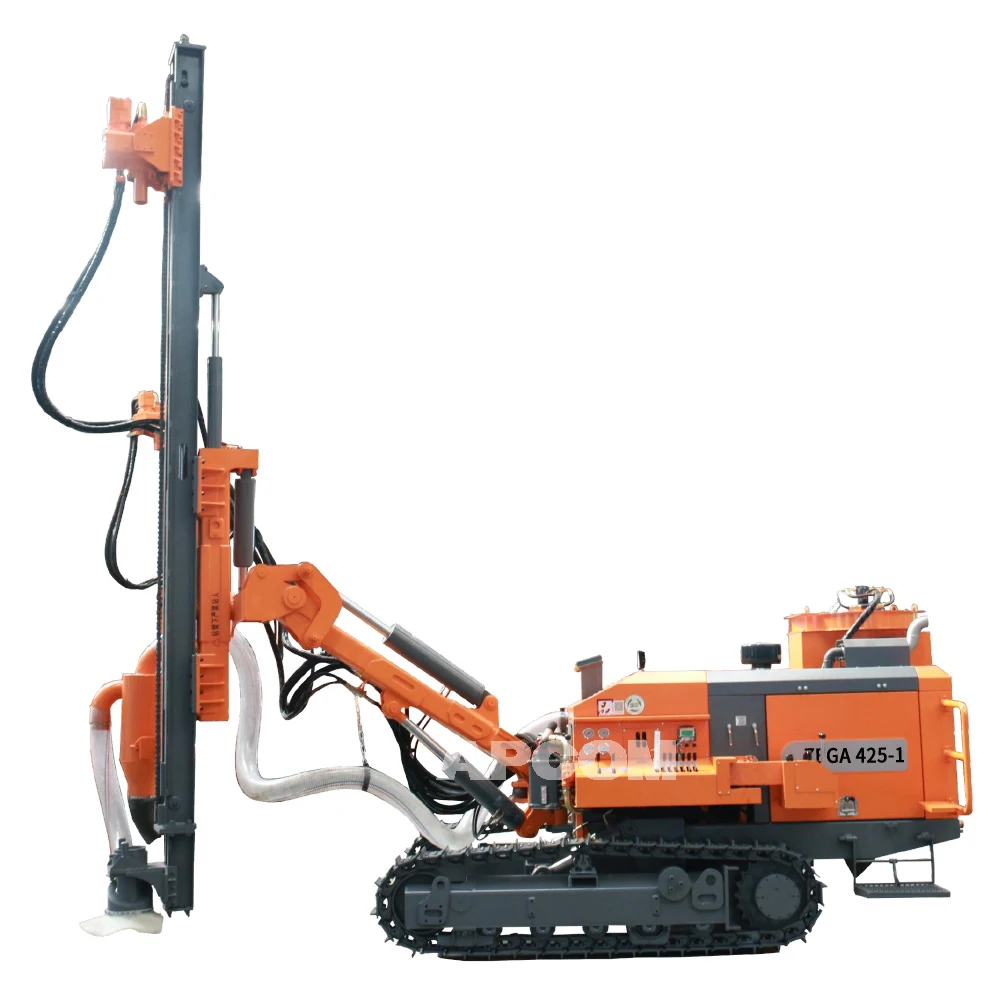

ZEGA 425 VIALVV Portable Rock Diamond Rotary Drill Rig Core Component Engine for Borehole Blasting Mining Drilling
ZEGA 425 VIALVV Portable Rock Diamond Rotary Drill Rig Core Component Engine for Borehole Blasting Mining Drilling - Image 2
ZEGA 425 VIALVV Portable Rock Diamond Rotary Drill Rig Core Component Engine for Borehole Blasting Mining Drilling - Image 3
ZEGA 425 VIALVV Portable Rock Diamond Rotary Drill Rig Core Component Engine for Borehole Blasting Mining Drilling - Image 4
ZEGA 425 VIALVV Portable Rock Diamond Rotary Drill Rig Core Component Engine for Borehole Blasting Mining Drilling - Image 5
ZEGA 425 VIALVV Portable Rock Diamond Rotary Drill Rig Core Component Engine for Borehole Blasting Mining Drilling - Image 6

ZEGA 425 VIALVV Portable Rock Diamond Rotary Drill Rig Core Component Engine for Borehole Blasting Mining Drilling

ر.س460.84 – ر.س804.84

Qty:
Print Send to a friend
SKU: 212227418019181 Categories: , , , ,


Separated DTH Surface Drill Rig ZEGA-425-1

Mode
ZEGA 420T
ZEGA 420T-1
ZEGA 425-1
ZEGA 430
ZEGA 430-1
Engine
Yuchai/73.5
Rotation torque
3200 N.m
3500 N.m
Drilling hole diameter
Φ90-138 mm
Φ115-152 mm
DTH hammer
4″
Drilling rod
Φ76*3,000 mm
tank volume
70 L
80 L
110 L
dust collector
No
Yes
Yes
No
Yes
Weight
5280 kg
6230 kg
6460 kg
Dimensions
5,420*2,308*2,500 mm
7,000*2,250*2,700 mm
7,120*2,450*3,540 mm

24 hours for you

WhatsApp: +86 137 0579 6425

WhatsApp: +86 137 0579 6425

WhatsApp: +86 137 0579 6425

Chinese Diesel Engine Compressor
Separated DTH surface Drill Rig without Air Compressor
(Model with -1 with dust collector)
Mode
Engine
Rotation torque
Drilling hole diameter
DTH hammer
Drilling rod
tank
Weight
Dimensions
CLICK ON
(kW)
(N.m)
(mm)
(mm)
(L)
(kg)
(mm)
ZEGA 412B
Yuchai/58
1,650
Φ90-115
3.5″
Φ60*2,000
115
3,850
4,450*2,080*2,460
ZEGA 412B-1
Yuchai/58
1,650
Φ90-115
3.5″
Φ60*2,000
115
3,850
4,450*2,080*2,460
ZEGA 416T
Yuchai/58
2,200
Φ90-127
4″
Φ76*3,000
70
4,400
5,700*2,130*2,300
ZEGA 416T-1
Yuchai/58
2,200
Φ90-127
4″
Φ76*3,000
70
4,400
5,700*2,130*2,300
ZEGA 420B
Yuchai/58
2,200
Φ90-127
4″
Φ76*3,000
70
4,400
5,700*2,130*2,300
ZEGA 420B-1
Yuchai/58
2,200
Φ90-127
4″
Φ76*3,000
70
4,400
5,700*2,130*2,300
ZEGA 420T
Yuchai/73.5
3,200
Φ90-138
4″
Φ76*3,000
70
5,280
5,420*2,308*2,500
ZEGA 420T-1
Yuchai/73.5
3,200
Φ90-138
4″
Φ76*3,000
70
5,280
5,420*2,308*2,500
ZEGA 425-1
Yuchai/73.5
3,200
Φ90-138
4″
Φ76*3,000
80
6,230
7,000*2,250*2,700
ZEGA 430
Yuchai/73.5
3,500
Φ115-152
4″
Φ76*3,000
110
6,460
7,120*2,450*3,540
ZEGA 430-1
Yuchai/73.5
3,500
Φ115-152
4″
Φ76*3,000
110
6,460
7,120*2,450*3,540
ZEGA 431
Yuchai/73.5
3,500
Φ115-152
4″
Φ76*3,000
156
7,340
7,000*2,300*2,800
ZEGA 845-1
Yuchai/73.5
3,500
Φ115-165
4″
Φ76*3,000
156
7,460
7,000*2,300*2,800
Anchor drill rig without Air Compressor
(diesel-electric dual power) Electric Motor 55KW
Mode
Engine
Rotation torque
Drilling hole diameter
DTH hammer
Drilling rod
Tank
Weight
Dimensions
CLICK ON
(kW)
(N.m)
(mm)
(mm)
(L)
(kg)
(mm)
ZEGA 420ST
Yuchai/58
5,000
Φ90-203
4″
Φ76*3,000
80
5,340
6,500*2,280*2,400
ZEGA 425S
Yuchai/73.5
5,600
Φ110-203
4″
Φ76*3,000
105
7,070
6,900*2,270*2,210
ZEGA 430S
Yuchai/73.5
8,000
Φ110-250
5″
Φ76*3,000
105
6,870
7,300*2,280*3,000
ZEGA 435S
Yuchai/73.5
8,000
Φ110-250
5″
Φ76*3,000
105
8,030
7,300*2,370*2,700
DTH surface Drill Rig with Air Compressor
Mode
Engine
Rotation torque
Drilling hole diameter
DTH hammer
Drilling rod
tank
Compressor
F.A.D
Compressor
Pressure
CLICK ON
(kW)
(N.m)
(mm)
(mm)
(L)
(m3/min)
(bar)
ZEGA 421TA
Yuchai / 162
1,500
Φ90-127
3.5″
Φ60*3,000
250
12
18
ZEGA 421H
Yuchai / 162
1,500
Φ90-127
3.5″
Φ60*3,000
250
12
18
ZEGA 452T
Yuchai / 191
2,200
Φ90-138
4″
Φ76*3,000
300
15
18
ZEGA 452H
Yuchai / 191
2,200
Φ90-138
4″
Φ76*3,000
300
15
18
ZEGA 453T
Weichai / 220
2,800
Φ90-138
4″
Φ76*4,000
480
18
22
ZEGA 454T
Cummins/ 264
4,000
Φ115-152
5″
Φ89*5,000
480
20
22
Tophammer Surface Drill Rig with Air Compressor
Mode
Engine
Drifter model
Drifter power
Drilling hole diameter
Drilling rod
tank
Compressor
F.A.D
Compressor
Pressuer
CLICK ON
(kW)
(kW)
(mm)
(mm)
(L)
(m3/min)
(bar)
ZEGA 650A
Cummins/119
ZY103
15
Φ45-102
T38/T45*3660
280
5
8
ZEGA 655
Cummins/154
ZY104H
20
Φ64-115
T45/T51* 3660
340
7
8
Cummins Engine Drill Rig
Cummins Engine Blasting Drilling Rig for Mine

Model
Click on

Borehole
Diameter

Drill
depth

DTH
 Hammer

Pipe

Cummins
Power

Cummins
Model

Air
Compresor
Automatic Rod Change

V3

90-130mm

30m

3.5-4 inches
68*3m
76*3m

154kw

QSB5.9-C210
16bar
500cfm
/

V3A

90-130mm

21m

3.5-4 inches

76*3m

154kw

QSB5.9-C210
16bar
500cfm

6+1

V5

90-138mm

21m

3.5-4 inches

76*3m

194kw

QSC8.3-C260
17bar
550cfm

6+1

V6

90-138mm

21m

3.5-4 inches

76*3m

194kw

QSC8.3-C260
20bar
650cfm

6+1

V7

90-138mm

21m

3.0-4 inches

76*3m

264kw

QSL8.9-C360
18bar
550cfm
6+1
Cabin

V8

90-138mm

32m

3.0-4 inches

89*4m

264kw

QSL8.9-C360
20bar
700cfm
7+1
Cabin
Atlas Copco Top Impactor Mining Drilling Rig with Cummins Engine
Model
Click on

Hole

Depth

Drill pipe

Compresor
Cummins
Power

Impactor parameter

Note

T5

45-90mm

25m
T38
T45
8bar 220cfm

134kw
Epiroc
YYG14L
145bar
30kN

Cabin

T7

76-115mm

25m

T51
9bar 370cfm

194kw
AtlasCopco RD18S
200bar
20kN

Cabin

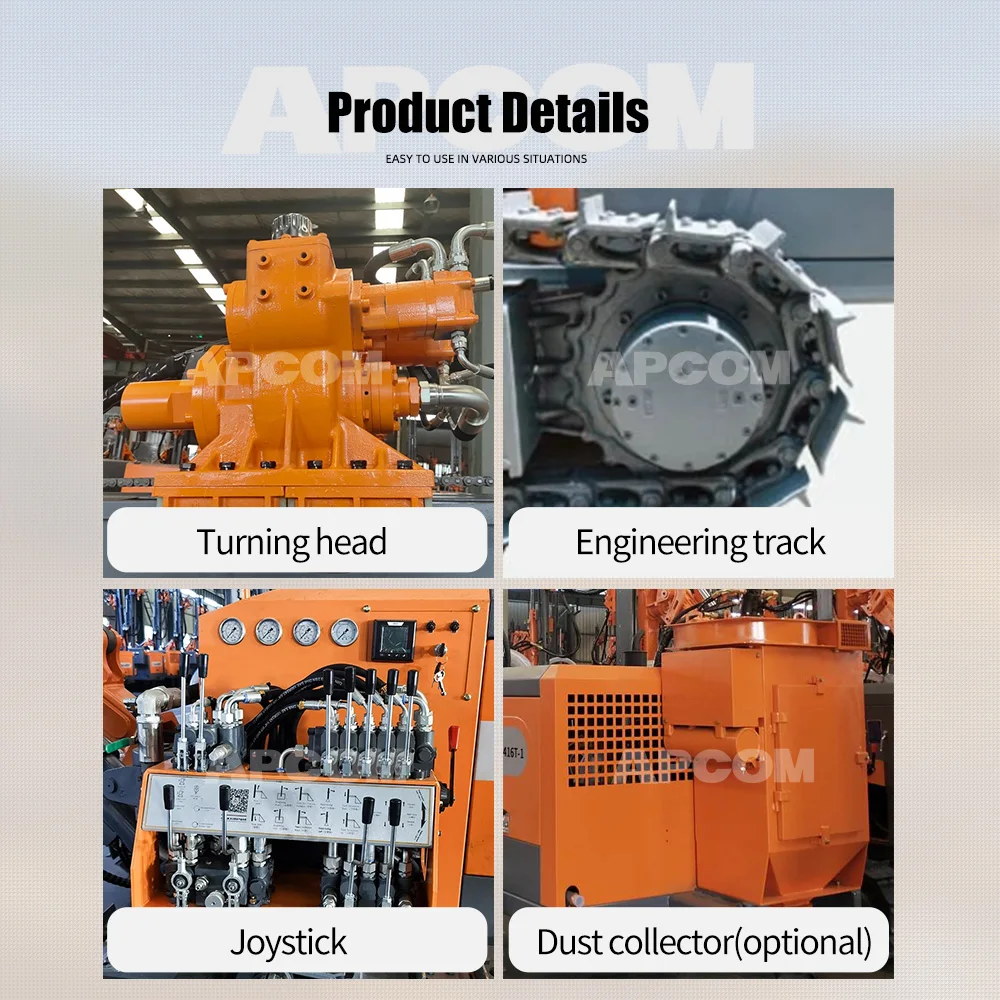

Product Details
Consttruction case
VR Showroom Online

VR
