ultrasonic water flow meter clamp on flowmeters transducer 1.0% rs232 handheld ultrasonic flow meter

ر.س2,195.87

Clear
Qty:
Compare

Request quotation for: ultrasonic water flow meter clamp on flowmeters transducer 1.0% rs232 handheld ultrasonic flow meter



Product Description

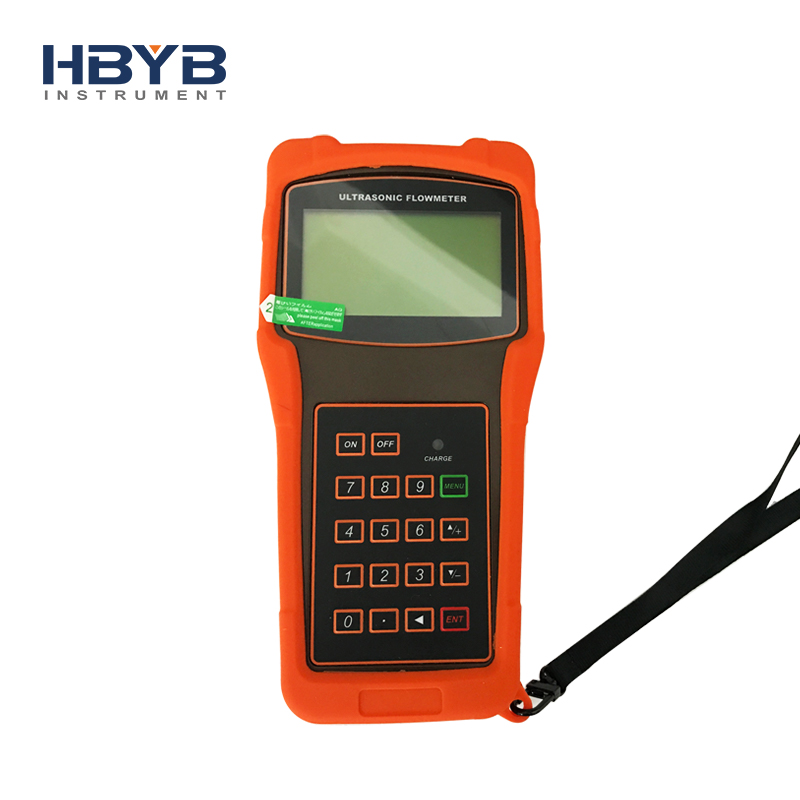

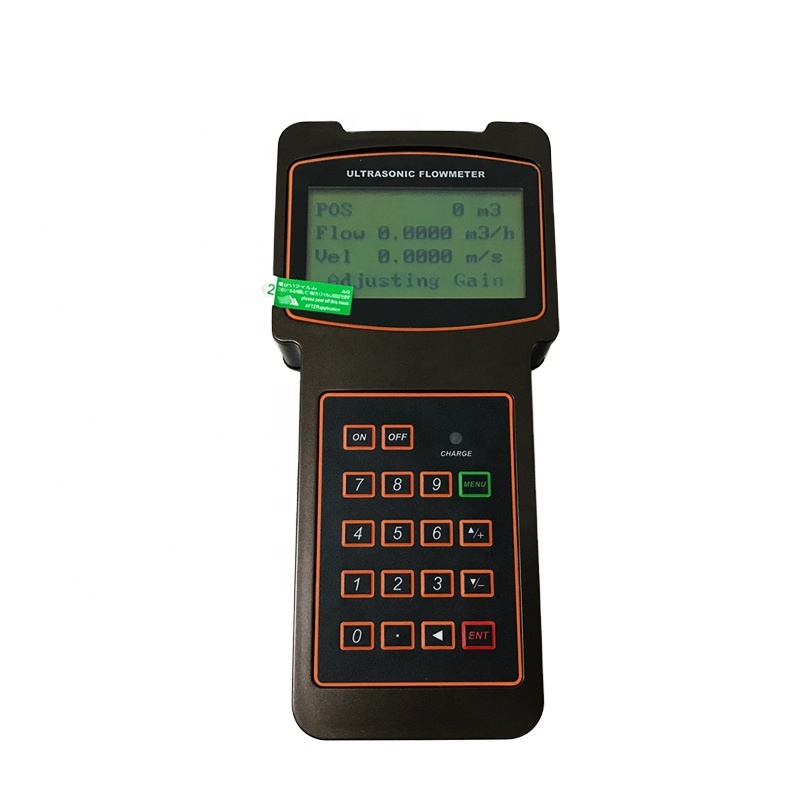

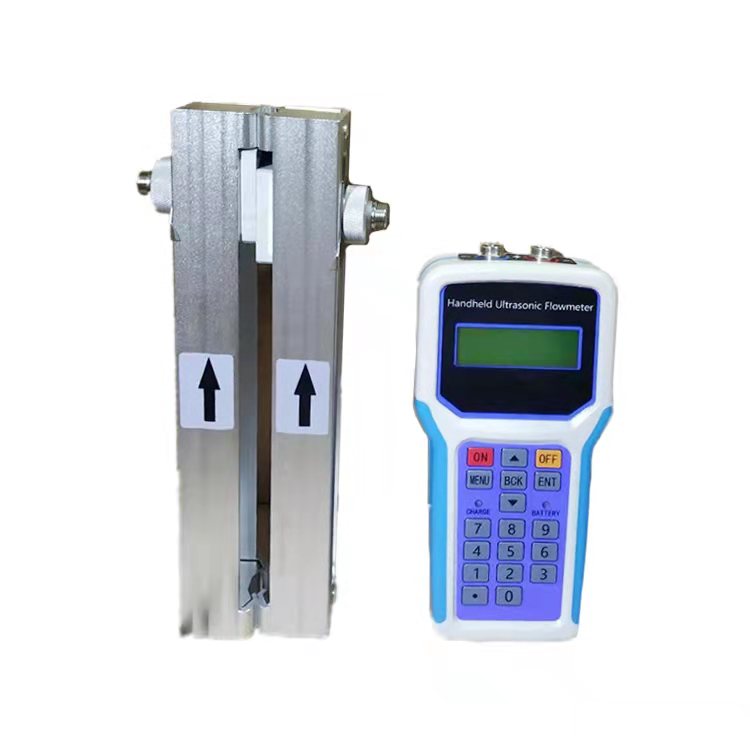

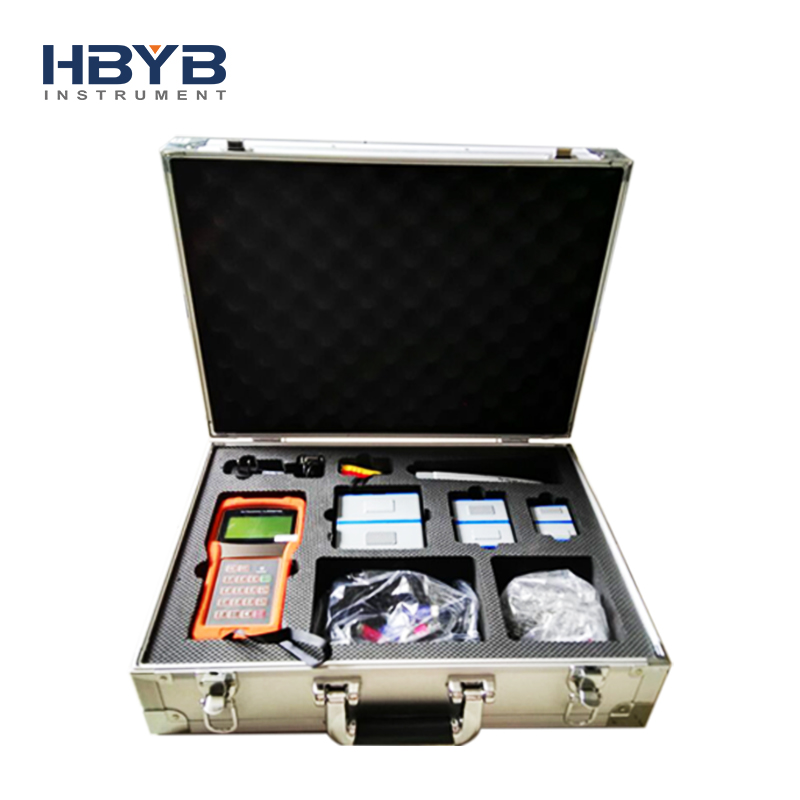

Detailed Images






Product Functions


Measuring principle ultrasonic time difference principle
Measuring range 0~±10m/s
Accuracy better than±1%
Display 2*10 Chinese backlit Chinese characters or 2*20 character LCD, supports Chinese, English and Italian languages
Flow direction positive and negative two-way metering, and meter positive, negative, net cumulative flow/heat
Data interface RS485 serial interface, the flowmeter can be upgraded through PC computer, support Modbus and other protocols
Data recording external SD card data storage, can store time, instantaneous flow, cumulative flow, etc. and can import data into the computer
Signal output 4-20 mA output, OCT pulse output, relay output
Signal input 3 channels of 4-20 mA analog input, accuracy of 0.1% can collect signals such as temperature, pressure and liquid level, 2 channels of three-wire PT100 platinum resistance, to achieve heat
Power supply mode built-in Ni-MH rechargeable battery, can work continuously for 15-20 hours
Measuring medium water, sea water, sewage, alcohol and other single, uniform and stable liquids that can conduct ultrasonic waves
Medium turbidity ≤20000ppmand the bubble content is small
Applicable pipe Carbon steel, stainless steel, cast iron, copper, PVC, aluminum,Homogeneous and dense pipes such as glass fiber reinforced plastics can be lined
 Straight pipe section  the sensor installation point is best to meet: upstream 10D, downstream 5D, 30D from the pump outlet






Company Information










About us






Certifications











FAQ



1. Are you a manufacturer?
—We are manufacturer with 10 years experience!Welcome to visit our factory at any time.

2. How about the delivery time ?
—Around 3 working days for standard products. For customized orders, it takes about 10-15 days.

3. Do you accept OEM business?
—We do OEM .

4.Do you have ISO certificate?
— Yes, we have ISO, also CE, and Calibrate certificate.

Accuracy

1.0%

Size

DN6-DN300

Material

Medium sensor
