Name: Ultrasonic Water Flow Calorimeter/Water Flow Totalizer Meter
SKU: 555550019181
Price: 2305.55 SAR
Availability: InStock

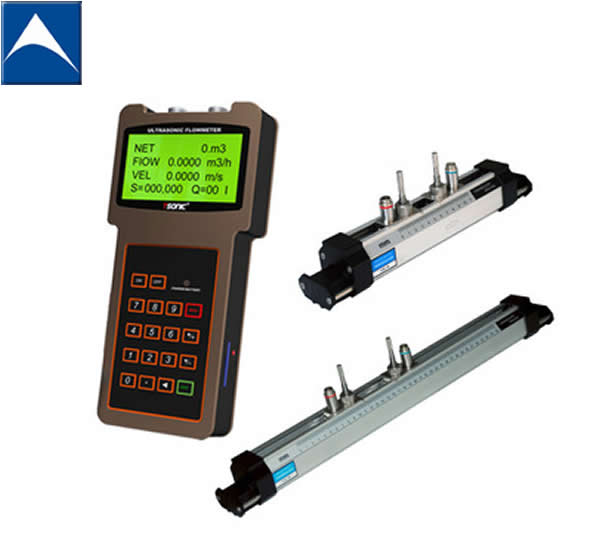

Ultrasonic Water Flow Calorimeter/Water Flow Totalizer Meter

ر.س2,305.55

Compare

Request quotation for: Ultrasonic Water Flow Calorimeter/Water Flow Totalizer Meter

flujometro ultrasonic flujo de medidor ultrasonic liquid flow sensor

♦ Features:

1.Linearity: 0.5%, Repeatability: 0.2%, Accuracy: ±1%

2.Easy to operate.

3.Several type transducers for selection, measuring pipe size is from DN15mm to DN6000mm

4.Adopt low voltage, multi-pulse technology to improve accuracy, useful life and reliability.

5.Powerful Recording Function, record the totalizer data of the last 64 days/64 months/5 years.

♦ Application:

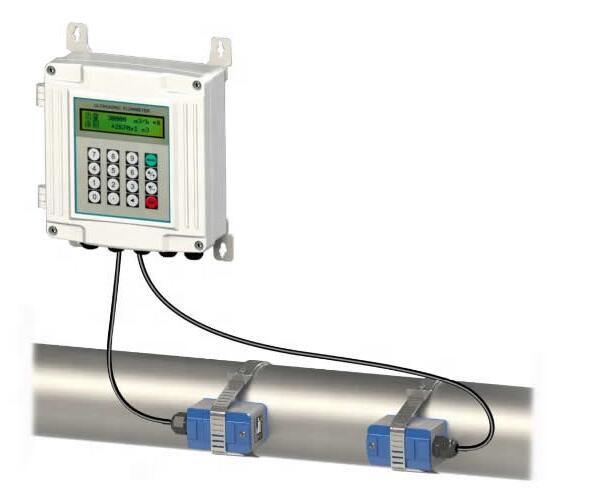

Clamp on flowmeter can be applied to a wide range of pipe flow measurements. Applicable liquids include pure liquids as well as liquid with small quantity of tiny particles.

Examples are:

1.Water (hot water, chilled water, city water, sea water, waste water, etc.);

2. Sewage with small particle content;

3. Oil (crude oil, lubricating oil, diesel oil, fuel oil, etc.);

4. Chemicals (alcohol, acids, etc.);

5. Plant effluent;

6. Beverage, liquid food;

7. Ultra-pure liquids;

8. Solvents and other liquids

♦ Paramters

Repeatability	Better than 0.2%
Accuracy	±1% of reading at rates>0.2 mps
Response Time	0-999 seconds, user-configurable
Velocity	±32 m/s
Totalizer	7-digit totals for net, positive and negative flow respectively
Liquid Types	Virtually all liquids
Security	Setup values Modification Lockout. Access code needs unlocking
Display	4×8 Chinese characters or 4×16 English letters, display instant flow, velocity, total flow, signal status
Signal output	Non-isolation RS232(FUJI extension protocol), one channel isolation OCT output
Transducers	Clamp on type transducers
Transducer Cord Length	Standard 2×10 meters, optional 2x 500 meters
Power Supply	3 AAA Ni-H built-in batteries. When fully recharged it will last over 12 hours of operation. 100V-240VAC for the charger
Data Logger	Built-in data logger can store over 2000 lines of data Housing Material ABS
Case Size	100x66x20mm
Handset Weight	514g (1.2 lbs) with batteries
