Tuya 1 Way audio wireless bullet ip66 4 camera nvr kit security surveillance 4 channel cctv camera set
  |
  |
Main functions of cctv system
1) 1080P H.265+, Plug&Play,2.0MP(1920*1080)
2) 3.6 mm, Lens,4pcs Array LED, IR distance 20M
3) Outdoor Waterproof
4) Wi-Fi Connection, Smartphone Access

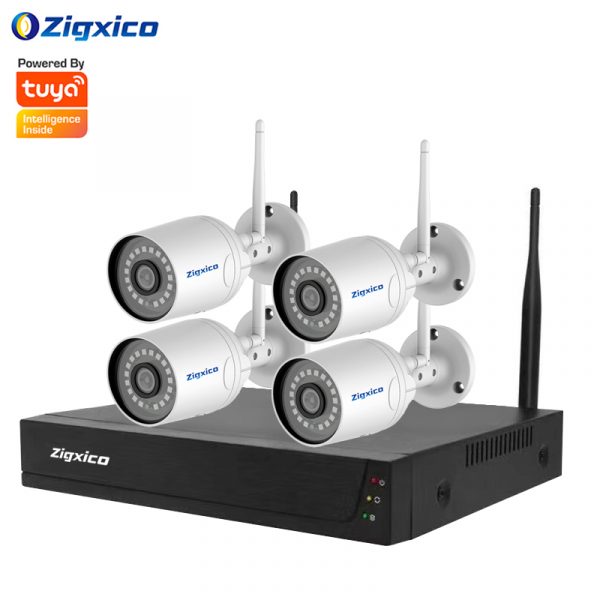

5) 1pc*4Channel NVR with 4pcs*2MP Bullet Cameras
| Operating System | Embedded Linux OS |
| Network Video | 4CH |
| Network video input broad bank | 10Mbps |
| HDMI input | 1ch,resolution:1024×768,1366×768,1440×900,1920x1080p |
| VGA output | 1ch,resolution:1024×768,1366×768,1440×900,1920x1080p |
| Video Resolution | 1080P |
| synch-playback | 4CH |
| Video/Capture mode | Manual,Time,Motion,Alarm |
| Playback mode | Real time,Routine,Event |
| Backup | USB backup |
| Alarm Input | 4ch (optional) |
| Alarm Output | 1ch (optional) |
| Type | 1*SATA interface |
| Max Capacity | 4 TB at most for each |
| Network Interface | 1 adaptable RJ45 10M/100M, 1 WIFI interface |
| USB Interface | 2 USB 2.0 |
| Protocol | UPnP (play&plug)/SMTP (email survice)/PPPoE (dial-up) |
| DHCP (Automatically obtain an IP address), etc… | |
| Power Supply | DC12V3A |
| Power Consumption (W) | ≤5W(Without HDD) |
| Operate Temperature (°C) | -10℃~+55℃ |
| Working Humidity (%) RH | 10%~90% |
| Size | 257mm(W)×210mm(V)×45mm(H) |
| Weight(excluding HDD) | ≤1Kg |
| Model | Wifi Camera |
| Sensor | 1/4” Progressive Scan Sensor |
| Signal System | PAL/NTSC |
| Resolution | 1080P; 1920 x 1080 16 : 9 High Defination |
| Minimum illumination | Color: 0.1 Lux; B/W: 0.01 Lux |
| Shutter | 1/25s to 1/25,000s |
| Lens | 3.6/4/6mm (optional) |
| OSD | Date Time & Title |
| White Balance | Auto |
| Day&Night | Auto / Color / BW |
| 3D-DNR | Auto |
| Mirror/Flip | On / Off |
| Frame Specification | Three Streaming at the Same Time: |
| H.264 1920×1080@30fps or below | |
| H.264 1920×1080@30fps or below | |
| S/N | > 39.1 Db |
| Interface | RJ45 / WIFI 802.11b/g/n |
| General Specification | |
| Anti-thunder Level | Standard IEC61000-4-5 |
| Ambient | -10℃ to +50℃ / 30% to 80% RH |
| Temperature/Humidity | |
NVR camera kit system packing details
2.45kg/set; Color box size: 282x155x256mm; Carton size:485x295x545mm
(6sets/carton, 15.7kg/ctn)
OEM Services: Customized (Silk print/metal) LOGO, Label, Packing box, Manual printing for customers.
Technical Support: With an outstanding CCTV professional team, we offer 24 hours/7 working days ONLINE technical support before & after sales.
Fast Delivery: Sample Order delivery within 3-5 days; Mass production with raw material in stock.
Quick Response: Your any question & inquiry will be responsed promptly within 12 hours.
Warranty: Five years warranty for all products. Moreover, we are pleased to repair products out of warranty with less charges.
Why Zigxico:
1. Super warranty for wireless IP camera NVR
1). 5 years warranty
2). 1% spare parts when order
3).Send new if confirmed that is quality problem.
2.OEM MOQ is just 10 pcs
FAQ for solar ptz camera:
1).Q:What is the MOQ?
A:MOQ is 1 pcs
2).Q:What is the delivery time?
A: In 15 days after payment for our brand goods.
In 30 days afterpayment for OEM goods
3).Q:Can we see by Mobile?
A:Yes,there is App for this camera.
