The JK-DR400 drilling rig with AC(Air Compressor) method is capable of drilling upto 219mm diameter holes for pore-forming purposes to a depth of 400 meters

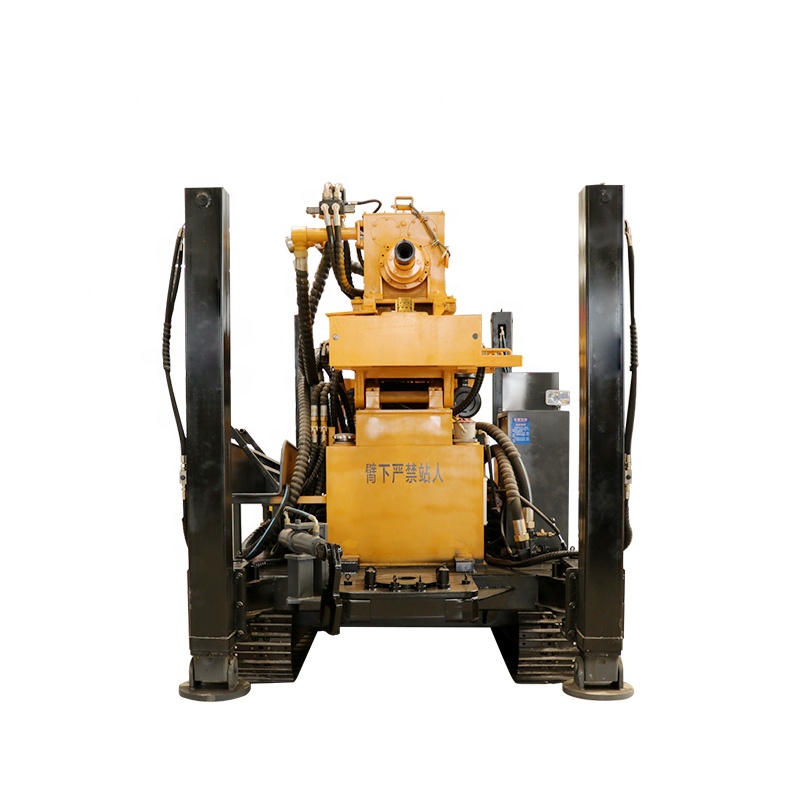

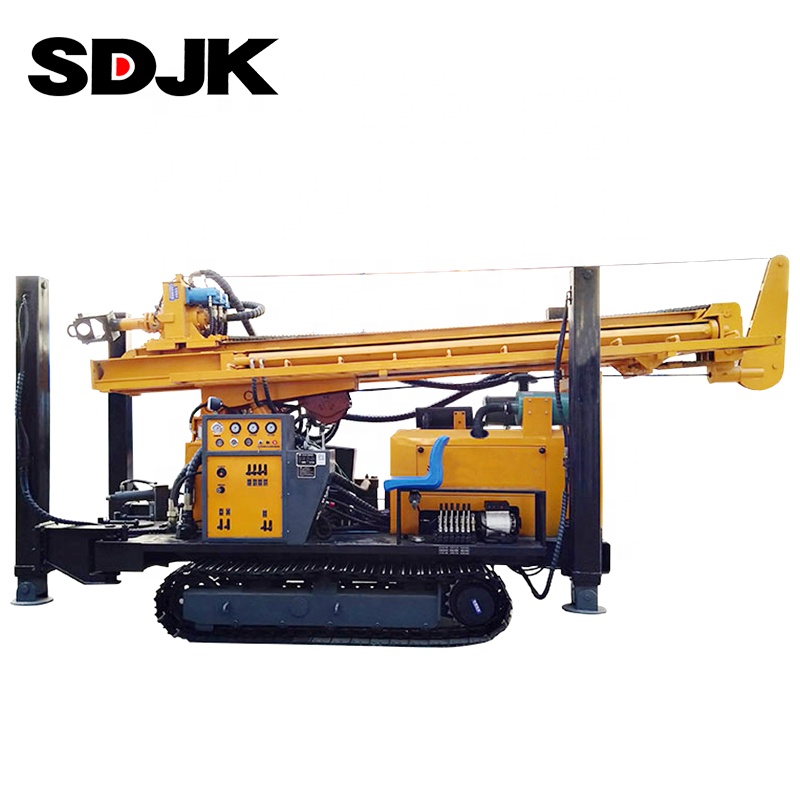

Product Display
Product Parameters
|
Model & Name
|
JK-DR400
|
|
Weight
|
10 Ton
|
|
Dimensions（mm）
|
5900*2100*2850mm
|
|
Power Oil
|
Diesel
|
|
Engine Model
|
YUCHAI
|
|
Rated Power
|
92 kW
|
|
Travelling System
|
Steel Crawler
|
|
Drilling depth
|
400m
|
|
Bore diameter
|
140-350mm
|
|
Drive Head Stroke
|
6.6m
|
|
Travelling speed
|
2.5km/h
|
|
Gradeability
|
30%
|
|
Rated pressure
|
1.7-3.5 MPa
|
|
Air consumption
|
17-35 m³/min
|
|
Drill rod diameter
|
Φ89 / Φ102 / Φ108 mm
|
|
Drill rod length
|
1.5m, 2.0m, 3.0m, 6.0m
|
|
Elevating capacity
|
25 Ton
|
|
Swing speed
|
45-115rpm
|
|
Swing torque
|
6500-9000 N.m
|
Product Details Display
Product Advantages
1.The engine uses YUCHAI 92 KW turbocharged engine;
2.Walking Type: crawler mounted ,trailer mounted for choice.
3.Hydraulic oil pump:Parallel gearbox design separates the oil pump unit, the power
supply is adequately distributed, the hydraulic system is uniquely designed, and the maintenance cost is small;
4.Rotary head device:gearbox integrated casting, dual motor power, large torque, durable, low maintenance costs;
5.Drilling machine chassis:professional digging chassis, durable, heavy bearing, wide chain plate, less damage to hard roads;
6.Lifting force:design composite tower, 6.6m long stroke, double cylinder lift capacity 25 ton .
supply is adequately distributed, the hydraulic system is uniquely designed, and the maintenance cost is small;
4.Rotary head device:gearbox integrated casting, dual motor power, large torque, durable, low maintenance costs;
5.Drilling machine chassis:professional digging chassis, durable, heavy bearing, wide chain plate, less damage to hard roads;
6.Lifting force:design composite tower, 6.6m long stroke, double cylinder lift capacity 25 ton .
7.Each rig is equipped with a relief valve to raise the boom to protect the cylinder and ensure work safety;
8.Each hydraulic oil pipe is covered with a protective jacket to make the oil pipe last longer.
