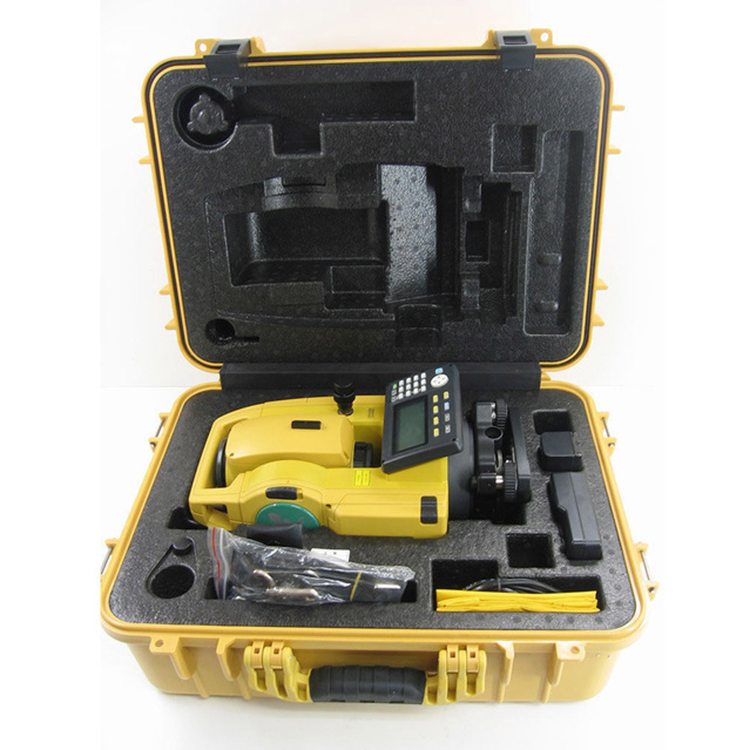

| Model | GTS-1002 |
| Telescope | |
| Magnification/Resolving power | 30X/2.5″ |
| Other | Length: 150mm, Objective aperture: 45mm (EDM:48mm), |
| Image: Erect, Field of view: 1°30′ (26m/1,000m), | |
| Minimum focus: 1.3m | |
| Angle measurement | |
| Display resolutions | 1″/5″ |
| Accuracy (ISO 17123-3:2001) | 2” |
| Method | Absolute |
| Compensator | Dual-axis liquid tilt sensor, working range: ±6′ |
| Distance measurement | |
| Laser output level | Non prism: 3R Prism/ Reflector 1 |
| Measuring range | |
| (under average conditions *1 ) | |
| Reflectorless | 0.3 ~ 350m |
| RS90N-K:1.3 ~ 500m | |
| Reflector | RS50N-K:1.3 ~ 300m |
| RS10N-K:1.3 ~ 100m | |
| Mini prism | 1.3 ~ 500m |
| One prism | 1.3 ~ 4,000m/ under average conditions *1 : 1.3 ~ 5,000m |
| Accuracy | |
| Reflectorless | (3+2ppm×D)mm |
| Reflector | (3+2ppm×D)mm |
| Prism | (2+2ppm×D)mm |
| Measurement time | Fine: 1mm: 0.9s Coarse: 0.7s, Tracking: 0.3s |
| Interface and Data management | |
| Display/keyboard | Adjustable contrast, backlit LCD graphic display / |
| With backlit 25 key (alphanumeric keyboard) | |
| Control panel location | On both faces |
| Data storage | |
| Internal memory | 10,000pts. |
| External memory | USB flash drives (maximum 8GB) |
| Interface | RS-232C; USB2.0 |
| General | |
| laser Designator | Coaxial red laser |
| Levels | |
| Circular level | ±6′ |
| Plate level | 10′ /2mm |
| Optical plummet telescope | Magnification: 3x, Focusing range: 0.3m to infinity, |
| Dust and water protection | IP66 |
| Operating temperature | “-20 ~ +60℃ |
| Size | 191mm(W)×181mm(L)×348mm(H) |
| Weight | 5.6kg |
| Power supply | |
| Battery | BT-L2 lithium battery |
| Working time | 25 hours |
