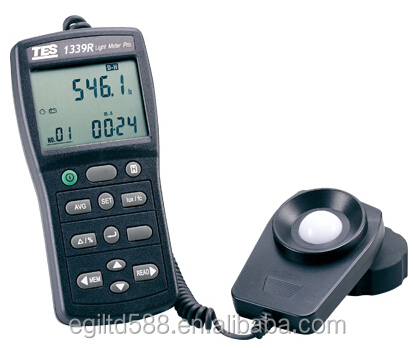

TES-1339R Data Logger Light Meter Tester 0.01 to 999900 Lux PC Data Record TES1339R
- Dual Display, 4-digit LCD reading.
- Spectral Sensitivity close to CIE photopic Curve.
- Measuring Levels Ranging 0.01 to 999900 Lux,0.001 to 92927 fc, Autoranging 5 step.
- Accurate and Instant response.
- Integral illuminance measurement.
- Luminous intensity measurement.
- Data Hold function.
- Data memory and read function.
- Data logger function.
- Reference value setting for relative or percentage deviation measurement.
- Ripple measurement for STRAY + LIGHT function.
- Time-hold function.
- Point – average function.
- Comparator function.
- Auto power off function.
- RS232 Interface.
- CNS 5119 Class 2
|
Display |
Dual display 4 digit LCD read out. |
|
Measuring Range |
99.99, 999.9, 9999, 99990, 999900 Lux |
|
Overrange Display |
OL is displayed |
|
Resolution |
0.01 Lux, 0.001 fc |
|
Accuracy |
± 3% rdg ± 5dgt (Calibrated to standard incandescent lamp, 2856° Κ ) |
|
CIE photopic f ‘ 1 |
< 6 % |
|
Temperature Characteristics |
± 0.1%/ C |
|
Measuring Rate |
Approximately 5 time/sec |
|
Photosensor |
Silicon photodiodes |
|
Data Memory Capacity |
99 sets. (Direct reading from LCD display) |
|
Data Logger Capacity |
40000 sets. |
|
Operating / Storage Conditions |
0 C ~ 50 C <80% RH |
|
Power Source |
6 pcs AAA size Battery |
|
Battery Life (typical) |
100 hours |
|
Photosensor Lead Length |
150 cm (approx.) |
|
Photosensor Dimensions |
92(L) × 60(W) × 29(H)mm |
|
Dimension |
150(L) × 72(W) × 35(H)mm |
|
Weight |
320g |
|
Accessories |
Carrying case, Instruction manual, CD software, RS232 Cable. |
