Product Description

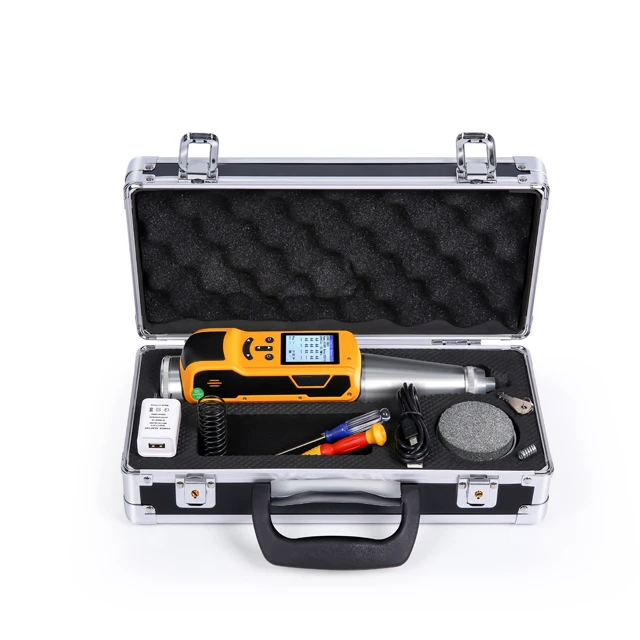

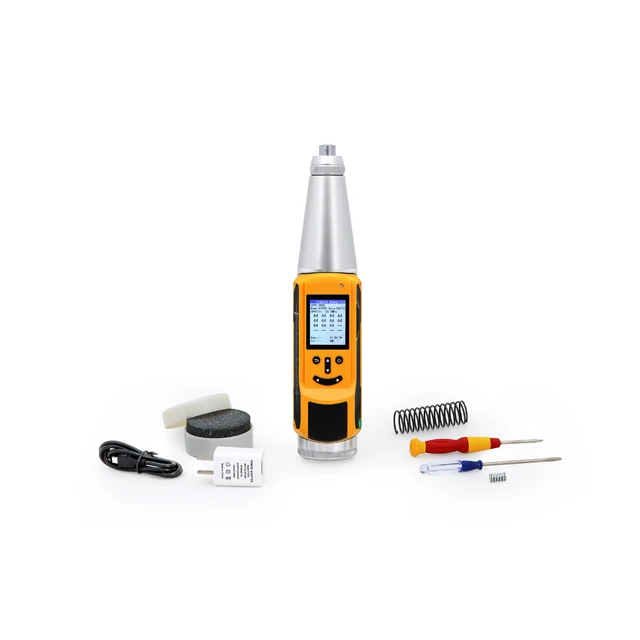

TEM-912 Digital Concrete test hammer / Schmidt hammer
TEM912 digital rebound tester, digital part adopts modular design and non-contact grating optocoupler sensor collection, with automatic recording, automatic storage, automatic calculation, automatic data processing; and voice broadcast; later data analysis and processing, according to the specifications automatically Data analysis, test report. It improves the work efficiency of rebound testing, reduces the labor intensity of testing personnel, embodies the scientificity, advancedness, fairness and accuracy of rebound testing, and leads non-destructive testing to a new stage of digitization and intelligence.
schelometer schemdit hammer for concrete test schmidt hammer manual concrete test hammer schmidt rebound hammer rebound hammer tester
Specification
|
Standard impact energy
|
2.207J
|
|
Rigidity of tension spring
|
785.0±40.0(N/m)
|
|
Pointer length:
|
20.0±0.2(mm)
|
|
Pointer friction
|
0.65±0.15(N)
|
|
Working length of bounce tension spring
|
61.5.0±0.3(mm)
|
|
Spherical radius of the end of the bounce rod
|
25±1.0(mm)
|
|
Impact Hammer Impact Length
|
75±0.3
|
|
Anvil rate setting
|
80±2(Our factory products are controlled between 80-81
|
|
Error range for digital displayer
|
<=+-1(the difference between displayer and scale)
|
|
Display
|
2.0inch （220×176 pixels ）
|
|
Output Mode
|
Cable (Update version have WIFI, Bluetooth)
|
|
Storage Capacity
|
2000 pcs, 640 thousand data
|
|
Turn off
|
Automatic turn off without operation
|
|
Power supply
|
3.7V Lithium battery, 1050 mA
|
|
Port
|
USB (update type Bluetooth and WIFI. )
|
|
Collection Mode
|
Automatic display and record data
|
|
Size(mm）
|
150×62×39
|
|
Weight（kg）
|
0.1kg（include battery）
|
|
Color
|
Yellow
|
|
Rebound Hammer type
|
Digital concrete test hammer
|
