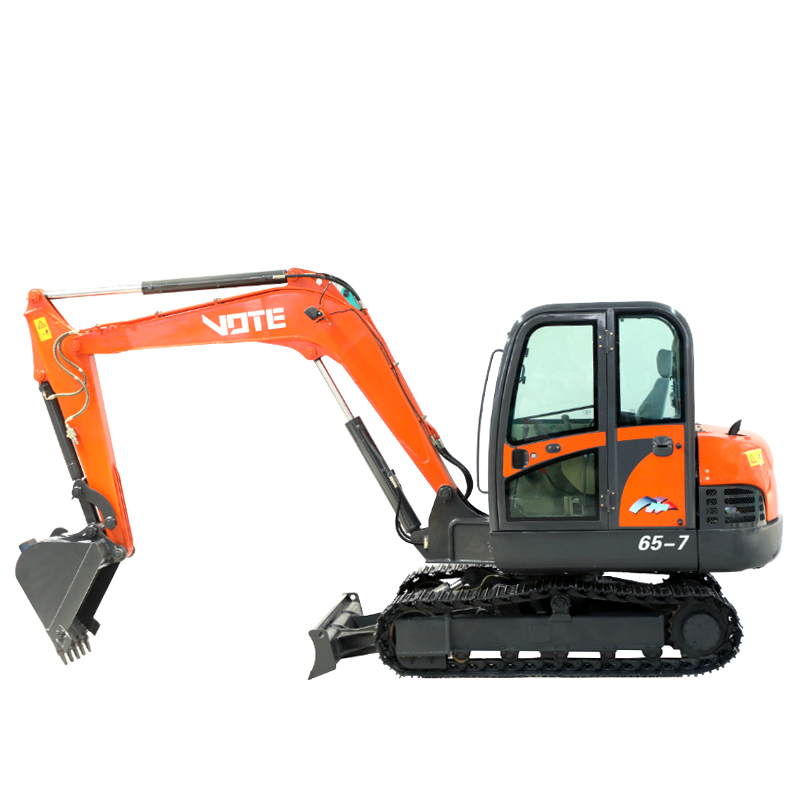

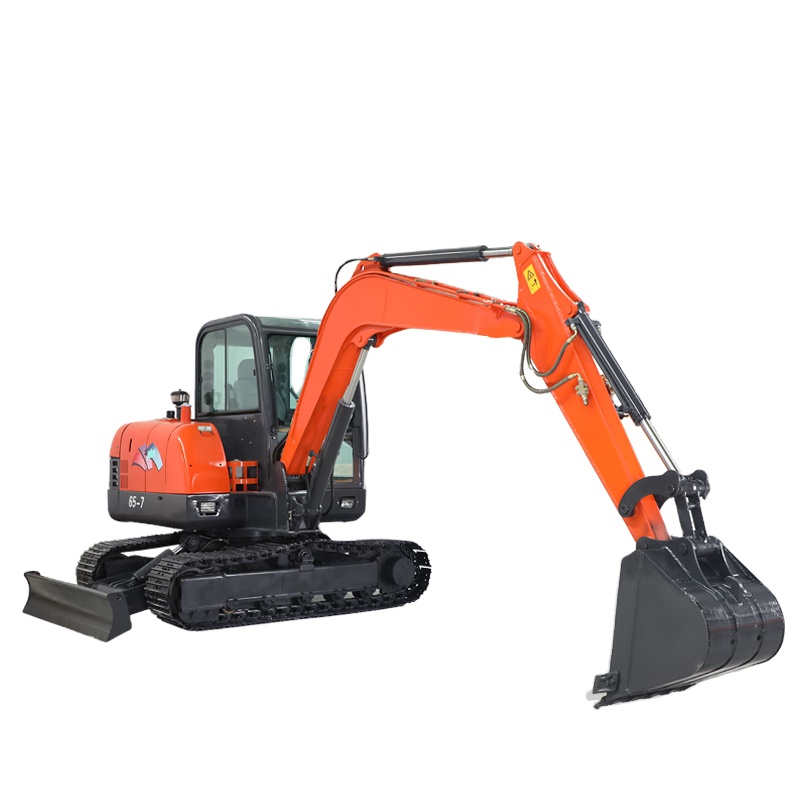

Sale Chinese mini excavator 6 ton high quality digger which equipped with mini excavator attachments
VOTE’S 6 ton crawler excavator which is highly-flexible, working either on-road or off-road, always provides versatility, allowing you to switch between the accessories you need.
Do more with one machine:
For many jobs requiring a mini excavator, digging is just the beginning. Attachments allow you to do more with a single machine – giving your business even greater versatility.

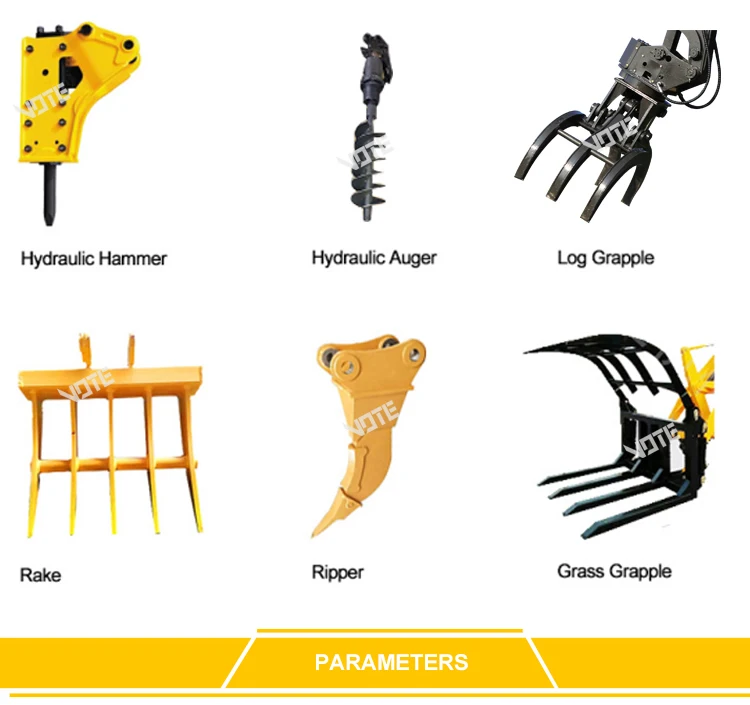

– Hydraulic Hammer
– Hydraulic Auger
– Log Grapple
– Rake
– Ripper
– Quick Coupler
VTW-60 Excavator with Grapple |
|
Model |
VTW-60 |
Moving type |
Crawler |
Engine system |
|
Engine |
Yanmar 4TNV94L Diesel Engine |
Rated power(kw) |
36.2 |
Rated speed (r/min) |
2200 |
Max. torque(N·m) |
20-22 |
Total displacement (L) |
3.054 |
Cylinder number(pcs) |
4 |
Cylinder diameter*stroke (mm) |
94*110 |
Performance parameters |
|
Operating weight(kg) |
5700 |
Lifting capacity(T) |
|
Travel speed(km/h) |
4.1 |
Turning speed (rpm) |
9.5 |
Ground pressure (Kpa) |
0.32 |
Gradeability(%) |
30 |
Bucket digging force(kN) |
44 |
Arm digging force(kN) |
28 |
Dimension |
|
Overall length*width*height ( mm) |
5875×1850×1980 |
Boom length (mm) |
3000 |
Arm length(mm) |
1600 |
Track length(mm) |
2540 |
Track width(mm) |
400 |
Back-end turning radius(mm) |
1650 |
Mini. ground clearance (mm) |
360 |
Counterweight ground clearance(mm) |
700 |
Working range |
|
Max. digging radius (mm) |
6160 |
Max. digging depth (mm) |
3805 |
Max. digging height (mm) |
5790 |
Max. discharge height(mm) |
4065 |
Oil Capacity |
|
Fuel tank capacity(L) |
115 |
Hydraulic oil tank capacity(L) |
73 |
Engine oil change capacity (L) |
11.6 |
Cooling liquid capacity (L) |
10 |
Hydraulic System |
|
Main pump type |
DOOSAN Variable axial plunger pump |
Main pump max. flow (L/min) |
2×60.5 |
Working hydraulic oil circuit (Mpa) |
22 |
Traveling hydraulic circuit (Mpa) |
21 |
Turning hydraulic circuit (Mpa) |
21 |
Boom cylinder-pcs*cylinder |
JAPAN NOK 1*115×60*719 |
Arm cylinder-pcs*cylinder |
JAPAN NOK 1*90×60*883 |
Powerful Engine and Hydraulics:
The 44 kw (60 hp) engine and perfectly matched hydraulics provide efficient, economical and reliable performance for the toughest of jobs. The matched cooling system is designed to accommodate working within confined areas and also the powerful hammer. Low noise and vibration levels deliver comfortable operation.

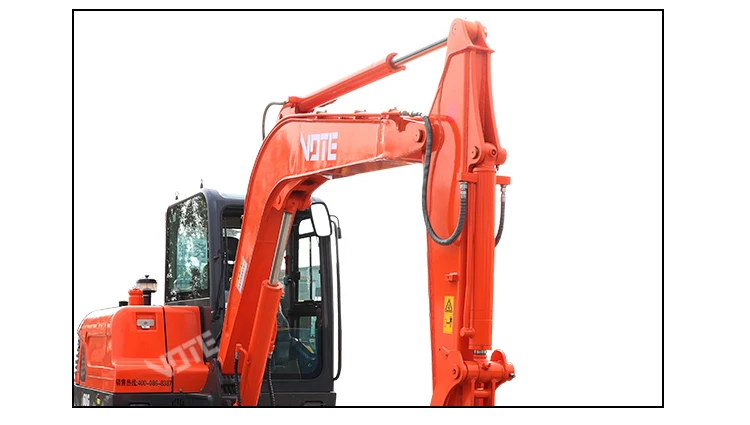

Hose and Cylinder Protection:
Bucket hoses are well protected within the boom and the cylinder is mounted above the structure to increase the machines durability for working in tough environments. The clean lines of the front linkage also provide excellent visibility to the digging area.

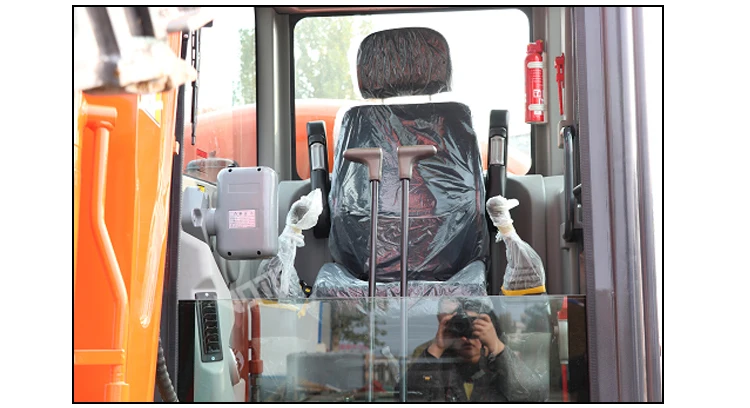

Simple Controls (Ease of Use):
The operator area is spacious and laid out to provide comfort and ease of operation. Smooth, precision operation of functions is possible from independent controls allowing all skill levels to be productive with little practice.
– Fuel-saving.
– Low-to-no maintenance.
– Modern design – low noise cabin.
– Dig deeper, reach further.
– Daily service checks from ground level.

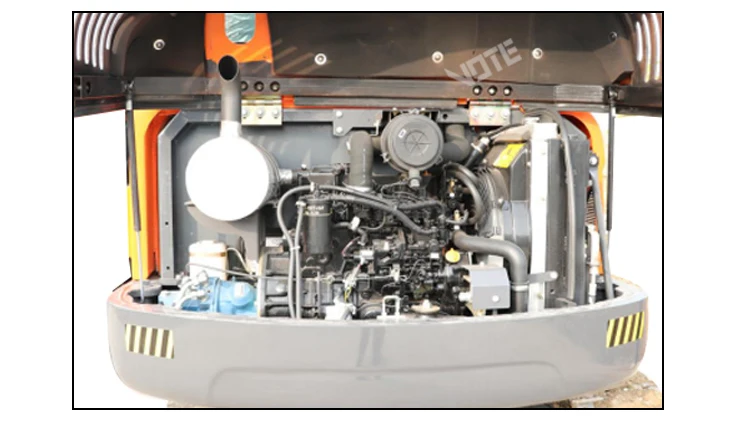

– Fully opening engine bonet for ease of servicing.
– Industry leading visibility to both front and rear of the machine.
– Less moving parts on loader frame reduces requirement for maintenance and premature wear.
Firstly, the machine is wrapped with the plastic film to reduce the wear. Then it is loaded into an international standard wooden box(or as customers requirements) and finally loaded into the container.
